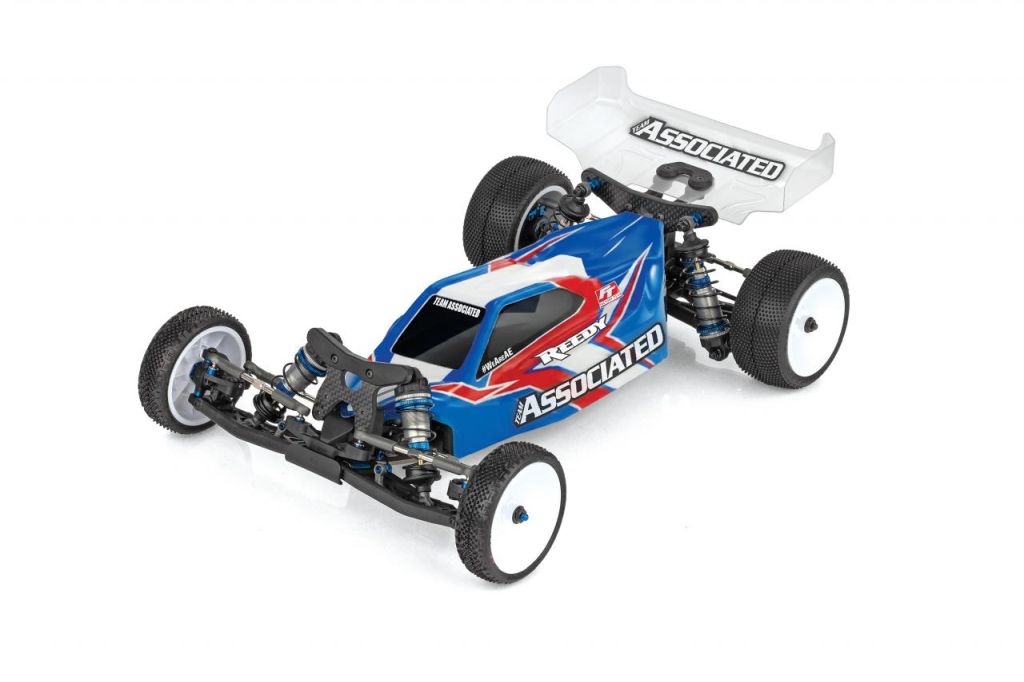

Team Associated RC10 B7.1 Team Kit 1:10 2WD Off-Road Electric Buggy 90046

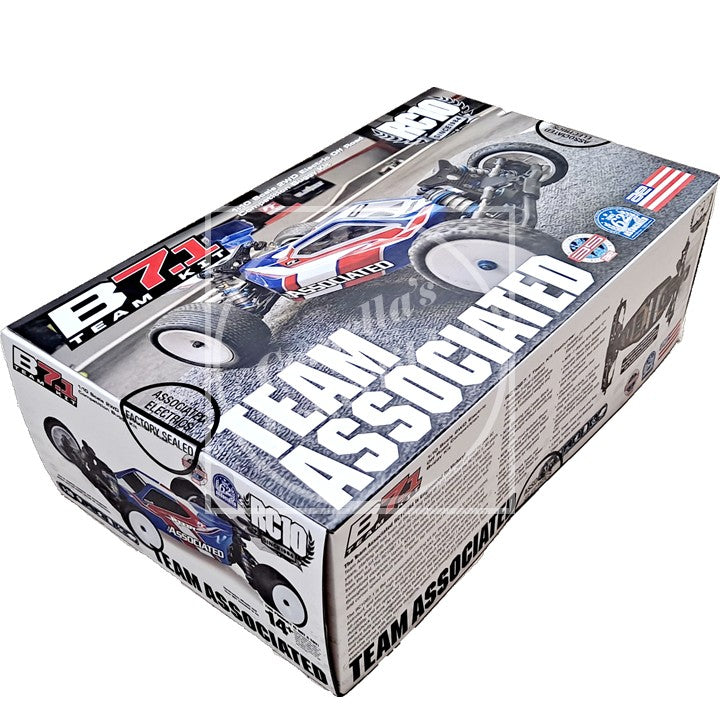

Team Associated RC10 B7.1 Team Kit 1:10 2WD Off-Road Electric Buggy 90046 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for broken factory seals.

Description:

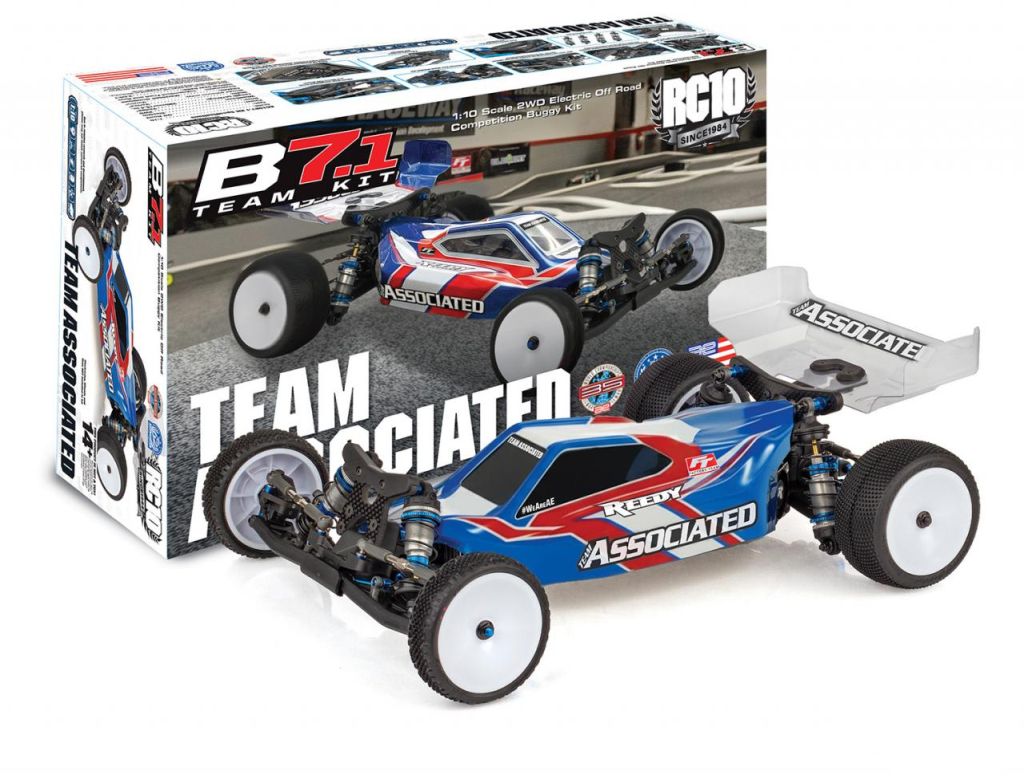

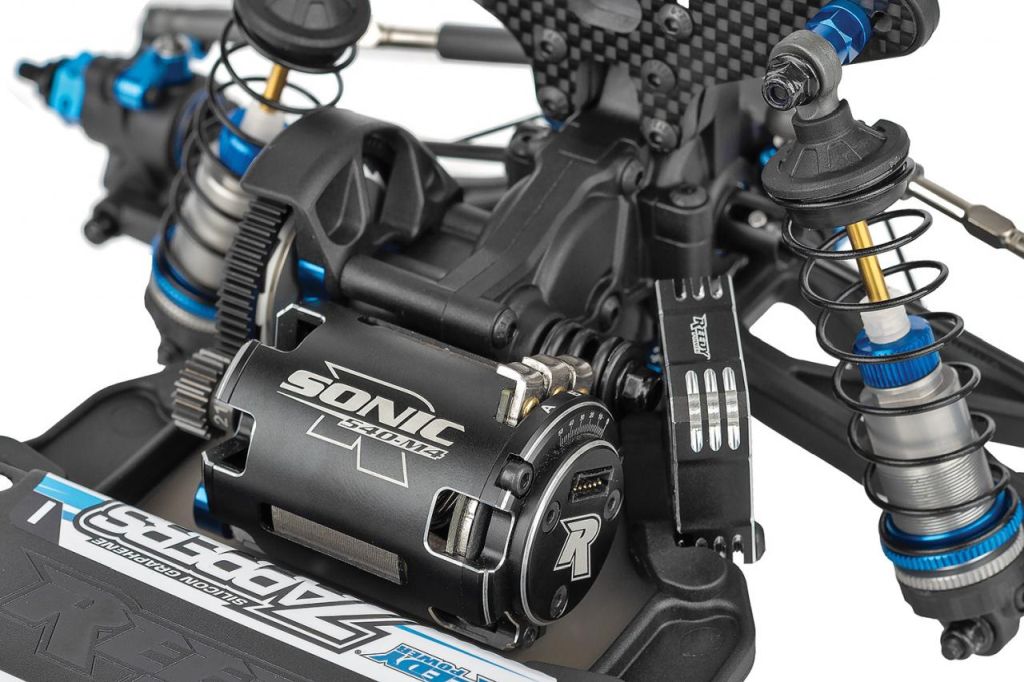

Note - This is an unassembled kit. Assembly, painting and additional items required. Due to ongoing development, photos may not match final kit. Vehicle shown on these pages are equipped with items NOT included in kit, such as: Reedy motor, battery, ESC, servo, receiver, wheels, tires, body, cooling fan, and pinion gear.

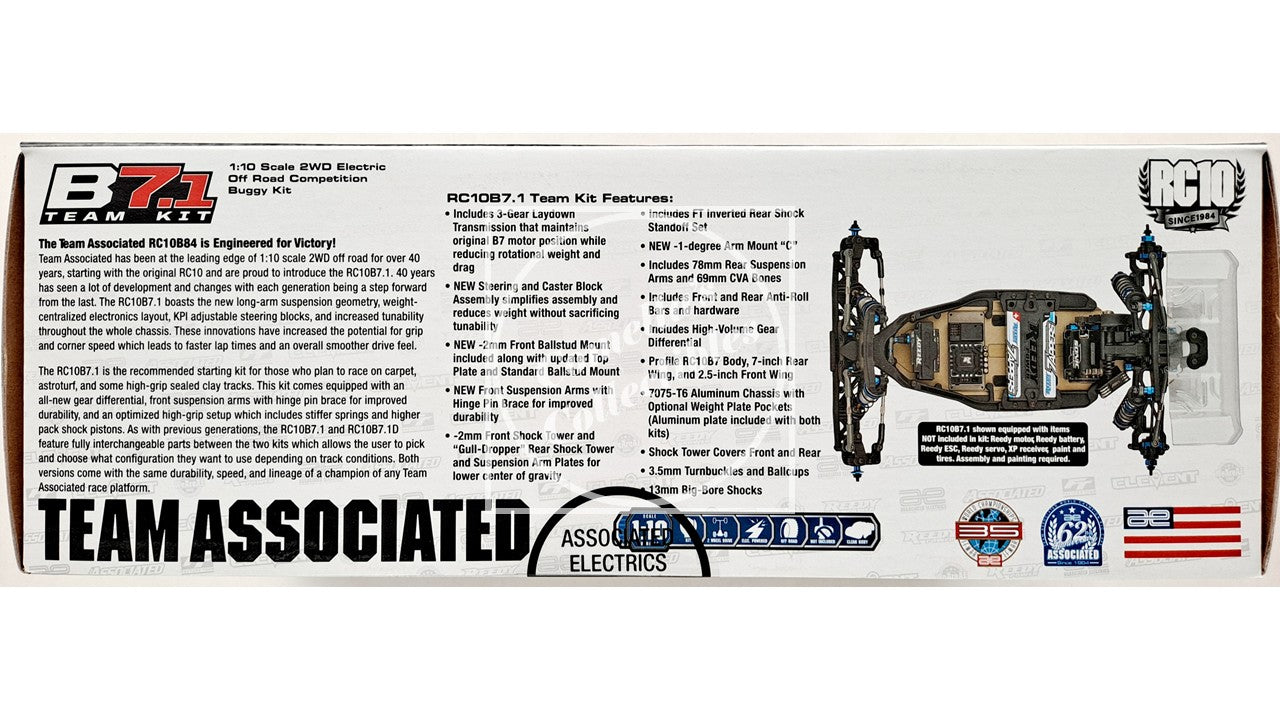

The RC10B7.1 is the recommended starting kit for those who plan to race on carpet, astroturf, and some high-grip sealed clay tracks. This kit comes equipped with an
all-new gear differential, front suspension arms with hinge pin brace for improved durability, and an optimized high-grip setup which includes stiffer springs and higher pack shock pistons. As with previous generations, the RC10B7.1 and RC10B7.1D feature fully interchangeable parts between the two kits which allows the user to pick and choose what configuration they want to use depending on track conditions. Both versions come with the same durability, speed, and lineage of a champion of any Team Associated race platform.

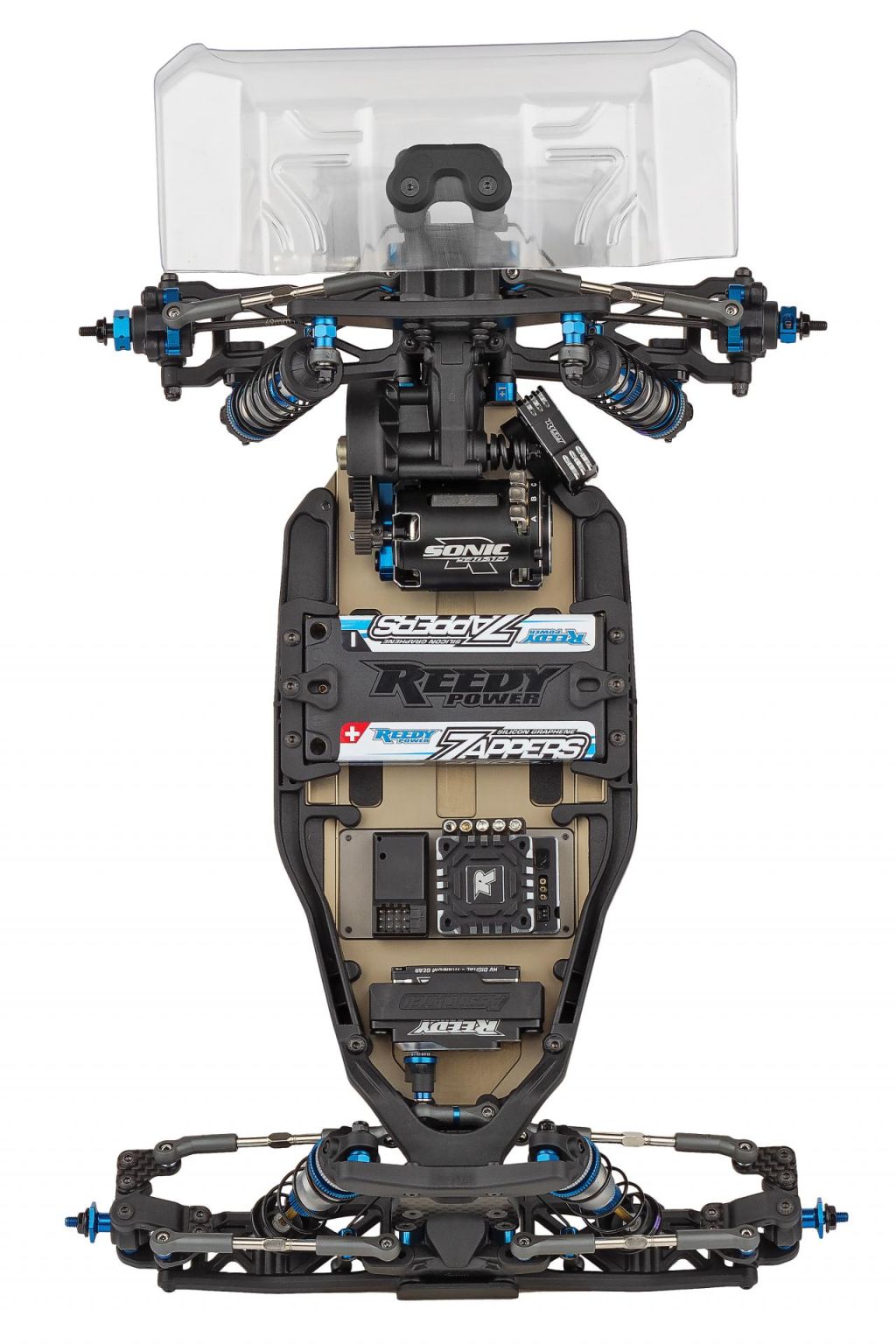

Team Associated has been at the leading edge of 1:10 scale 2WD off road for the last 40 years starting with the original RC10 and are proud to introduce this next generation RC10 to the world--the RC10B7. 40 years has seen a lot of development and changes, with each generation being a step forward from the last. The RC10B7 is no exception, boasting new long-arm suspension geometry, weight-centralized electronics layout, KPI adjustable steering blocks, and increased tunability throughout the whole chassis. These innovations have increased the potential for grip and corner speed, which leads to faster lap times and an overall easier-to-drive feel than the previous generation.

Team Associated has been at the leading edge of 1:10 scale 2WD off road for over 40 years, starting with the original RC10 and are proud to introduce the RC10B7.1. 40 years has seen a lot of development and changes with each generation being a step forward from the last. The RC10B7.1 boasts the new long-arm suspension geometry, weight-centralized electronics layout, KPI adjustable steering blocks, and increased tunability throughout the whole chassis. These innovations have increased the potential for grip and corner speed which leads to faster lap times and an overall smoother drive feel.

Features:

• Includes 3-Gear Laydown Transmission that maintains original B7 motor position while reducing rotational weight and drag

• NEW Steering and Caster Block Assembly simplifies assembly and reduces weight without sacrificing tunability

• NEW -2mm Front Ballstud Mount included along with updated Top Plate and Standard Ballstud Mount

• NEW Front Suspension Arms with Hinge Pin Brace for improved durability

• -2mm Front Shock Tower and “Gull-Dropper” Rear Shock Tower and Suspension
• Arm Plates for lower center of gravity

• Includes FT Inverted Rear Shock Standoff Set

• NEW -1-degree Arm Mount “C”

• Includes 78mm Rear Suspension Arms and 69mm CVA Bones

• Includes Front and Rear Anti-Roll Bars and hardware

• Includes High-Volume Gear Differential

• Low-Profile RC10B7 Body, 7-inch Rear Wing, and 2.5-inch Front Wing
  7075-T6 Aluminum Chassis with Optional Weight Plate Pockets (Aluminum plate included with both kits)

• Shock Tower Covers Front and Rear

• 3.5mm Turnbuckles and Ballcups

• 13mm Big-Bore Shocks

Specifications

• Power Source: Electric
• Terrain: Off-Road
• Body Style: Buggy
• Scale Size: 1:10 Scale
• Assembly Level: Kit
• Length: 390mm (15.35in)
• Width: varies
• Wheelbase: varies
• Weight: varies
• Drive: 2WD
• Internal Gear Ratio: 2.60:1

Required to Complete (Not included)

• 1:10 scale 540-size electric motor and electronic speed control

• 7.4V, 7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)

• Battery charger

• 2-channel surface transmitter

• 2-channel receiver

• Steering servo

• Lexan Body Paint - specific spray paint for body

• 1:10 scale off-road wheels and tires

• Other items: Silicone shock fluid, Silicone diff fluid, body scissors, body reamer, hex/nut driver set, CA tire adhesive, Hobby knife, Needle nose pliers, Wire cutters, Soldering iron, Calipers or precision ruler
