Team Associated 6056 RC10 4WD Jay Halsey Chain Drive Edition Kit

Team Associated RC10 4WD Jay Halsey Chain Drive Edition Kit #6056 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for broken factory seals.

Description:
Note - This is an unassembled kit. Assembly, painting and additional items required.

The RC10 Jay Halsey Chain Drive 4WD blends vintage styling with proven performance through a host of carefully engineered features.

A heavy-duty stainless-steel chain, hardened sprocket gears, carbon fiber chain separator, and adjustable chain tension system deliver reliable drivetrain performance, while front CVA axles, hardened driveshafts, and high-torque ball differentials enhance durability. Short front arm geometry, Worlds-style steering bell cranks, and long-travel fluid-filled aluminum shocks provide precise handling over rough terrain. Completing the package are a classic gold chassis, natural shock towers, RC10 Classic Protech body, Jay Halsey-style wing, full ball bearings, and compatibility with both 6-cell NiMH and 2S LiPo battery packs.

The RC10 Jay Halsey Chain Drive 4WD celebrates one of the most memorable cars in Team Associated history, inspired by the prototype chain-driven buggy raced by Jay Halsey at the inaugural 1985 IFMAR Off-Road World Championships in Del Mar, California. After winning the 2WD World Championship, Halsey drove the experimental 4WD buggy to an impressive second-place overall finish, showcasing the potential of Team Associated’s innovative four-wheel-drive design.

Though not an exact replica of Halsey’s original race car, this special edition combines the proven vintage RC10 4WD platform with the classic short-arm suspension and a nostalgic chain drivetrain. Blending classic styling with modern vintage engineering, it delivers an authentic driving experience while honoring one of the most influential machines in the history of competitive off-road RC racing.

The inaugural 1985 IFMAR Off-Road World Championships in Del Mar, California, marked a defining moment in the evolution of four-wheel-drive electric racing. Team Associated entered the event with an experimental chain-driven 4WD prototype piloted by newly crowned 2WD World Champion Jay Halsey.

Built to explore the advantages of four-wheel-drive traction and performance, the innovative buggy showcased impressive speed, handling, and durability against the world’s top competitors. Halsey’s exceptional driving earned him a second-place overall finish in the 4WD class, proving the potential of Team Associated’s ground-breaking design. While still a prototype, the chain-drive buggy became an important milestone in RC racing history and helped inspire the continued development of high-performance four-wheel-drive competition vehicles

Features:

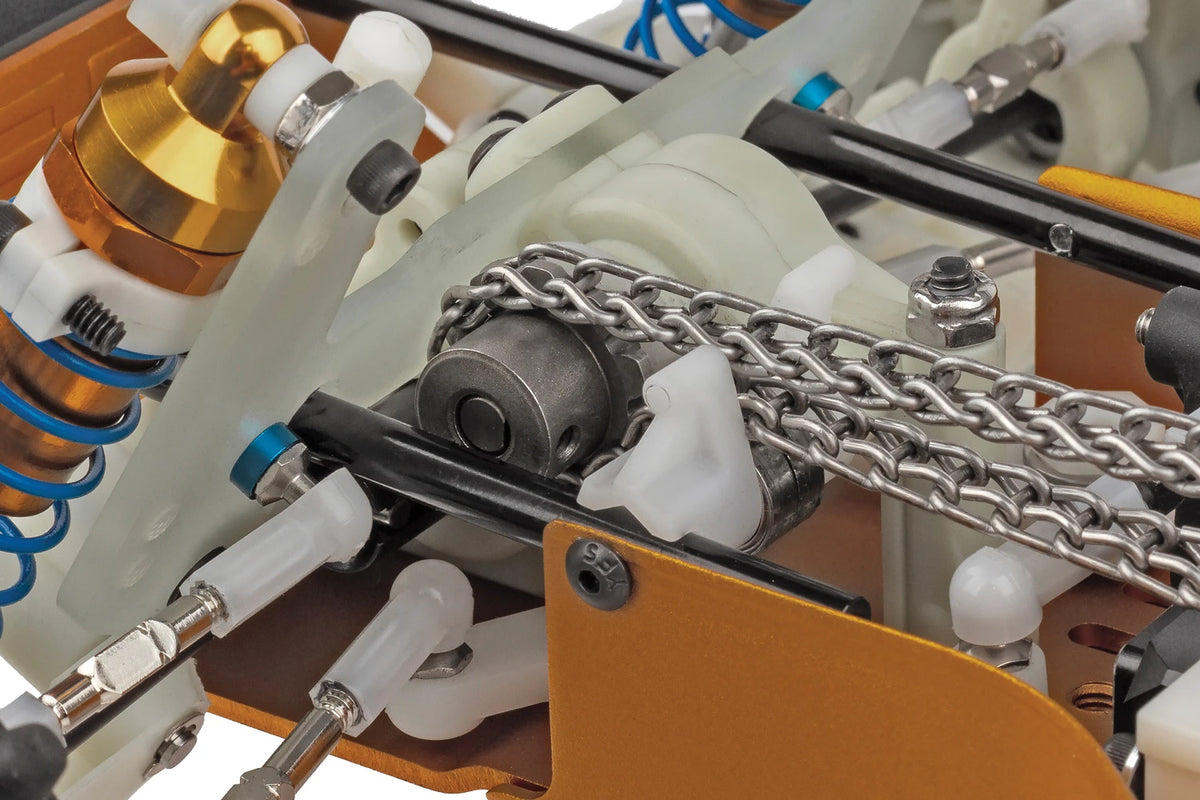

• New Stainless steel heavy duty chain

• New hardened chain sprocket gears

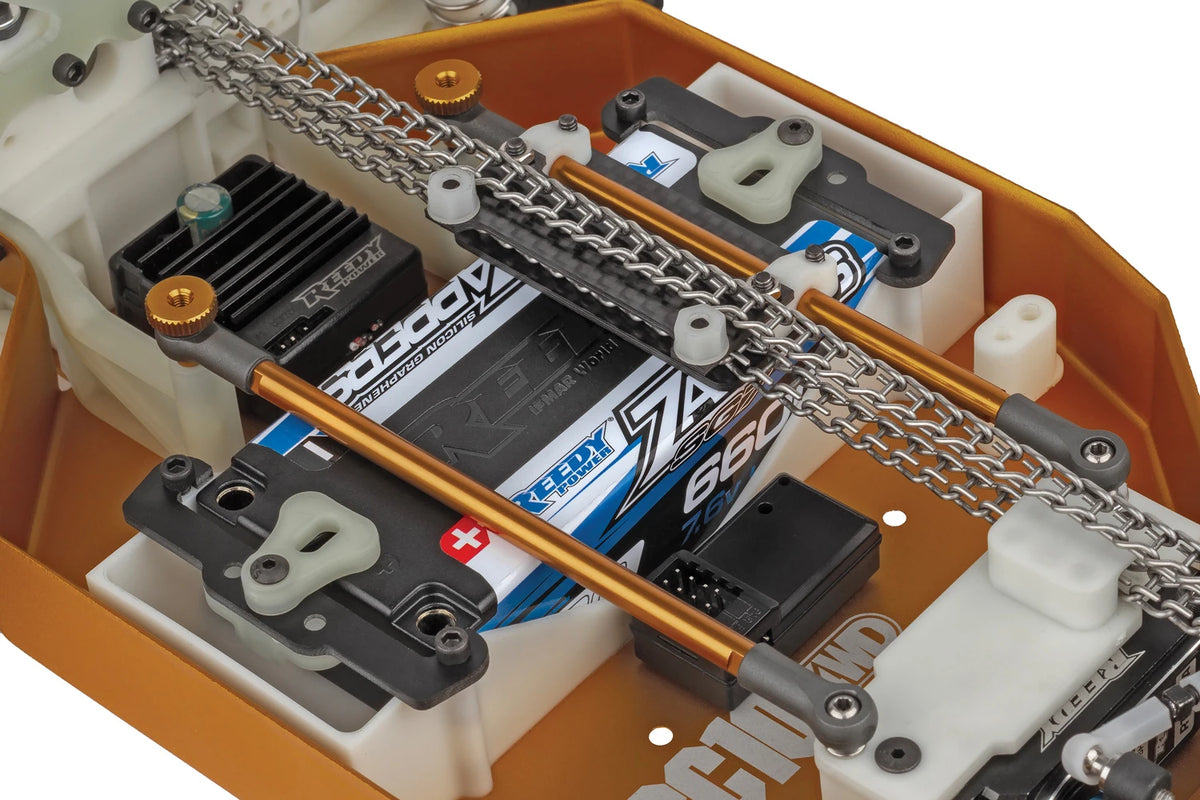

• New carbon fiber chain separator system

• New front CVA axles and tapered front dog bones

• New wide front hex wheel and tire

• Short front arm geometry

• Jay Halsey style clear wing

• Worlds style steering bellcranks

• Adjustable Chain tension system

• Clear driver included

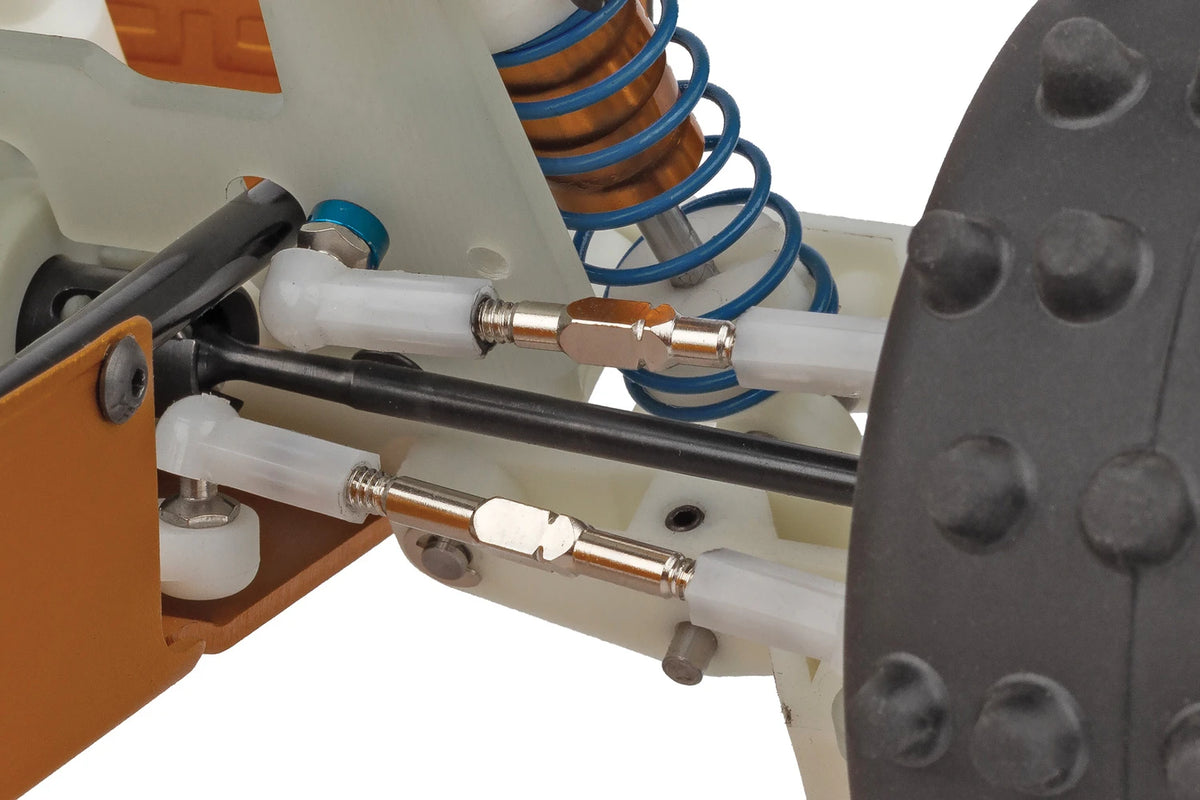

• Heavy duty turnbuckles and ball studs

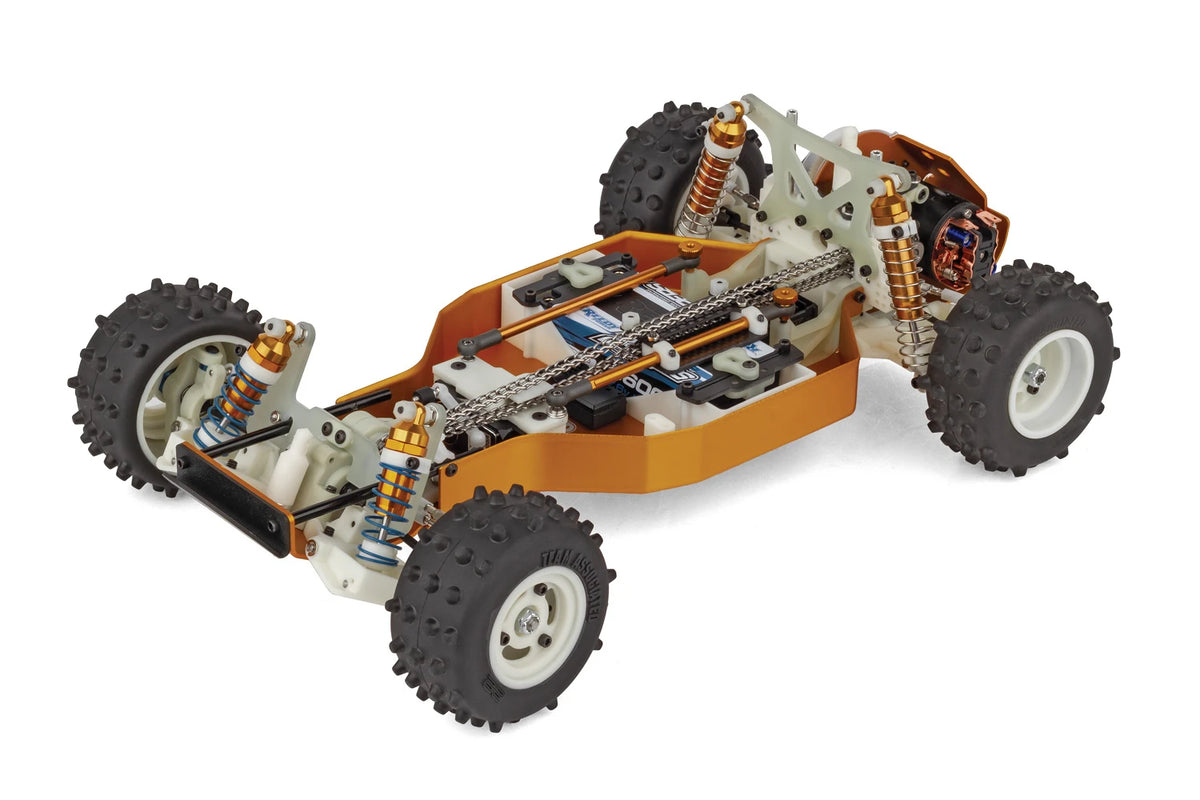

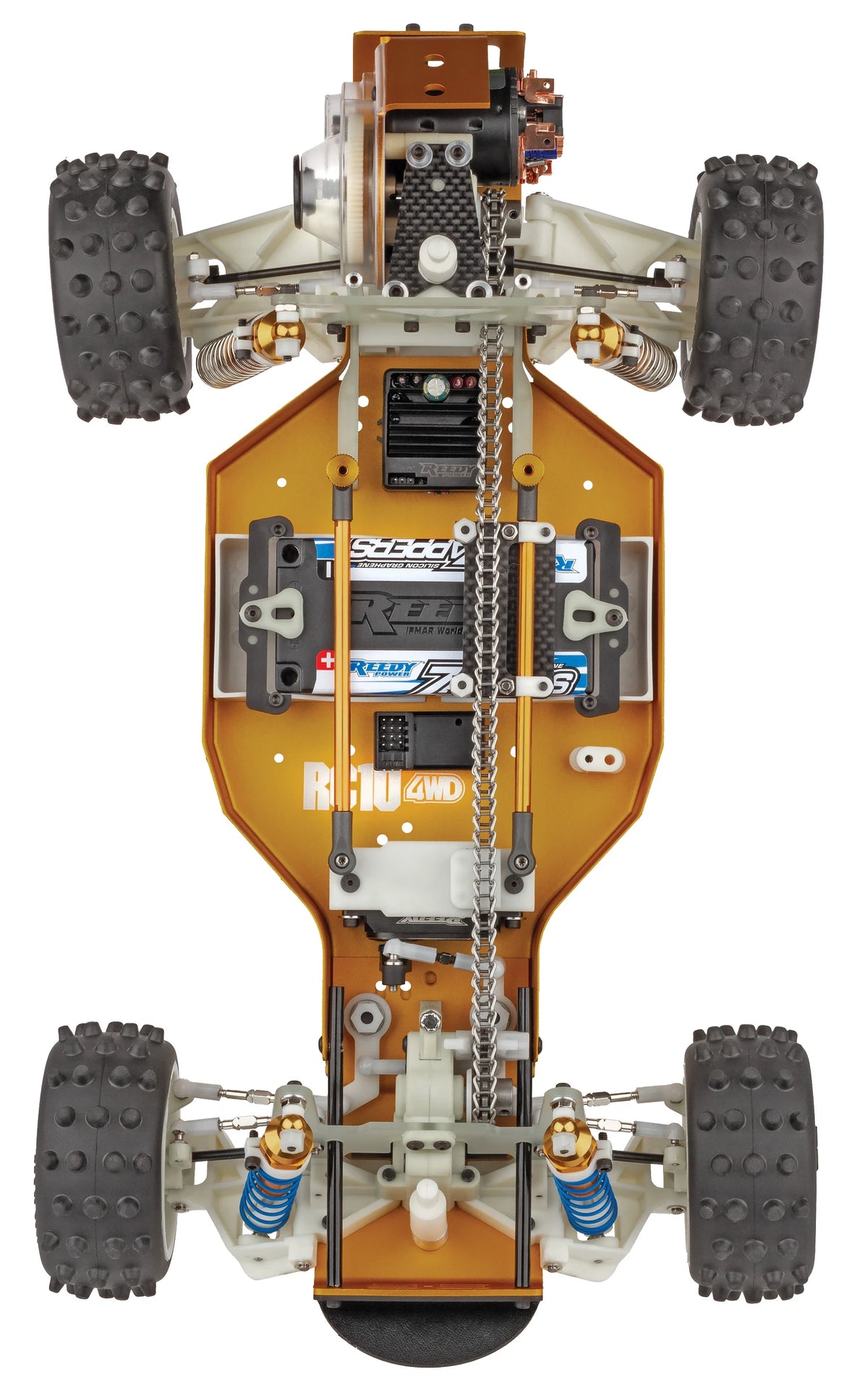

• Classic gold chassis, nose plate and motor plate

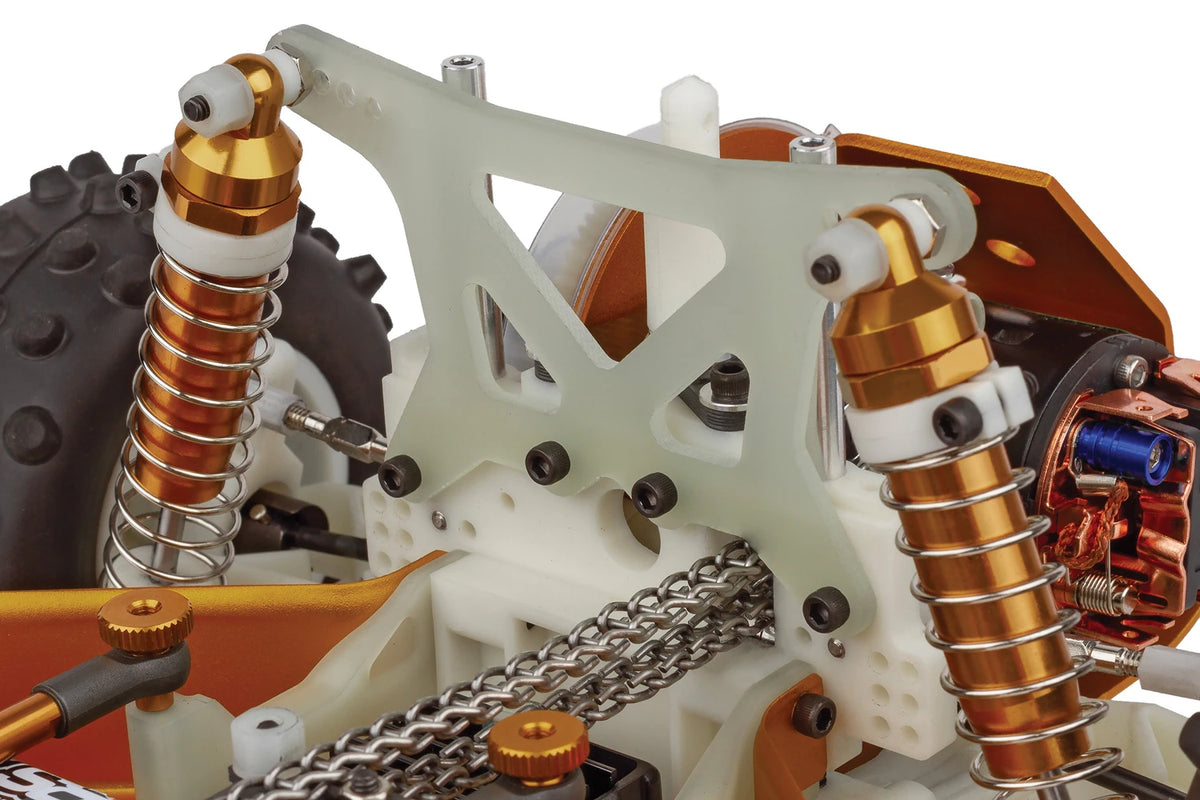

• New front and rear natural shock towers

• Hardened driveshafts and dogbones

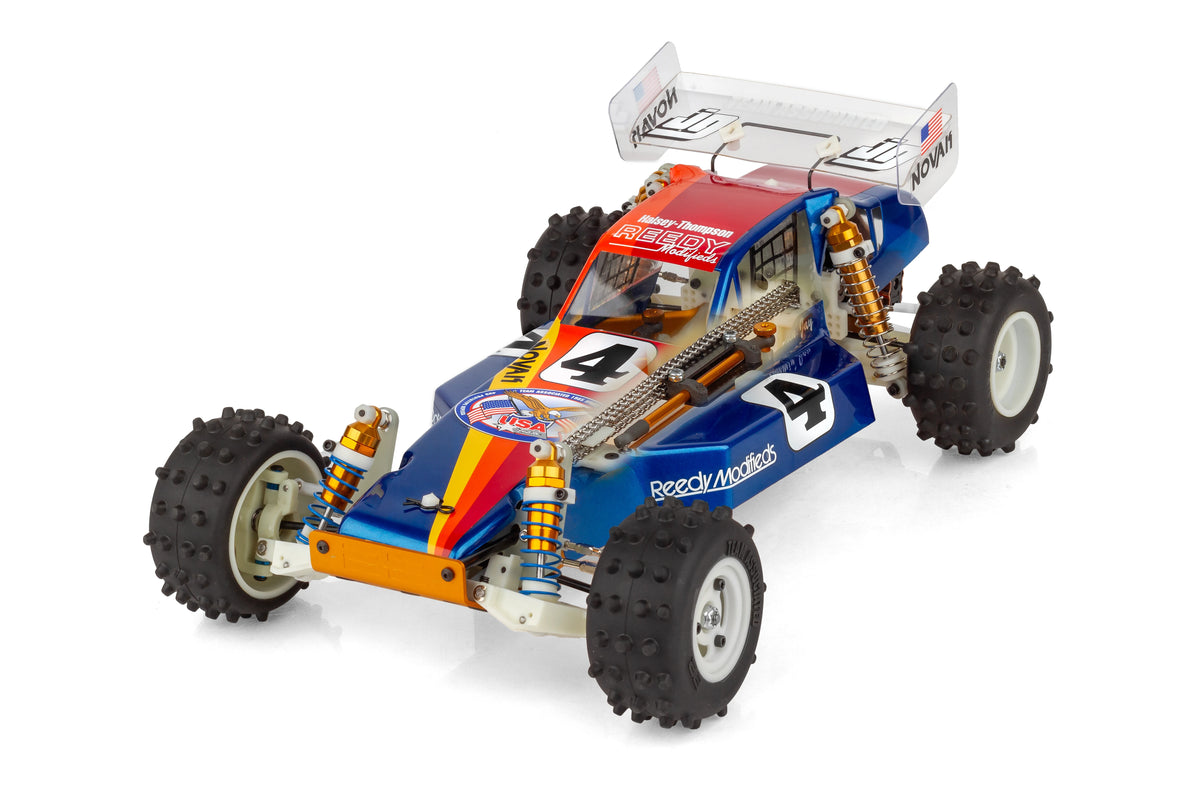

• RC10 Classic Protech body

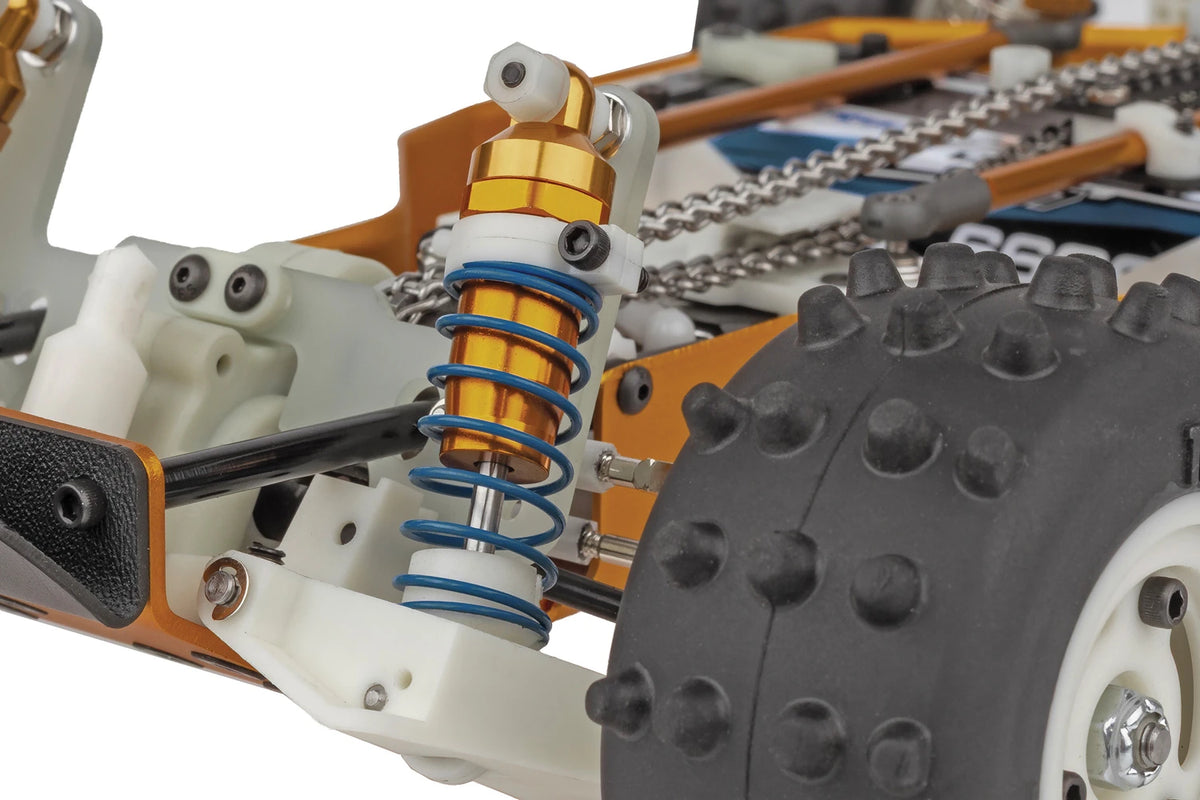

• Long Travel, fluid filled anodized aluminum coil over shocks

• Sealed 3 gear Stealth A.T.C. transmissions

• High torque ball differentials

• Exceptional ground clearance with low center of gravity

• RC10 Classic wheels and tires

• Full metal ball bearings

• Fits 6 cell and 2S Lipo battery packs

Specifications

• Power Source: Electric
• Terrain: Off-Road
• Body Style: Buggy
• Scale Size: 1:10 Scale
• Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
• Length: 381mm (15in)
• Width: 226.8mm (8.93in)
• Wheelbase: 267.7mm (10.54in)
• Internal Gear Ratio: varies
• Weight: varies
• Drive: 4WD

Required to Complete (Not included)

• 1:10 scale 540-size electric motor and electronic speed control
• Battery
• Battery charger
• 2-channel surface transmitter and receiver
• Steering servo
• Lexan Body Paint - specific spray paint for body
• Other items: Silicone shock fluid, Silicone diff fluid, body scissors, body reamer, hex/nut driver set, CA tire adhesive, Hobby knife, Needle nose pliers, Wire cutters, Soldering iron, Calipers or precision ruler
