Tamiya RC Neo Scorcher 1/10 4WD Buggy Unassembled Kit - TT-02B Chassis with RS-540 Mabuchi Torque Tuned Motor and HobbyWing THW 1060 ESC #58568-60A in factory sealed box.
Ships 1 business day after payment.
Free 30 day returns with 20% restocking fee for opened packages.
Description:

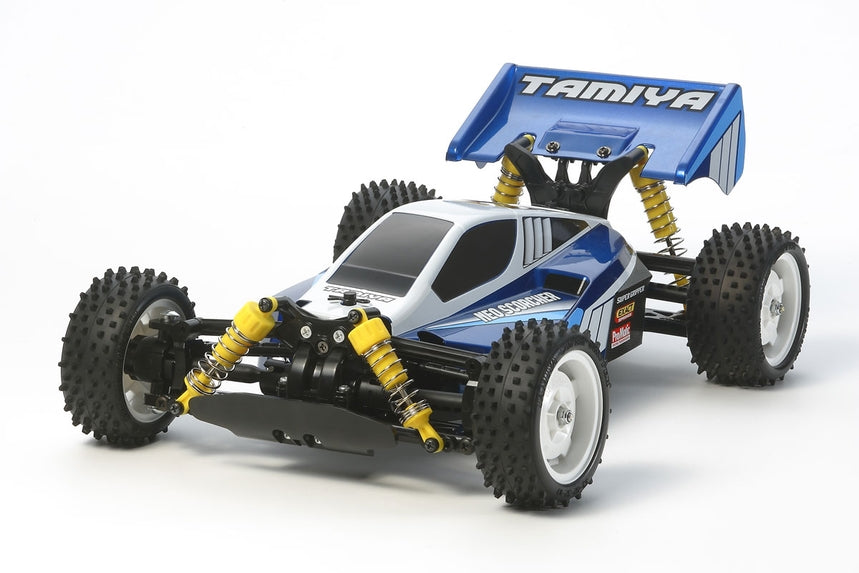

The Scorcher, a popular and speedy 4WD racing buggy from the late-1980s Tamiya line-up, is back, with a new name and updated body! Made from durable polycarbonate and featuring a stylish large rear wing, the body design drew heavily upon the original Scorcher for inspiration, and can be decorated with the minimum of fuss thanks to the large stickers included. It runs on the easy-assembly shaft-driven 4WD TT-02B, and marries the chassis' controllability with square spike tires for superior grip on rough surfaces. This off-road veteran is back with new features to scorch your rivals!

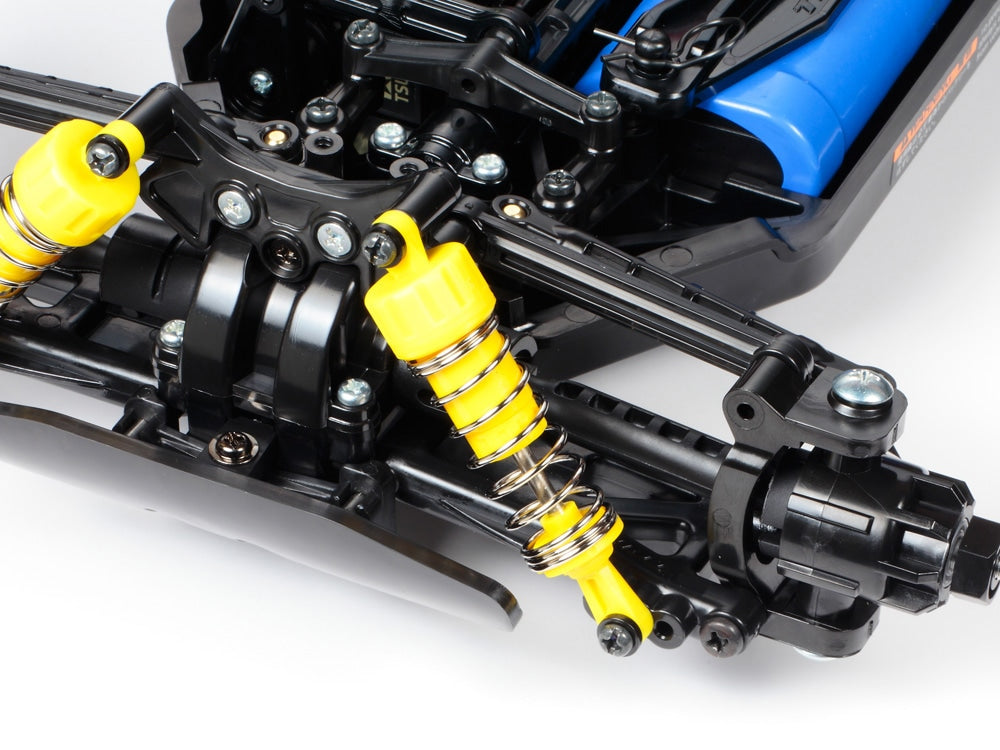

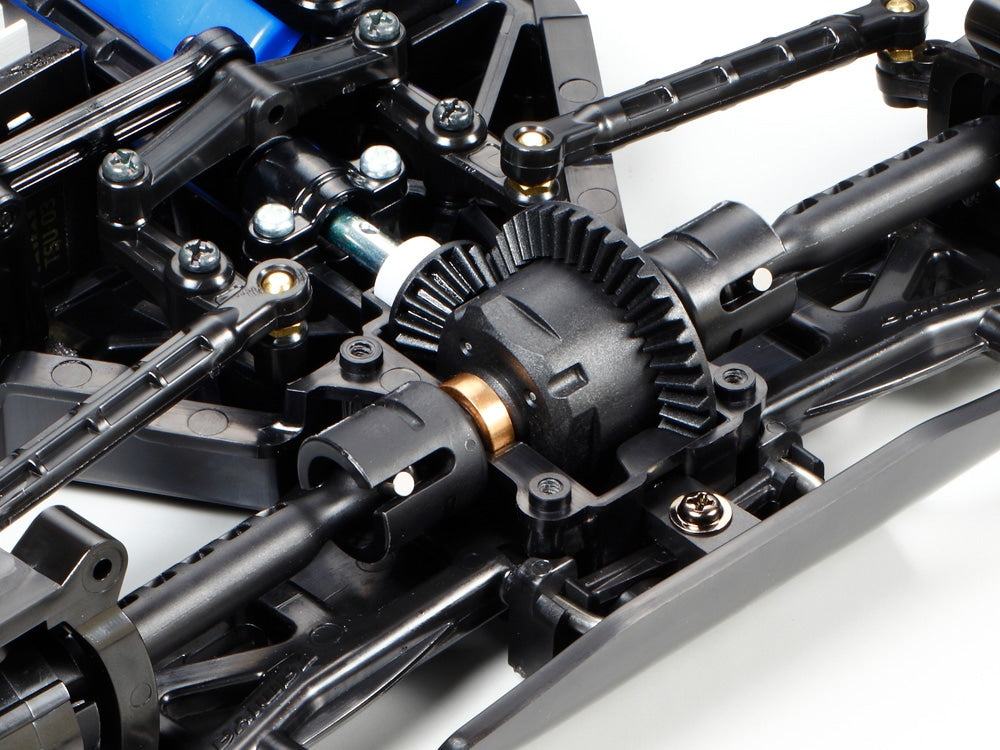

The shaft-driven 4WD TT-02B buggy chassis uses a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus CVA shock units, giving the car assured handling, while left and right suspension arms and uprights are identical to facilitate hassle-free assembly. Front and rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening four screws, making maintenance a breeze. Four different gear ratios can be applied with the use of three separately-sold types of pinion gears, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.
* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger and Assembly.
Features:
- Length: 380mm, Width: 250mm, Height: 145mm
- Wheelbase: 266mm
- Tread: 217mm (Front), 208mm (Rear)
- Bathtub-type Frame
- Shaft-Driven 4WD
- Front/Rear 4-Bevel Resin Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Tire Width/Diameter: 32/82mm (Front), 41/82mm (Rear)
- Front/Rear CVA Oil Dampers
- Gear Ratio = 10.71:1 (using kit-included pinion gear)
- Includes 540-type motor.
- Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S).
Specifications:
* Adjustable Gear Ratio: Yes
* Bearings: Plastic bushing
* Body Material: Polycarbonate
* Body Stickers Included
* Chassis Material ABS: Plastic
* Chassis Type: TT-02B
* Construction Type: Assembly Kit
* Differential Type: Gear
* Drive Type: 4WD
* Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
* Motor: 540-brushed type
* Scale: 1/10
* Shock Damper: Oil Filled
* Suspension: Fully Independent Double Wishbone
* Terrain Use: Off-Road
Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
* Body paint
