Tamiya RC 42389 1/10 TRF104 Chassis Kit

Tamiya RC 1/10 TRF104 Chassis Unassembled Kit #42389 in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened retail package.

Description:

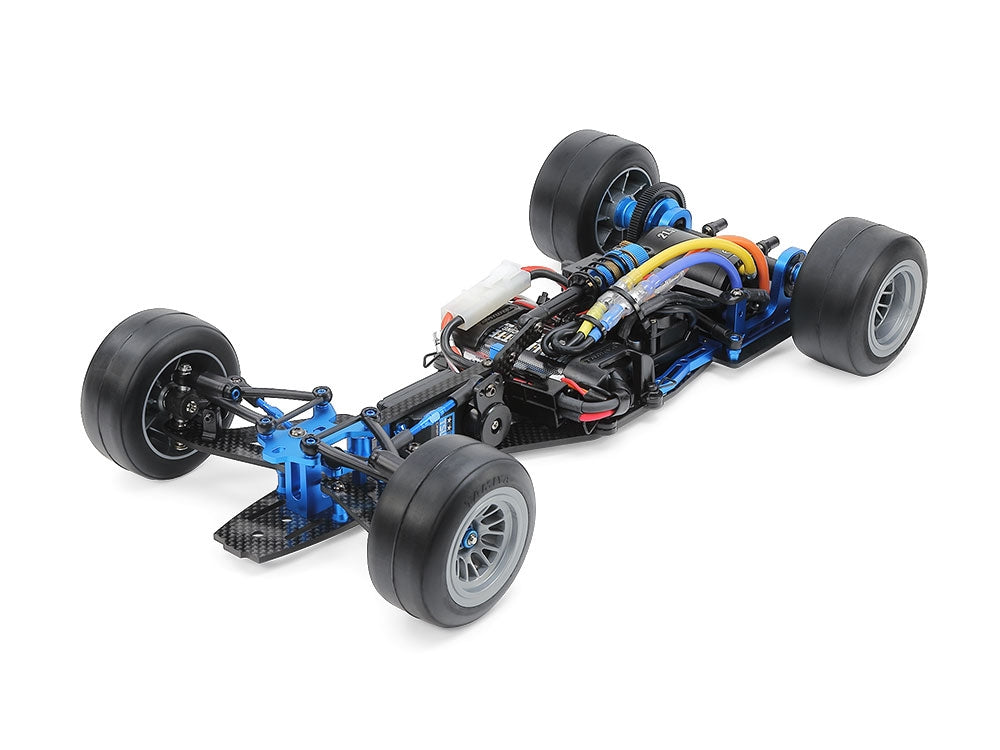

The TRF104 is a high-spec formula 1 chassis that takes the genre to a new level! This 2WD formula chassis, built around carbon fiber and aluminum chassis components, with the front lower arms crafted from carbon fiber plate, makes it a formidable opponent on the racetrack! Furthermore, the chassis features updated front and rear suspension, plus an updated R/C equipment layout which is compatible with Li-Po batteries.

NOTE: This is a KIT and requires: Servo, Radio System, ESC, Motor, Wheels & Tires, Battery, Charger, F1 Body and Wing, PS Paint and Assembly.

Key New Features:

• 1/10 scale R/C chassis assembly kit.

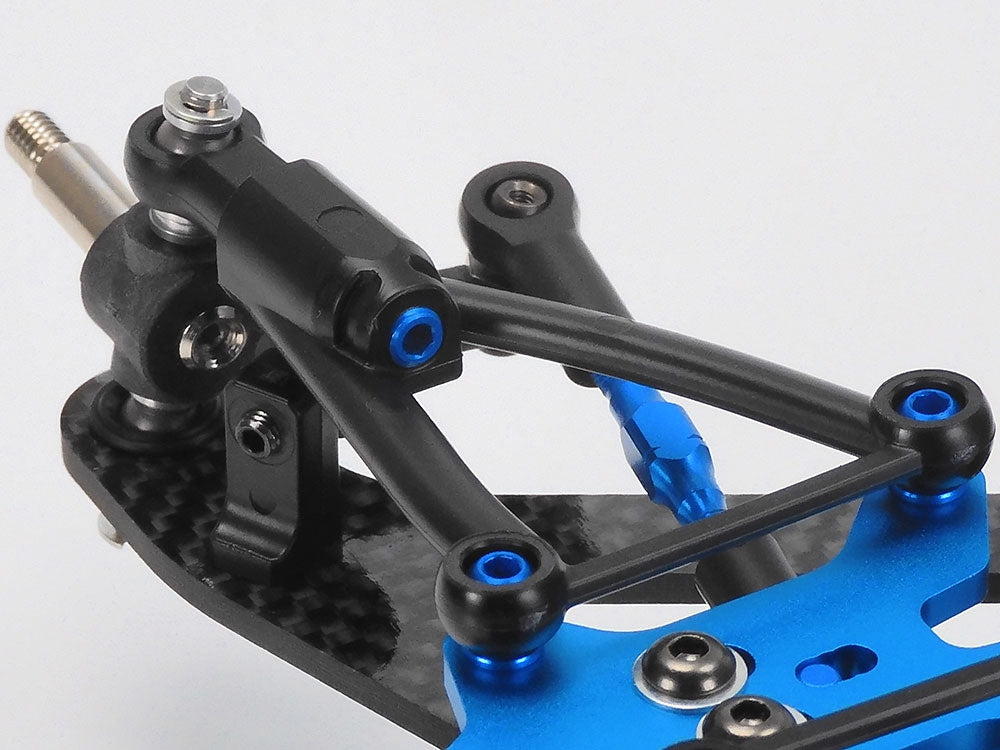

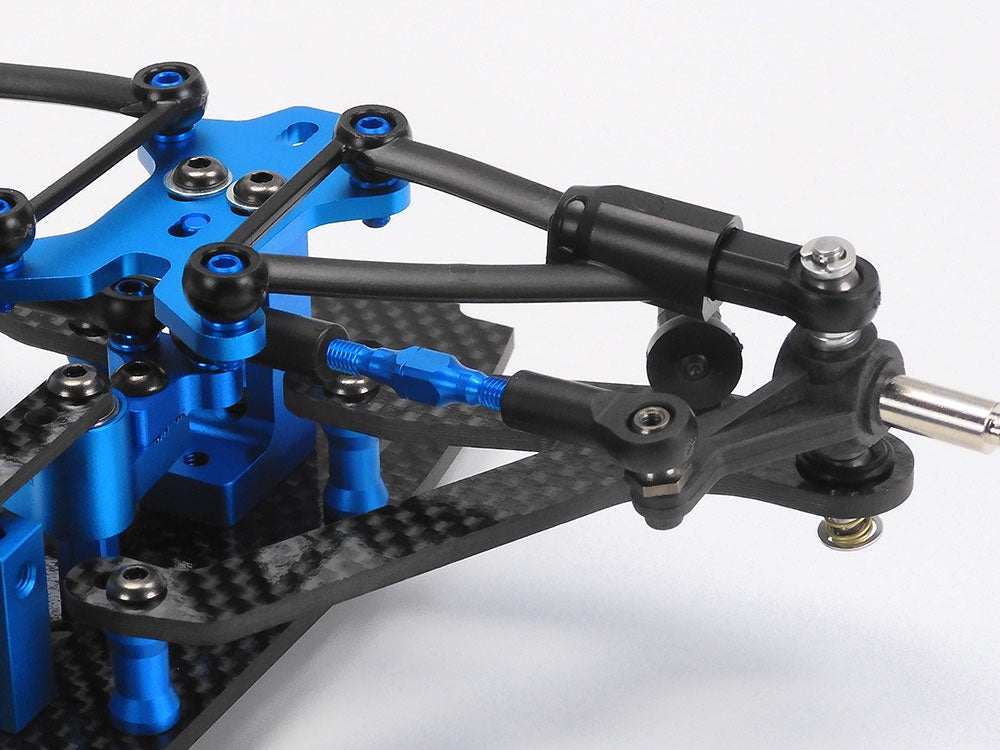

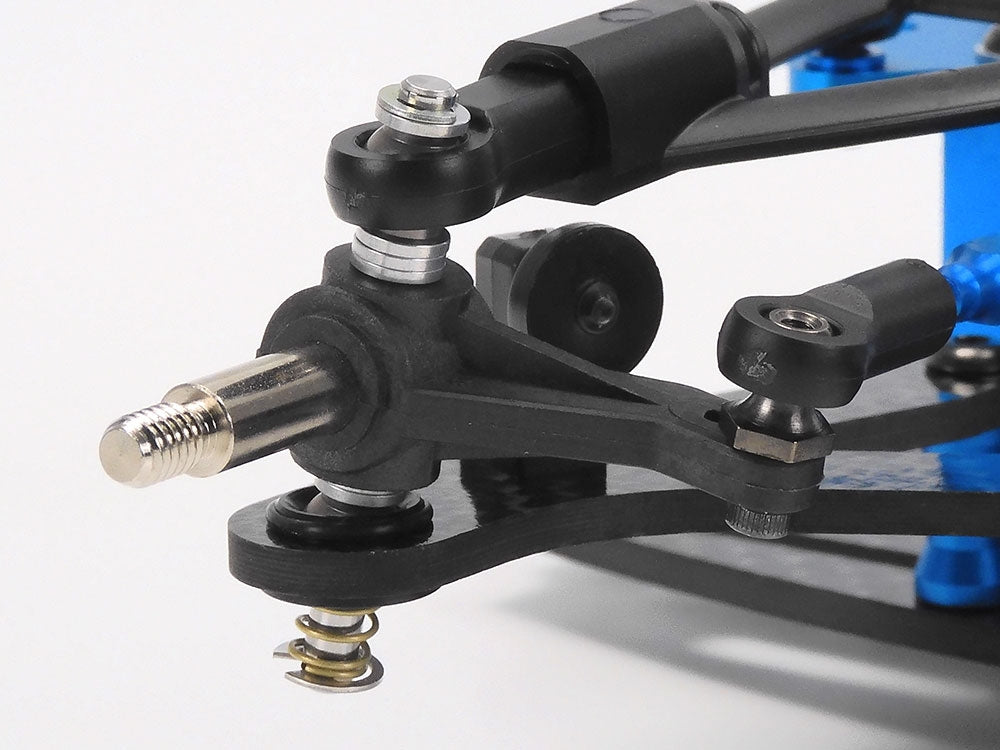

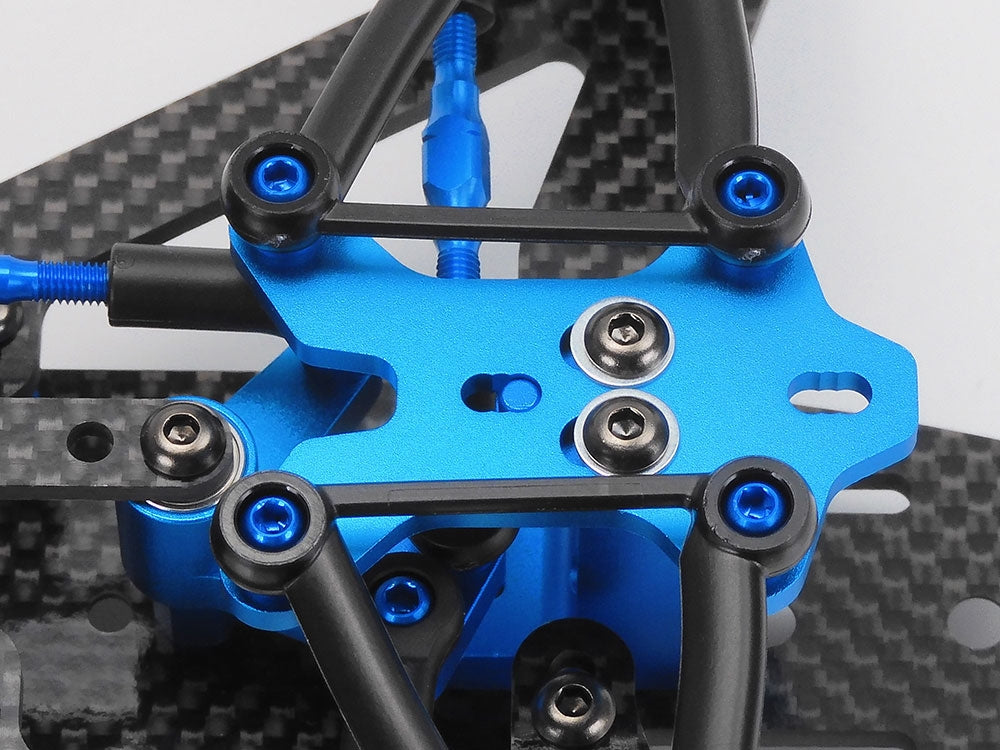

• Updated front suspension with adjustable camber and caster.

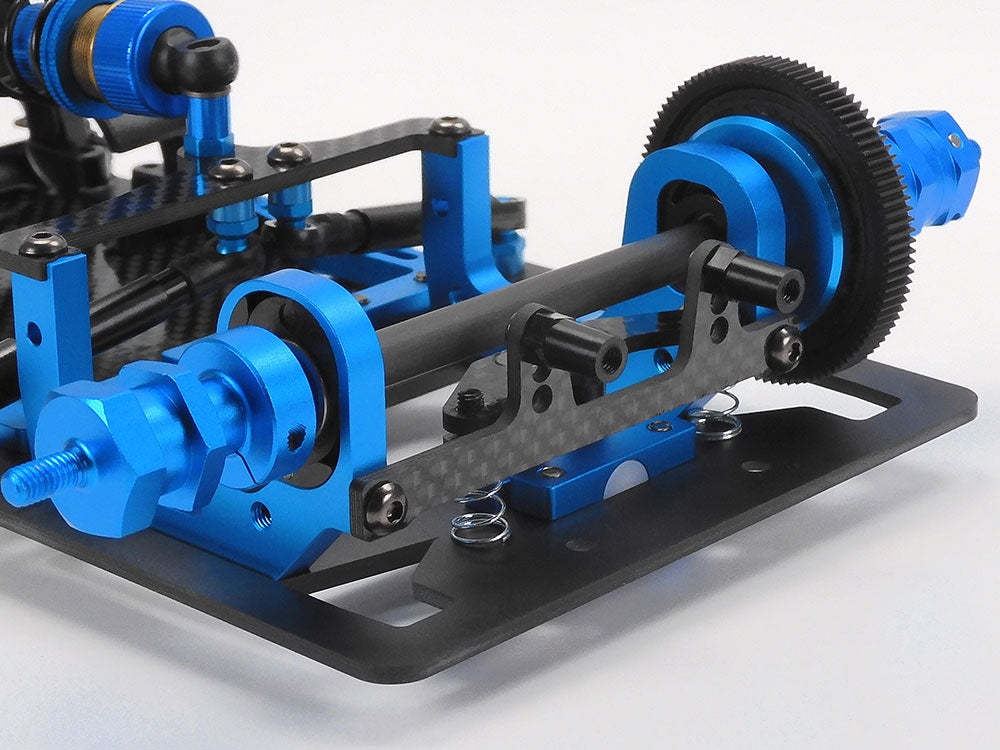

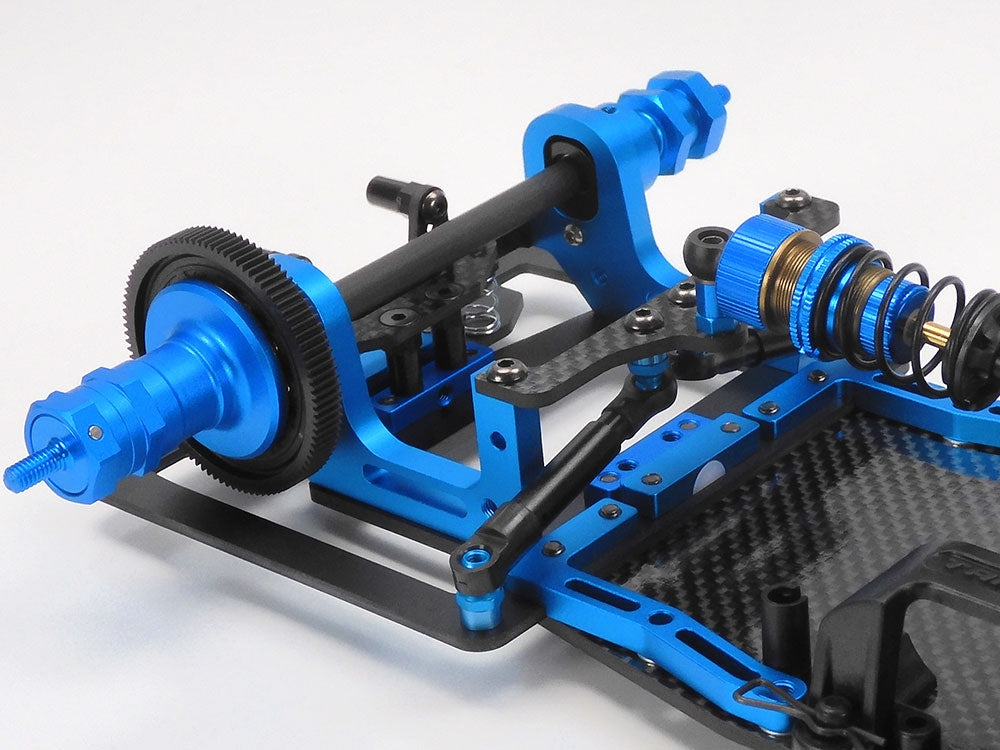

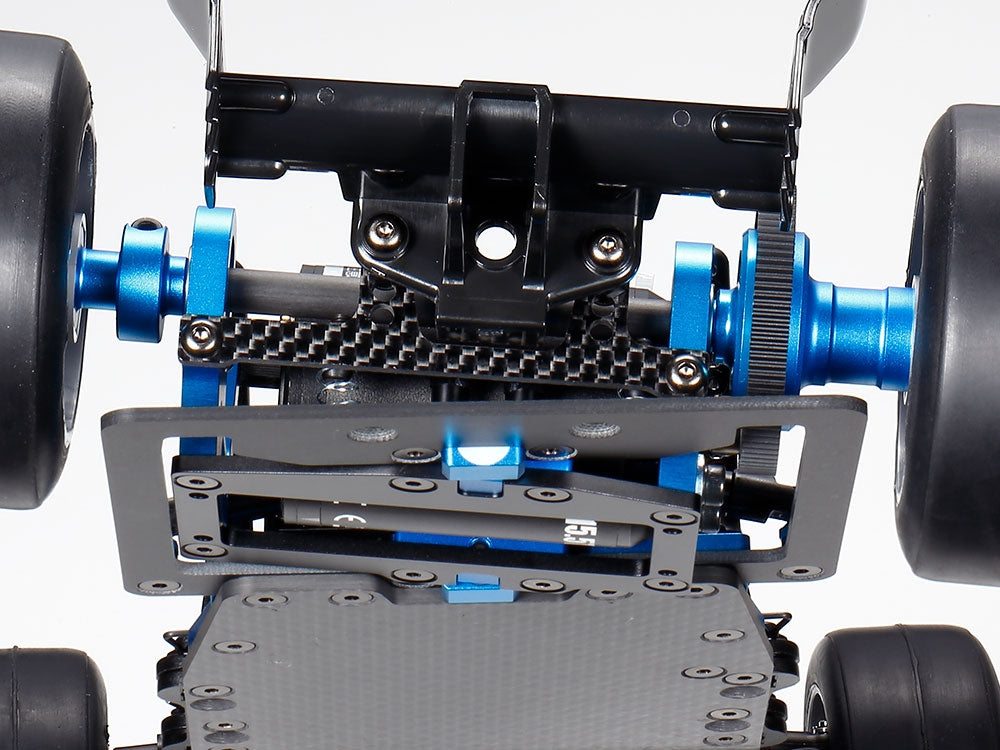

• Updated rear suspension: Ball connectors are equipped at motor mount front and rear, and suspension roll is placed at the center of the chassis. Centering is controlled by roll springs under the rear shaft, and friction grease on roll dampers at motor mount allow adjustment of roll speed. Pitching is controlled by FRP suspension plate flex and a TRF damper.
• R/C equipment layout: Battery pack, receiver and servo are positioned at the center of chassis to ensure better rear grip. A square-shaped battery holder is included, for Li-Po battery packs to comply with U.S. open-class regulations.

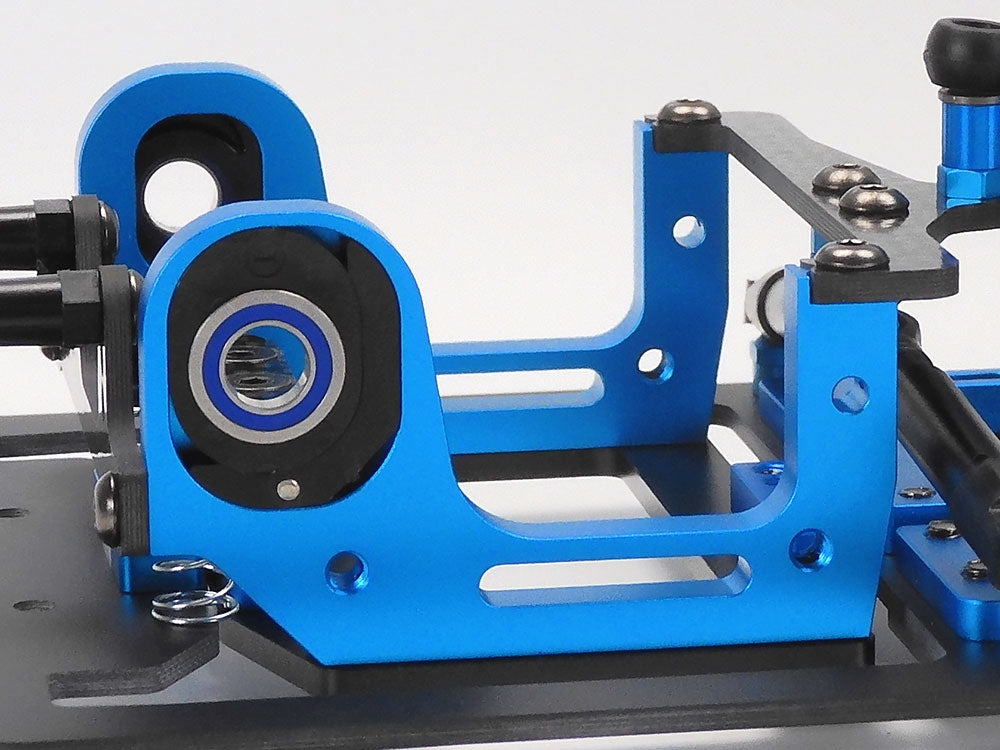

• Motor mount: Motor mount has parts for adjustment of ground clearance and wheelbase.

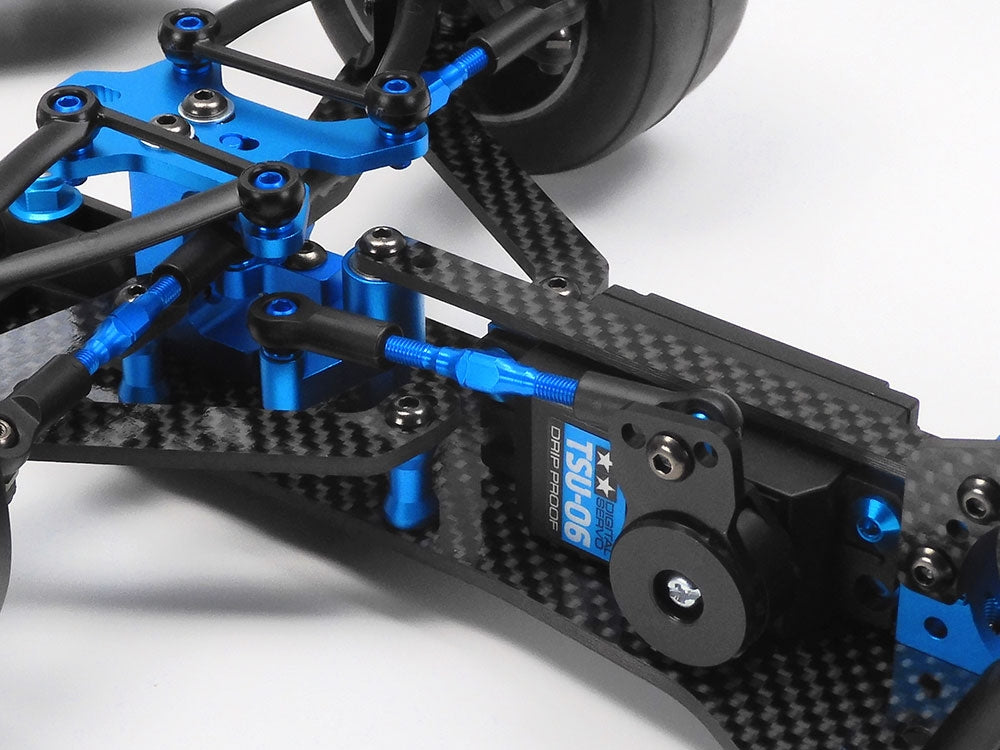

• Steering servo & steering linkage: The steering servo is positioned about 30mm backwards compared to the TRF103 chassis; Choice of 4 types of steering linkage adjustments.

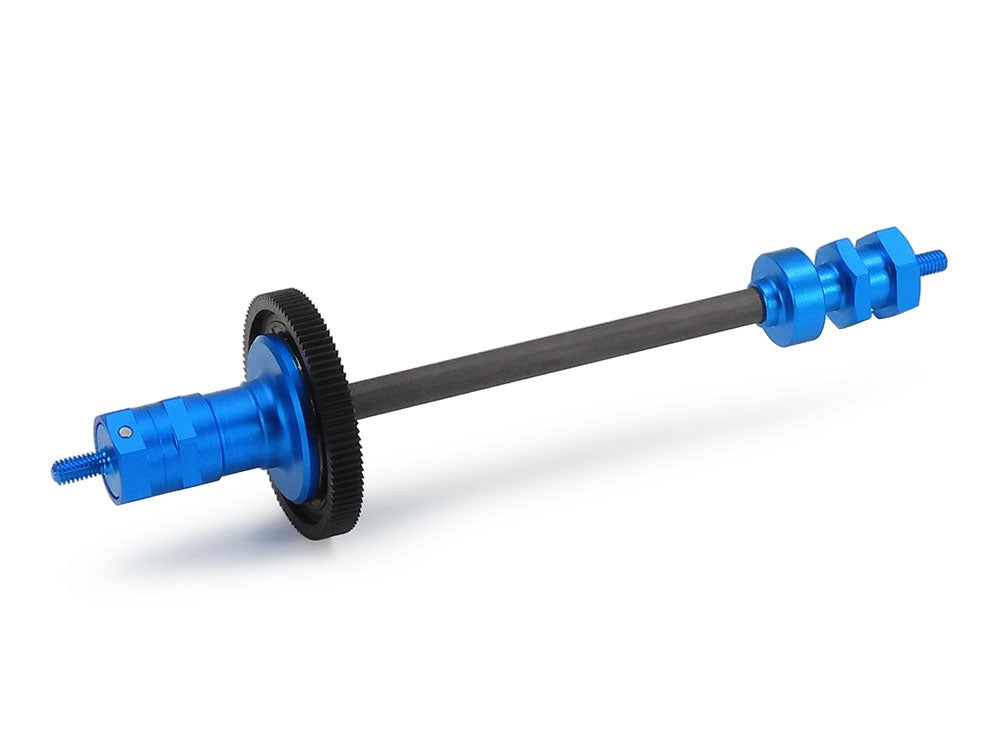

• Rear differential unit: Lightweight and durable carbon fiber shaft limits weight and ensures compatibility with rubber tires which are relatively heavy.

• Two rear wing mount options: fixed (with additional option parts (53596) or movable with rear suspension (stock).
• Front suspension arms: 2.5mm thick carbon fiber front lower suspension arms have two attachment positions (3mm adjustment for each side) to adjust its width and attach wheels with different offsets.
• Full ball bearings.

Specifications:

• Adjustable Gear Ratio: Yes

• Bearings: Includes full ball bearings

• Body Material: F1 Body and wings sold separately

• Chassis Material: Carbon Fiber Weave

• Chassis Type: TRF104

• Construction Type: Assembly Kit

• Differential Type: Pressure Plate Ball Differential

• Drive Type: 2WD

• Electronic Speed Control (esc): Not Included

• Motor: Not Included

• Scale: 1/10

• Shock Damper: CVA Oil Filled Rear Mono Shock/Coil Spring Front Suspension

• Suspension: CVA Oil Filled Rear Mono Shock/Coil Spring Front Suspension

• Terrain Use: On-Road

Required To Complete (not included):

• 2 channel transmitter (Tx)

• 2 channel receiver (Rx)

• 1 Steering servo

• 540 Type Motor and ESC

• Wheels and Tires

• Transmitter batteries

• Drive battery pack (7.2V-7.4V)

• Battery charger

• F1 Body and Wing
• Tamiya PS paint
