Tamiya RC 1/10 TT-02BR Chassis Kit #58717

Tamiya RC 1/10 TT-02BR Chassis Kit #58717

Regular price $251.30 USD
Regular price Sale price $251.30 USD
Sale Sold out
Shipping calculated at checkout.
Tamiya RC 1/10 TT-02BR Chassis Unassembled Kit #58717 in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened packages.

The Tamiya TT-02 and later TT-02B variant (B-standing for buggy off-road kits) chassis are among the most beginner friendly R/C products in our line-up. The TT-02BR chassis is an upgraded version of the TT-02B chassis kit with a wealth of upgraded parts, plus new aluminum propeller joints and carbon fiber damper stays to ensure a wide range of setup adjustments.

* NOTE: This is a KIT and requires: Servo, Radio System, ESC, Motor, Off-Road Tires, Battery, Charger, PS Paint and Assembly.

Included Hop-up Option Parts
- NEW-Aluminum propeller joints

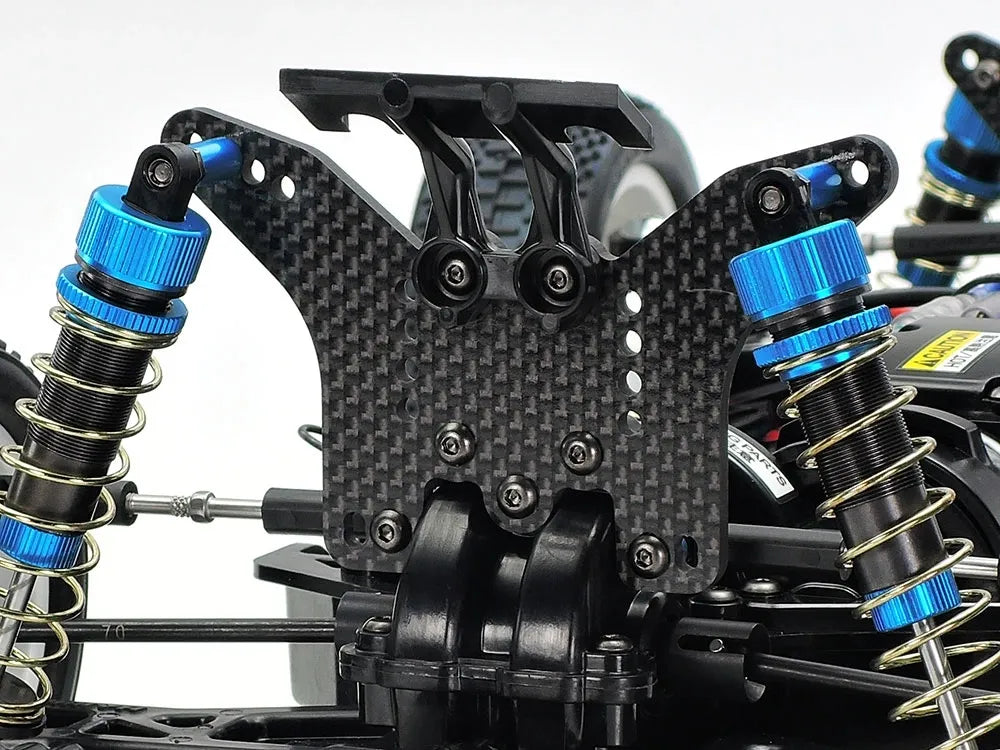

- NEW-Carbon fiber damper stays
- Item 22049: XV-02/TT-02 Oil Gear Differential Unit
- Item 54501: TT-02 Aluminum Propeller Shaft
- Item 54768: 06 Module Hard Coated Aluminum Pinion Gear (17T)
- Item 54993: TT-02B/DF-03 Aluminum Damper Set

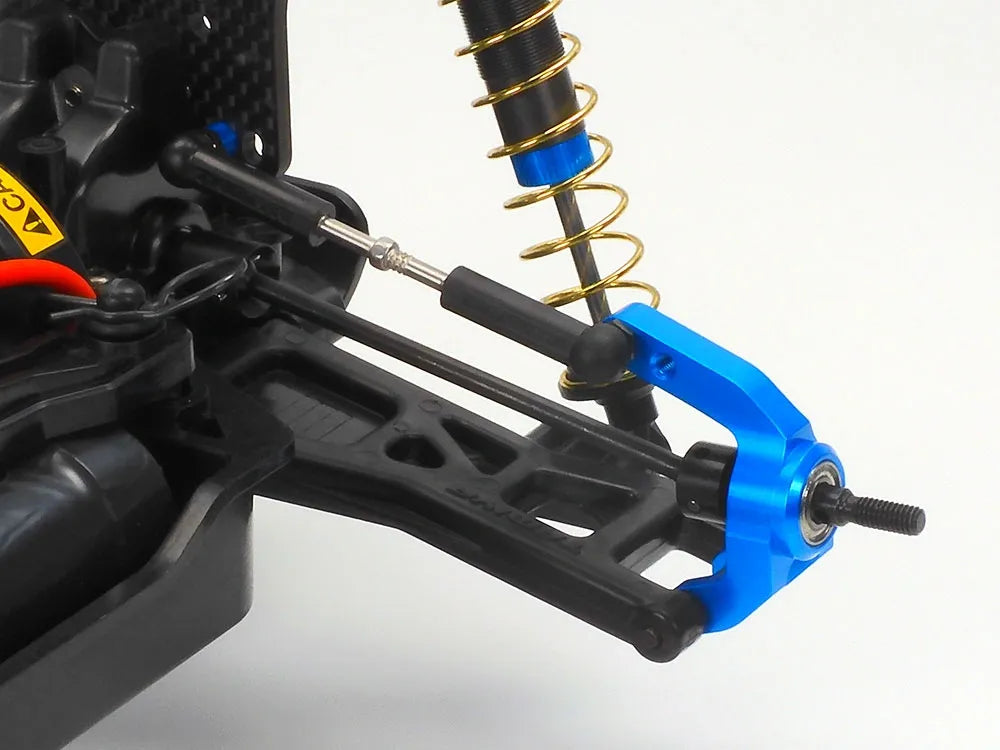

- Item 53793: DF-02 Two-Way Aluminum Rear Uprights
- Item 54539: TT-02B Full Turnbuckle Set
- Item 53791: DF-02 Assembly Universal Shaft
- Item 53880: Large Dish Wheels (4WD/Front, 62/25)
- Item 53881: Large Dish Wheels (Rear, 62/35)
- Item 54211: TRF201 Rear Wing Set
- Item 54815: TT-02B Reinforced Gear Covers & Lower Suspension Arms (2pcs.)
- Item 54926: TT-02 Lower Deck (Hard/Black)

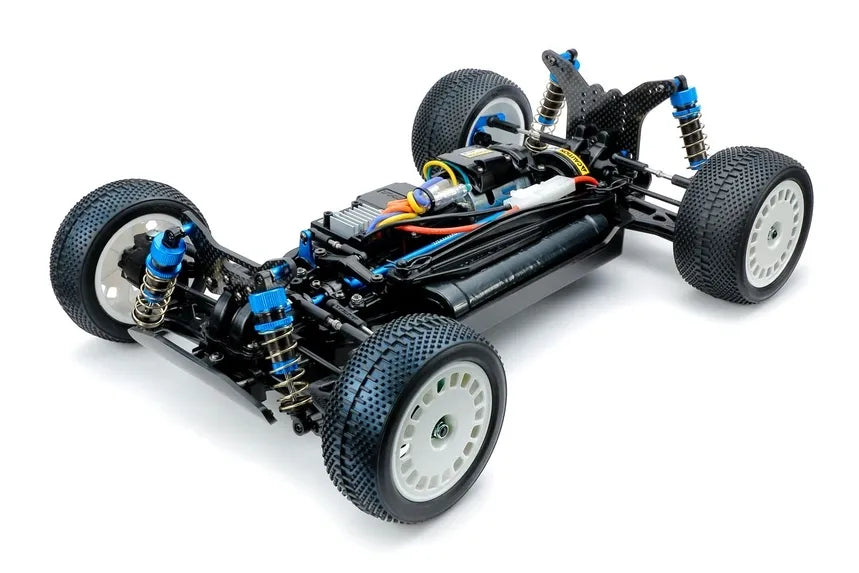

• 1/10 scale R/C chassis assembly kit.

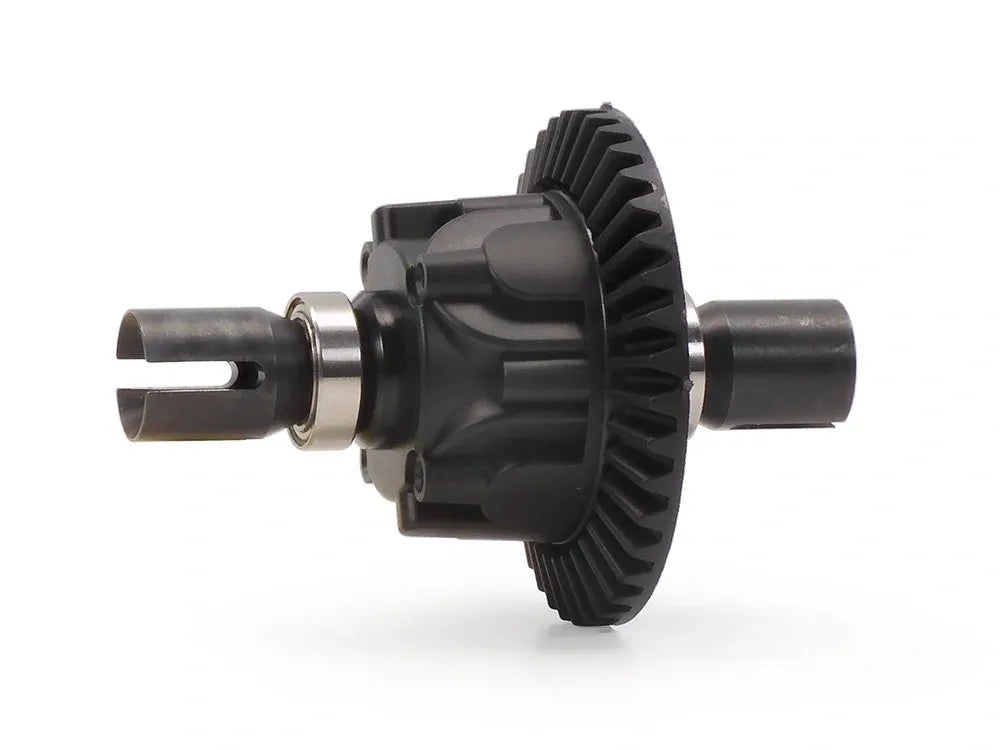

• Drivetrain uses Item 22049-oil filled gear to adjust the effectiveness of gear differential by using different oil viscosities.
• Diff. joint cups designed for this chassis kit for improved durability.
• New front and rear damper stays give more set up options of oil dampers and upper arms.
• Using front and rear universal drive shafts ensures stable drivetrain regardless of suspension stroke.
• Propeller shafts have plastic parts at joint sections of aluminum joint cups and shafts to limit wear of joint cups.
• Includes two rear wings - Neo Scorcher kit-standard one (transparent) and Item 54211 (TRF201 Rear Wing Set). Change wing stay when using Item 54211 TRF201 Rear Wing Set.
• Item 54211 includes two wide design wings to adjust downforce depending on running surface condition, and wing stay spacers also included to adjust rear wing angle.

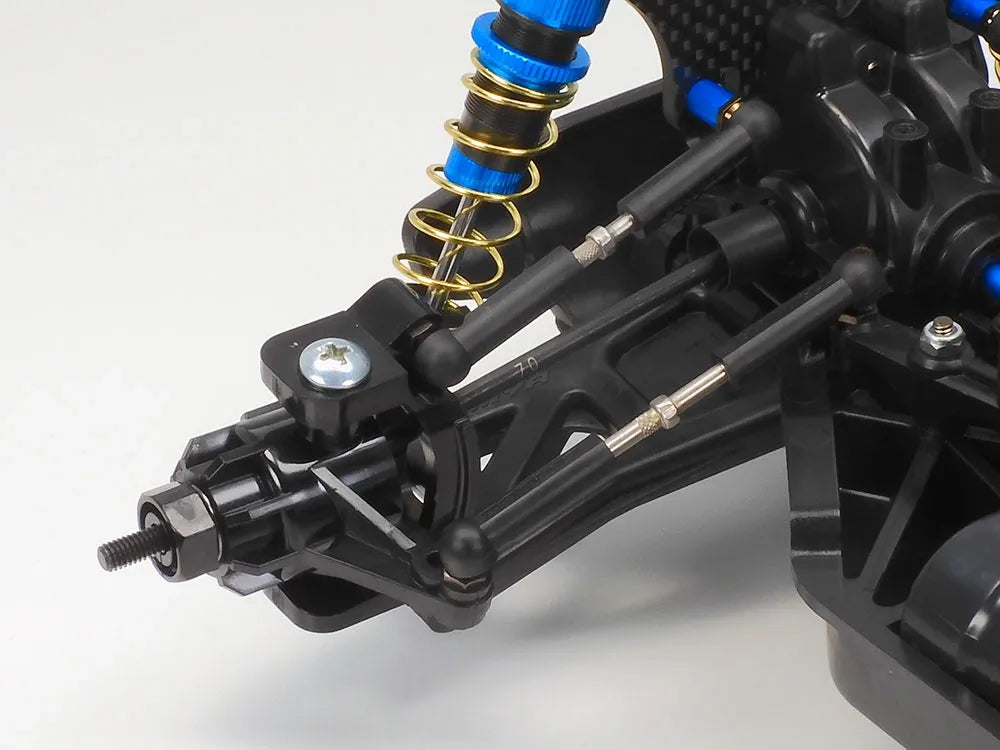

• 4~6mm longer turnbuckle shafts help prevent plastic adjuster sections from deforming to ensure improved suspension movement.
• Steering linkage with flange pipes features improved durability by attachment using hex head screws and lock nuts compared to attachment using 3x18 step screws.
• Features full ball bearings.
• Comes with a carrying case dedicated for the TT-02BR chassis.

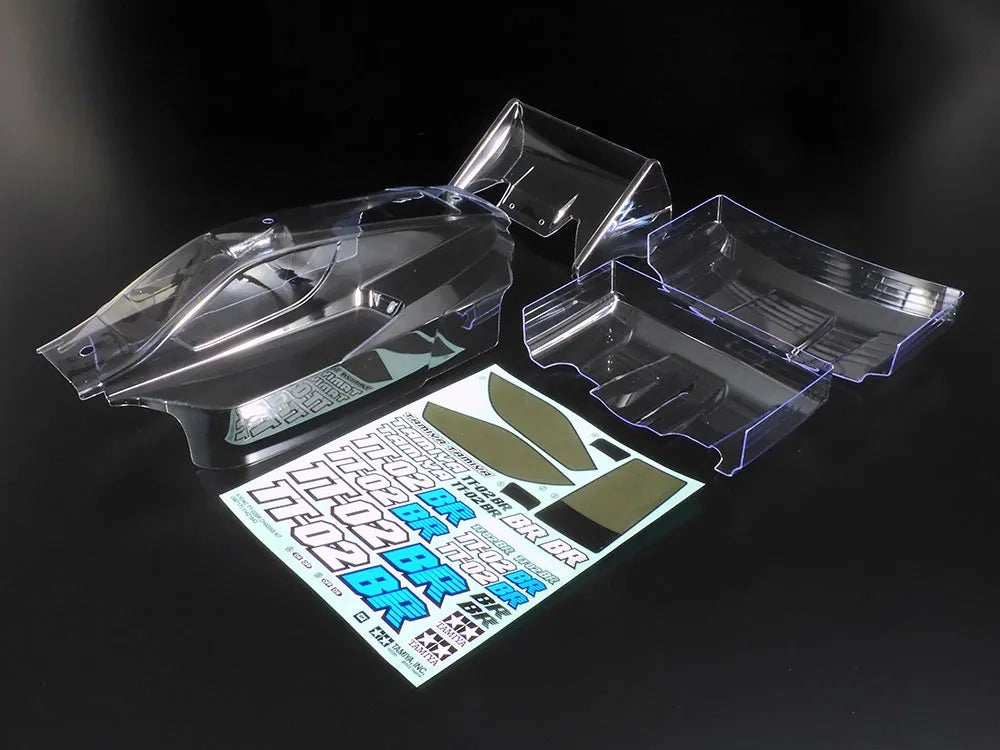

• Includes Neo Scorcher body (transparent). Original Neo Scorcher body stickers not included.

* Adjustable Gear Ratio: Yes
* Bearings: Includes full ball bearings
* Body Material: Polycarbonate
* Body Stickers: Included
* Chassis Material: ABS Plastic
* Chassis Type: TT-02B
* Construction Type: Assembly Kit
* Differential Type: Gear
* Drive Type: 4WD
* Electronic Speed Control (esc): Not Included
* Motor: Not Included
* Scale: 1/10
* Shock Damper: Aluminum oil filled
* Suspension: Fully Independent Double Wishbone
* Terrain Use: Off-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* 540 Type Motor and ESC
* Off-Road Tires
* Transmitter batteries
* Drive battery pack (7.2V-7.4V)
* Battery charger
* Tamiya PS paint
