Tamiya RC 1/10 M-08 MR Mid-Motor RWD Chassis Kit #58669

Tamiya RC 1/10 M-08 Midship Motor Rear-Wheel Drive MR Chassis Kit #58669 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened retail package.

Description:

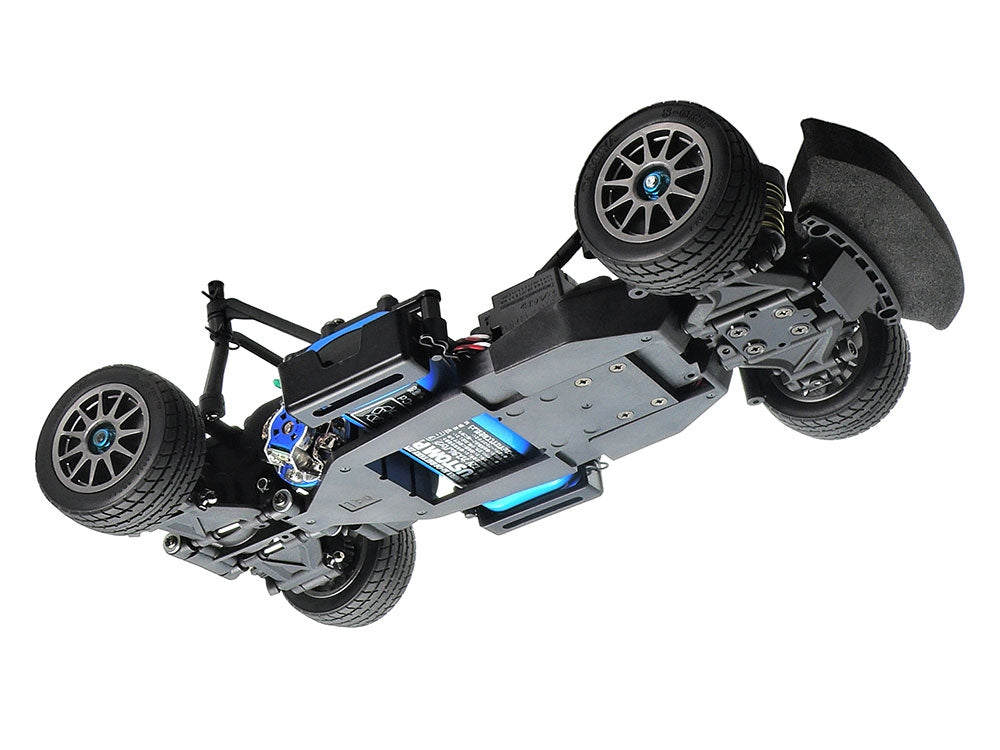

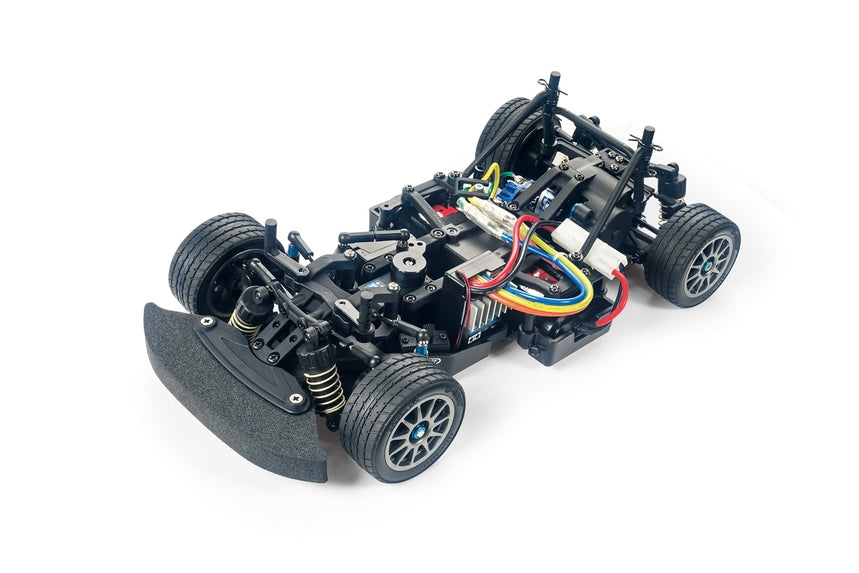

This TAMIYA high-performance rear-wheel drive RC chassis assembly kit is constructed around a rigid monocoque with the main frame split into front and rear sections. It offers superior rear high traction drive characteristics and fuss-free maintenance of parts such as the easy-access differential. CVA (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 210mm (S), 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.

* NOTE: This is a KIT and requires the additional following items: 2-channel radio,  low-profile steering servo, ESC, 540-size motor, 7.2V-7.4V battery with compatible charger, body, wheels & tires, assembly and Tamiya PS paint.  Some of these items are shown in the photos for marketing purposes and are not included in this listing.

Features:

• 1/10 scale R/C model assembly kit.

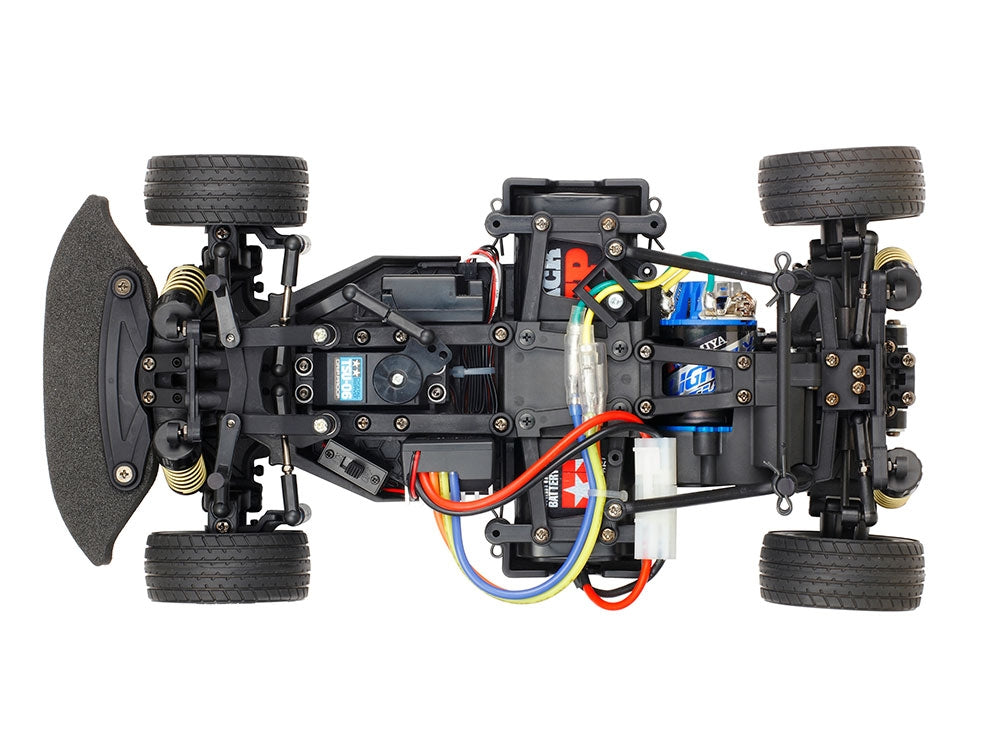

• The chassis is split into front (suspension and servo) and rear (motor and battery) sections. It can be assembled into three different wheelbases: S (210mm), M (225mm) or L (239mm).

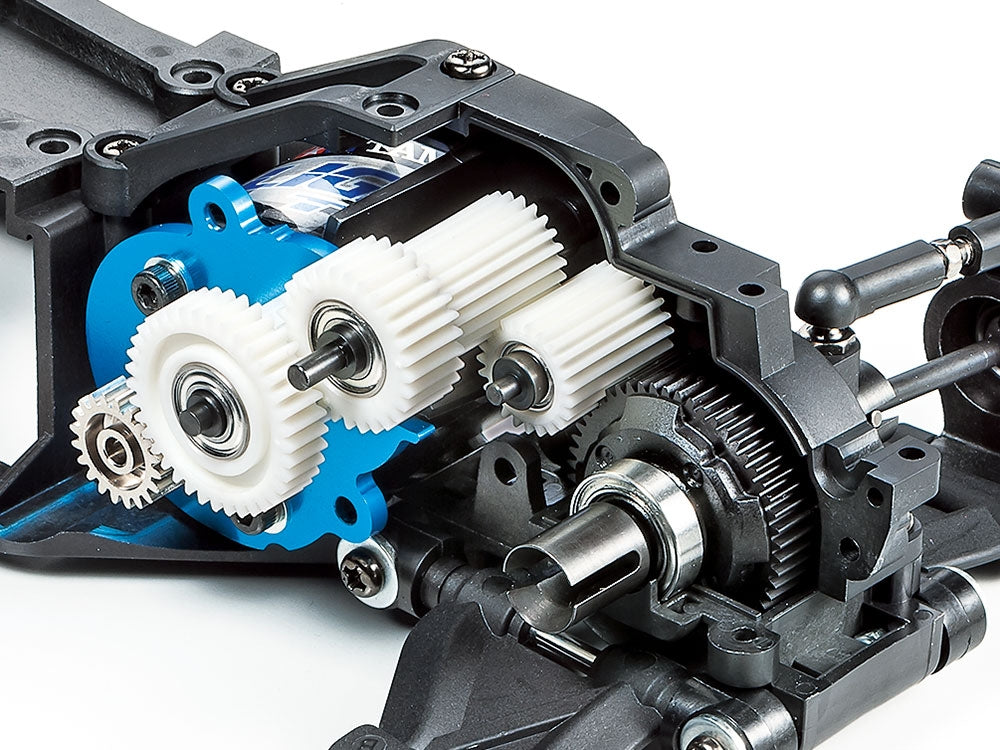

• Rear-midship motor powers rear wheels via a differential in the Mid-Rear setup.

• Oil-filled differential gear used from the M-07.

• Features proven M-07 Concept designs: suspension arms, uprights, suspension mounts and aluminum parts.

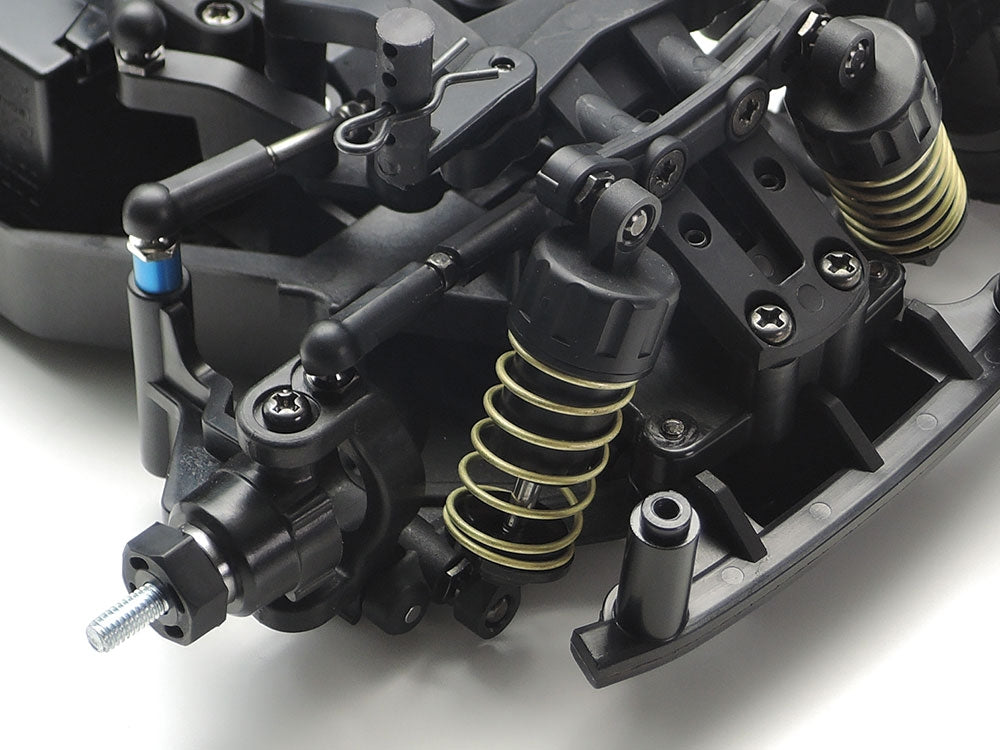

• Includes CVA oil dampers, universal drive shafts, full ball bearings and hi-torque servo saver.

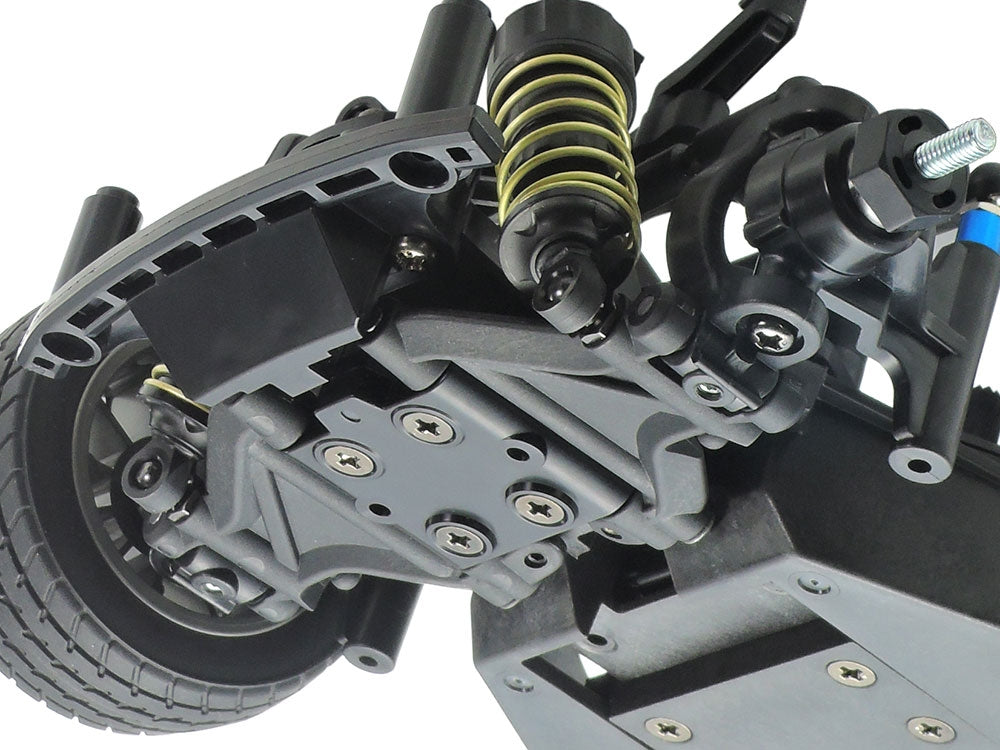

• Comes with new front suspension mounts (0 degrees) and hub carriers (2 degrees) for a total caster angle of 2 degrees.

• Compatible with M-06 Chassis bodies.

• Requires: 2-Channel Radio, servo, ESC, motor, 7.2-7.4volt battery pack & compatible charger, and body set.

• Compatible with M-07 Concept Hop-Up Option parts such as Aluminum Rear Suspension Mount (Skid Angle Adjustment) (54787), Aluminum Rear Uprights (54781) and Low-Friction King Pin Pipes (54813).

Specifications:

• Adjustable Gear Ratio: Yes
• Bearings: Includes full ball bearings
• Body Material: Not included
• Chassis Material: FRP (fiberglass reinforced plastic)
• Chassis Type: M-08
• Construction Type: Assembly Kit
• Differential Type: Gear Type Oil Filled
• Drive Type: 2WD
• Electronic Speed Control (esc): Sold Separately
• Motor: Sold Separately
• Scale: 1/10
• Shock Damper: CVA Oil-filled
• Suspension: 4-Wheel Fully Independent Double Wishbone
• Terrain Use: On-Road

Required To Complete (not included):

• 2 channel transmitter (Tx)
• 2 channel receiver (Rx)
• Low-Profile Steering servo
• 540 Type Motor and ESC
• Tires (M-Chassis 60D Tire) and Tire Inserts (M-Chassis 60D Inserts)

• Body (M-06 Compatible 1/10 scale)
• Transmitter batteries
• Drive battery pack (7.2V-7.4V)
• Battery charger
• Tamiya PS paint
