Tamiya RC 1/10 Hotshot 4WD Kit with 540 Motor & HobbyWing ESC #58391-60A

Tamiya RC 1/10 Hotshot 4WD Kit with 540 Motor & HobbyWing ESC #58391-60A

Regular price $263.90 USD
Regular price Sale price $263.90 USD
Sale Sold out
Shipping calculated at checkout.
Tamiya RC 1/10 Hotshot 4WD Unassembled Kit with RS540 Motor & HobbyWing THW1060 ESC - #58391-60A in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened packages.

With its aggressive-looking body design and low center of gravity, the Hotshot, Tamiya's first shaft-driven 4WD R/C buggy, made waves when it was introduced in 1985. The unique 3-piece chassis included such innovative features as front/rear mono-shock oil dampers, 4-wheel double wishbone suspension equipped with stabilizers, and front/rear fully-enclosed gearboxes equipped with thrust ball bearings and differential gears. A wide array of option parts were produced especially for modifying the Hotshot, and the machine became something that every youth at that time dreamed of. Fans have clamored for a re-release of the epoch-making R/C car, and Tamiya now brings back this legend to let fans relive their childhood memories.

An Old Dog with New Tricks - Tamiya designers have given the Hotshot a makeover, replacing older, harder to assemble parts with modern equivalents but still keeping true to the spirit of the original Hotshot. While the front/rear double wishbone suspensions and adjustable mono-shock oil dampers remain the same, the drivetrain features modern dog bone type propeller shafts for enhanced reliability. The oil dampers have also been changed to the more modern diaphragm type. Also, with the use of a modern ESC, the original Hotshot's rear aluminum heat sink was no longer necessary. However, the Hotshot would not look the same without it, so our solution was to install a dummy part to remain faithful to the original look. Take this updated Hotshot out for a spin and compare it to today's R/C buggies to experience how far this hobby has developed!

* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger, Paint and Assembly.

* Length: 390mm
* Width: 235mm
* Height: 150mm
* Weight: 1270g
* Tread: (Front/Rear) 194mm
* Tire Width/Diameter: (Front) 28/82mm, (Rear) 34/82mm
* Frame: ABS Resin Monocoque
* Drivetrain: Shaft-driven 4WD
* Diff. Gear: 3-bevel
* Steering: 2-piece Tie Rod
* Suspension: 4-wheel Double Wishbone
* Gear Ratio: 8.1:1, 10.04:1
* Motor: Type RS540 Included
* Speed Controller: HobbyWing THW 1060 Brushed ESC Included

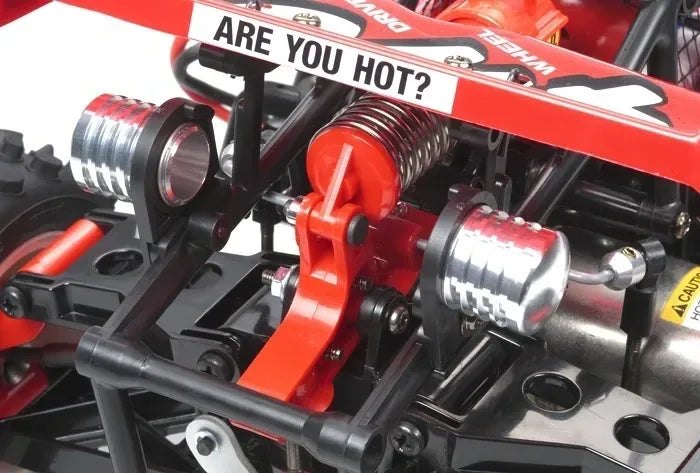

* Redesigned chassis features 4-wheel double wishbone suspension with unique front and rear mono-shocks.
* Diaphragm-type oil dampers provide stable off-road driving performance.
* New propeller shaft features dog bone type linkage to optimize power transmission efficiency.
* Buggy body with large rear wing remains faithful to the original styling.
* Aluminum heat sink helps keep the motor cool and is also an eye-catching chassis highlight.
* Triangular wheel hubs further enhance the buggy's unique look.

* Adjustable Gear Ratio: Fixed
* Bearings: Plastic bushing
* Body Material: Polycarbonate
* Body Stickers: Included
* Chassis Material: Plastic
* Construction Type: Assembly kit
* Differential Type: Gear
* Drive Type: 4WD
* Electronic Speed Control (esc): Included
* Led Light Buckets: No
* Led Lights: No
* Motor: 540-brushed type Included
* Scale: 1/10
* Shock Damper: Oil-filled damper
* Suspension: Independent suspension
* Terrain Use: Off-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
* Body Paint
