Tamiya RC 1/10 1997 Mercedes-Benz CLK-GTR Kit 4WD TC-01 Chassis #58731

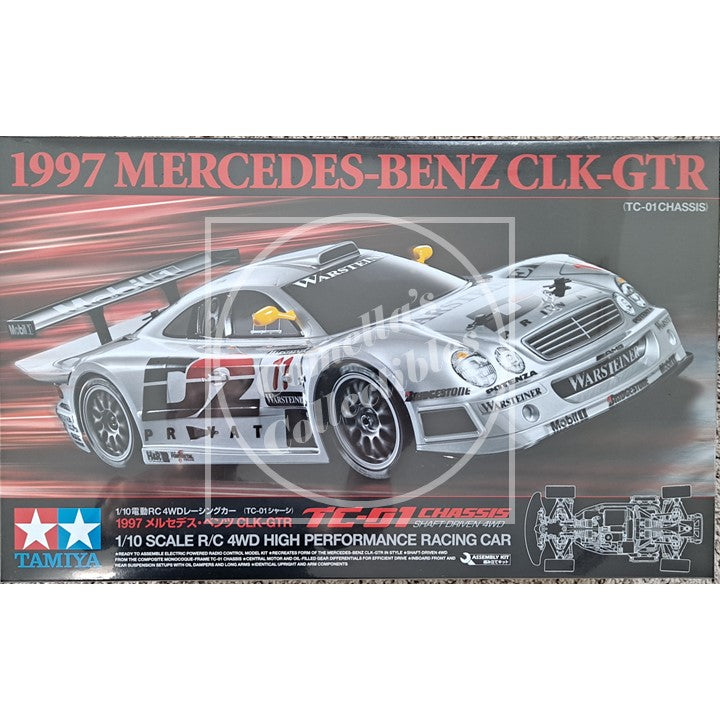

Tamiya RC 1/10 1997 Mercedes-Benz CLK-GTR Unassembled Kit with 4WD TC-01 Chassis #58731 in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened packages.

Description:
The Mercedes-Benz CLK-GTR R/C car kit first made its appearance in the Tamiya product catalog in 1998 on the popular TA-03R chassis platform then later the easy to assemble TT-01E platform. The CLK-GTR has made a return this time on our high-performance TC-01 chassis platform, which is destined to provide the most performance yet as it takes advantage of the Mercedes sleek body profile and the low center of gravity of the TC-01!

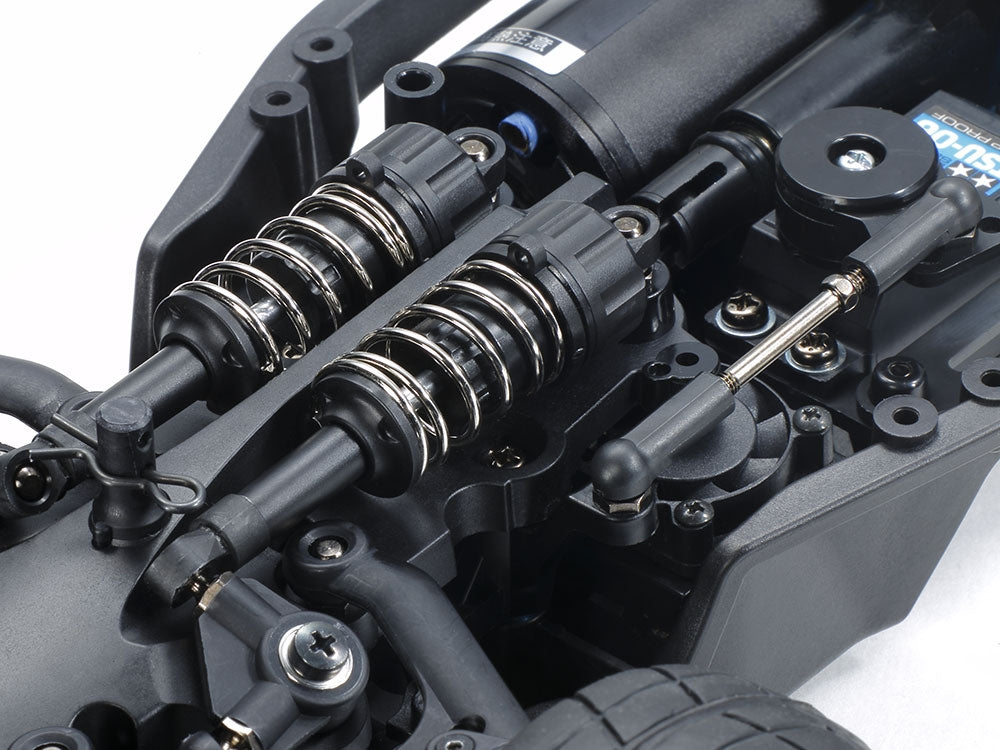

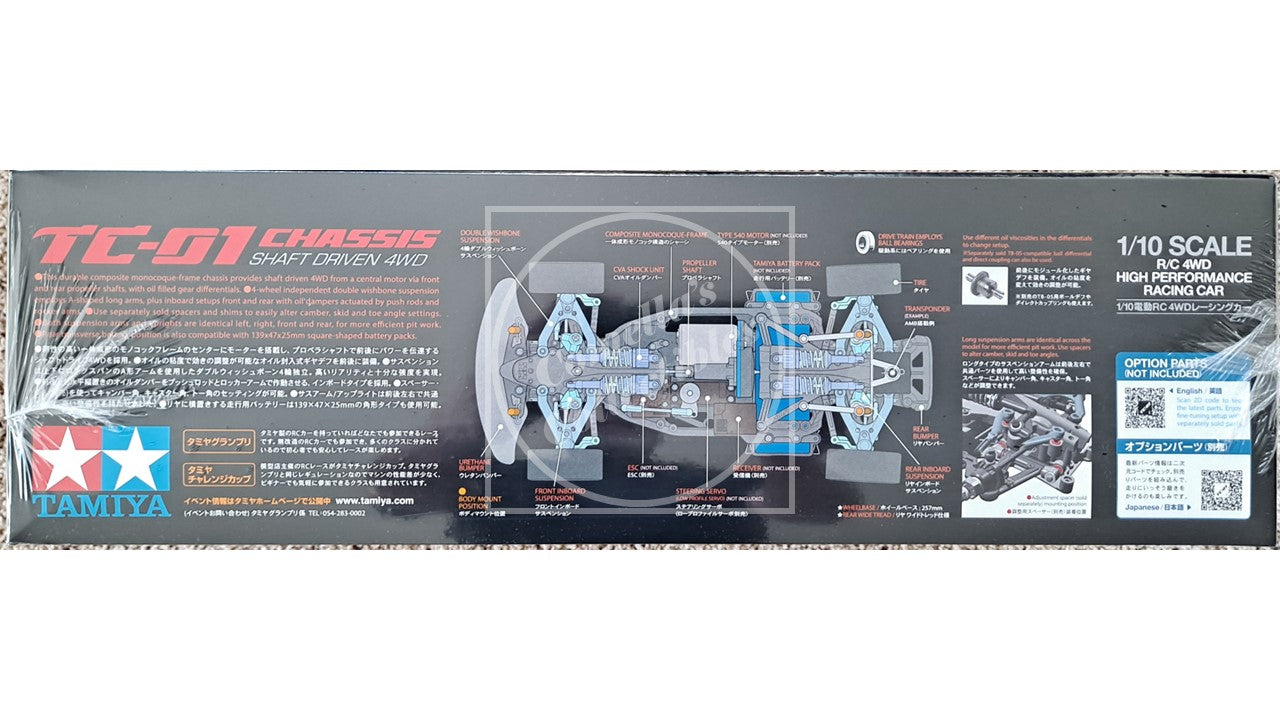

This durable composite monocoque-frame chassis provides shaft driven 4WD from a central motor via front and rear propeller shafts, with oil filled gear differentials. 4-wheel independent double wishbone suspension employs long arms, plus inboard setups front and rear with oil shock-dampers actuated by push rods and rocker arms to allow the use of low-profile bodies. Adjust spacer width to easily alter camber, skid, and toe angle settings. Both suspension arms and uprights are identical left, right, front and rear, for more efficient maintenance and pit work.

* NOTE: This is a KIT and requires: Servo, Motor, ESC, Radio System, Batteries, Charger, Paint and Assembly.

Features:

• 1/10 scale R/C model assembly kit.
• Length: 470mm, width: 194mm. Wheelbase: 257mm.

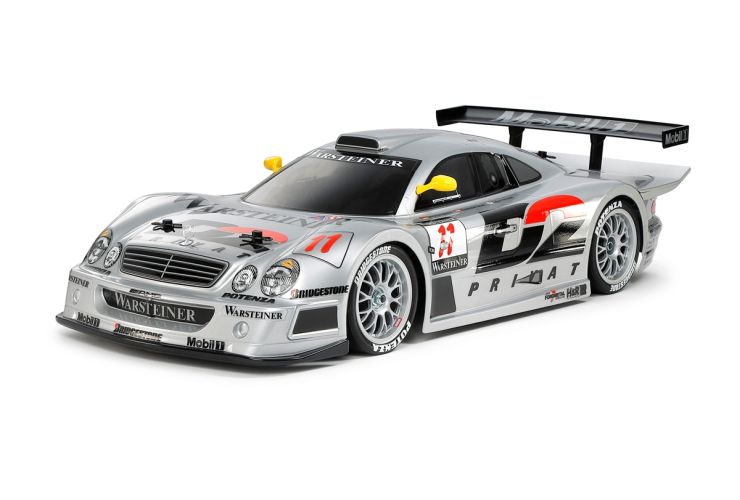

• 1997 Mercedes-Benz CLK-GTR is recreated in lightweight and durable polycarbonate.
• Separately molded white ABS plastic parts recreate side mirrors and rear wing.
• Silver mesh wheels are paired with racing slick tires. (The rear wheels are wide tread.)

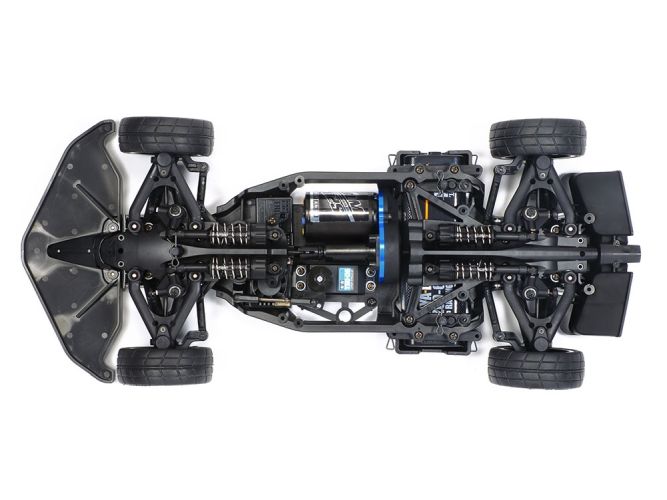

• TC-01 chassis
• The durable and composite monocoque-frame chassis provides shaft driven 4WD from a central motor via front and rear propeller shafts, with oil filled gear differentials.

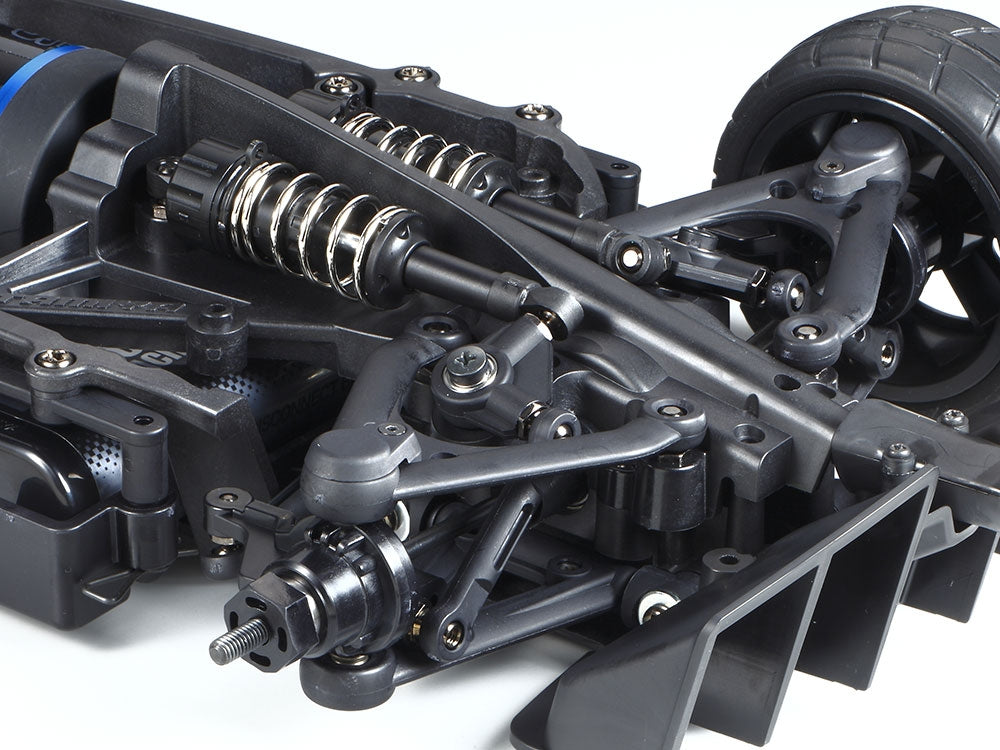

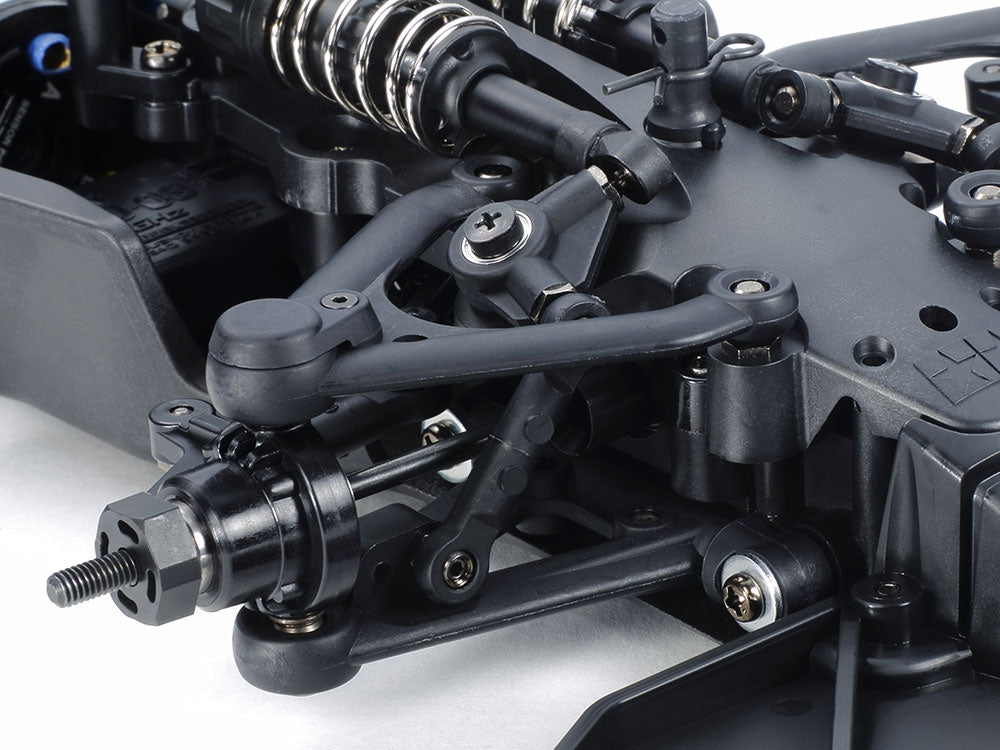

• 4-wheel independent double wishbone suspension employs A-shaped long arms, plus inboard setups front and rear with oil dampers actuated by push rods and rocker arms.
• Use spacers and shims to easily alter camber, skid, and toe angle settings.
• Both suspension arms and uprights are identical left, right, front and rear, for more efficient pit work.
• Rear transverse battery position is also compatible with 139x47x25mm square-shaped battery packs.

Specifications:

• Adjustable Gear Ratio: Yes
• Bearings: Includes full ball bearings
• Body Material: Polycarbonate
• Body Stickers: Included
• Chassis Material: FRP Fiberglass Reinforced Plastic
• Chassis Type: TC-01
• Construction Type: Assembly Kit
• Differential Type: Gear Oil-Filled Type
• Drive Type: 4WD
• Electronic Speed Control (esc): Sold Separately
• Motor: Sold Separately
• Scale: 1/10

• Shock Damper: CVA Oil Filled
• Suspension: 4-wheel fully independent double wishbone
• Terrain Use: On-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Low Profile Steering servo (standard servo will not fit)
* Transmitter batteries
* Electronic Speed Control (ESC)
* 540 Size Motor compatible with ESC
* Drive battery pack (7.2-7.4V) - Note: Drive battery thickness may not exceed 26mm
* Battery charger compatible with drive-battery
* Tamiya PS paint for polycarbonate parts and Tamiya TS paint for ABS plastic parts
