Tamiya Brushless ESC 04SR Sensored #45070

Tamiya Brushless ESC 04SR Sensored #45070 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened boxes.

Description:

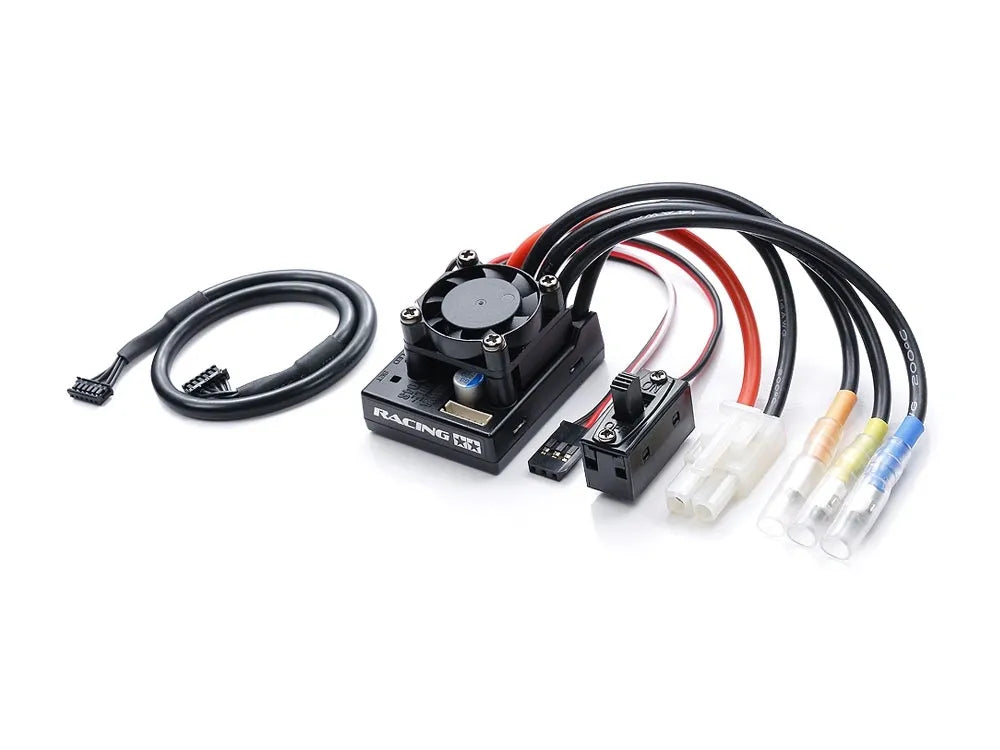

This ESC is designed for use with Tamiya Brushless Motors (Sensored) 15.5 turn and over, (Aftermarket brands 21.5 turn and over), and also brushed motors 23T and over. High point, neutral brake and brake settings are individually adjustable, while battery cut-off, reverse and motor modes can be selected. Setup is shown by an LED, and the ESC also features two protection functions and a cooling fan.

Features:
- Sensored brushless ESC detects motor rotor positions with precision, enabling more efficient power supply and smoother motor response.
- Compatible with Tamiya brushless motors (sensored-type), and Tamiya brushed motors 23 turns and over.
- Choose from 10 different settings for both neutral brake and brake, to get your setup just how you want it.
- Features overheating and overload protection functions to help ensure that your equipment avoids damage.
- Compatible with Ni-Cd, Ni-MH and Tamiya Li-Fe battery packs.
- LOW & HIGH Battery Voltage Protection: LOW cuts off @ 5.6 volts. (Best for Ni-CD, NI-MH and Li-FE) HIGH cuts off @ 6.2 volts approximately. (Best for other batteries).

Specs:
- Maximum continuous current: 75A (100% forward / 50% reverse)
- Input voltage: 6.6V - 7.2V

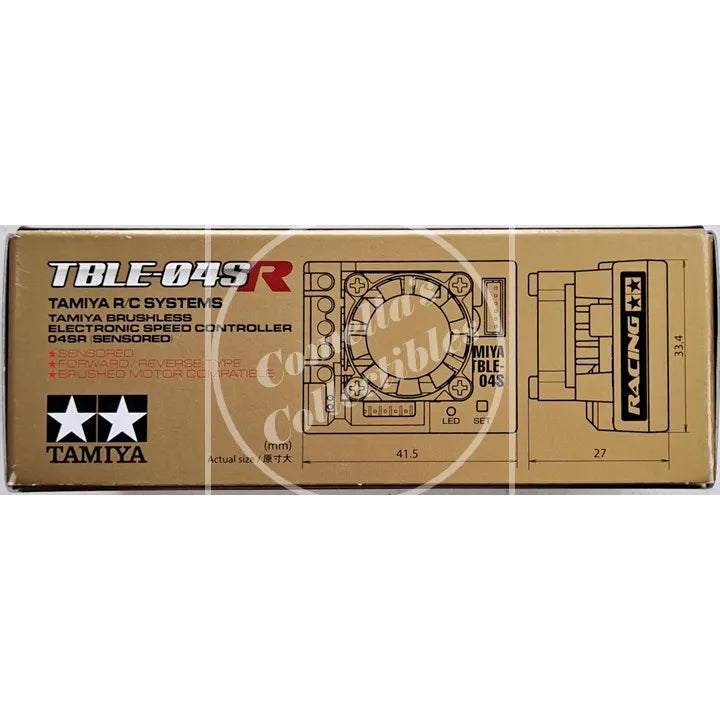

- Dimensions: 41.5mm x 33.4mm x 27mm
- Weight: 56g (including cables)
- With cooling fan
- LOW & HIGH Battery Voltage Protection: LOW battery setting cuts off @ 5.6 volts approximately. (Best for Ni-CD, NI-MH and Li-FE battery chemistry) HIGH battery setting cuts off @ 6.2 volts approximately. (Best for other battery chemistries)
