Tamiya 1/10 Toyota Supra JZA80 2WD Kit BT-01 Chassis Motor & ESC #58733

Tamiya 1/10 RC Toyota Supra JZA80 2WD Unassembled Kit with BT-01 Chassis, RS-540 Motor and Brushed ESC #58733 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened retail box.

Description:

The 2WD BT-01 is a NEW chassis that offers radio control hobbyists’ choices of FF/MR/FR drive system based upon the drive system of the actual car your body recreates. The body included in the first release depicts the fourth generation Toyota Supra (JZA80) which was announced as a Toyota flagship sports car in 1993. Its top grade RZ model employed a 3-liter inline-6 twin turbo engine capable of 280hp, 6-speed transmission, 4-wheel double wishbone suspension and ventilated disc brakes for front and rear. The muscular form and high-spec performance mesmerized fans all over the world and achieved success in motorsports races.

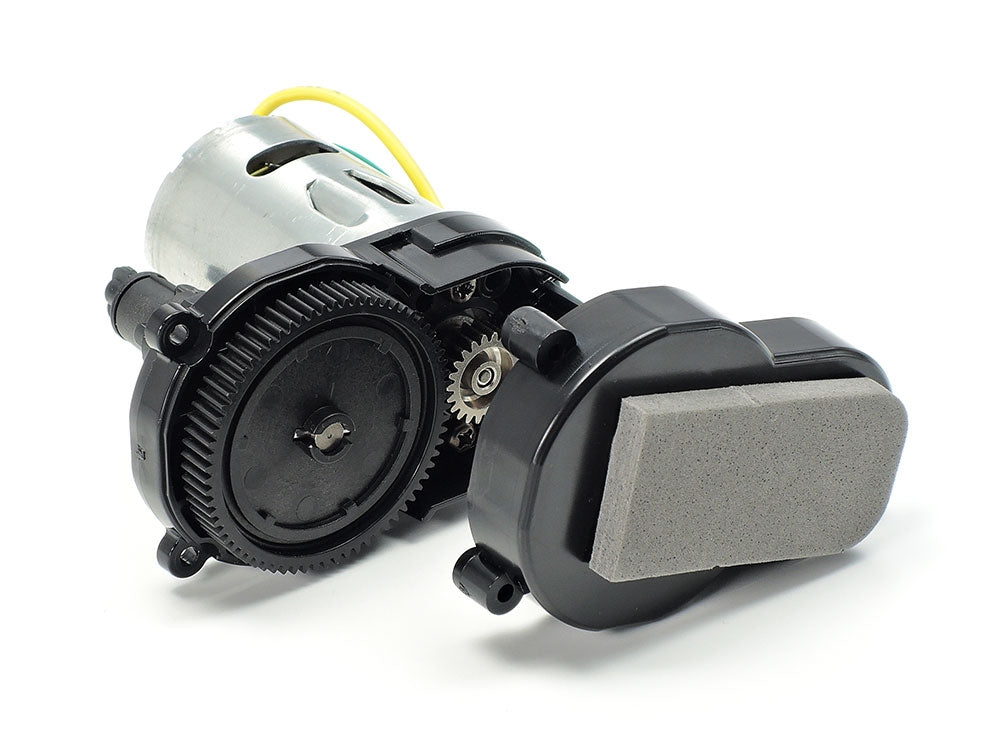

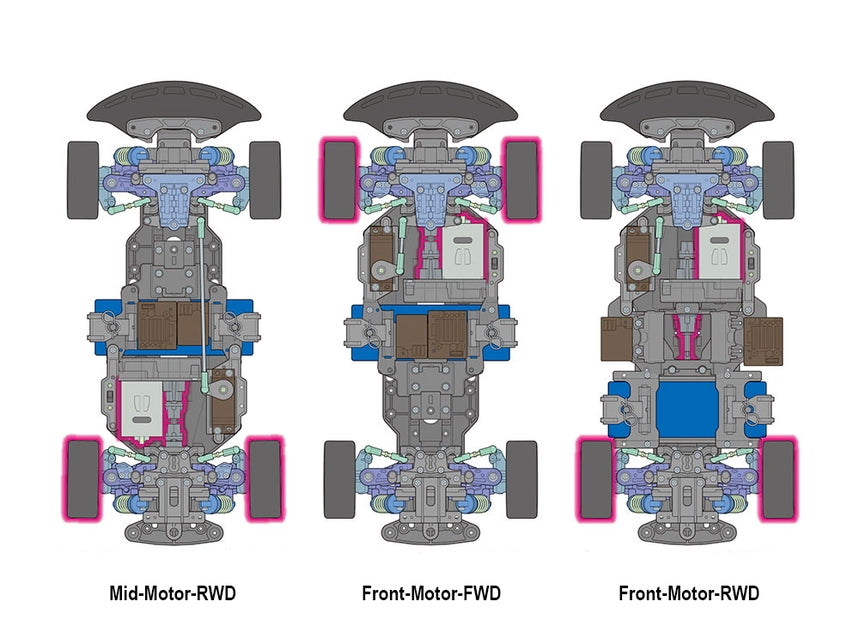

The 2WD BT-01 chassis gives the choice of two types of wheelbases, and front-or rear-wheel drive system. Without removing the battery pack, motor, and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front-and rear-wheel drive; front (FR) or midship rear (MR) motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as the motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger, Paint and Assembly.

Features:

• 1/10 scale R/C model assembly kit.
• Length: 457mm, width: 185mm, height: 135mm. Wheelbase: 257mm.

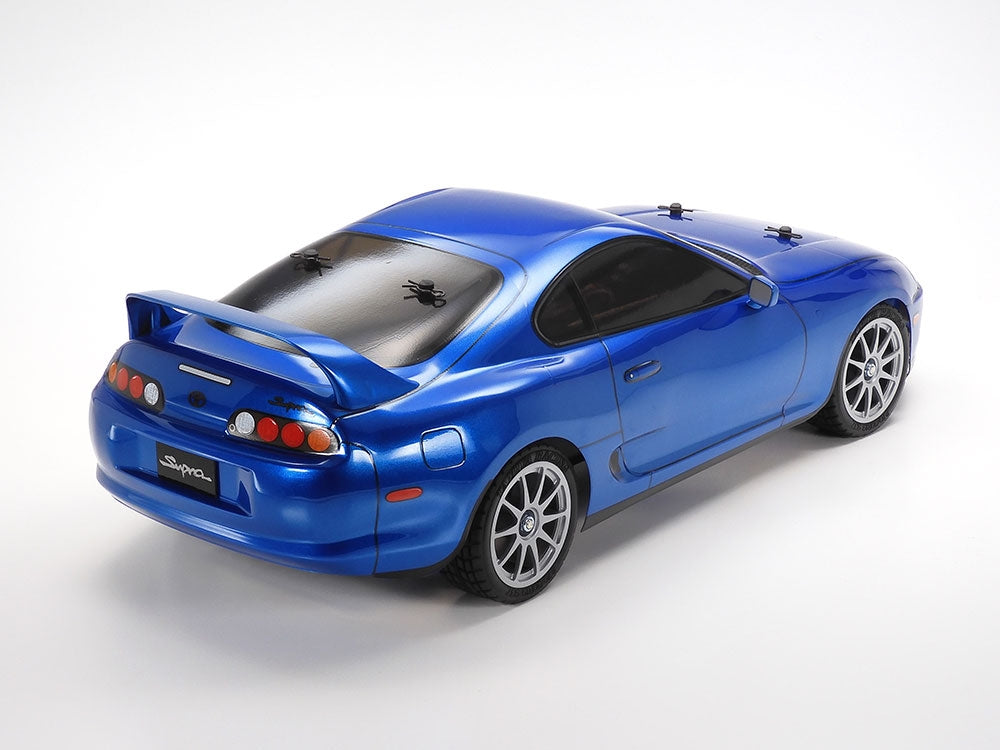

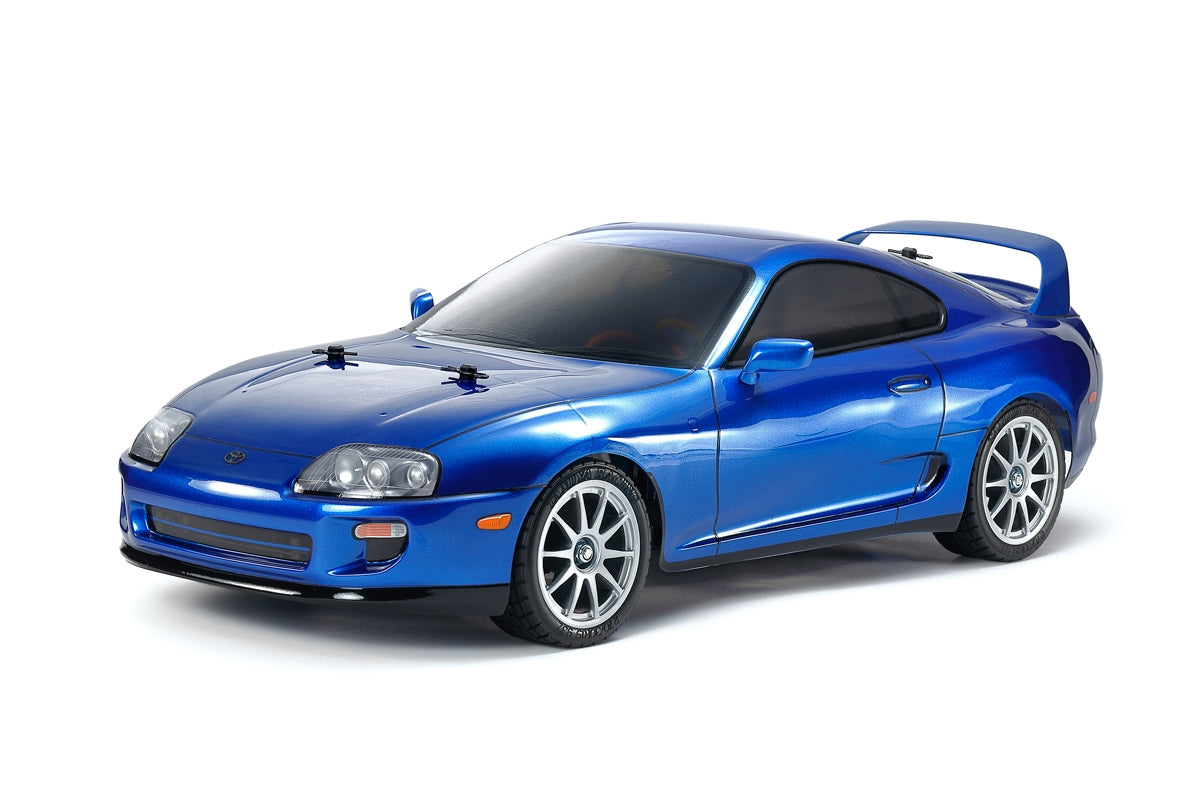

• The form of the Toyota Supra (JZA80) is realistically recreated in lightweight polycarbonate.

• 10-spoke one-piece wheels (silver color) are paired with racing radial tires.

• Separate molded plastic parts: mirrors, wing, light cases.

Specifications:

• Adjustable Gear Ratio: Yes
• Bearings: Plastic bushing
• Body Material: Polycarbonate
• Body Stickers: Included
• Chassis Material: ABS Plastic
• Chassis Type: BT-01
• Construction Type: Assembly Kit

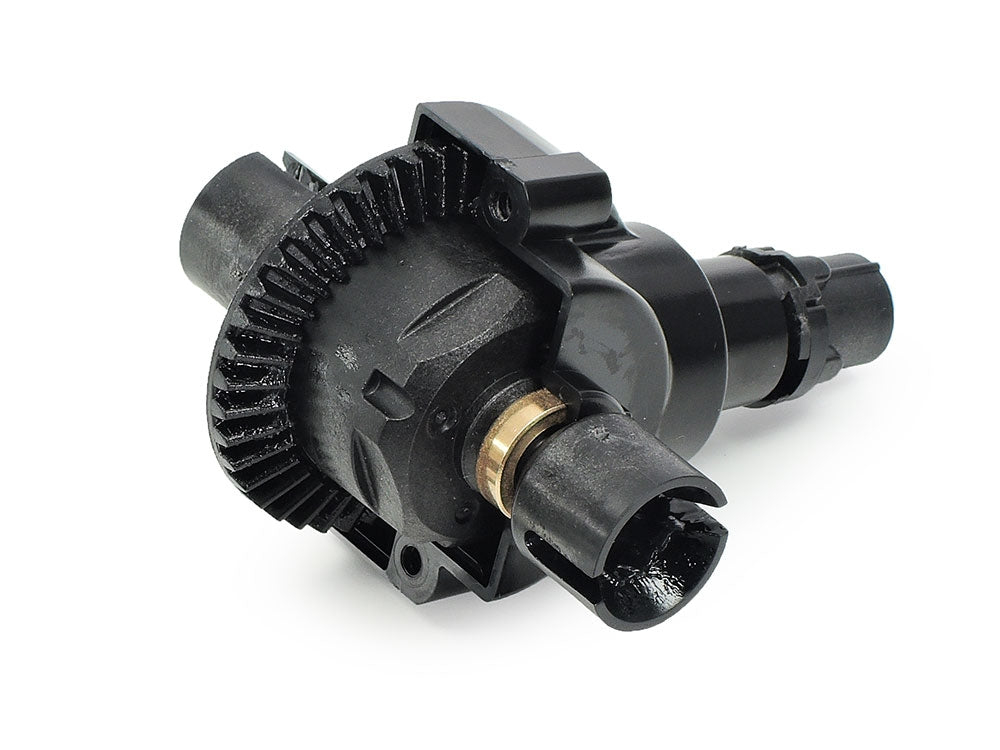

• Differential Type: Gear
• Drive Type: 2WD
• Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
• Motor: 540-brushed type
• Scale: 1/10
• Shock Damper: Friction type

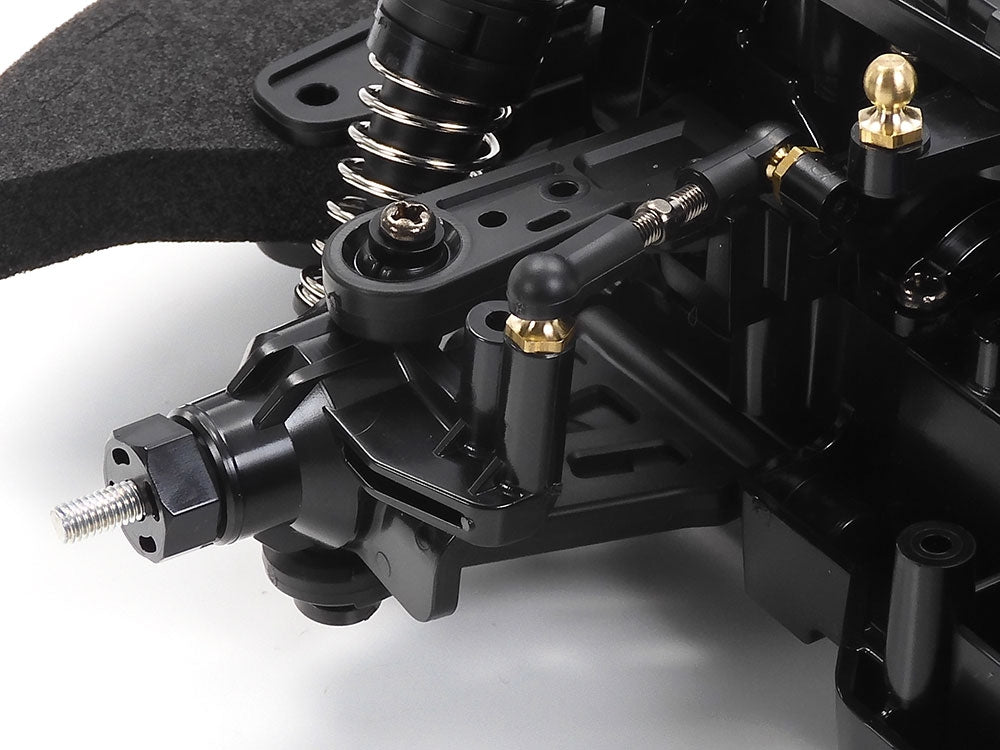

• Suspension: Fully Independent Double Wishbone
• Terrain Use: On-Road


Required To Complete (not included):

• 2 channel transmitter (Tx)
• 2 channel receiver (Rx)
• 1 Steering servo
• Transmitter batteries
• Drive battery pack (7.2V)
• Battery charger
• Body paint
