Tamiya 1/10 RC Toyota Land Cruiser 40 CR-01 4WD with Motor #58405

Tamiya 1/10 RC Toyota Land Cruiser 40 CR-01 4WD with Motor #58405

Regular price $487.90 USD
Regular price Sale price $487.90 USD
Sale Sold out
Shipping calculated at checkout.

Tamiya 1/10 RC Toyota Land Cruiser 40 CR-01 Chassis 4WD Unassembled Kit with Motor #58405 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for removed shrink from retail box.

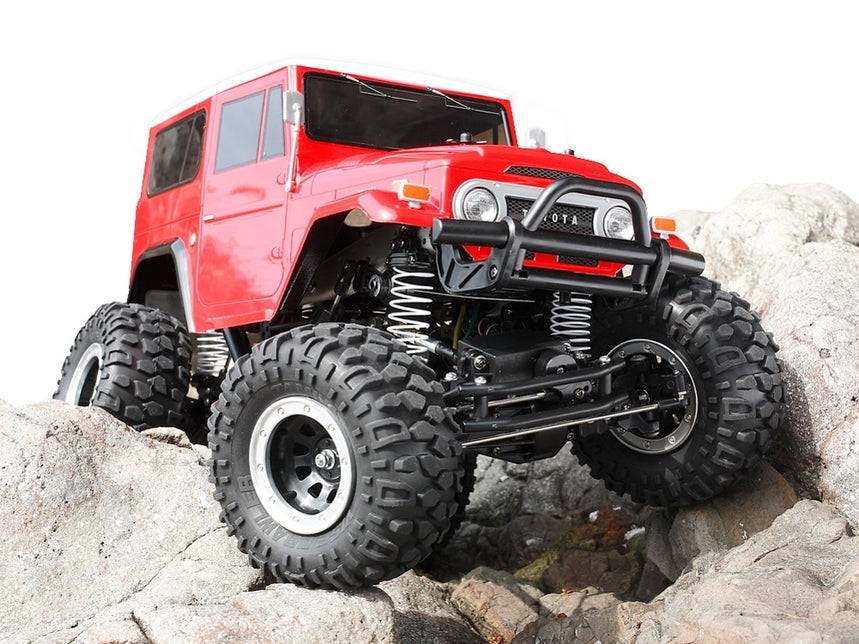

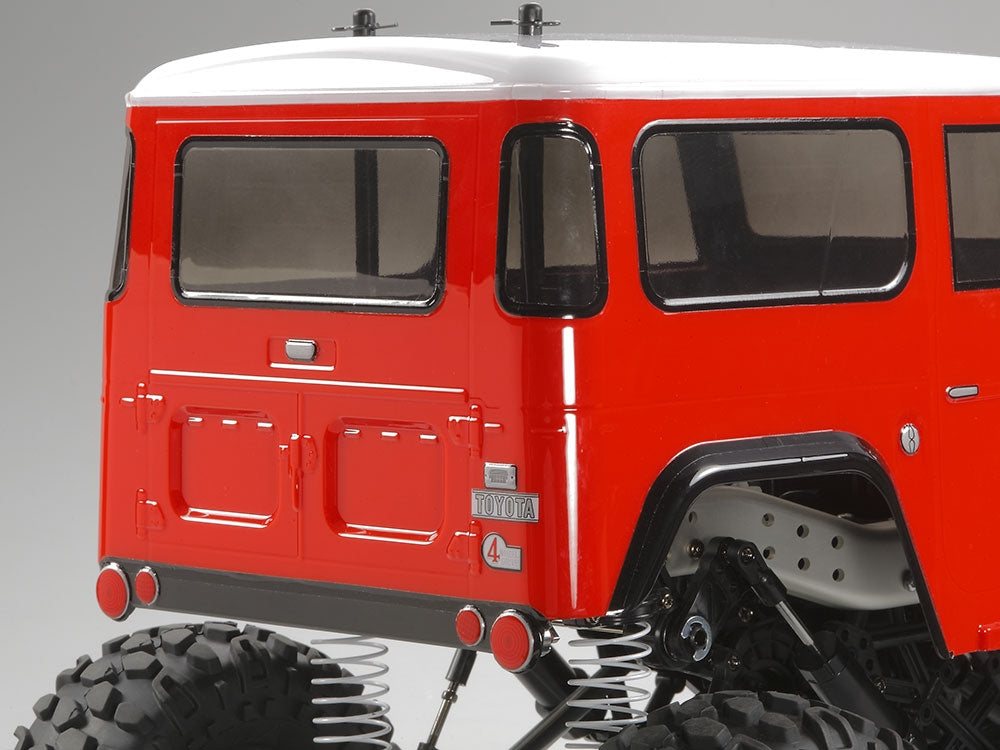

The Toyota Land Cruiser 40 was produced from 1960 to 1984 and is one of the most well-known 4x4 vehicles in the world. Tamiya has reproduced this classic off-roader as an assembly kit R/C model on the newly developed CR-01 rock crawling chassis. This chassis features a tough ladder frame with aluminum side channels and resin crossmembers, 4-link suspension with aluminum rods, a 4WD system with lockable differentials, massive off-road tires with sidewall tread pattern, and dependable beadlock wheels. The body is of course accurately reproduced in durable polycarbonate material, giving fans a superbly capable rock crawler with scale realism.

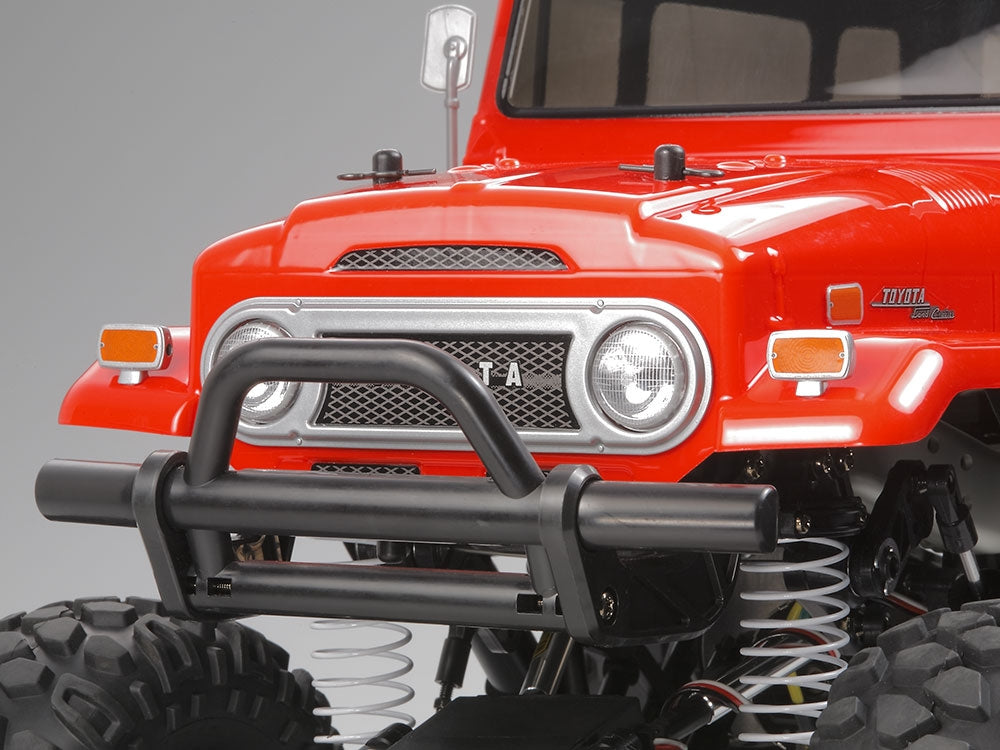

Toyota's Land Cruiser 4x4s are known throughout the world for their legendary off-road ability. Toyota began production of the Land Cruiser in 1950, and the Land Cruiser 40 that was made from 1960 to 1984 in particular was an exceptional long-seller. Even now, this classic 4x4 still has a large following. The distinctive body styling is highlighted by the oval radiator grille, turn signals on the front fenders, and rear corner windows. With its reputation as a dependable and durable vehicle, many are still earning their keep in harsh conditions and it is the vehicle of choice for many real life rock crawling competition drivers.

* NOTE: This is a KIT and requires: Servo, Radio System, ESC, Battery, Charger, Body Paint and Assembly.


  • Length: 435mm; Width: 265mm; Height: 274mm
  • Weight: 2330g
  • Wheelbase: 288mm
  • Tread: (Front/Rear) 208mm
  • Tire Width/Diameter: (Front/Rear) 57/125mm

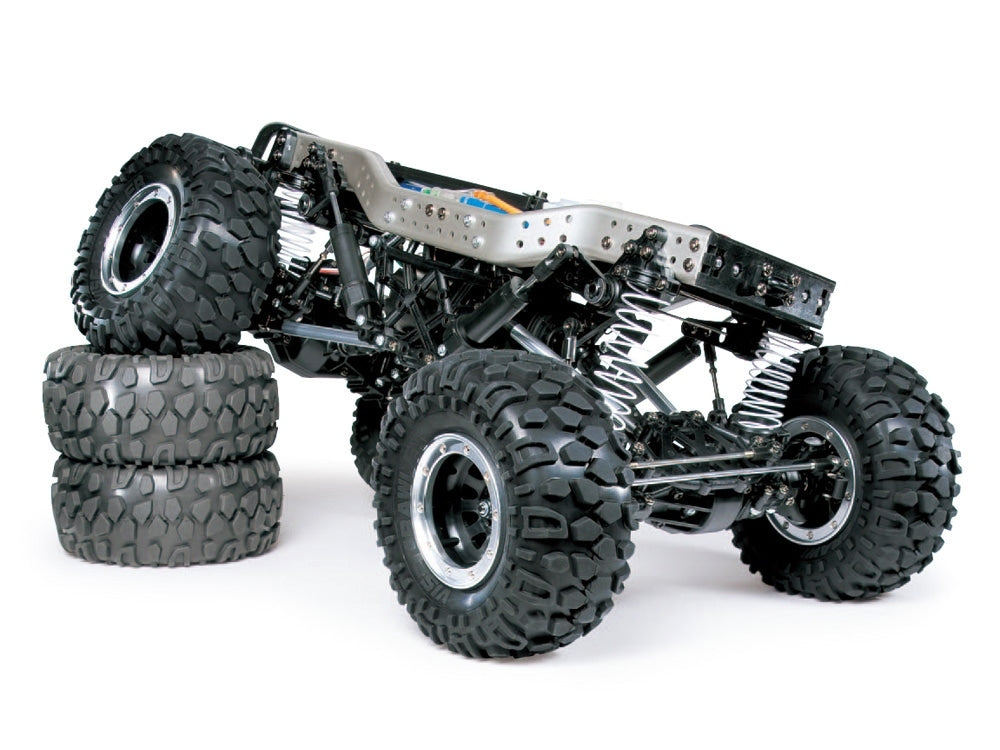

  • Chassis: Ladder frame with aluminum side channels and resin cross members
  • Drivetrain: Shaft-driven 4WD
  • Diff Gear: 3-bevel diff (standard locked setting)

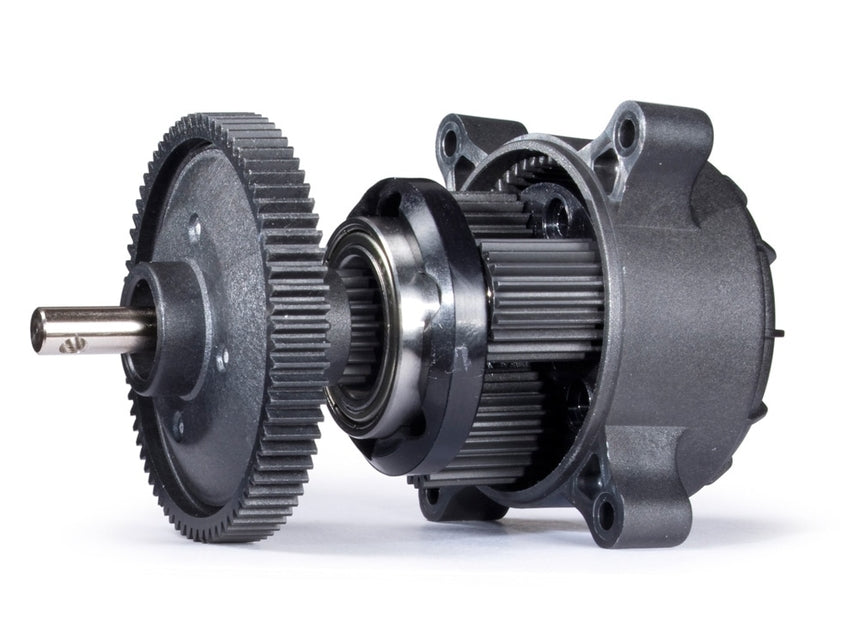

  • Gearbox: Planetary type
  • Suspension: Front/Rear 4-link rigid
  • Dampers: Front/Rear CVA oil dampers
  • Gear Ratio: 1:40.5
  • Speed Controller: ESC (sold separately)
  • Motor: Type RS540

* Adjustable Gear Ratio: Yes
* Bearings: Shielded ball bearing
* Body Material: Clear Polycarbonate
* Body Stickers: Included
* Chassis Material: Aluminum and ABS plastic
* Chassis Type: CR-01
* Construction Type: Assembly Kit
* Differential Type: Gear
* Drive Type: 4WD
* Electronic Speed Control (esc): Not included
* Led Light Buckets: yes
* Led Lights: Yes
* Motor: 540-brushed type
* Scale: 1/10
* Shock Damper: Oil-filled damper
* Suspension: 4-link
* Terrain Use: Off-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
* Body Paint
