Tamiya 1/10 RC Ford F-150 Quadtrack TT-02FT 4WD w/ Motor & ESC #58690-60A

Tamiya 1/10 RC Ford F-150 Quadtrack TT-02FT 4WD w/ Motor & ESC #58690-60A

Regular price $352.80 USD
Regular price Sale price $352.80 USD
Sale Sold out
Shipping calculated at checkout.

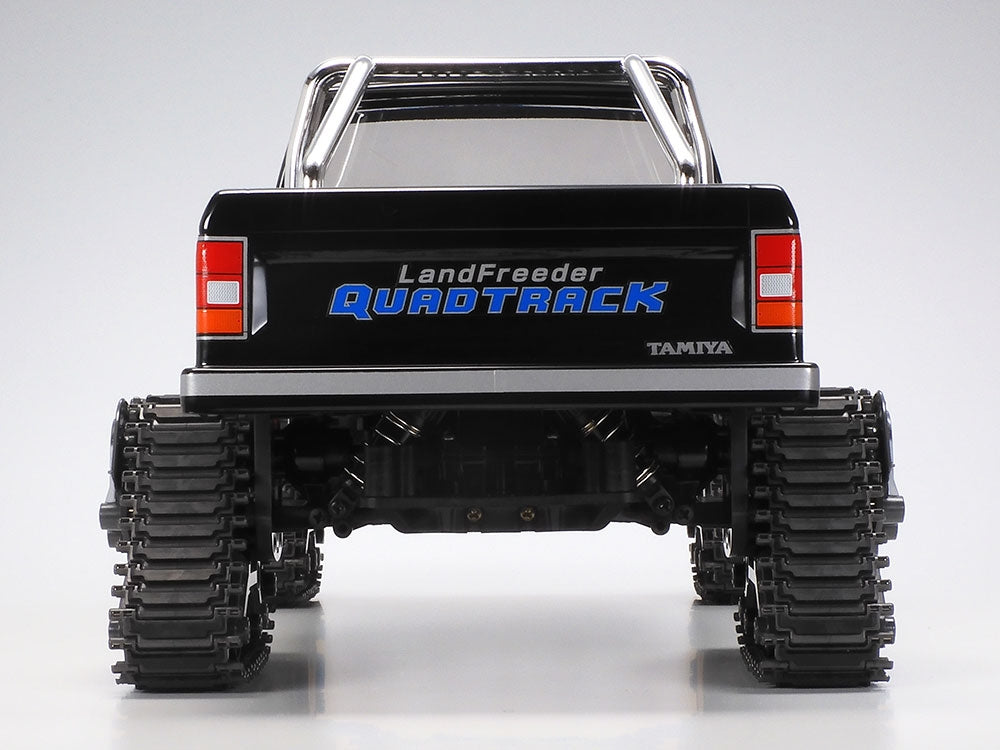

Tamiya 1/10 RC Ford F-150 Landfreeder Quadtrack TT-02FT Chassis 4WD Unassembled Kit with Black Painted Body, Motor & HobbyWing ESC #58690-60A in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for removed shrink from retail box.

Description:
The Landfreeder Quadtrack is a fresh new twist on the fun world of Tamiya R/C. This kit uses a new variant of the TT-02 chassis with three-sided track units in place of the wheels: the result is awesome traction that can be used to take on rough terrain. Furthermore, the polycarbonate truck body comes already pre-painted in Tamiya PS-5 black.

* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger and Assembly.

Features:

  • Length: 425; Width: 247mm

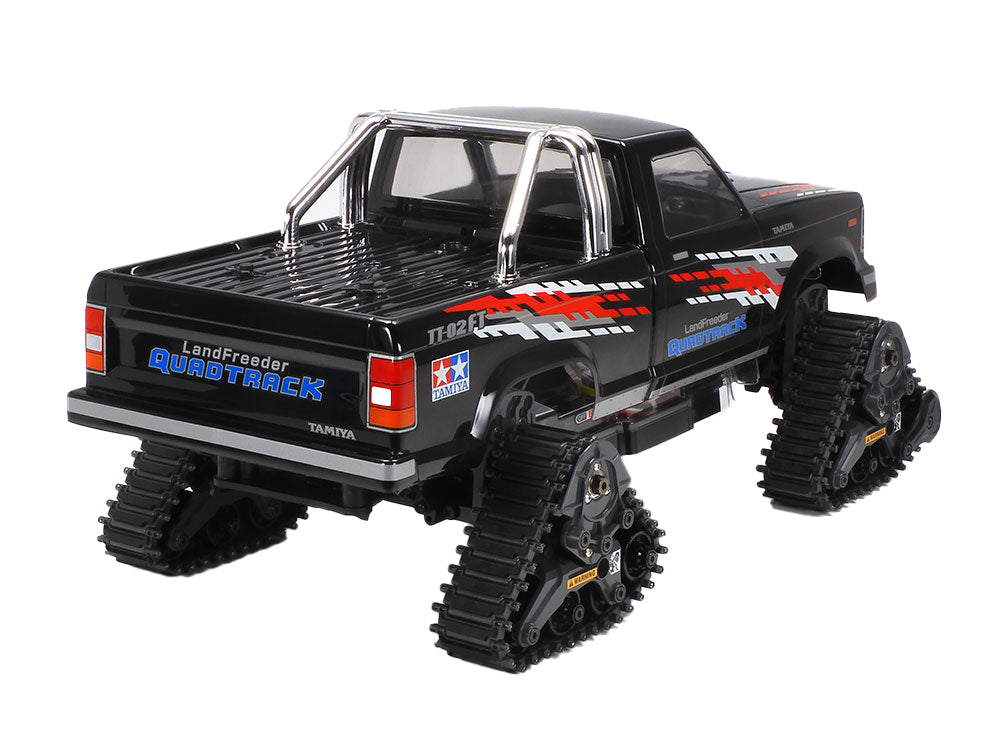

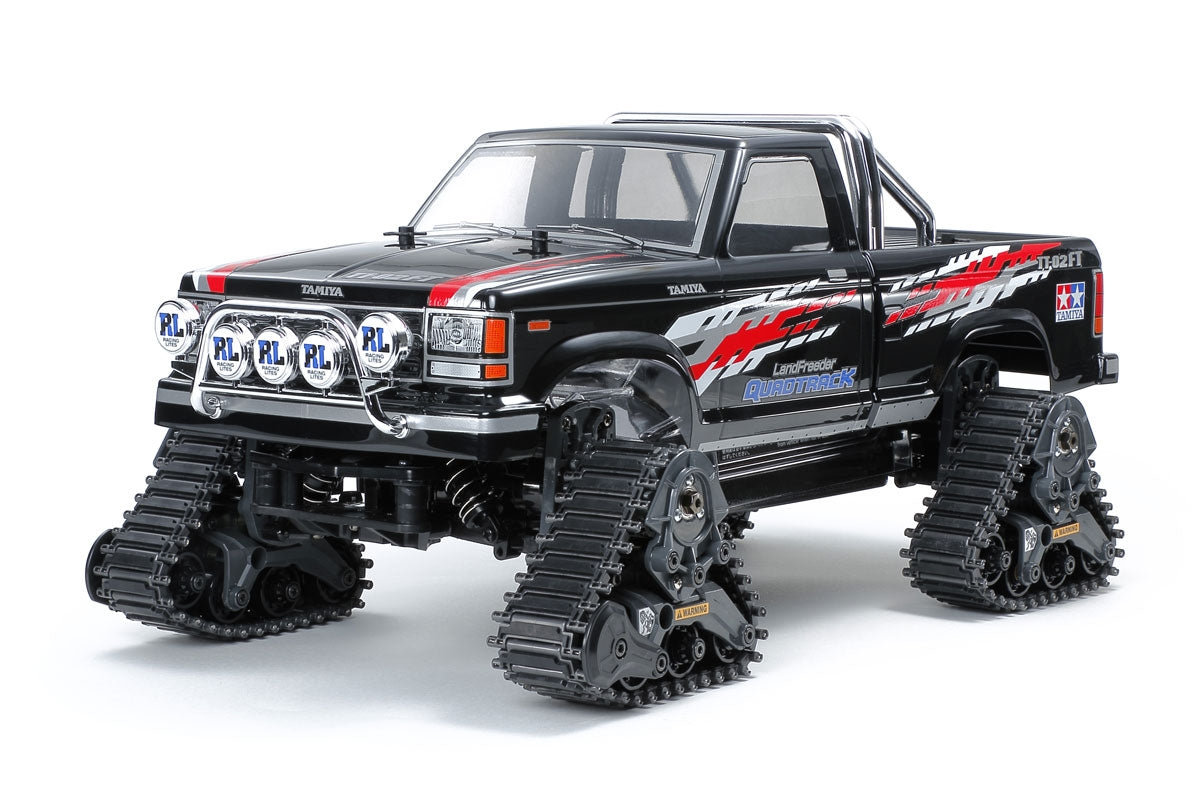

  • The Landfreeder body comes molded in polycarbonate, pre-painted Black (PS-5) and with Smoke (PS-31) painted windows. Separate plated parts recreate grille cover, fog lamps and roll bar.

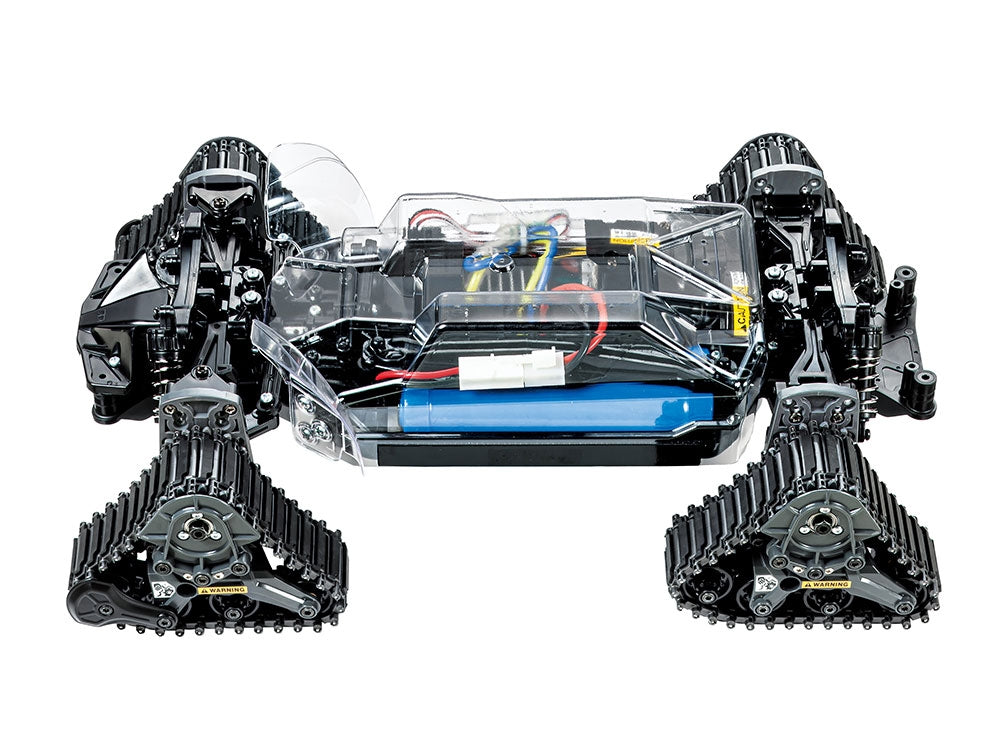

  • The TT-02FT is a variant of the TT-02 chassis, with four tracks on its suspension.
  • Each of the three-sided track units is 39.3mm in width and has a contact area of 60mm length. Tracks require assembly from link parts, and offer efficient traction.
  • Two types of elastomer track link (standard and grouser) are included for setup options.

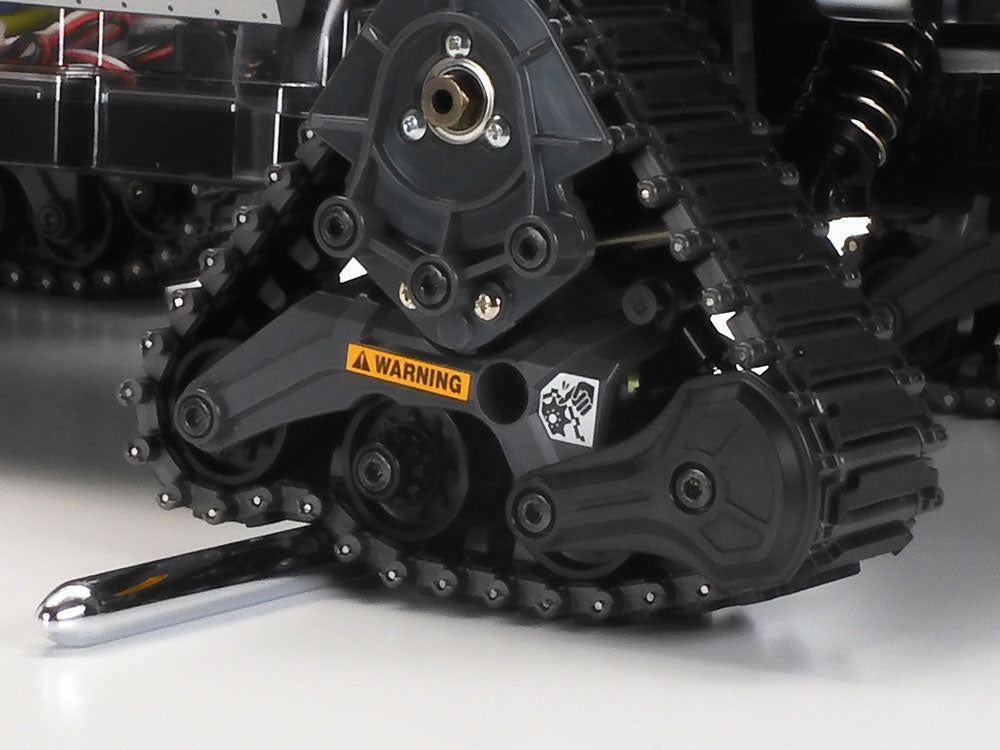

  • Track units are attached to suspension arms via plates, and each features a sprocket and four rollers. The third roller is sprung to further enhance performance.
  • Polycarbonate chassis cover and wheel well liners give protection from dust and dirt encountered during off-road driving.
  • TT-02 four-bevel differentials and identical suspension arms are used.
  • Includes CR-Tuned 35T Motor 540-brushed type motor.

Specifications:
* Adjustable Gear Ratio: Yes
* Bearings: Plastic bushing
* Body Material: Polycarbonate pre-painted
* Body Stickers: Included
* Chassis Material: ABS Plastic
* Chassis Type: TT-02FT
* Construction Type: Assembly Kit
* Differential Type: Gear
* Drive Type: 4WD
* Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
* Motor: 540-brushed type
* Scale: 1/10
* Shock Damper: CVA Oil Filled
* Suspension: Fully Independent Double Wishbone
* Terrain Use: Multi-Purpose

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
