Tamiya 1/10 Porsche 911 Carrera RSR 2.8 2WD Kit BT-01 Chassis Motor & ESC #58740

Tamiya 1/10 Porsche 911 Carrera RSR 2.8 2WD Kit BT-01 Chassis Motor & ESC #58740

Regular price $154.00 USD
Regular price $220.00 USD Sale price $154.00 USD
Sale Sold out
Shipping calculated at checkout.

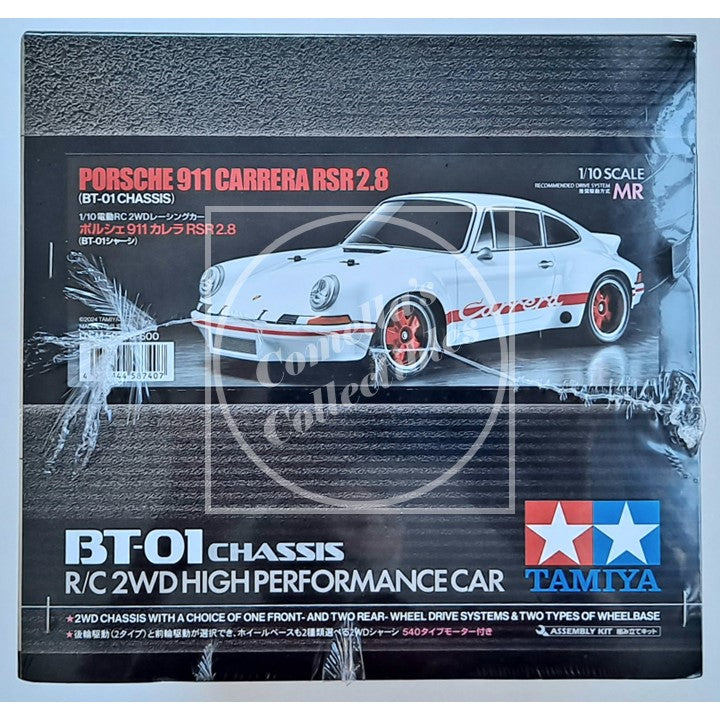

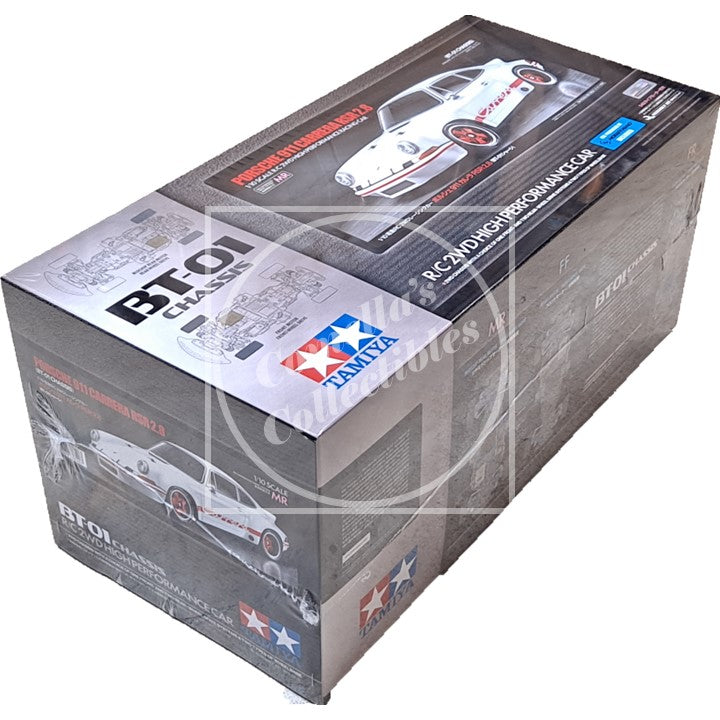

Tamiya 1/10 RC Porsche 911 Carrera RSR 2.8 Unassembled Race Car Kit with BT-01 Chassis, RS-540 Motor and HobbyWing THW 1060 Brushed ESC #58740 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened retail box.

Description:
The iconic Porsche 911 RSR 2.8 makes its way to the highly versatile BT-01 chassis! To faithfully recreate the motor and drive train layout as much as possible of the full-size car, this kit instructs the builder to assemble the chassis in the short wheelbase, midship rear motor / rear wheel drive (MR) setup. This layout configuration provides rear wheel drive handling excitement at every turn and exciting throttle response.

The Porsche Carrera RS 2.7 is a legend of the Porsche 911 series. Developed to join European GT races in 1973, it employed a 2,687cc horizontally opposed 6-cylinder engine capable of 210hp, a lightweight body with improved aerodynamics, and wide rear tires. The Carrera RSR 2.8 racing version increased displacement to 2,808cc and output to over 300hp; in 1973, it was a European GT race champion and took numerous global victories.

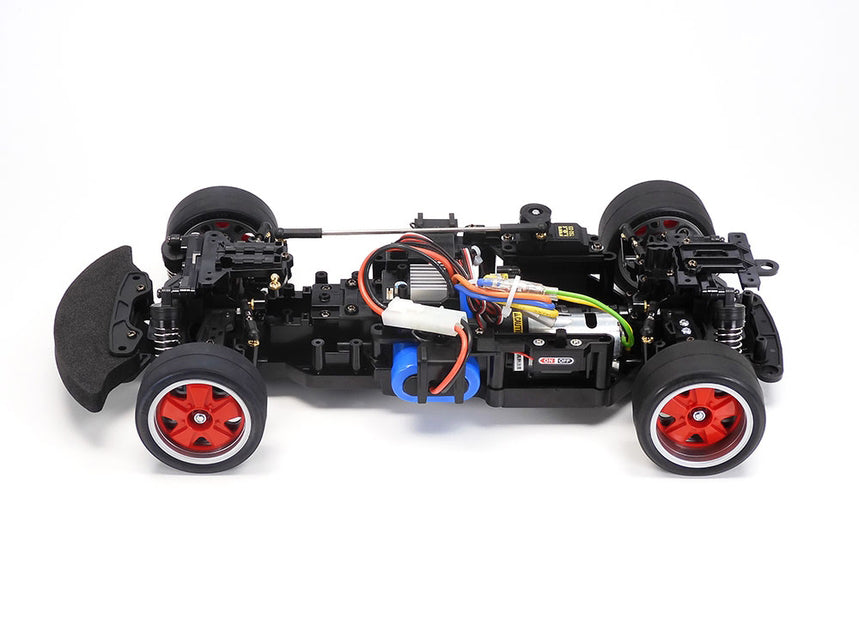

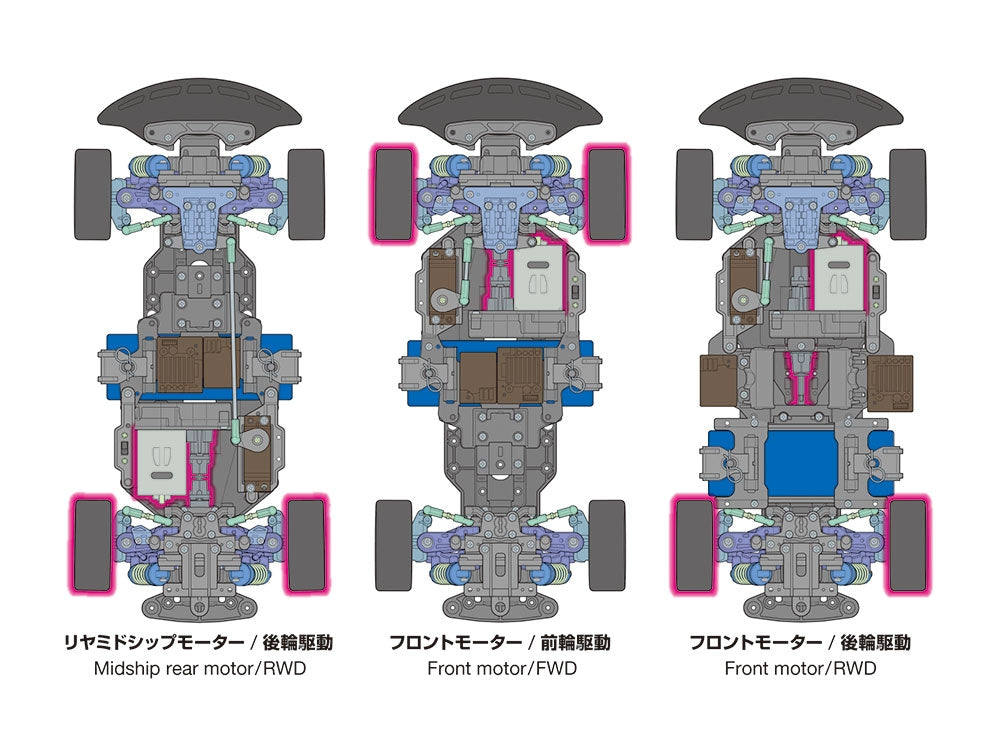

The 2WD BT-01 chassis gives the choice of two types of wheelbases, and front-or rear-wheel drive system. Without removing the battery pack, motor, and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front-and rear-wheel drive; front (FR) or midship rear (MR) motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as the motor mount, final gears and suspension facilitate ese of assembly and effective maintenance.

* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger, Paint and Assembly.

Features:

  • 1/10 scale R/C model assembly kit.
  • Length: 457mm, width: 204mm, height: 138mm. Wheelbase: 251mm. (Short)

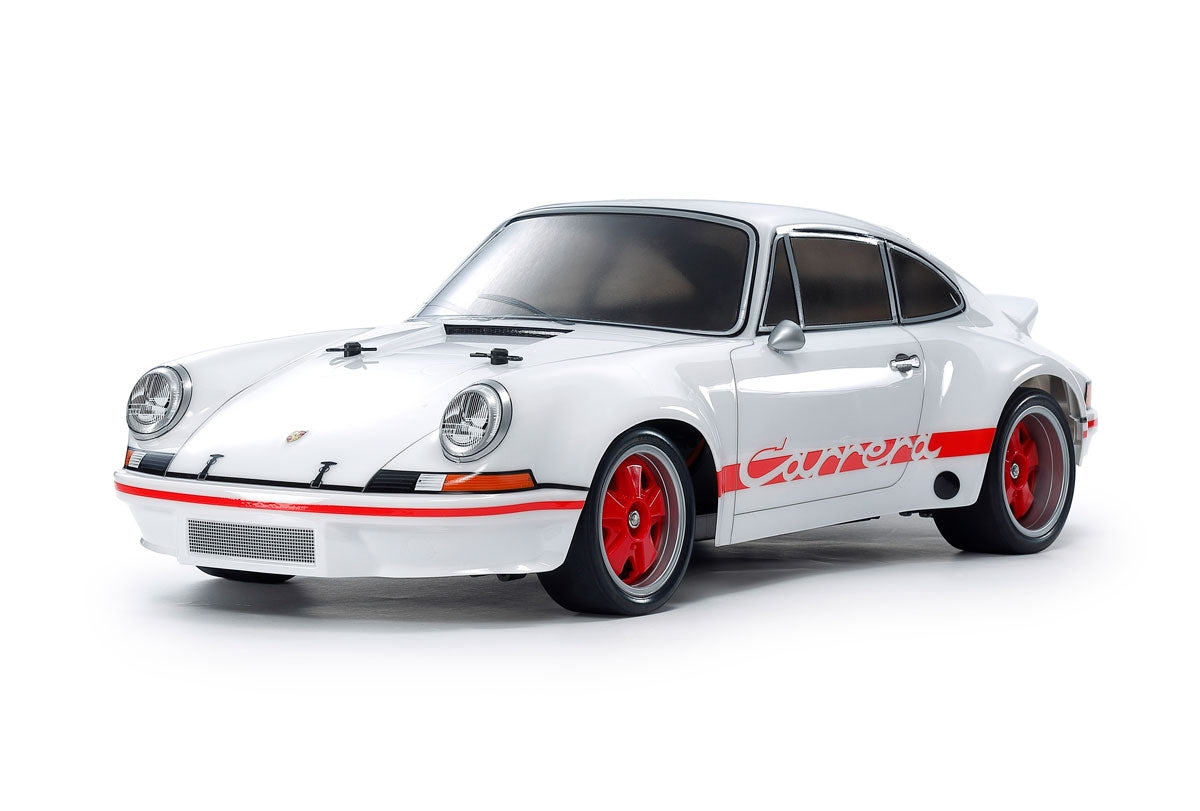

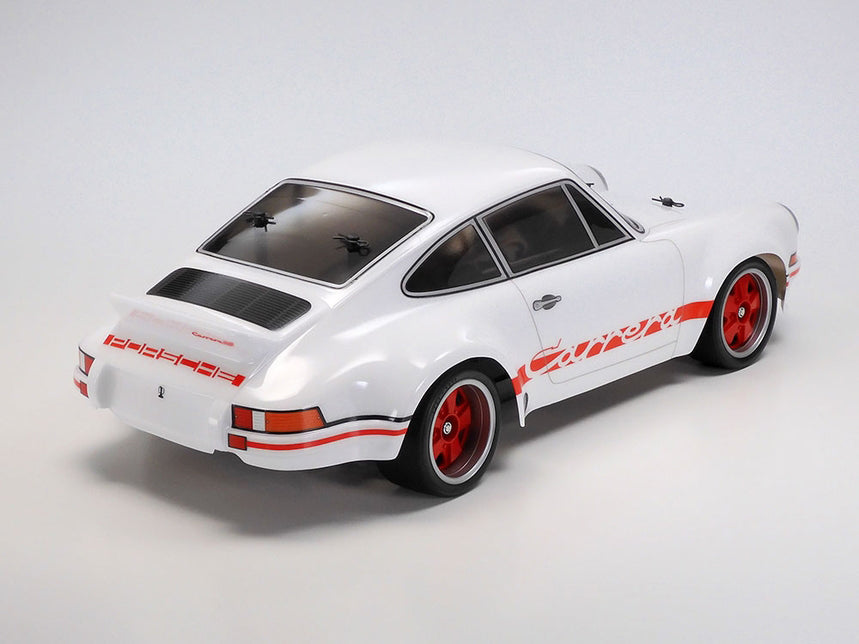

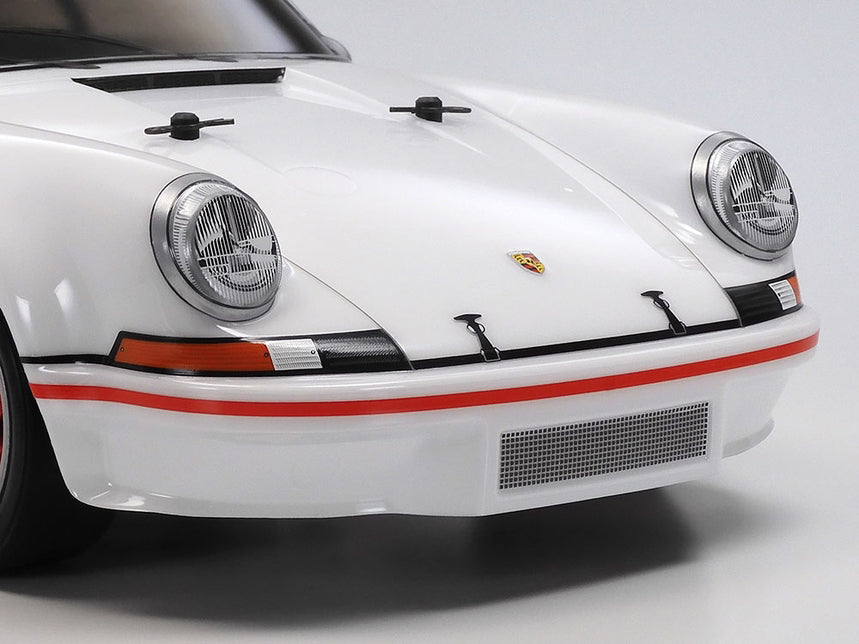

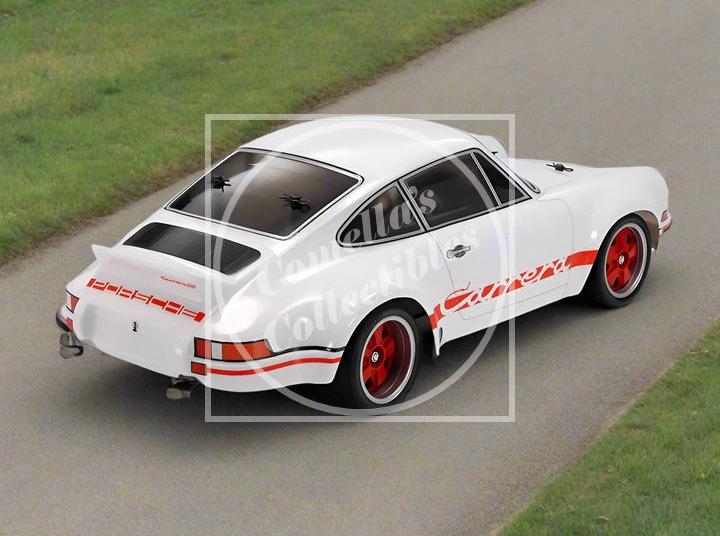

  • The form of the Porsche 911 Carrera RSR 2.8 is realistically recreated in lightweight polycarbonate.
  • Silver color wheels (front: narrow, rear: wide / rims and red wheel caps are separate) are paired with racing slick tires (front: Item 50454, rear: Item 50547).
  • Separate molded plastic part recreates the side mirror.
  • Includes 540 brushed motor and ESC

Specifications:

  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic bushing
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: ABS Plastic
  • Chassis Type: BT-01
  • Construction Type: Assembly Kit
  • Differential Type: Gear
  • Drive Type: 2WD
  • Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
  • Motor: 540-brushed type
  • Scale: 1/10
  • Shock Damper: Friction type
  • Suspension: Fully Independent Double Wishbone
  • Terrain Use: On-Road

Required To Complete (not included):

  • 2 channel transmitter (Tx)
  • 2 channel receiver (Rx)
  • 1 Steering servo
  • Transmitter batteries
  • Drive battery pack (7.2V)
  • Battery charger
  • Body paint
