Tamiya

Tamiya 1/10 Olio Fiat 131 Abarth Rally 4WD MF-01X Kit w/ Motor & ESC #47494-60A

Tamiya 1/10 Olio Fiat 131 Abarth Rally 4WD MF-01X Kit w/ Motor & ESC #47494-60A

Regular price $170.10 USD
Regular price Sale price $170.10 USD
Sale Sold out
Shipping calculated at checkout.

Limited Edition Tamiya RC 1/10 Fiat 131 Abarth Rally Olio Fiat 4WD Kit with MF-01X Chassis, Mabuchi RS-540 Motor & HobbyWing THW 1060 Brushed ESC #58650-60A in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened packages.

Description:

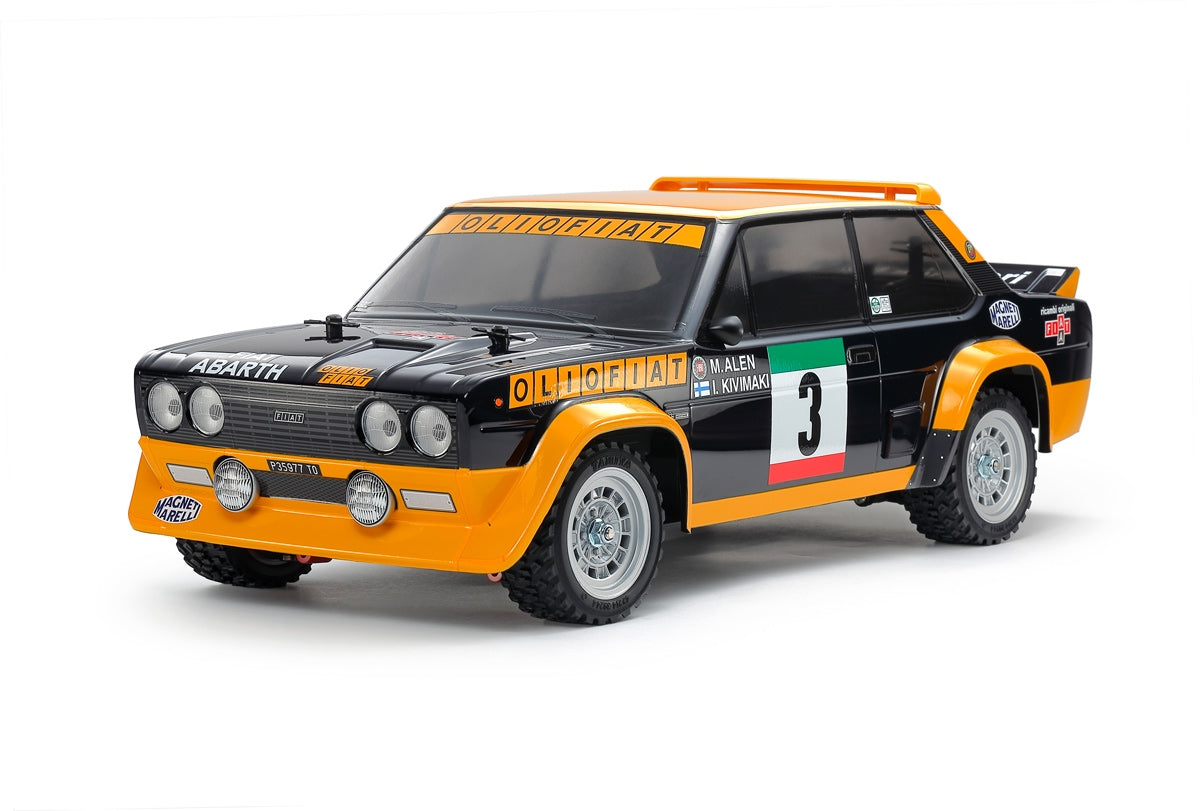

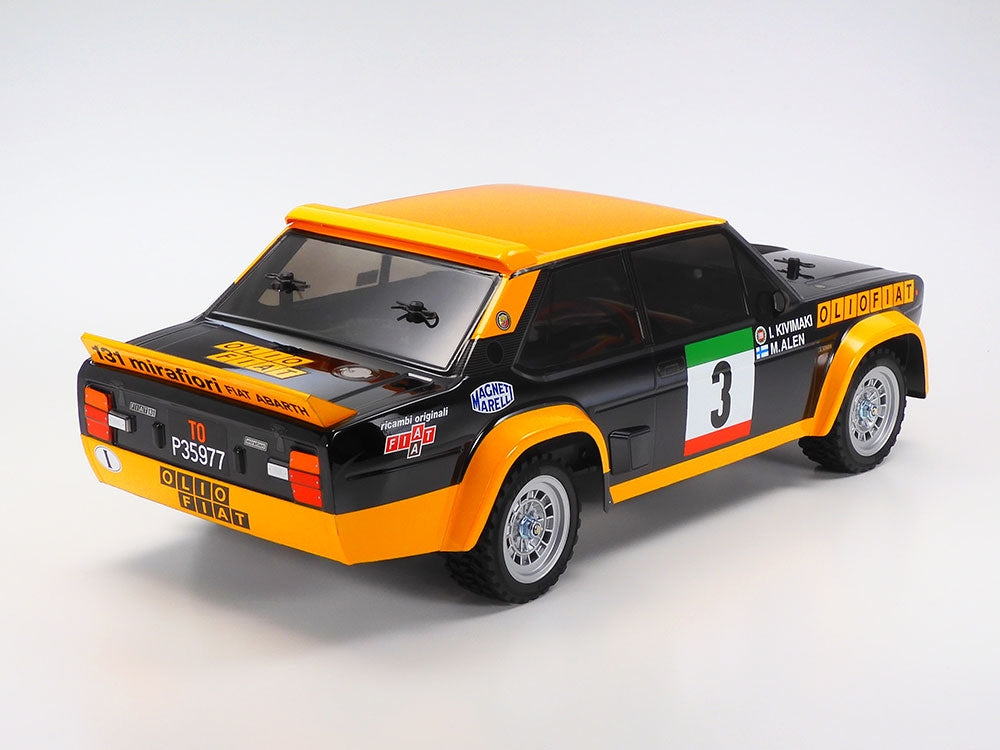

This limited-edition version of the Fiat 131 Abarth Rally Olio Fiat (Item 58723) kit comes with a pre-painted, pre-cut body and wheel arches.

The RC model assembly kit recreates the classic FIAT 131 Abarth Rally Olio Fiat on the easy to assemble and drive MF-01X rally chassis platform. The Fiat 131 Abarth Rally developed from the Fiat 131 Mirafiori which made its debut in 1976 and became champion in global rally races in 1977 and 1978. The kit depicts the Olio Fiat’s livery.

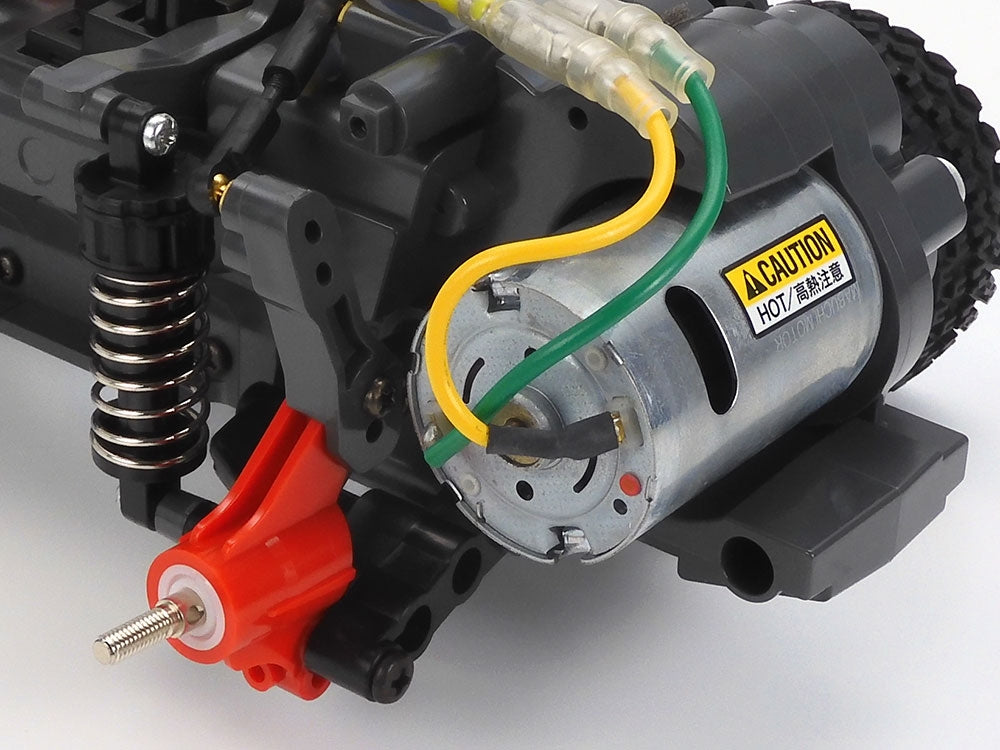

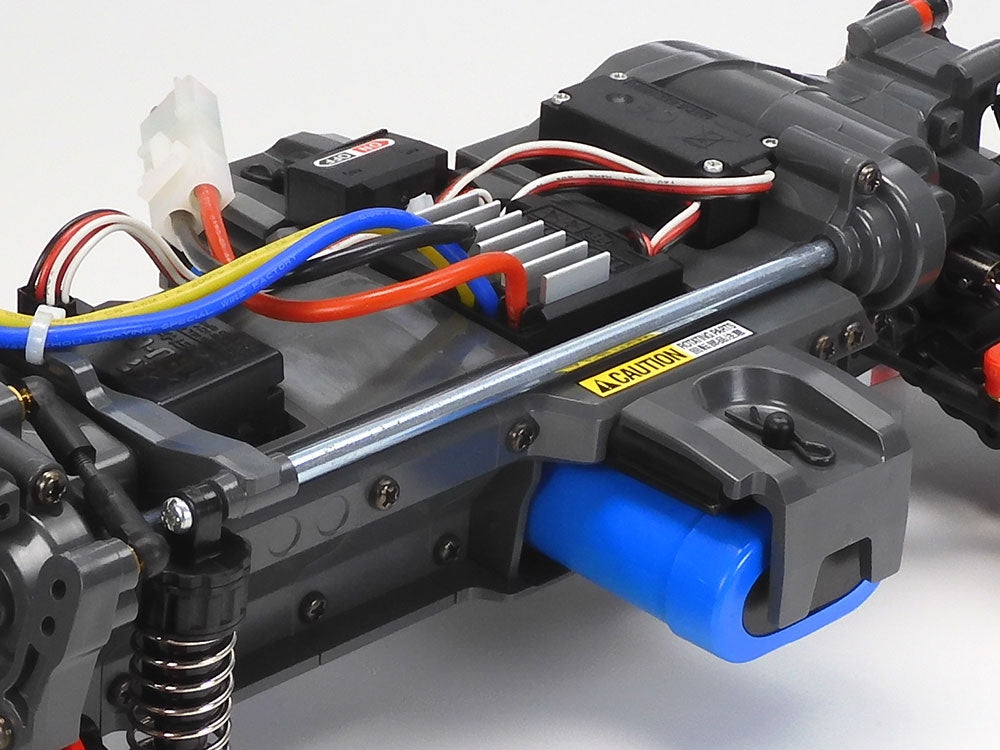

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Off-road capable M-05Ra chassis uprights and hub carriers are also included, and spoke wheels are paired with rally block tires.

* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger and Assembly.

Features:

  • 1/10 scale R/C model assembly kit.
  • Length: 400mm, width: 180mm, height: 132mm. Wheelbase: 239mm
  • The body is recreated in durable, lightweight polycarbonate and comes pre-painted.
  • Pre-cut wheel arches and pre-made body mount holes, make it great for not only beginners but also RC veterans.
  • Separately molded plastic components recreate side mirrors and rear wings.
  • The MF-01X chassis is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
  • Polycarbonate light cases are compatible with separately sold 5mm LEDs.
  • Stickers are included to recreate body details and logos.
  • A host of Hop-Up Option parts are available to tune the MF-01X chassis.
  • Includes 540 Torque Tuned Motor.
  • Includes ESC.

Specifications:

  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic bushing
  • Body Material: Pre-Painted Polycarbonate
  • Body Stickers: Included
  • Chassis Material: ABS Plastic
  • Chassis Type: MF-01X
  • Construction Type: Assembly Kit
  • Differential Type: Gear
  • Drive Type: 4WD
  • Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
  • Motor: 540-brushed type
  • Scale: 1/10
  • Shock Damper: Friction type
  • Suspension: Fully independent suspension
  • Terrain Use: Multi-Purpose

Required To Complete (not included):

  • 2 channel transmitter (Tx)
  • 2 channel receiver (Rx)
  • 1 Steering servo
  • Transmitter batteries
  • Drive battery pack (7.2V)
  • Battery charger
