Tamiya 1/10 Fiat Abarth 1000 TCR 2WD Kit MB-01 Chassis Motor & ESC #47492A
Tamiya 1/10 Fiat Abarth 1000 TCR 2WD Kit MB-01 Chassis Motor & ESC #47492A
Tamiya RC 1/10 Fiat Abarth 1000 TCR Berlina Corse 2WD Kit with MB-01 Chassis, Pre-Painted Body, 540 Motor & HobbyWing THW 1060 Brushed ESC #47492-60A in factory sealed box.
Ships 1 business day after payment.
Free 30 day returns with 20% restocking fee for opened retail box.
Description:
This is a limited-edition version of the Fiat Abarth 1000 TCR Berlina Corse (Item 58721-60A) kit with pre-painted, pre-cut body and wheel arches, great for not only beginners but also veterans of the hobby.
The origin of M-chassis series history goes back to December 1994, and this series has been popular due to cost-effective kits with a wide choice of bodies, ease of maintenance and control for any level user. Enter, the all-new MB-01!

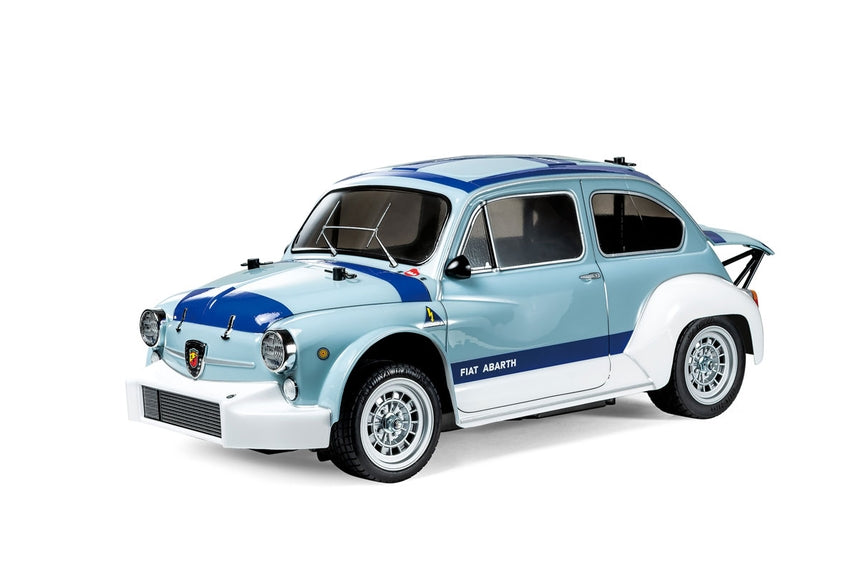

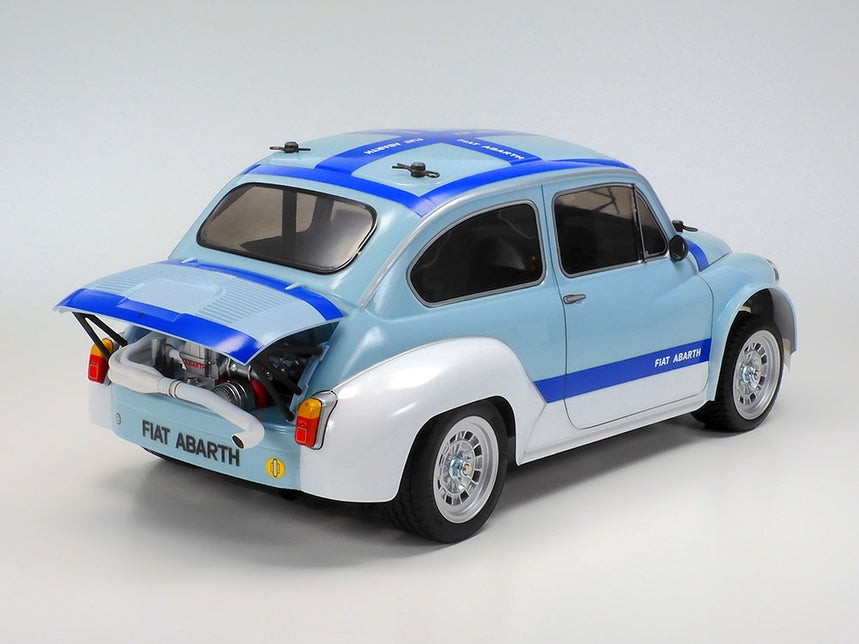

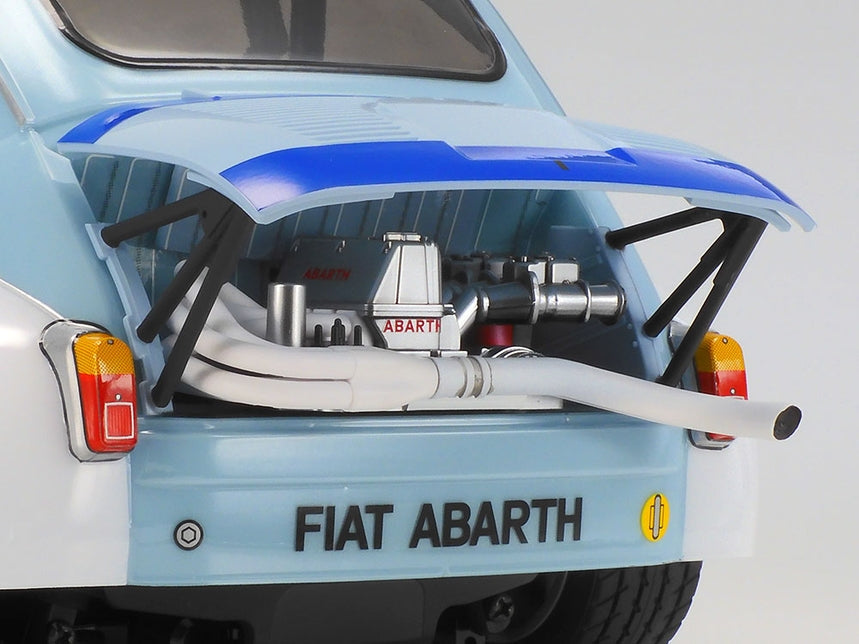

The new MB-01 chassis continues that tradition and allows six setups by choosing from three types of wheelbases, and front- or rear- wheel drive system. Its first body recreates the Fiat Abarth 1000 TCR Berlina Corse which was a car developed with high level tune-ups based upon the compact 2-door Fiat 600.
* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger, and Assembly.
Features:
• Length: 322mm, width: 163mm. Wheelbase: 239mm (L)

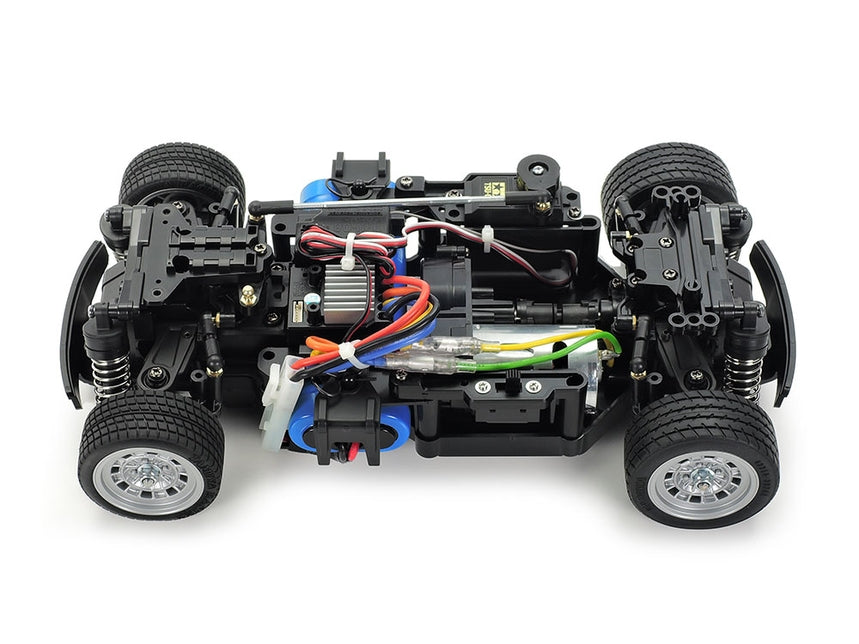

• The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases (*), and front- or rear- wheel drive system. Six setups are available in total.

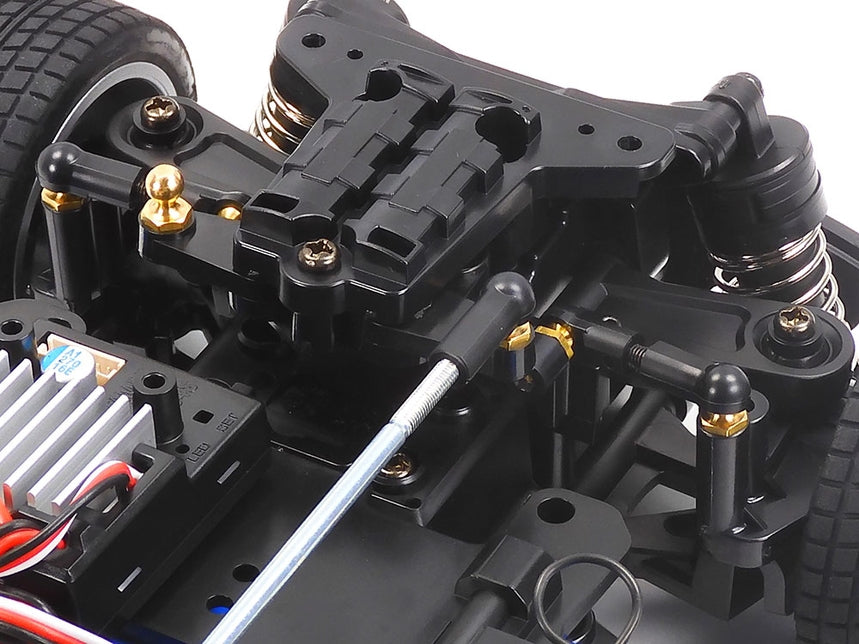

• Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
• Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.
• The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
• While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
• Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
• Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.
• Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
• Includes 540 motor and ESC.
Specifications:
* Adjustable Gear Ratio: Yes
* Bearings: Plastic bushing
* Body Material: Pre-Painted Polycarbonate
* Body Stickers: Included
* Chassis Material: ABS Plastic
* Chassis Type: MB-01
* Construction Type: Assembly Kit
* Differential Type: Gear
* Drive Type: 2WD
* Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
* Motor: 540-brushed type
* Scale: 1/10
* Shock Damper: Friction type
* Suspension: Fully Independent Double Wishbone
* Terrain Use: On-Road
Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
