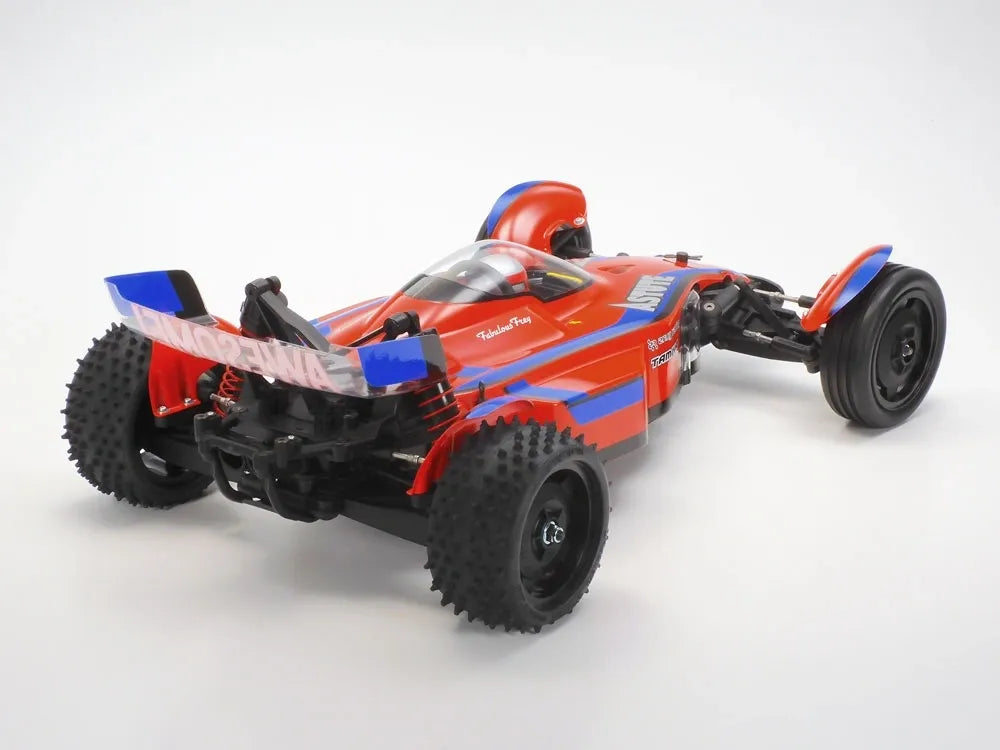

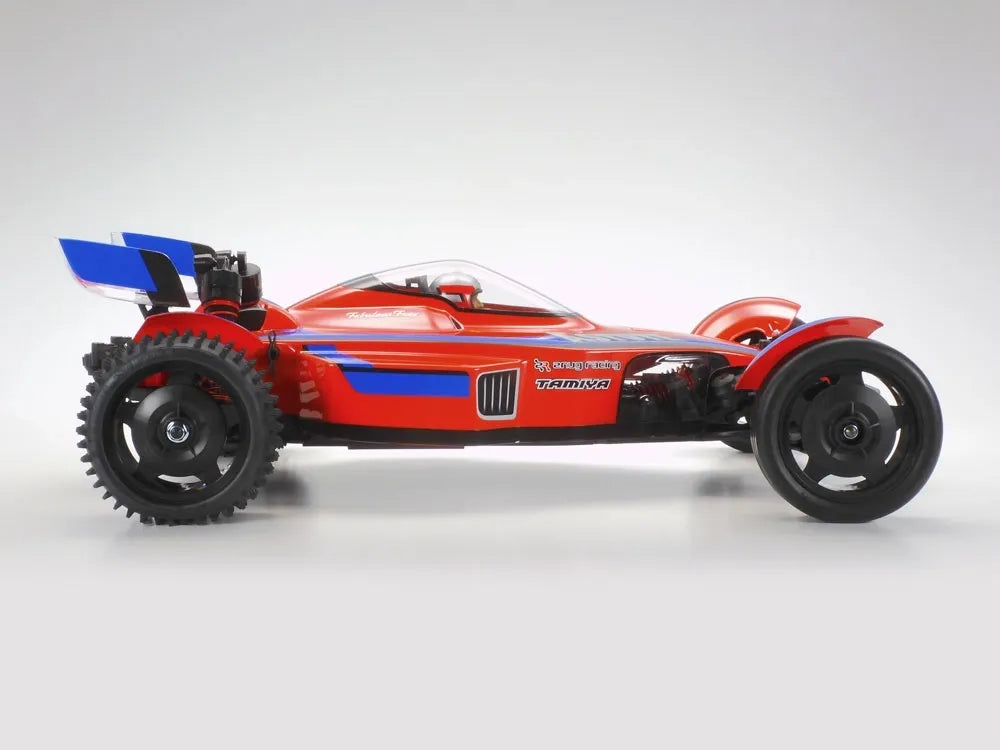

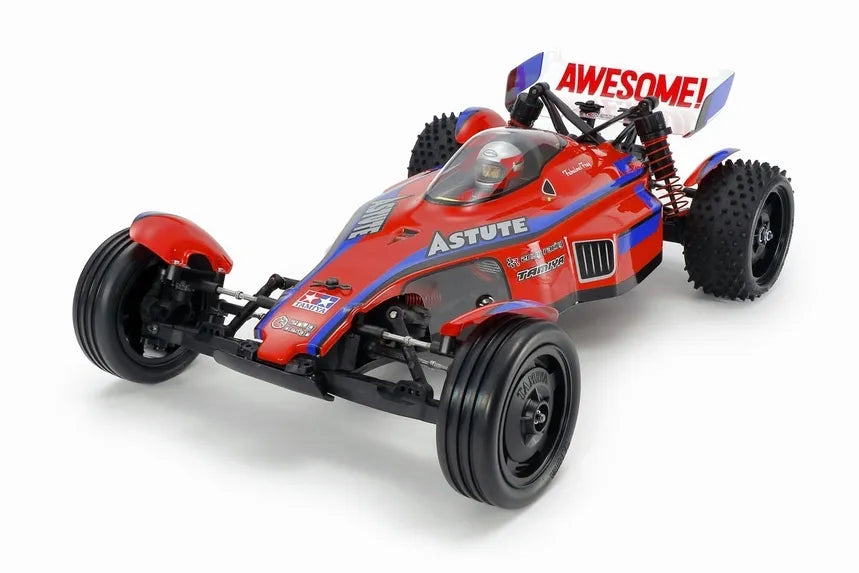

Tamiya RC Astute 2022 1/10 2WD Buggy Kit with TD2 Chassis #58697
Tamiya RC Astute 2022 1/10 2WD Buggy Kit with TD2 Chassis #58697
Regular price
$289.80 USD
Regular price
Sale price
$289.80 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tamiya RC Astute 2022 1/10 2WD Buggy Unassembled Kit with TD2 Chassis #58697 in factory sealed retail box.
Ships 1 business day after payment.
Free 30 day returns with 20% restocking fee for opened retail packages.
Description:
Tamiya brings yet another off-road buggy to its vast library of high-performance and fun to build RC kits. This is the Astute 2022, which is based on the new TD2 chassis.

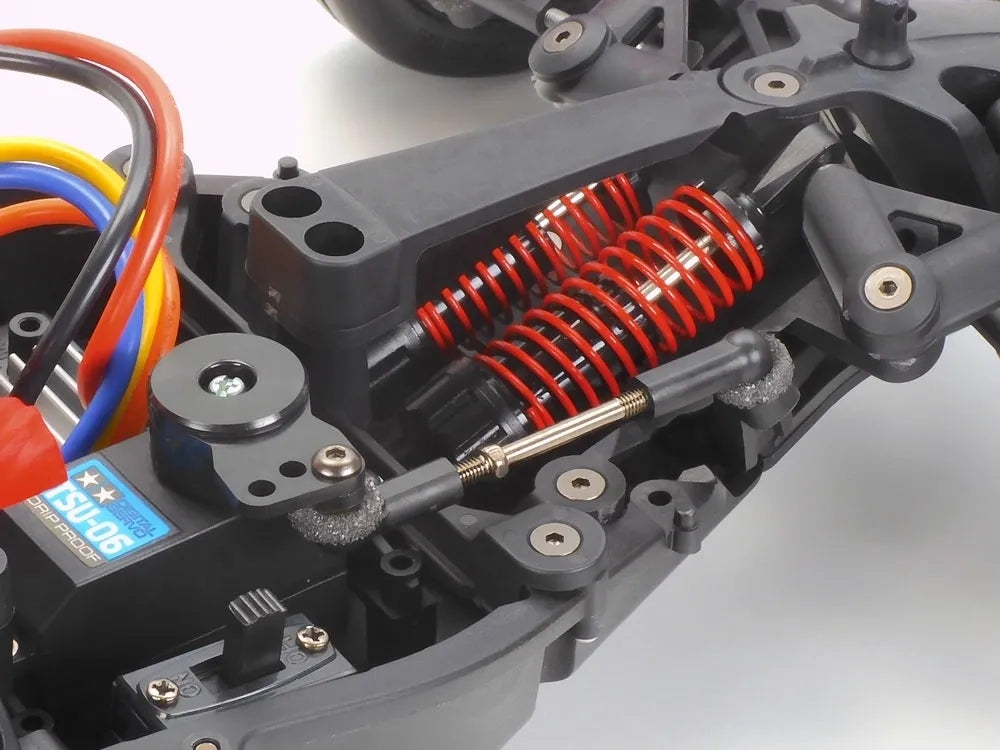

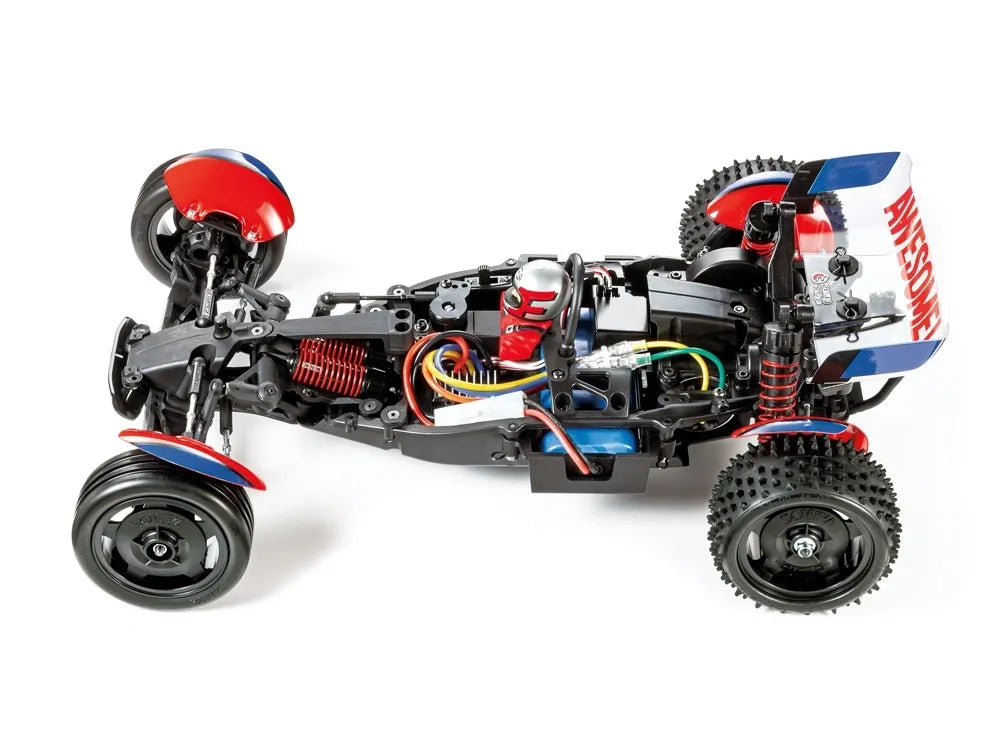

The new TD2 chassis is based around the TD4 chassis. Just like the TD4 machine, it employs a front inboard suspension layout which offers exceptionally slim, low-profile form. Its front suspension arms have a skid angle of 25 degrees, for amazing ground-hugging and stable performance, plus CVA oil dampers to allow smooth suspension movement. Furthermore, the chassis is based on a one-piece monocoque frame, uses the same ball differential as the ones used on the TD4 chassis, plus full ball bearings are used throughout the driveline. The battery pack is positioned transversely and positioned to the rear. Finally, a midship transverse motor layout with 3 gears connecting it to the drivetrain provide optimum balance and improved performance.
* NOTE: This is a KIT and requires: Servo, Radio System, Motor, ESC, Battery, Charger, Assembly and Paint.
Features:
• 1/10 R/C assembly kit. Length: 387mm, width: 246mm. Wheelbase: 283mm.
• Polycarbonate body.
• Ribbed front and rear square spike tires facilitate stability and great grip. Newly designed star dish design front wheels are attached by hex hubs.
• 4-wheel double wishbone suspension system uses CVA oil dampers for supple performance.
• Choose between high and low type wing stays to adjust the downforce set up of the buggy.
• Driver figure included for extra realism.
• Requires: 2-channel radio, steering servo, ESC, 540-size motor, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint to complete.
Specifications:
* Adjustable Gear Ratio: Yes
* Bearings: Includes full ball bearings
* Body Material: Polycarbonate
* Body Stickers: Included
* Chassis Material: FRP Fiberglass Reinforced Plastic
* Chassis Type: TD2
* Construction Type: Assembly Kit
* Differential Type: Ball Pressure Plate
* Drive Type: 2WD
* Electronic Speed Control (esc): Not Included
* Motor: Not Included
* Required To Complete: 2-channel radio, low-profile steering servo, ESC, 540-sized Motor, 7.2-7.4volt battery & battery charger.
* Scale: 1/10
* Shock Damper: CVA Oil Filled
* Suspension: Fully Independent Double Wishbone
* Terrain Use: Off-Road
Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* 540 Type Brushed or Brushless Motor
* ESC for chosen Motor
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
* Body paint
