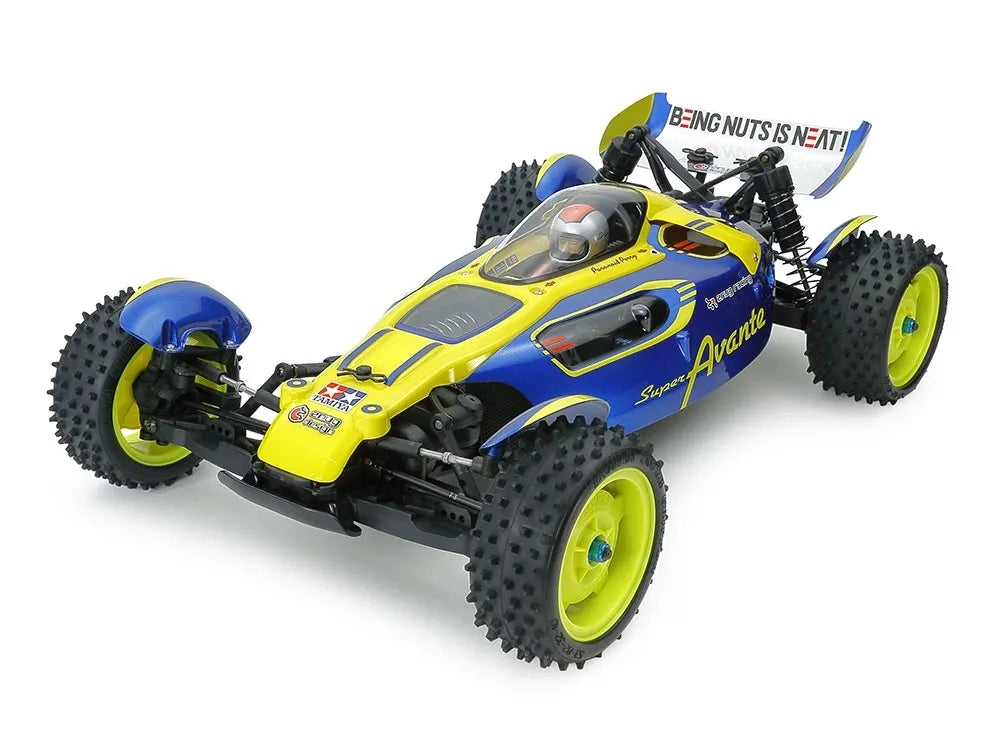

Tamiya RC Super Avante 1/10 4WD Buggy Kit with TD4 Chassis #58696

Tamiya RC Super Avante 1/10 4WD Buggy Kit with TD4 Chassis #58696

Regular price $346.50 USD
Regular price Sale price $346.50 USD
Sale Sold out
Shipping calculated at checkout.
Tamiya RC Super Avante 1/10 4WD Buggy Unassembled Kit with TD4 Chassis #58696 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened retail packages.

Description:
Tamiya’s designers have crafted the next fun to drive 4WD off-road buggy, the Super Avante! The body comes in the form of a re-imagined Avante. It even shares the fun rear wing moniker, “Being Nuts is Neat!” And, the front of the all-new TD-4 chassis, shares a front horizontal damper layout design, similar to the original Avante, except, this time around, the front dampers are underneath the body. The stylish body was designed by Kota Nezu, who has contributed to a number of popular Tamiya products.

The TD4 is a shaft-driven 4WD buggy chassis which employs front inboard suspension for slim, low-profile form. It features a longitudinal battery pack position in the center and a midship transverse motor for optimum balance and improved performance. The drivetrain uses full bearings, and sealed front/rear gearboxes have built-in ball differentials. Two link rods and crank arm transmit movement of the left-side servo to the three-piece steering arm setup. 4-wheel independent double wishbone suspension utilizes CVA oil dampers. Turnbuckle shaft upper arms facilitate camber angle adjustment. Two types (high/low) of wing stays are included and star dish wheels are paired with square spike tires which offer superlative grip off-road.

* NOTE: This is a KIT and requires: Servo, Radio System, Motor, ESC, Battery, Charger and Assembly.

Features:
• 1/10 R/C assembly kit.
• Length: 338mm, height: 124mm, width: 246mm. Wheelbase: 283mm.

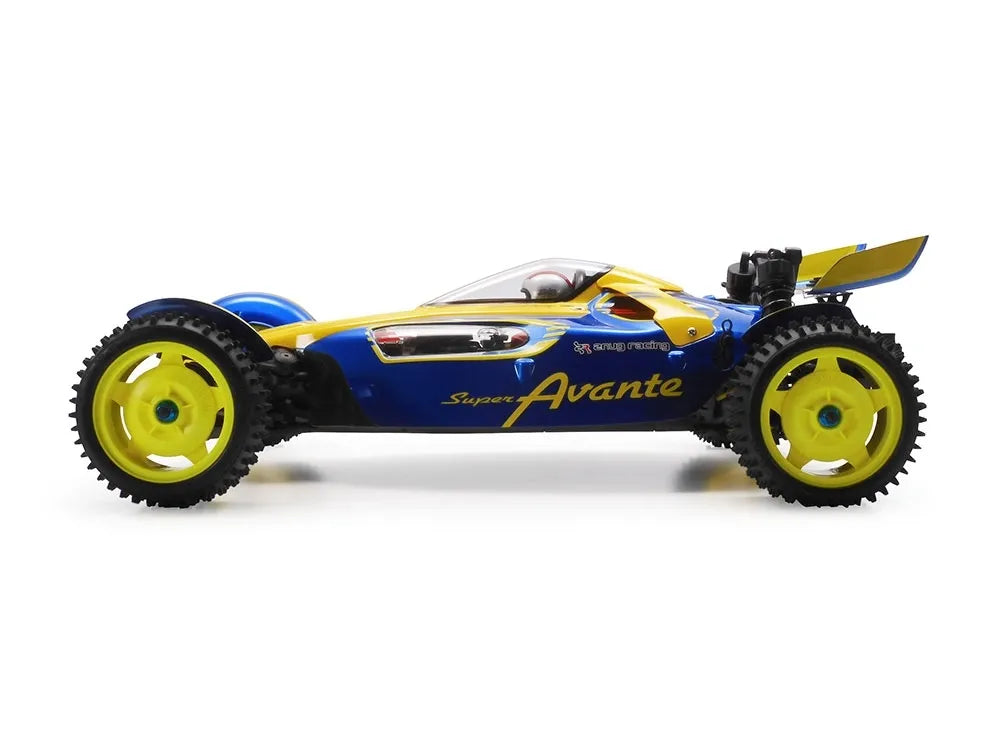

• Polycarbonate body (inspired by the Tamiya classic, Avante) is designed by Japanese designer Kota Nezu of Znug Design.

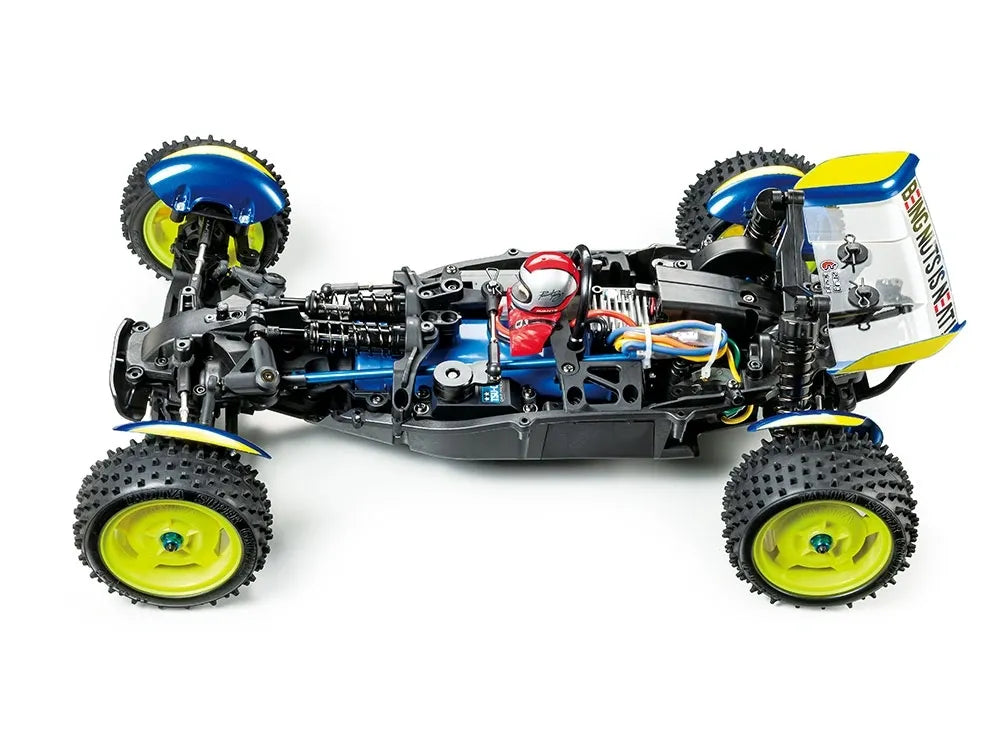

• Newly designed shaft-driven 4WD chassis based on a one-piece monocoque frame. It features the same ball differentials for front and rear, and features a longitudinal battery pack position in the center and a midship transverse motor for optimum balance and improved performance.

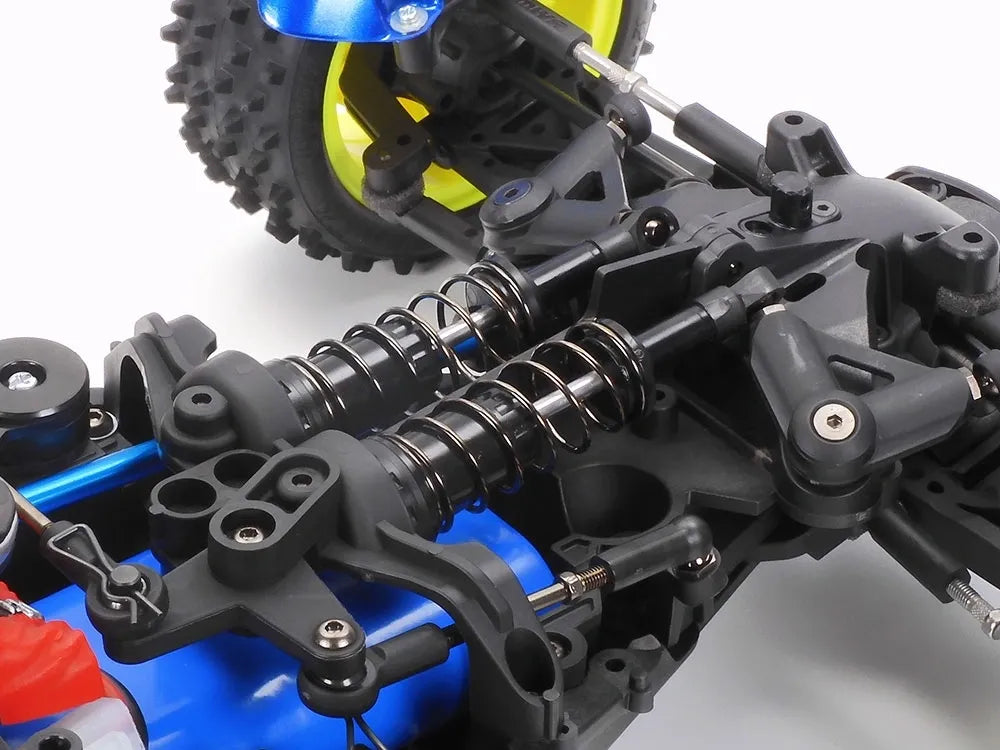

• The TD4 chassis also employs a front inboard suspension layout which eliminates the need for a front damper stay and offers slim, low-profile form.

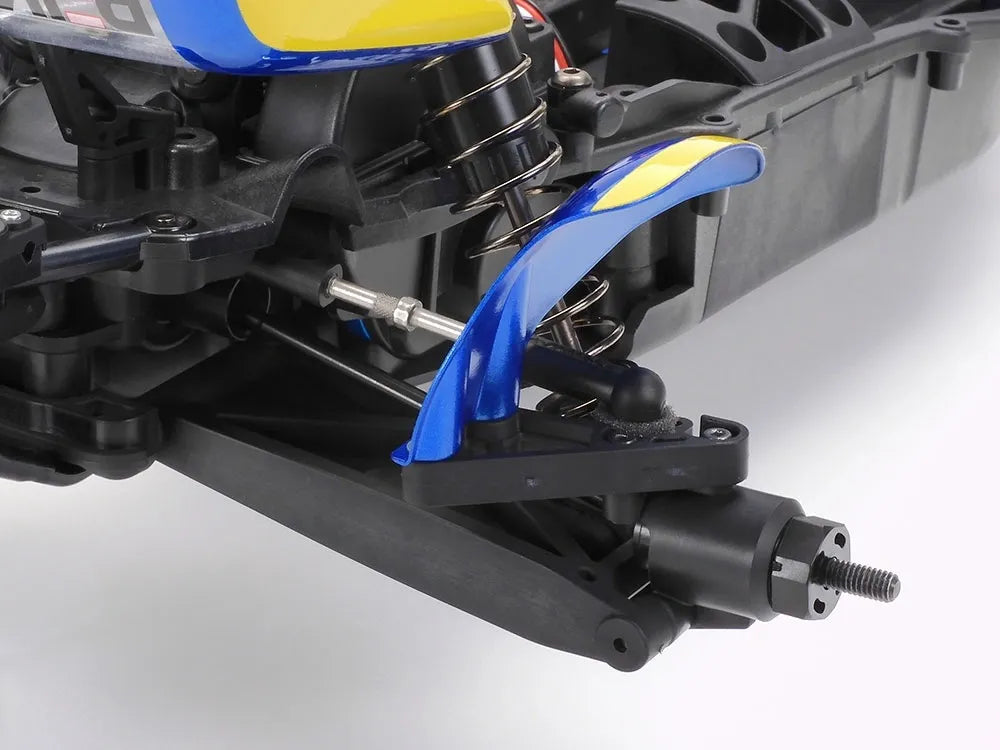

• The four-wheel double wishbone suspension system uses CVA oil dampers for fun performance.
• Full ball bearings.
• Two link rods and crank arm transmit movement of the left-side servo to the three-piece steering arm setup.
• Turnbuckle shafts for use with upper arms facilitate camber angle adjustment.
• Star dish wheels are paired with square spike tires which offer good grip off-road.
• Choose between high and low type wing stays to adjust the downforce depending on the road surface.
• Comes with a driver figure for extra realism, and high-torque servo saver.
• Requires: 2-channel radio, steering servo, ESC, 540-size motor, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint to complete.

Specifications:
* Adjustable Gear Ratio: Yes
* Bearings: Includes full ball bearings
* Body Material: Polycarbonate
* Body Stickers: Included
* Chassis Material: FRP Fiberglass Reinforced Plastic
* Chassis Type: TD4
* Construction Type: Assembly Kit
* Differential Type: Ball Pressure Plate
* Drive Type: 4WD
* Electronic Speed Control (esc): Not Included
* Motor: Not Included
* Required To Complete: 2-channel radio, steering servo, ESC, Motor, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
* Scale: 1/10
* Shock Damper: CVA Oil Filled
* Suspension: Fully Independent Double Wishbone
* Terrain Use: Off-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* 540 Type Brushed or Brushless Motor
* ESC for chosen Motor
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
