Tamiya 1/10 ‘98 Ford Escort Custom 4WD Kit w/ Motor ESC TT-02 Chassis #58691-60A
Tamiya 1/10 ‘98 Ford Escort Custom 4WD Kit w/ Motor ESC TT-02 Chassis #58691-60A
Regular price
$142.10 USD
Regular price
Sale price
$142.10 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

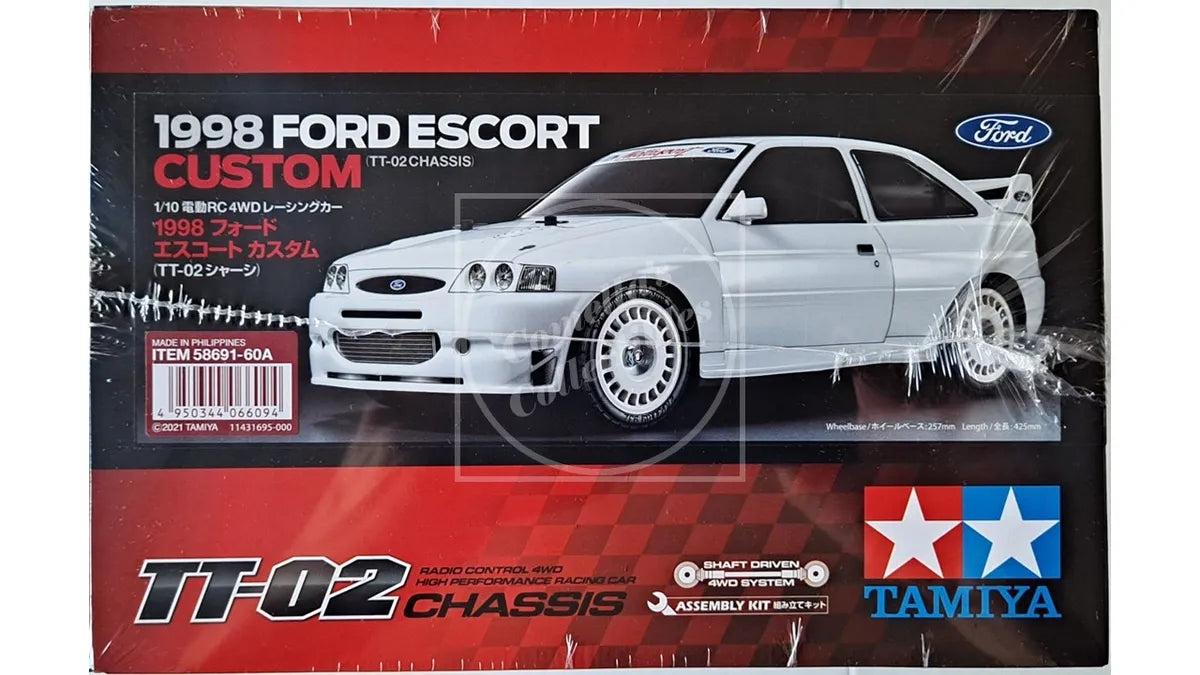

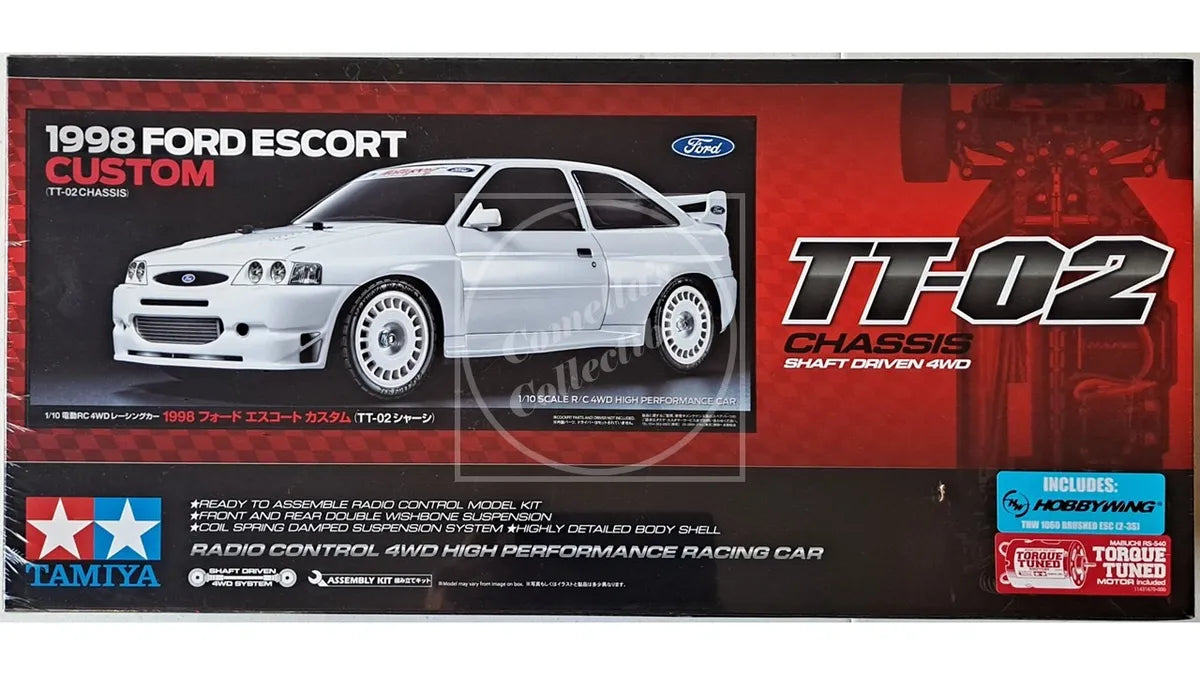

RC Tamiya 1/10 1998 Ford Escort Custom 4WD Unassembled Kit with RS-540 motor & HobbyWing THW 1060 Brushed ESC TT-02 Chassis #58691-60A in factory sealed box.
Ships 1 business day after payment.
Free 30 day returns with 20% restocking fee for opened packages.
Description:

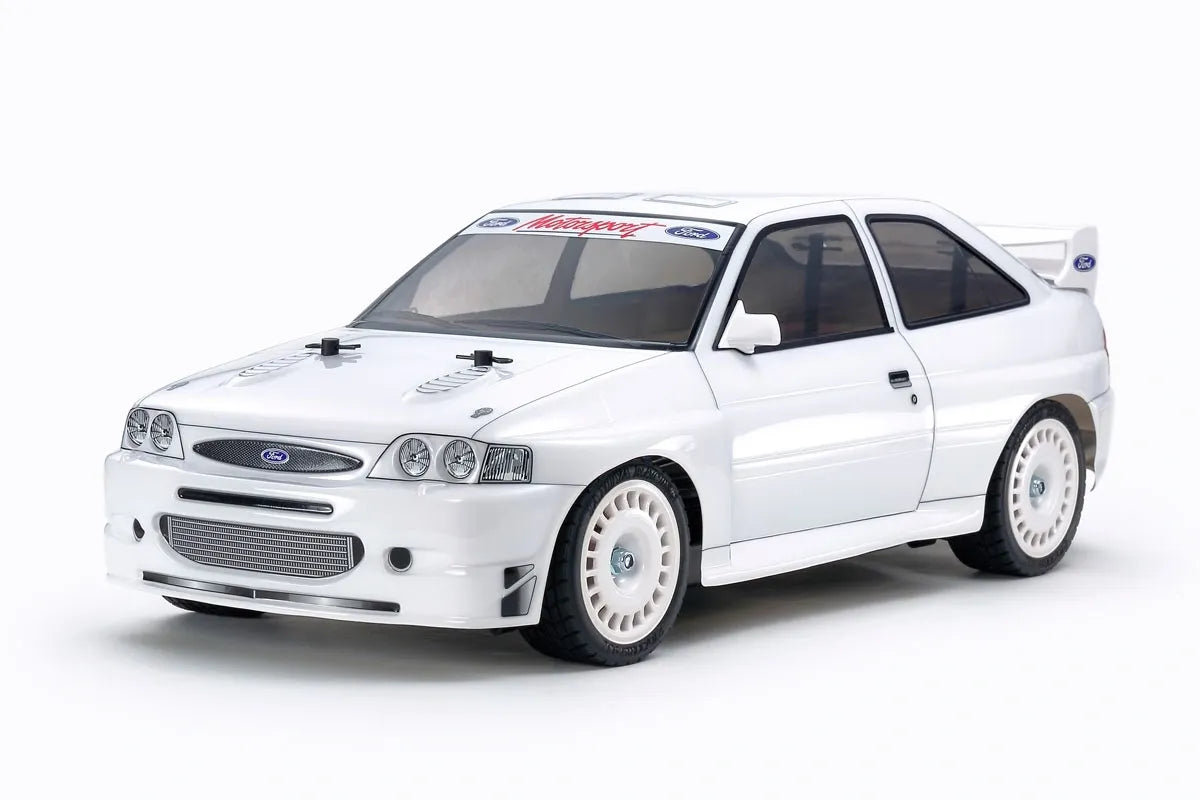

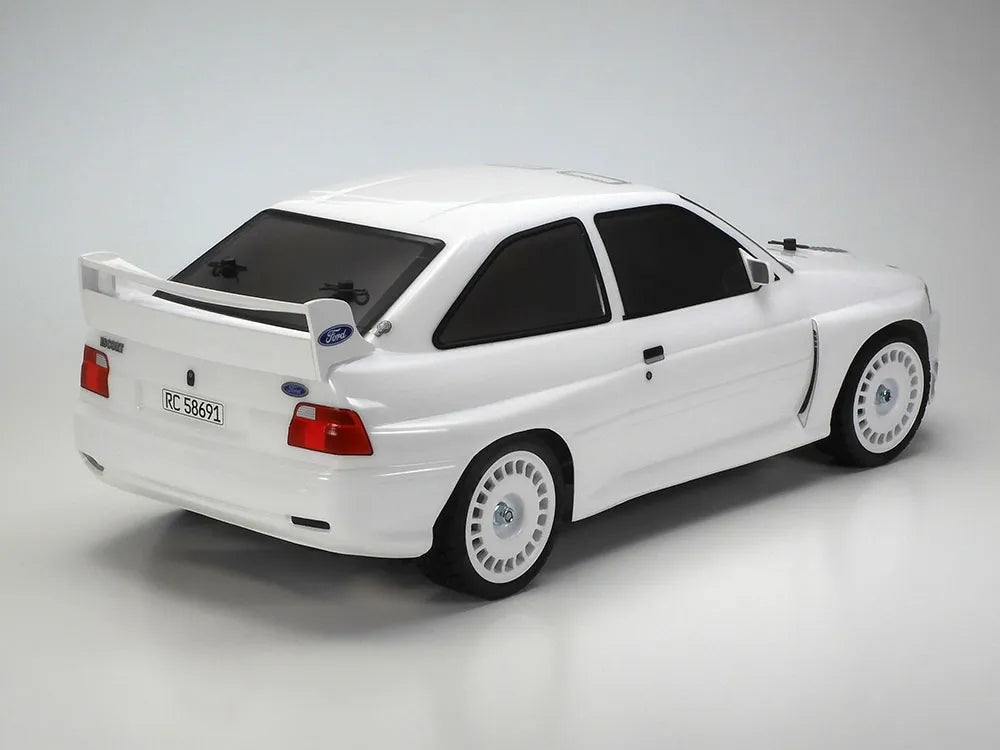

This is a special custom (street spec) version of the 1998 Ford Escort. The body depicts the Ford Escort as a customized street version of the WRC car, and is based upon the TT-02 chassis. The actual car was powered by an inline-4 2-liter engine offering 300PS and 50Kgm of torque.

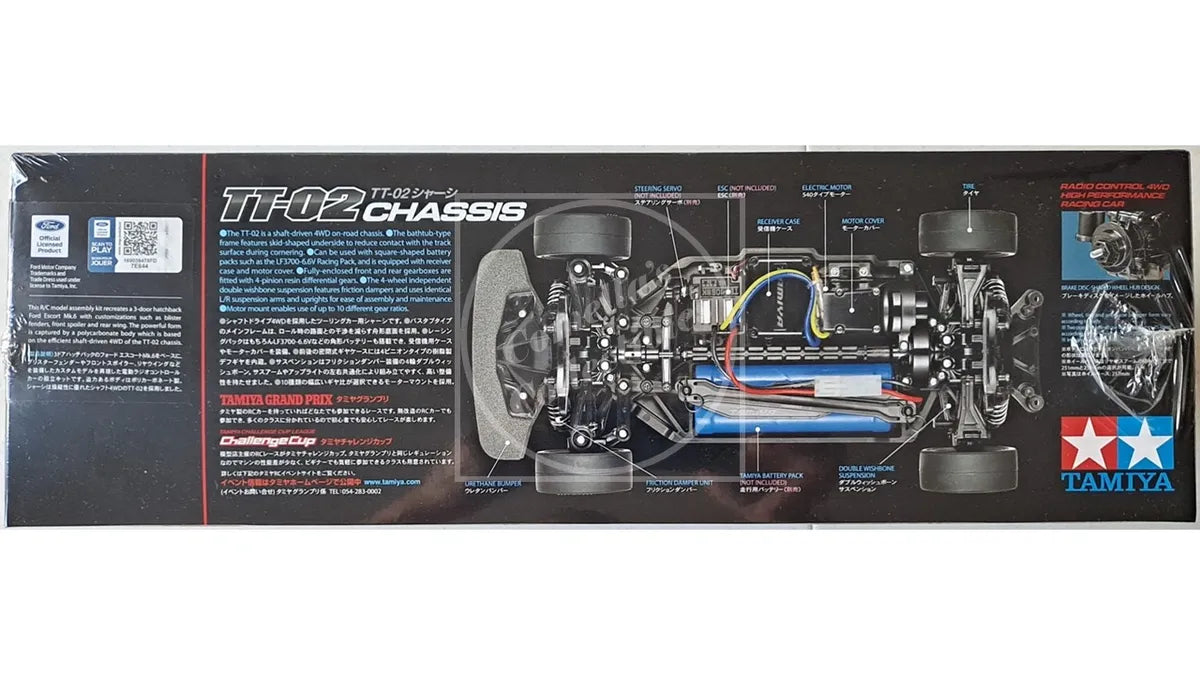

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger, Paint and Assembly.
Features:
* 1/10 scale R/C model assembly kit. Length: 425mm, width: 189mm, height: 145mm. Wheelbase: 257mm.
* Features a 1.0mm thick polycarbonate body.
* Dish-type wheels are molded in white ABS plastic, and paired with treaded tires.
* Stickers and window painting masking stickers for use in the paint process included.
* The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub.
* 4-wheel independent double wishbone suspension has identical arm and upright parts for ease of maintenance.
* A wide range of Hop-Up Option parts is available to customize your chassis.
* Includes Tamiya Mabuchi RS-540 Torque Tuned Motor.
* Includes HobbyWing 1060 Brushed ESC (electronic speed control) Capable of running 2S to 3S LiPO batteries.
Specifications:
* Adjustable Gear Ratio: Yes
* Bearings: Plastic bushing
* Body Material: Polycarbonate
* Body Stickers: Included
* Chassis Material: ABS Plastic
* Chassis Type: TT-02
* Construction Type: Assembly kit
* Differential Type: Gear
* Drive Type: 4WD
* Motor: Includes 540-brushed type
* ESC: Includes HobbyWing THW1060 Brushed ESC (2S-3S)
* Scale: 1/10
* Shock Damper: Friction damper
* Suspension: Fully independent double wishbone
* Terrain Use: On-Road
Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
Ships 1 business day after payment.
Free 30 day returns with 20% restocking fee for opened packages.
