Tamiya 1/10 Audi Quattro Rallye A2 4WD Kit TT-02 Chassis Motor & ESC #58667-60A

Tamiya 1/10 Audi Quattro Rallye A2 4WD Kit TT-02 Chassis Motor & ESC #58667-60A

Regular price $142.80 USD
Regular price Sale price $142.80 USD
Sale Sold out
Shipping calculated at checkout.
Tamiya 1/10 Audi Quattro Rallye A2 4WD Touring/Drift Unassembled Kit - TT-02 Chassis with Mabuchi RS-540 Motor and HobbyWing THW 1060 Brushed ESC #58667-60A in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened packages.

Description:

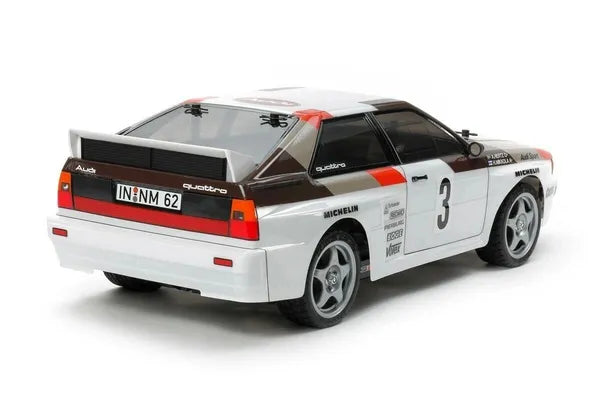

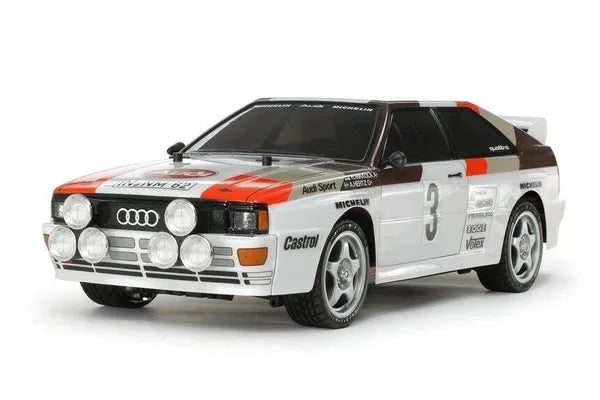

The Audi Quattro A2 is an iconic Rally Race Car that made its mark in the 1980's. Tamiya's 1/10 scale radio control replica brings rally racing fun to hobbyists on the adaptable and easy-driving TT-02 chassis.

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger, Paint and Assembly.

Features:
* 1/10 scale R/C model assembly kit.
* Length: 458mm, width: 187mm.
* A2 body is molded accurately in durable polycarbonate.

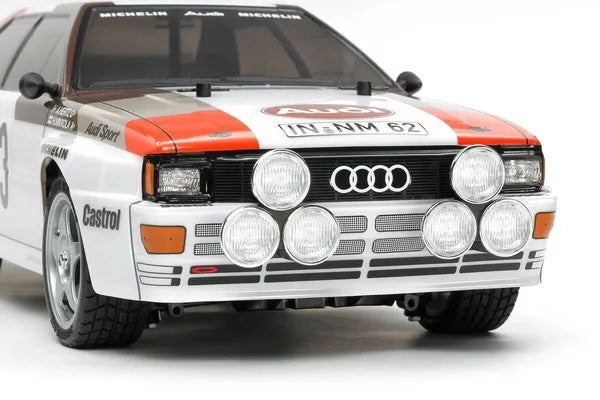

* Separate metal-plated ABS parts for front and rear light cases, plus fog lamps.
* Side mirrors, wing and wing caps are molded in white ABS.
* Light cases are compatible with separately sold LEDs; fog lamps are not.

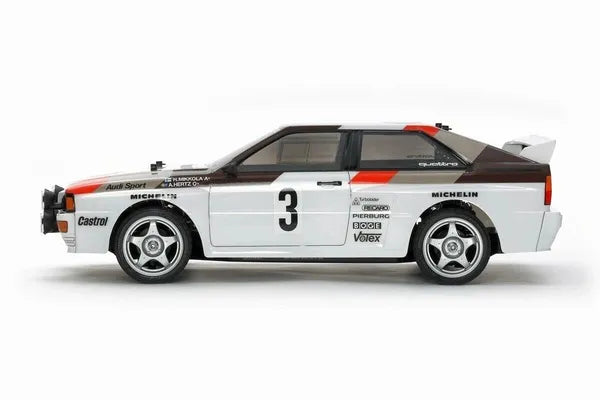

* 5-spoke wheels are molded in silver, and paired with racing radial tires.
* The TT-02 chassis is an adaptable and balanced design with excellent stability, plus features such as identical suspension arm and upright components for ease of assembly.
* 4-bevel differential gears and 4-wheel double wishbone suspension.
* Includes Tamiya Mabuchi RS-540 Torque Tuned Motor.
* Includes HobbyWing THW 1060 Brushed ESC (2-3S)
* An extensive TT-02 option parts line-up offers a number of opportunities to tune your car.

Specifications:
* Adjustable Gear Ratio: Yes
* Bearings: Plastic bushing
* Body Material: Polycarbonate
* Body Stickers: Included
* Chassis Material: ABS Plastic
* Chassis Type: TT-02
* Construction Type: Assembly Kit
* Differential Type: Gear
* Drive Type: 4WD
* Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed ESC
* Motor: Brushed 540 Type
* Scale: 1/10
* Shock Damper: Friction type
* Suspension: 4-wheel fully independent double wishbone
* Terrain Use: On-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
* Body paint
