Tamiya 1/10 RC F104 Pro II Kit w/ Body and Wings #58652

Tamiya 1/10 RC F104 Pro II Kit w/ Body and Wings #58652

Regular price $223.99 USD
Regular price Sale price $223.99 USD
Sale Sold out
Shipping calculated at checkout.

RC Tamiya F104 Pro II Unassembled Kit with body and wings #58652 in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened packages.

This original Formula One kit is an evolution of the F104 Pro chassis first introduced in 2009. The Pro II has received refinements to enhance your R/C formula racing fun. The Pro II pairs the lightweight and streamlined direct drive F104 chassis with a new lower deck, and upgrade parts, giving a sharp and responsive driving feel. Furthermore, it includes an all-new original body design based on the 2017 F1 car bodywork and wing dimensions.

* NOTE: This is a KIT and requires: Servo, Radio System, Motor, ESC, Battery, Charger, Paint and Assembly.


  • 1/10 R/C model assembly kit. Length: 440mm, width: 180mm, height: 88mm, wheelbase: 270mm.

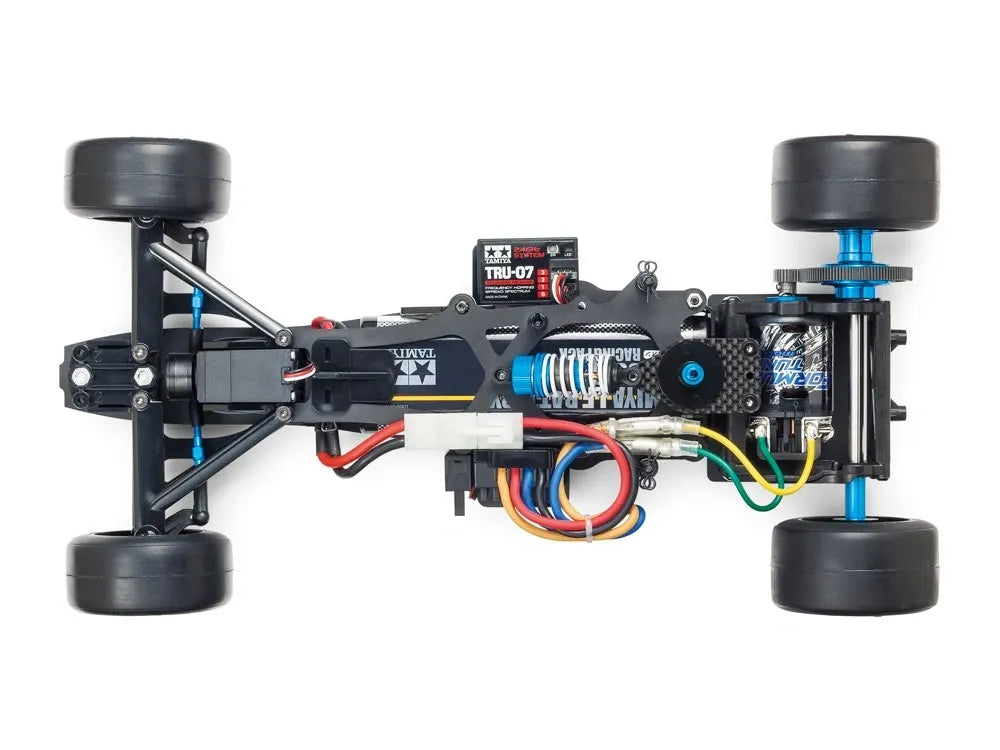

  • The lightweight F104 chassis is fitted with various upgraded parts to turn it into the F104 PRO II.

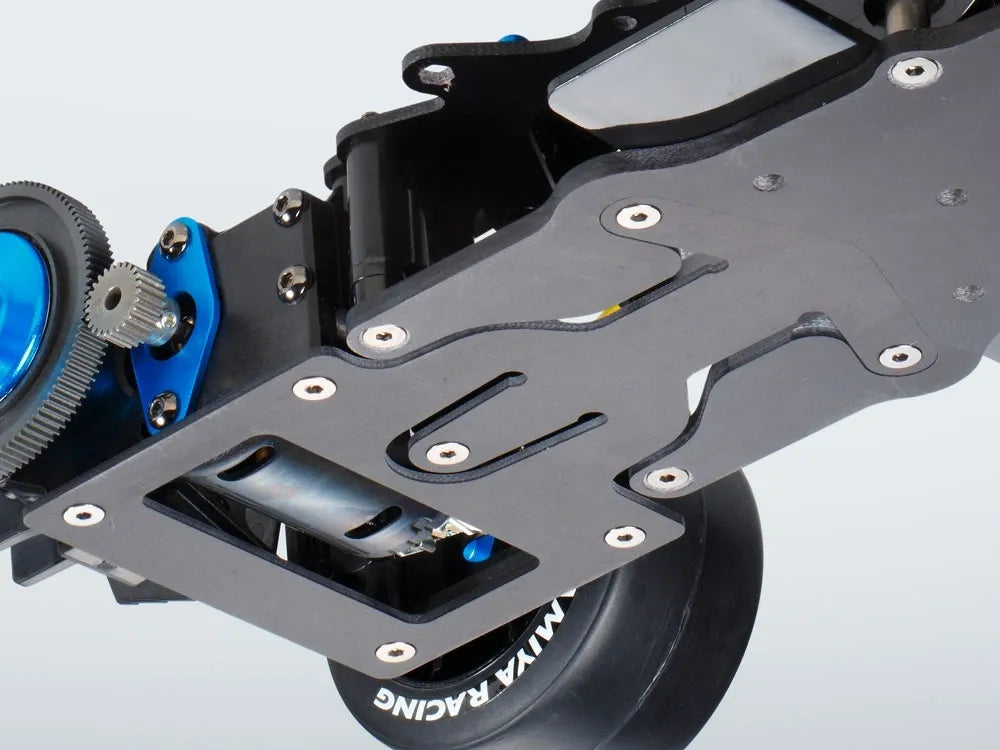

  • FRP double deck chassis has a new lower deck design, and an inline (longitudinal) battery position.
  • The 1.5mm thick FRP T-bar design with U-shaped cutaway is inherited from the F104WGP. It makes up the rear suspension in concert with friction plates and a TRF damper.

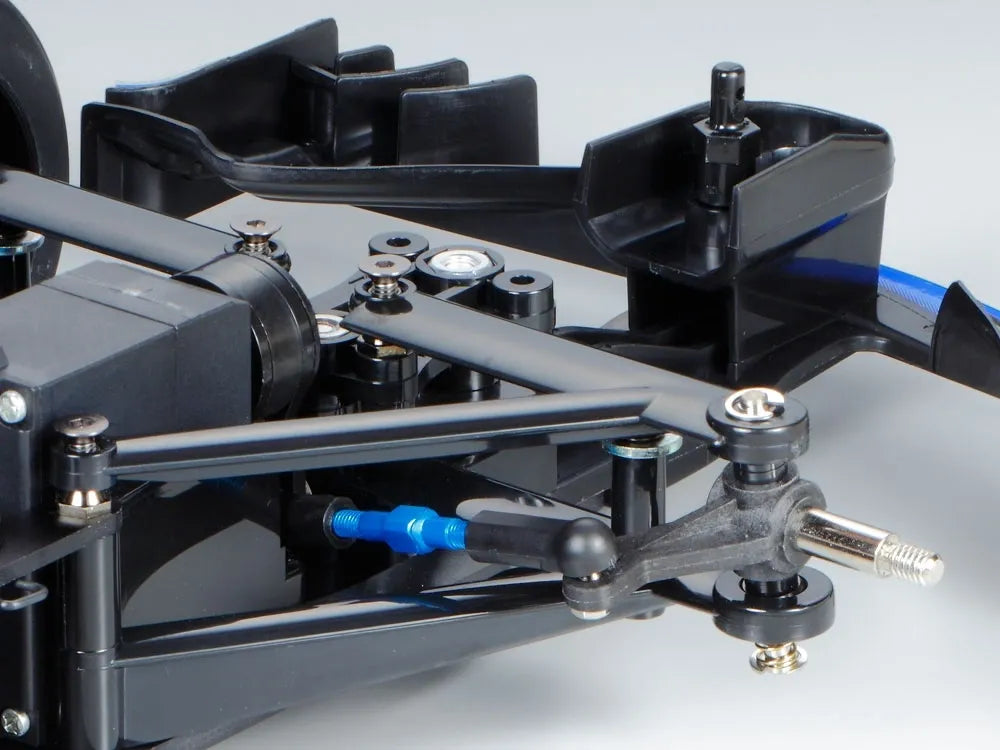

  • Front independent coil spring suspension. Alter camber by changing upper mount attachment direction.
  • Utilizes an aluminum ball differential.

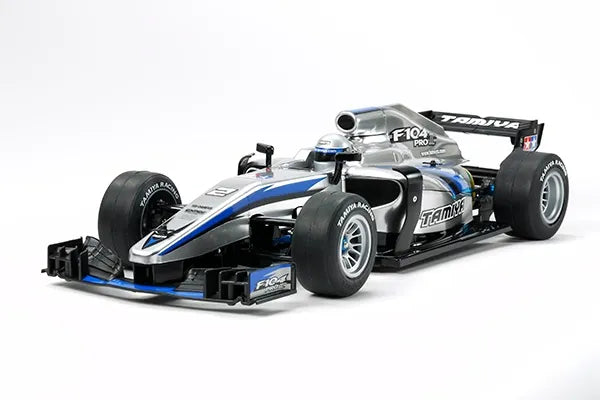

  • A realistic original polycarbonate body is included. Its design is inspired by 2017 trends, with a sharp, slanting nose and bulging side pontoons. Additional parts are included to create alternative lower side pontoon sections as separate parts for chassis with larger R/C equipment.

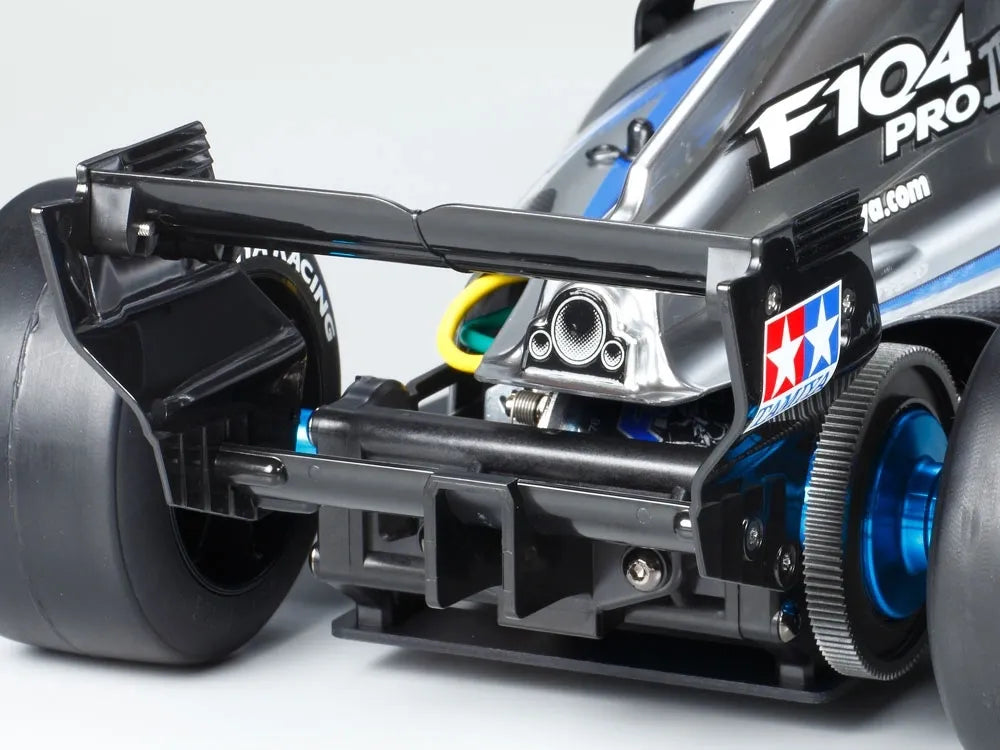

  • Separate parts depict the complex front wing and its low rear counterpart, rear diffuser, mirrors, helmet, etc.
  • Comes with realistic semi-pneumatic synthetic rubber tires, and marking stickers to decorate the body.
  • A wide range of Hop-Up Option parts are available to further tune the chassis to your needs.

* Adjustable Gear Ratio: Yes
* Bearings: Ball Bearing
* Body Material: Polycarbonate
* Body Stickers: Included
* Chassis Material: FRP Plate
* Chassis Type: F104 Pro II
* Construction Type: Assembly Kit
* Differential Type: Ball Pressure Plate
* Drive Type: 2WD
* Electronic Speed Control (esc): Not Included
* Motor: Not Included
* Scale: 1/10
* Shock Damper: Aluminum Oil Filled
* Suspension: Coil Spring Front/Mono Shock Rear
* Terrain Use: On-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 540 Type Motor & ESC
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
