Tamiya

Tamiya RC Plasma Edge II 1/10 4WD Buggy Kit - TT-02B Chassis 58630-60A

Tamiya RC Plasma Edge II 1/10 4WD Buggy Kit - TT-02B Chassis 58630-60A

Regular price $135.80 USD
Regular price Sale price $135.80 USD
Sale Sold out
Shipping calculated at checkout.
Tamiya RC Plasma Edge II 1/10 4WD Buggy Unassembled Kit - TT-02B Chassis with RS-540 Mabuchi Torque Tuned Motor and HobbyWing THW 1060 ESC #58630-60A in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened packages.

Description:

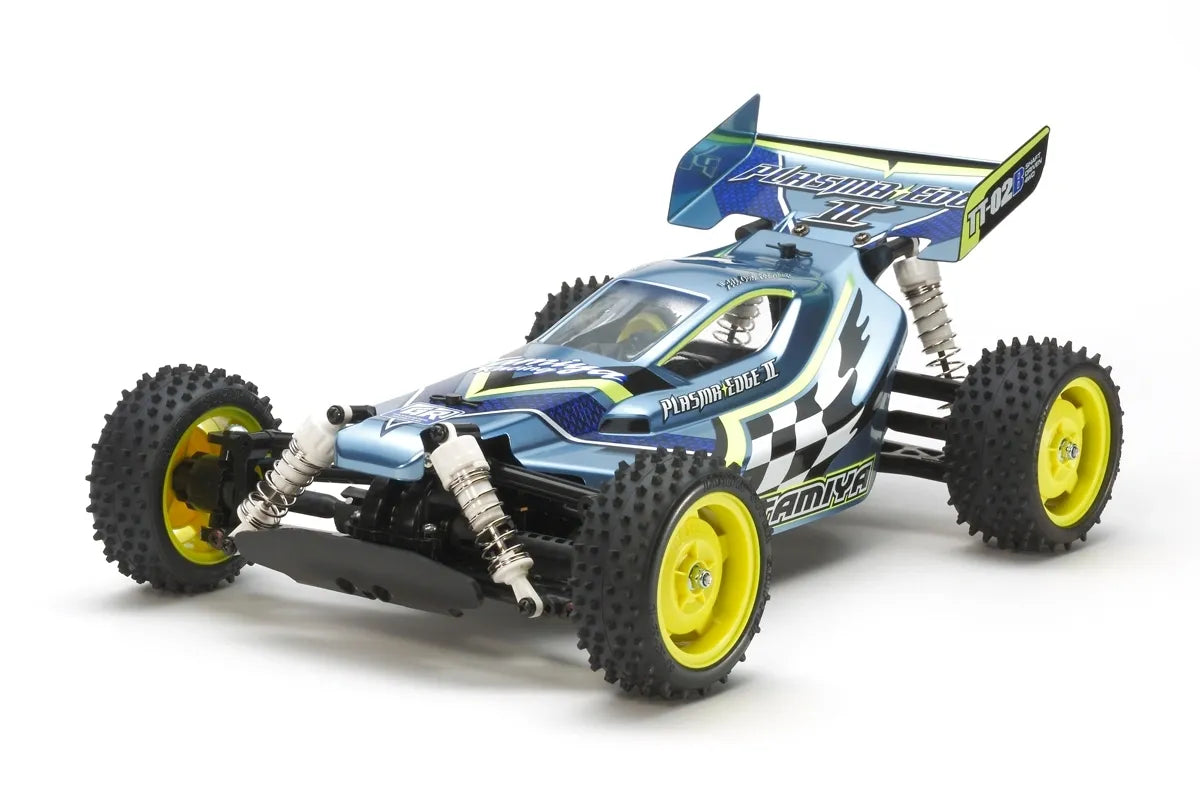

This exciting shaft-driven 4WD R/C buggy assembly kit creates the Plasma Edge II, and includes stylish polycarbonate body and rear wing parts. Marking stickers add to the racy mood of the model, as do fluorescent yellow star dish wheels and white CVA oil shocks. The TT-02B is a dedicated off-road buggy chassis that offers hassle-free assembly and maintenance, as well as superb controllability.

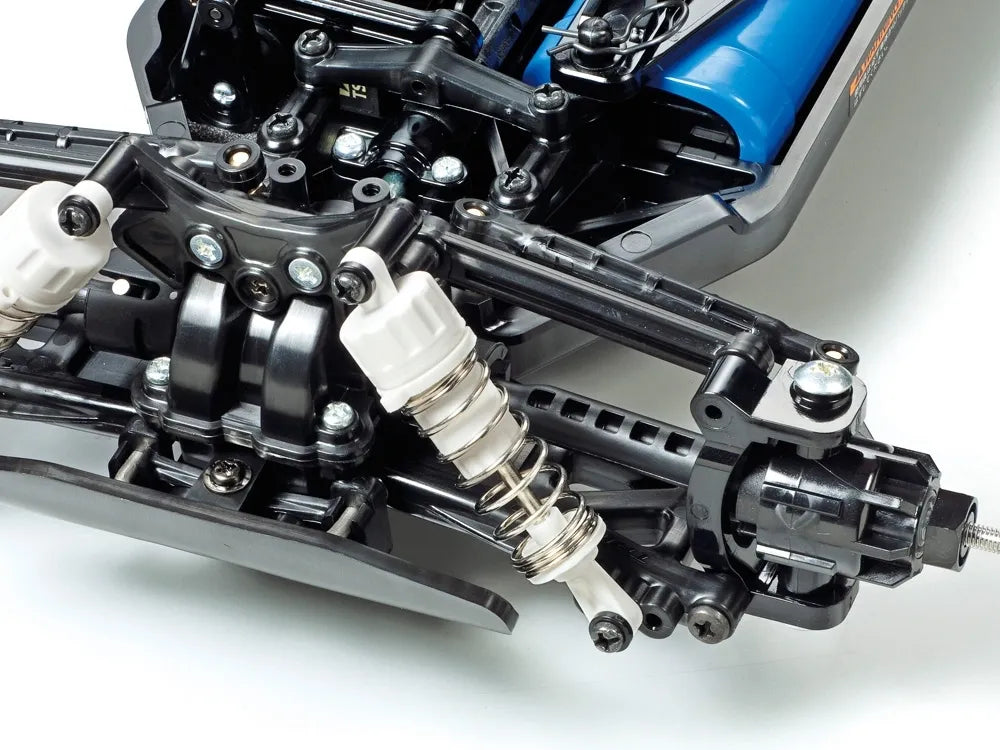

The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA oil shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening a few screws, making maintenance a breeze. 4 different gear ratios can be applied with the use of 3 separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger and Assembly.

Features:
• 1/10 scale R/C model assembly kit.
• The TT-02B chassis is the buggy evolution of Tamiya's popular 4WD entry level unit, the TT-02 chassis.
• Bathtub-type frame has longitudinal battery and R/C mechanism placed flat for low center of gravity.
• 4-wheel double wishbone suspension features long arms and CVA shock units, and is combined with high grip square spike tires that provide excellent traction.
• Front and rear gearboxes have gear differentials to ensure smooth cornering.
• A wide range of Hop-Up Option parts are available to tune the TT-02B chassis.
• Includes 540-type motor.
• Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S).

Specifications:
* Adjustable Gear Ratio: Yes
* Bearings: Plastic bushing
* Body Material: Polycarbonate
* Body Stickers Included
* Chassis Material ABS: Plastic
* Chassis Type: TT-02B
* Construction Type: Assembly Kit
* Differential Type: Gear
* Drive Type: 4WD
* Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
* Motor: 540-brushed type
* Scale: 1/10
* Shock Damper: CVA Oil Filled
* Suspension: Fully Independent Double Wishbone
* Terrain Use: Off-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
* Body paint
