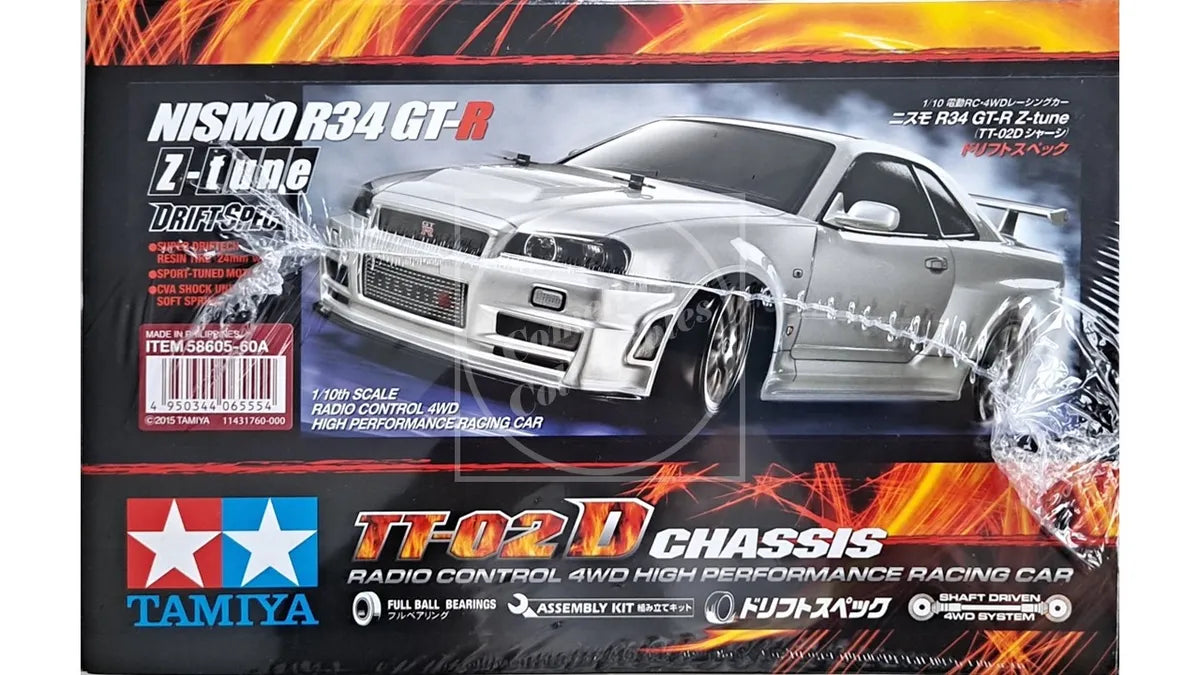

Tamiya RC 1/10 Nismo R34 GT-R Z-Tune 4WD Drift Spec Kit TT-02D Chassis 58605-60A

Tamiya RC 1/10 Nismo R34 GT-R Z-Tune 4WD Drift Spec Kit TT-02D Chassis 58605-60A

Regular price $256.90 USD
Regular price Sale price $256.90 USD
Sale Sold out
Shipping calculated at checkout.
Tamiya RC 1/10 Nismo R34 GT-R Z-Tune 4WD Drift Spec Unassembled Kit with RS-540 Sport Tuned Motor and HobbyWing ESC - TT-02D Chassis #58605-60A in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened shrink-wrap.

This is an R/C model assembly kit of the R34 GT-R Z-tune, which debuted at the 2005 Tokyo Auto Salon, wowing visitors with its blend of looks and performance. The model recreates the car's form in polycarbonate, capturing its wide front and rear fenders, front bumper-side and bonnet outlets - all high-performance hallmarks of NISMO, the motorsports arm of Nissan which constructed each of the 20 cars in the limited edition production individually by hand. The TT-02D is a drift spec shaft driven 4WD chassis which offers thrilling drift action!

Enjoy the thrill of drifting with this specially tuned drift spec version of the TT-02 chassis. The chassis also features drift spec parts such as 24mm width drift tires (fitted to stylish matte-finish metal-plated wheels), and CVA shock units on the 4-wheel double wishbone suspension. Full ball bearings, an aluminum motor heat sink, and a sport-tuned motor come as standard. Of course, the chassis retains the original TT-02's excellent drivability, ease of maintenance, and adaptability.

* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger, Paint and Assembly.

* Length: 442mm, Width: 187mm, Height: 134mm
* Wheelbase: 257mm
* Tire Width/Diameter (Front & Rear): 24/63mm
* Bathtub-type Frame
* Shaft Driven 4WD
* Front/Rear 4-Bevel Resin Differentials
* 3-Piece Steering Tie-Rod
* 4-Wheel Double Wishbone Suspension
* Front/Rear CVA Oil Shocks
* Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
* Type 540 Sport-Tuned Motor
* Full Ball Bearings

* Adjustable Gear Ratio: Yes
* Bearings: Includes full ball bearings
* Body Material: Polycarbonate
* Body Stickers: Included
* Chassis Material: ABS Plastic
* Chassis Type: TT-02D
* Construction Type: Assembly Kit
* Differential Type: Gear
* Drive Type: 4WD
* Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
* Motor: 540-brushed type
* Scale: 1/10
* Shock Damper: CVA Oil Filled
* Suspension: Fully Independent Double Wishbone
* Terrain Use: On-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* Transmitter batteries
* Drive battery pack (7.2V)
* Battery charger
* Body paint
