Tamiya

Tamiya 1/10 Volkswagen Beetle M-06L Chassis 2WD with Motor & ESC #58572-60A

Tamiya 1/10 Volkswagen Beetle M-06L Chassis 2WD with Motor & ESC #58572-60A

Regular price $190.40 USD
Regular price Sale price $190.40 USD
Sale Sold out
Shipping calculated at checkout.

Tamiya 1/10 Volkswagen Beetle M-06L 239mm Long Wheelbase Chassis 2WD unassembled kit with 540 Motor & HobbyWing ESC #58572-60A in factory sealed box.
Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened packages.

Description:

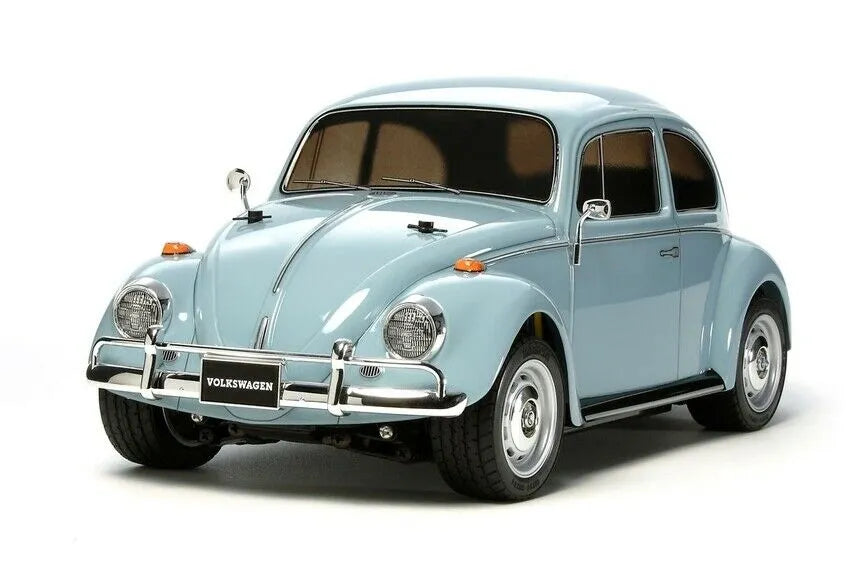

The distinctive rounded, fun form of the Volkswagen Beetle (Type 1) is a familiar sight. The rear wheel drive car is powered by a rear-mounted flat 4 engine and while it has a no-frills interior, its reliability has endeared it to people across the world. In time, the car would also spawn the "New Beetle", a car sold from 1997 which evoked the Beetle Type 1's original body. More than 21 million Beetles had been produced by the time production came to an end in 2003, an auto industry record and the silhouette of that instantly-recognizable rounded body hardly changed through it all. This is an R/C model assembly kit of the 1967 version of the car, which is widely lauded as one of its greatest versions. The car's unmistakable form is accurately reproduced by the model, and includes metal-plated parts such as the front/rear bumpers and light cases and side mirrors. It runs on the M-06 chassis, which just like the real car runs on a rear-mounted motor and with rear-wheel drive.

* NOTE: This is a KIT and requires: Servo, Radio System, Battery, Charger, Paint and Assembly.

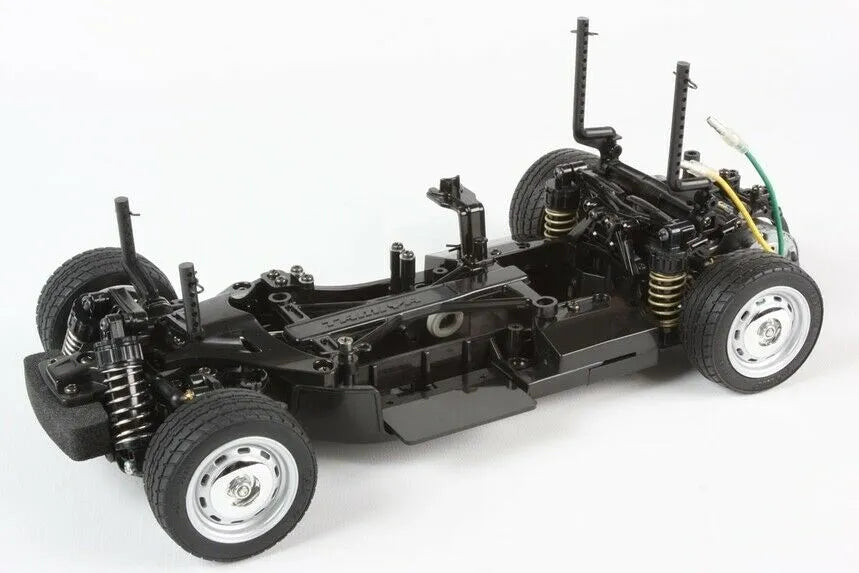

The M-06 chassis features a Rear-Mounted Motor, Rear-Drive setup and features a longitudinally-mounted battery pack, with R/C units positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels exactly like those on the real car, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response.

Features:
* Metal-plated parts for front/rear bumper and side mirrors included
* Metal-plated wheels
* Length: 397mm
* Width: 163mm
* Height: 145mm
* Wheelbase: 239mm (210mm, 225mm, 239mm Adjustable)
* Tread (F/R): 138mm
* M-06 chassis features a Rear-Motor, Rear-Wheel Drive setup
* 3-Bevel Differential Gear
* 3-Piece Steering Tie-Rod
* 4-Wheel Independent Double Wishbone Suspension
* Gear Ratio=5.8 :1
* Type 540 Motor
* ESC - HobbyWing THW 1060 Brushed ESC (2S-3S)
* Tire Width/Diameter (F/R): 26mm/59mm

Specifications:
Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: Plastic
Chassis Type: M-06
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 2WD
Electronic Speed Control (esc): Included
Led Light Buckets: no
Motor: 540-brushed type
Scale: 1/10
Shock Damper: Friction damper
Suspension: Fully Independent Double Wishbone
Terrain Use: On-Road

Required To Complete (not included):
2 channel transmitter (Tx)
2 channel receiver (Rx)
1 Steering servo
Transmitter batteries
Drive battery pack (7.2V)
Battery charger
Body paint
