Tamiya RC 1/10 TT-02R Chassis Kit #47326

Tamiya RC 1/10 TT-02R Chassis Unassembled Kit #47326 in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened packages.

Description:
This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the spec level with greater versatility! Aluminum rear uprights give 3-degree toe-in for more stable cornering, while an aluminum motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminum propeller shaft and center cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction. The kit also includes a TT-02 high speed gear set (68T).

* NOTE: This is a KIT and requires: Servo, Radio System, ESC, Motor, Off-Road Tires, Battery, Charger, body, PS Paint and Assembly.

Included Hop-up Option Parts
- 54733 Aluminum Rear Uprights (3-Degree Toe-In)
- 54501 TT-02 Aluminum Propeller Shaft
- Medium-Narrow Racing Slick Tires
- Metal Drive Shafts, Wheel Axles and Gearbox Joints
- 5mm Aluminum Short Ball Connector Nuts (Blue)

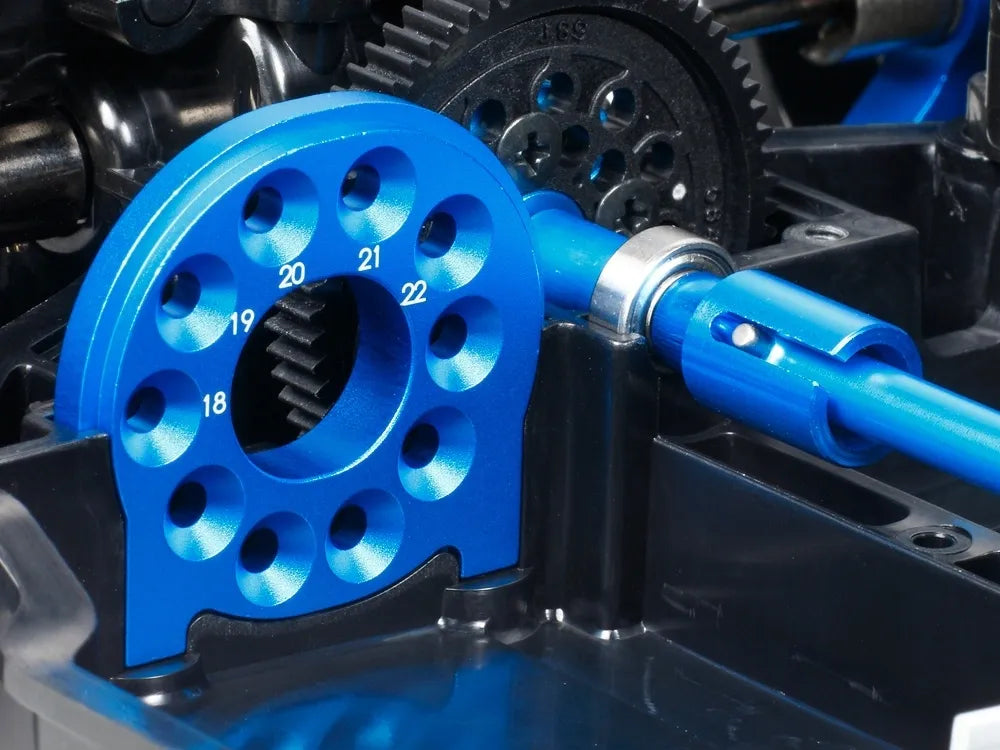

- 54558 Aluminum Motor Mount
- 54476 TT-02 Full Ball Bearing Set
- 5mm Ball Connectors
- 54502 TT-02 Alu. Propeller Joints
- 3x18mm Alu. Turnbuckle Shafts
- CVA Oil Dampers & Springs
- 4mm Aluminum Flange Lock Nuts (Blue)
- 5mm Aluminum Ball Connectors (Blue)

Features:

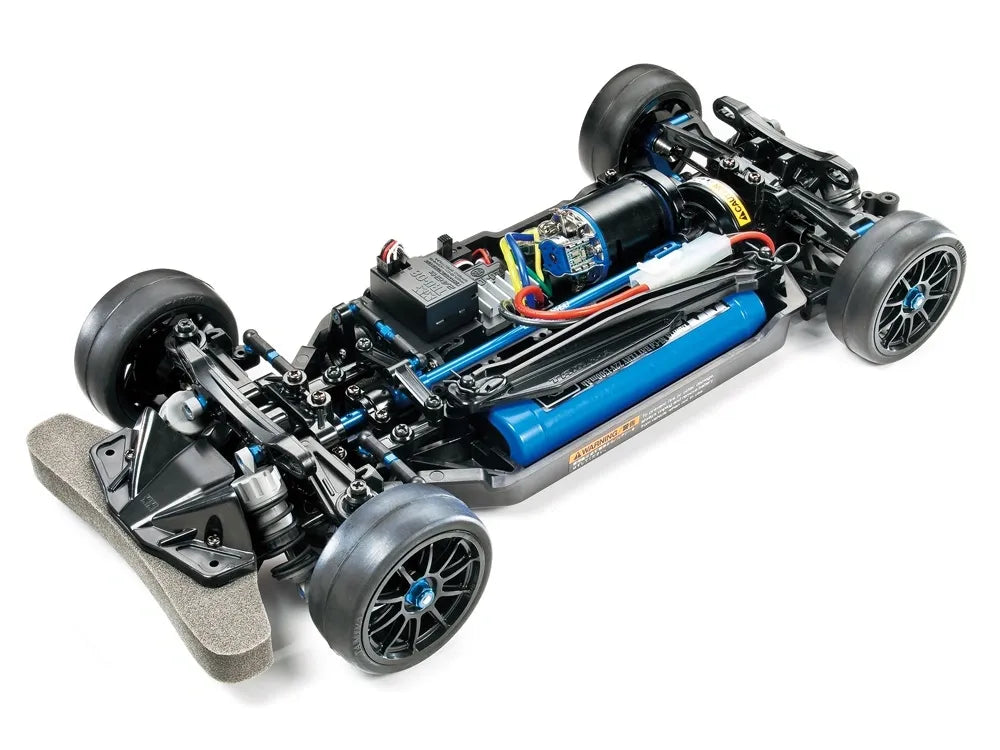

• 1/10 scale R/C chassis assembly kit.
• Length: 376mm, Width: 182mm.

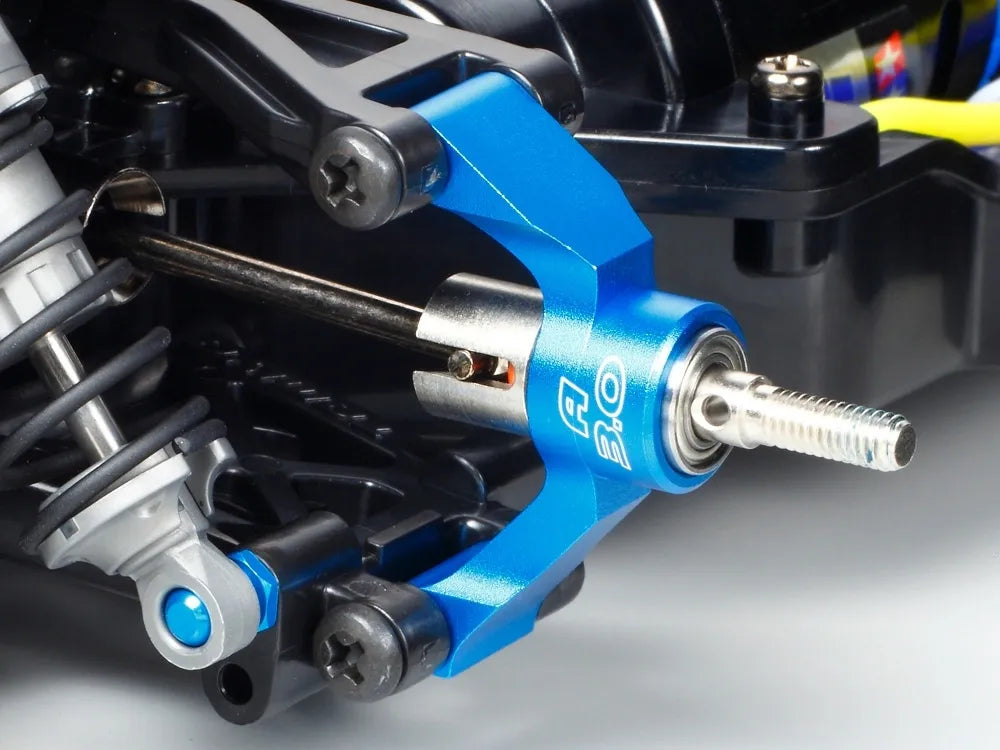

• Aluminum rear uprights provide 3 degrees of toe-in for greater stability when cornering.
• Aluminum motor mount, propeller shaft and joints included.
• A highly reliable drivetrain employs full ball bearings, aluminum propeller shaft and center cups, plus metal drive shafts and joint cups.

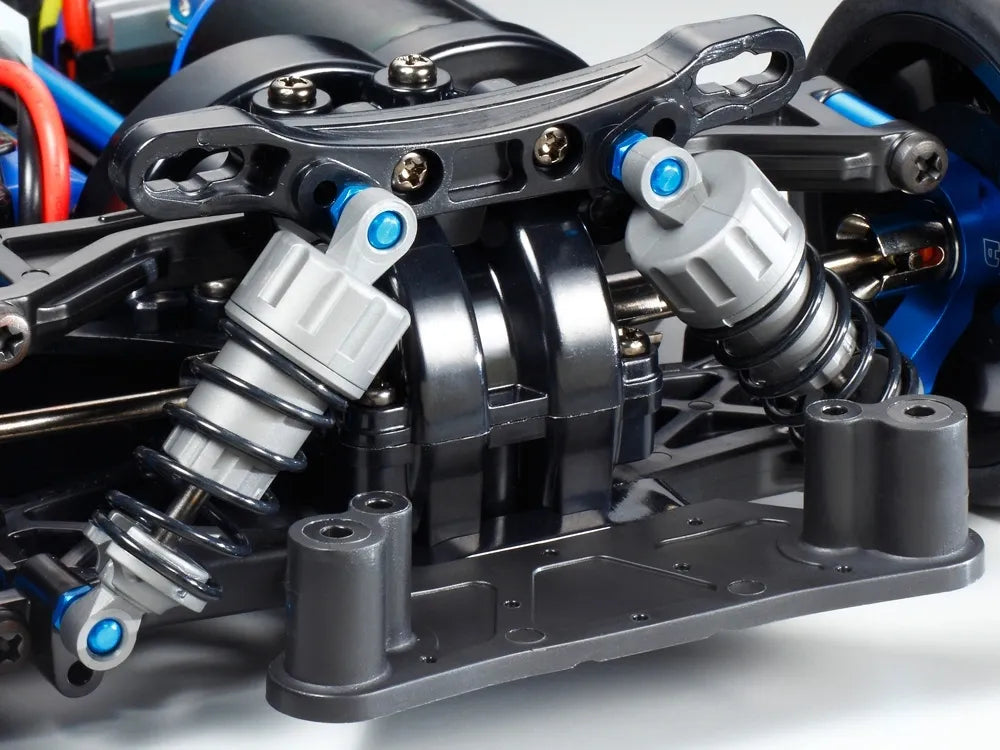

• Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction.
• Comes with 10-spoke wheels and slick tires.

Specifications:
* Adjustable Gear Ratio: Yes
* Bearings: Includes full ball bearings
* Chassis Material: ABS Plastic
* Chassis Type: TT-02R
* Construction Type: Assembly Kit
* Differential Type: Gear
* Drive Type: 4WD
* Electronic Speed Control (esc): Sold Separately
* Motor: Sold Separately
* Scale: 1/10
* Shock Damper: CVA Oil Filled
* Suspension: Fully Independent Double Wishbone
* Terrain Use: On-Road

Required To Complete (not included):
* 2 channel transmitter (Tx)
* 2 channel receiver (Rx)
* 1 Steering servo
* 540 Type Motor and ESC
* 190mm Touring Car Body Set
* Transmitter batteries
* Drive battery pack (7.2V-7.4V)
* Battery charger
* Tamiya PS paint
