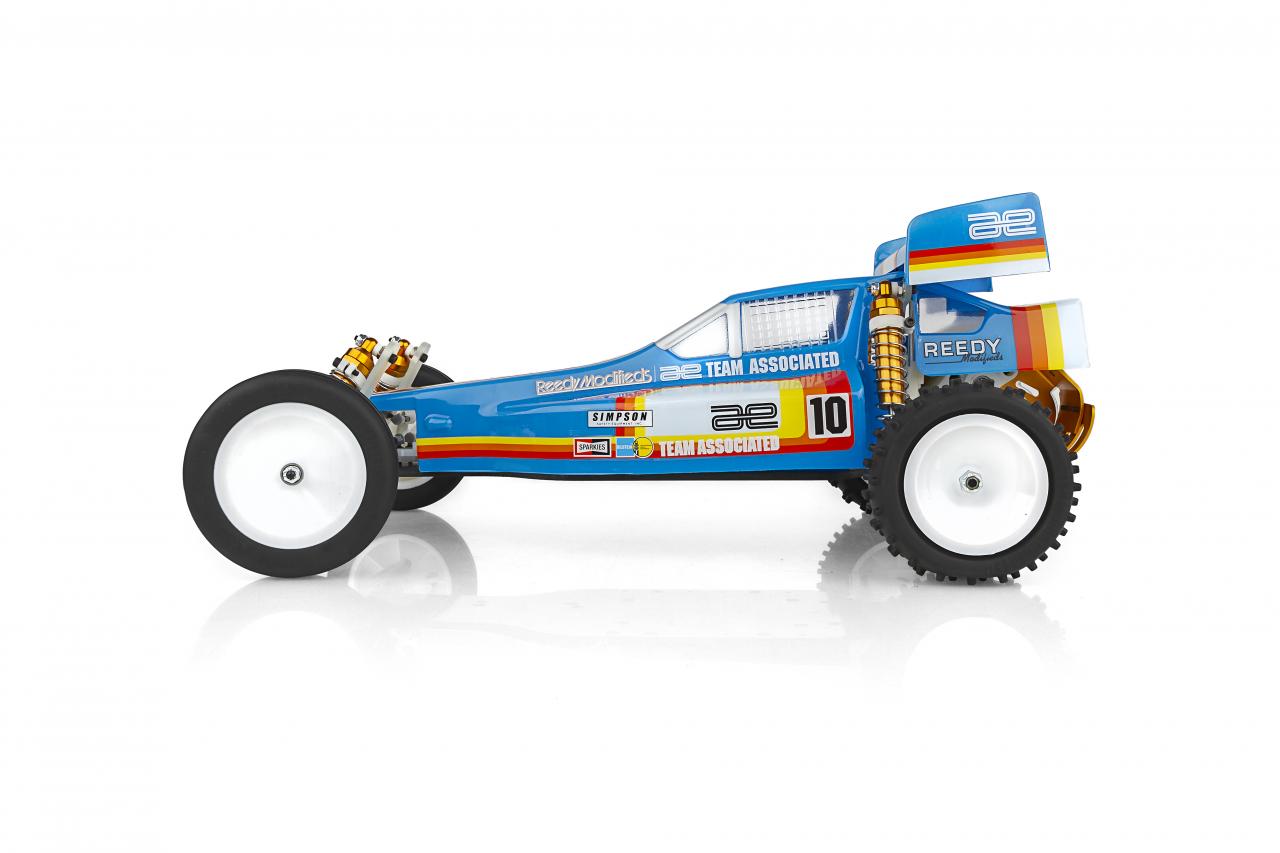

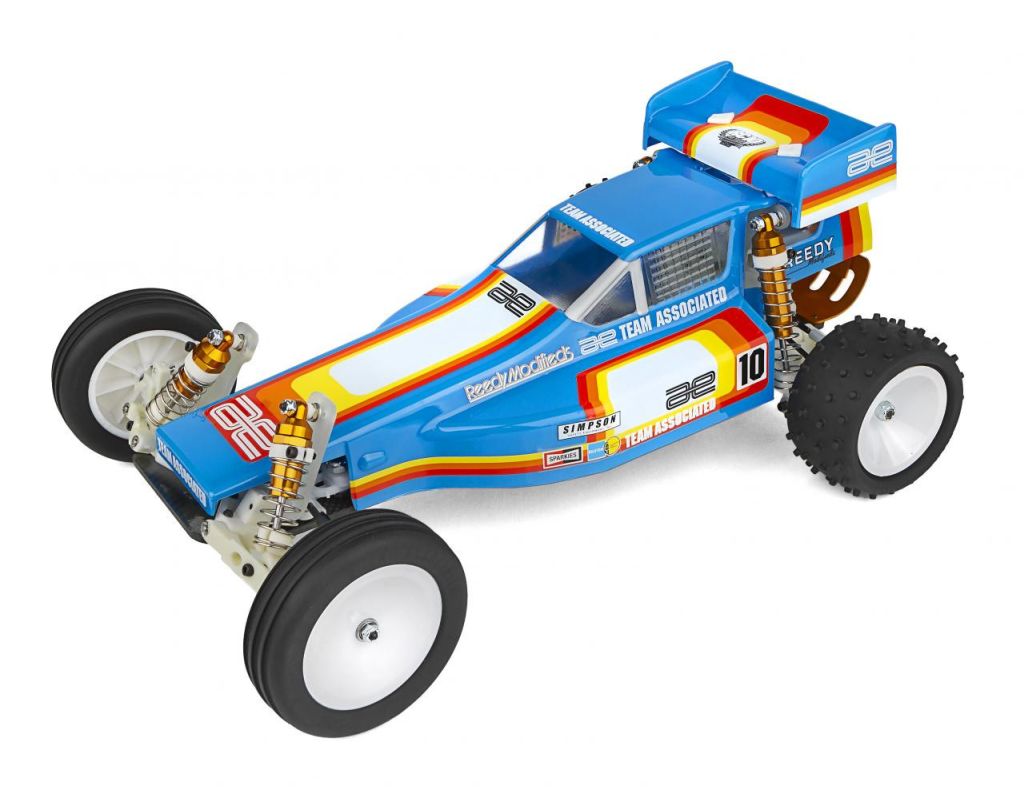

Team Associated RC10 Graphite 2WD Off-Road Kit #6030

Limited Edition Team Associated RC10 Graphite 2WD Off-Road Kit #6030 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for broken factory seals.

Description:
Note - This is an unassembled kit. Assembly, painting and additional items required.

Team Associated's RC10 has won more National and World Championships than any other RC car. The new RC10 GRAPHITE was engineered to give that serious racer all of the latest team-developed components. Without altering any of the RC10’s legendary competition features, like the custom, coil-over shocks and high-torque gearbox; the RC10 GRAPHITE incorporates a wealth of subtle changes designed specifically for championship caliber drivers. This eliminates the need to purchase aftermarket components of questionable reliability and availability to modify an RC10.

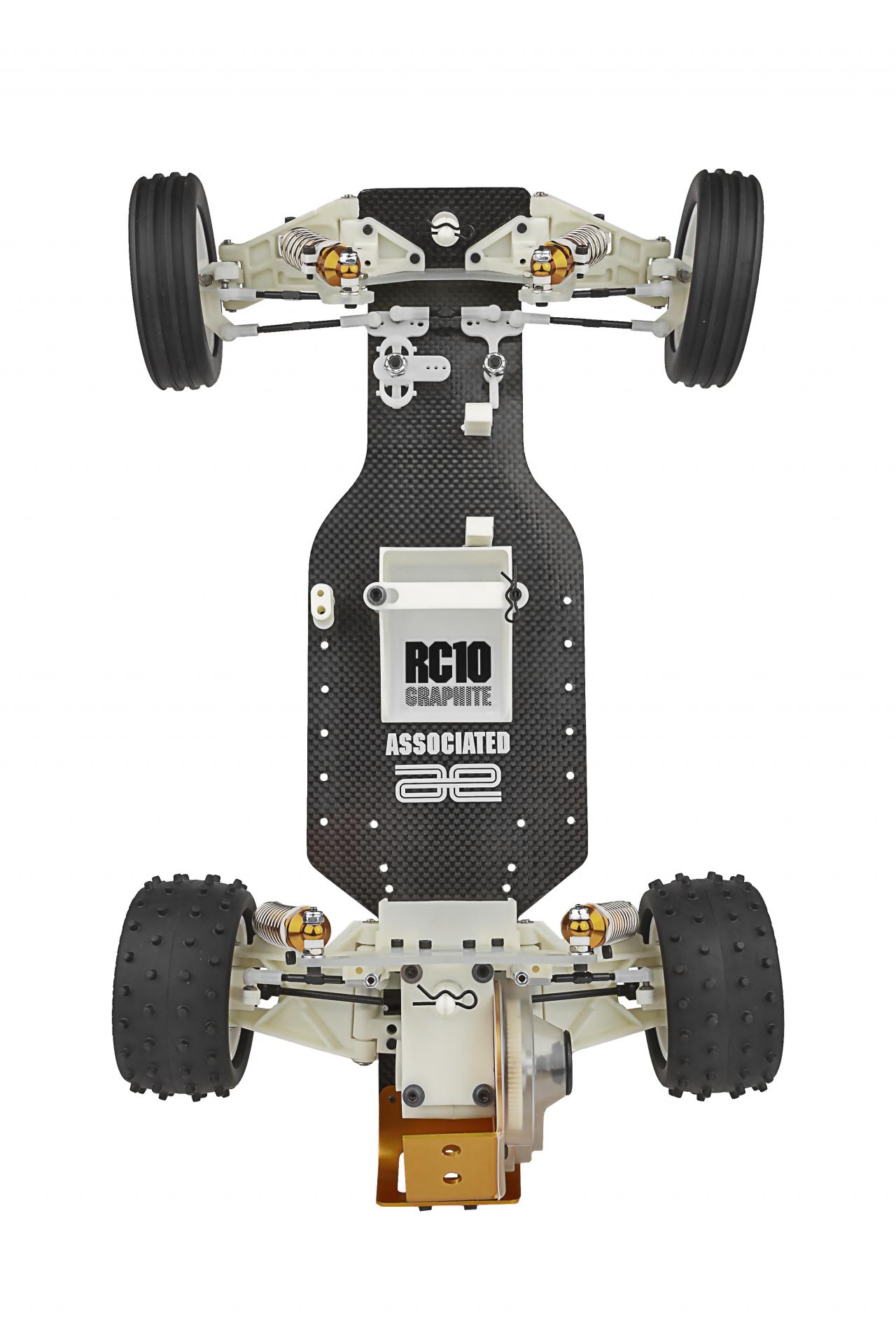

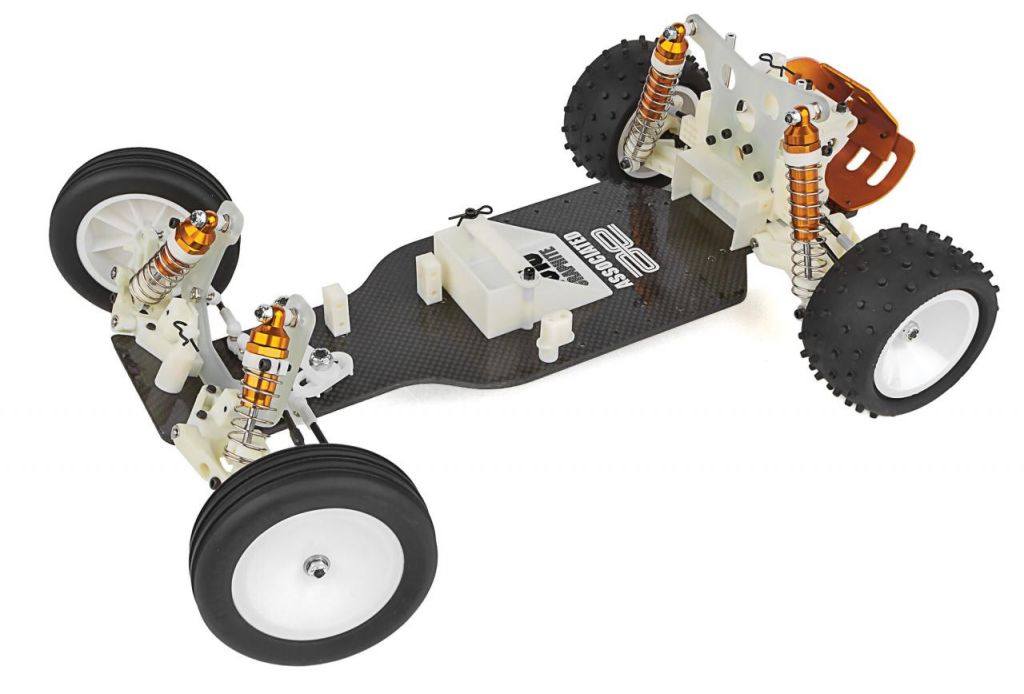

The chassis of the RC10 GRAPHITE is carbon fiber graphite, which reduces weight without sacrificing rigidity. Team Associated’s graphite is the lightest and strongest available, specially laminated using 100% woven graphite cloth. All mounting holes have been drilled and countersunk using precision, CNC equipment to ensure perfect alignment.

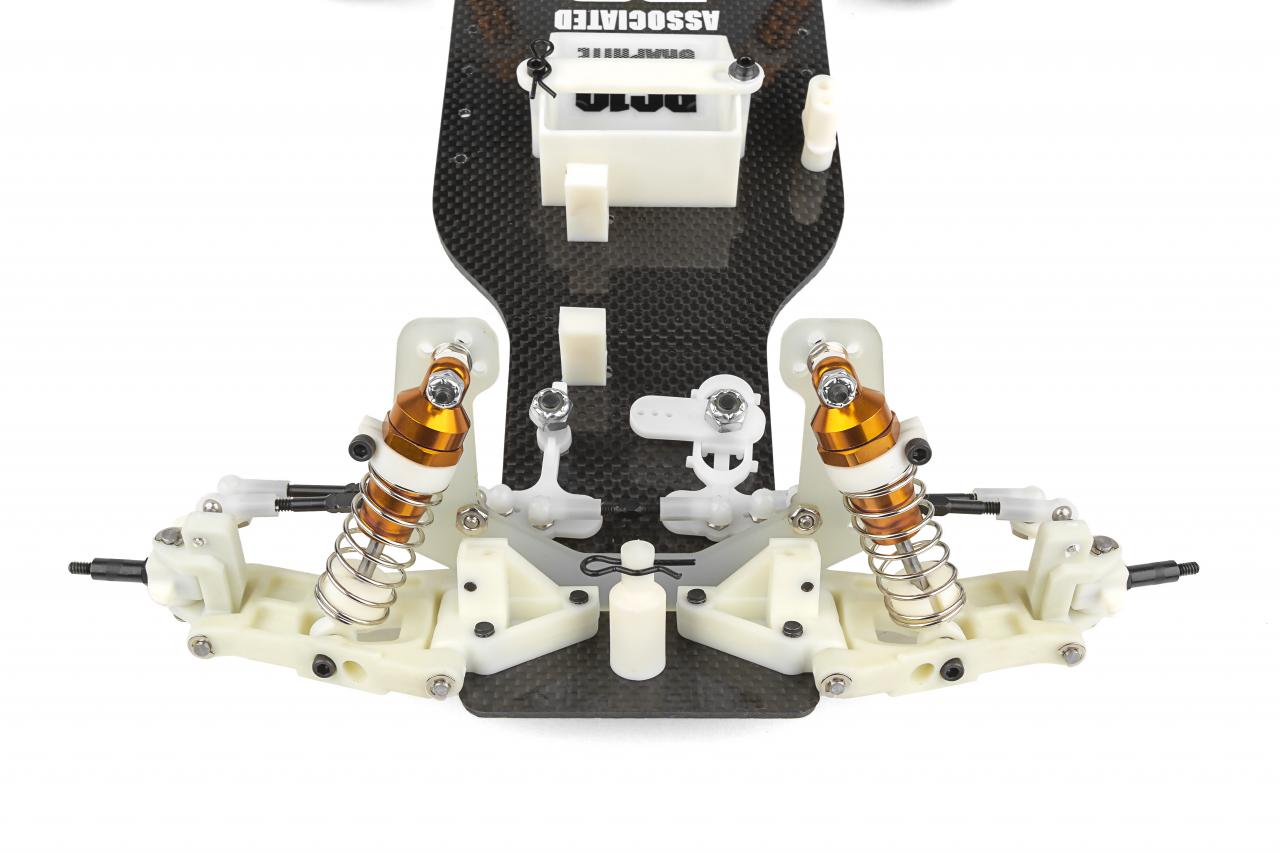

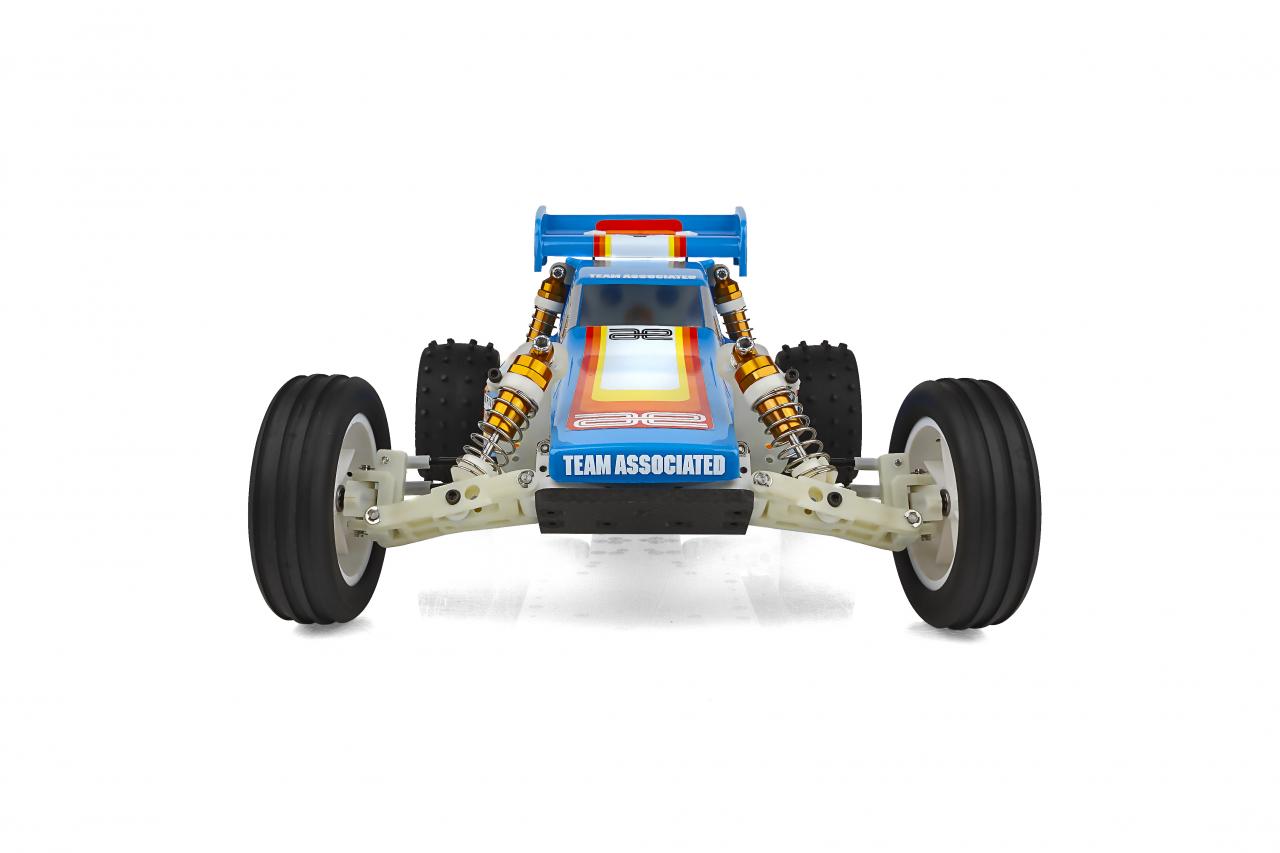

The redesigned front suspension of the RC10 GRAPHITE features a wider front track, made possible with the development of longer lower arms. Combined with zero-offset steering blocks, the RC10 GRAPHITE is more stable at speed and offers improved turn-in for faster cornering. Also up front, new shock towers give you a wider selection of shock mounting positions to adjust spring rate to individual tracks and driving styles. In addition, turnbuckles are used throughout to make suspension changes easier and more precise.

Competition-proven wheels are also part of the RC10 GRAPHITE package. With low mass and minimal flex, these wheels provide stable predictable handling and reduce unsprung weight. Low profile, special compound racing rubber is another important addition. Team Associated high-traction TQ tires are used on all four corners for balanced handling and grip that hooks up on any track. The rear suspension mounts also allow you to setup rear toe-in at 0 or 3 degrees. And to get every last bit of power to the wheels, the RC10 GRAPHITE uses hardened universal drive shafts.

Features:

• Authentic replica of the RC10 Buggy Kit originally released in 1989

• 2.5mm carbon fiber graphite chassis

• Fully adjustable four-wheel independent suspension

• Long travel, fluid-filled silver anodized aluminum coil-over shocks

• Low profile sealed six-gear transmission

• VariLok adjustable ball differential

• Exceptional ground clearance with low center of gravity

• Front and rear tires with modular racing wheels

• Clear ProTech II body and wing

• Fiberglass shock towers

• Full metal ball bearings

• Fits 6-cell NiMH and 2S LiPo battery packs

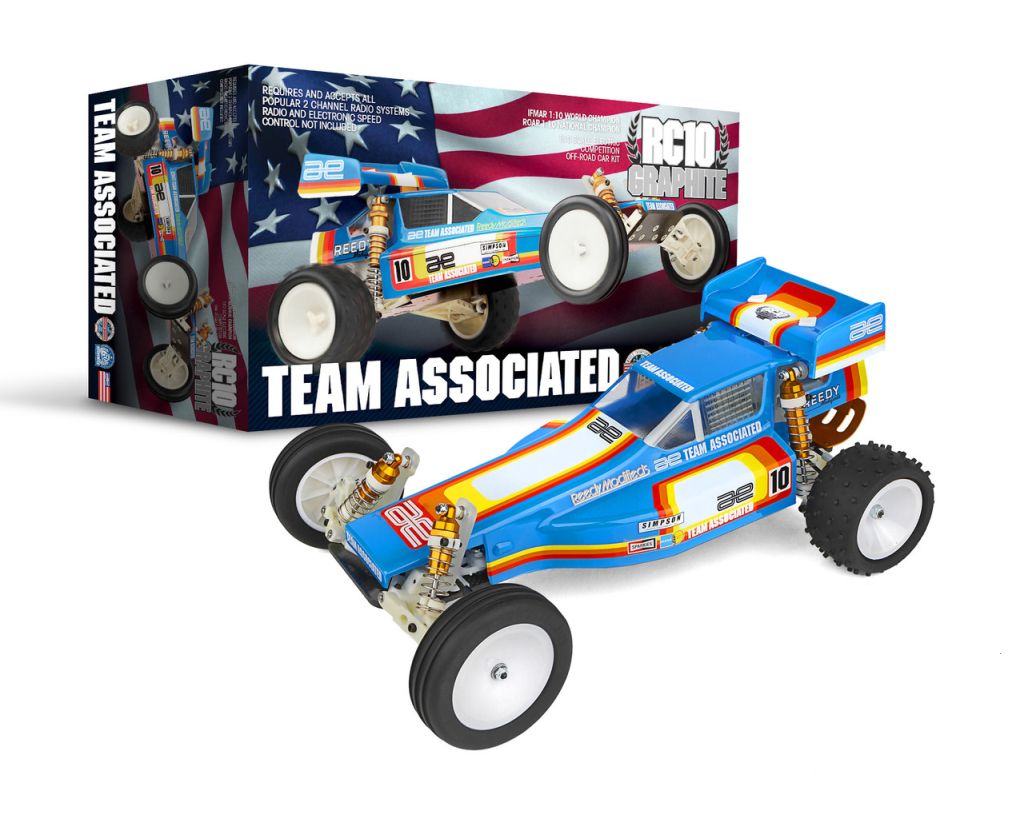

• Includes a low-profile clear polycarbonate Viper body and wing kit.

Specifications

• Power Source: Electric
• Terrain: Off-Road
• Body Style: Buggy
• Scale Size: 1:10 Scale
• Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
• Length: TBD
• Width: TBD
• Wheelbase: TBD
• Weight: varies
• Internal Gear Ratio: varies
• Drive: 2WD

Required to Complete (Not included)

• 1:10 scale 540-size electric motor and electronic speed control
• Chassis battery
• Battery charger
• 2-channel surface transmitter
• 2-channel receiver
• Steering servo
• Pinion Gear
• Lexan Body Paint - specific spray paint for body
• Other items: Silicone shock fluid, Silicone diff fluid, body scissors, body reamer, hex/nut driver set, CA tire adhesive, Hobby knife, Needle nose pliers, Wire cutters, Soldering iron, Calipers or precision ruler
