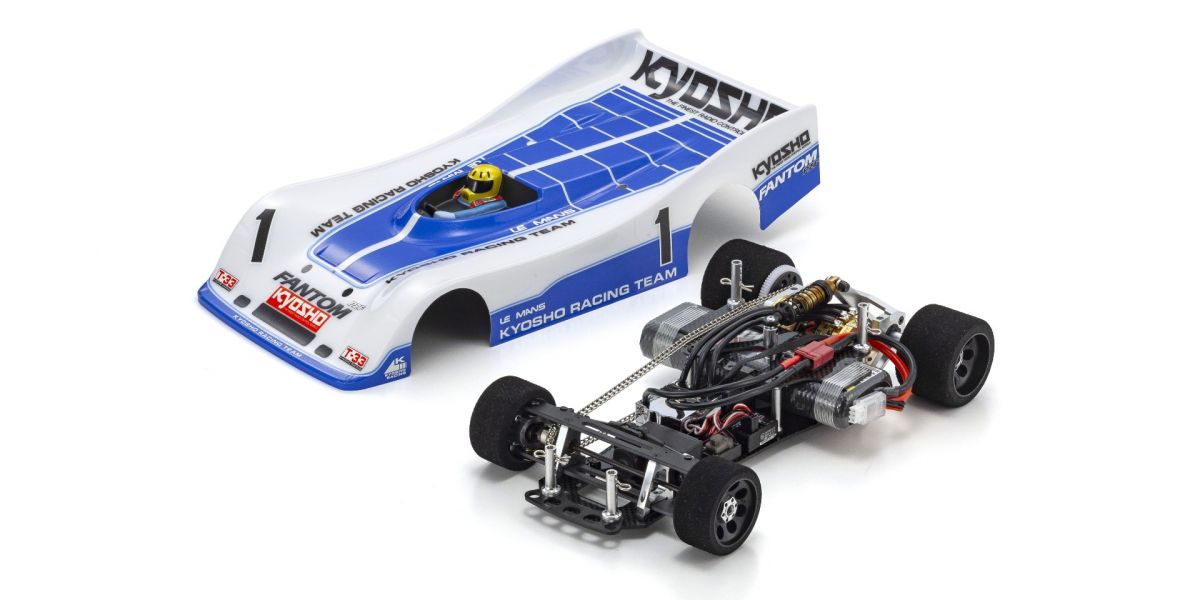

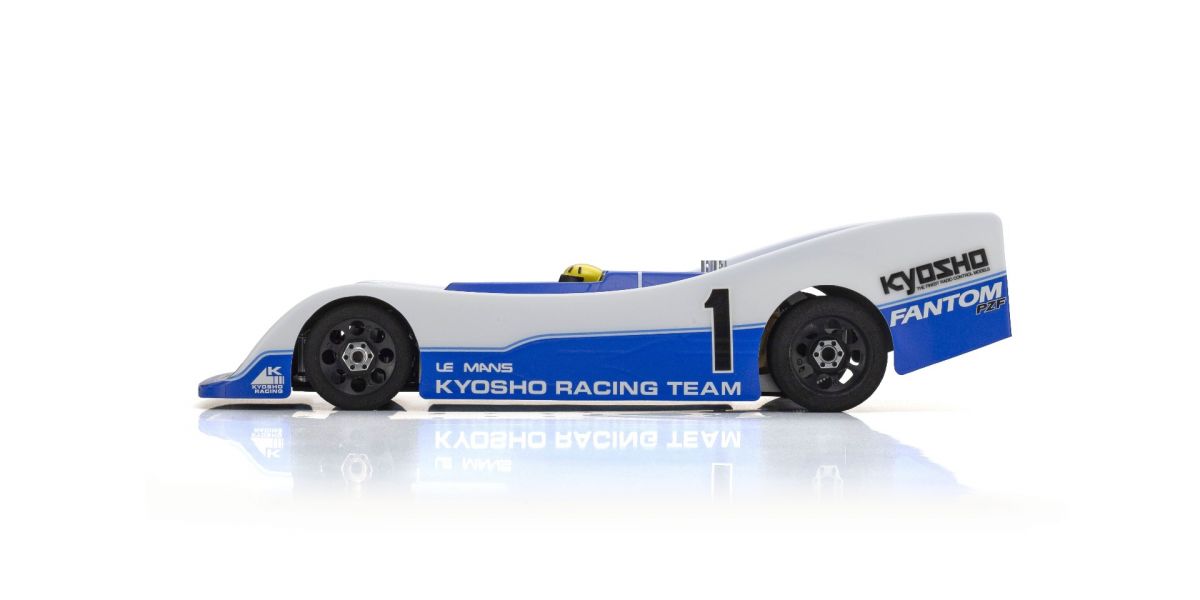

Kyosho 30640 Fantom PZF T-33 1/12 4WD Racing Car Kit

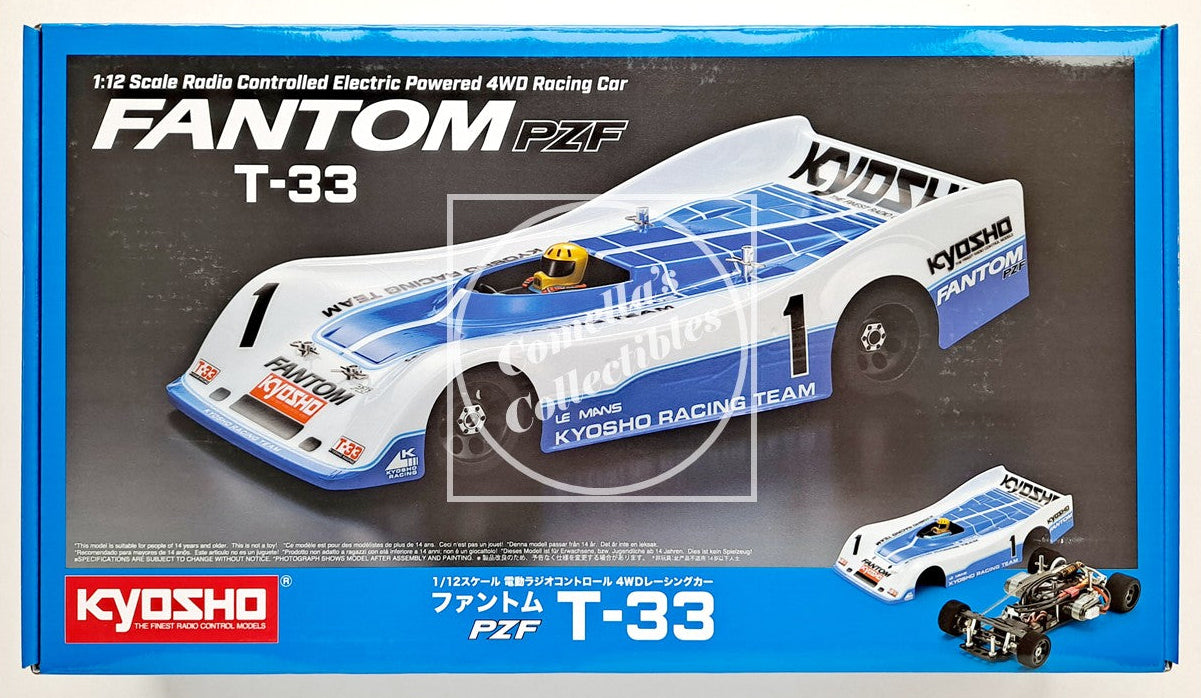

Kyosho Fantom PZF T-33 4WD 1/12 Racing Car Kit #30640 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for broken factory seals.

Description:
In the 1980s, 1/12 scale electric on-road racing was defined by fierce competition between 4WD models with ladder chains and agile 2WD cars with 3-point (3P) suspension. Kyosho’s Phantom EP-4WD dominated on both temporary parking-lot tracks and permanent asphalt circuits, while the rear 2WD Plazma series leveraged its lightweight design and simple drivetrain to excel where battery efficiency was key.

From this competitive era emerged a hybrid — the Plazma Phantom — which combined the Plazma’s main chassis and rear suspension with the Phantom’s drivetrain. Piloted by Kyosho works drivers, it blended 4WD traction with 3P suspension adaptability to deliver outstanding race results. But no kit was ever sold, leaving enthusiasts to build conversions from individual parts.

Now, decades later, the wait is over. The Phantom PZF T-33 brings the Plazma Phantom to market as a kit for the first time. More than just a parts combination, the Phantom PZF T-33 features newly developed components for performance beyond what was possible in the ’80s. The quick-handling T-33 body also returns, expanding the body lineup.
Compared to building a Plazma Phantom from separate re-releases, the Phantom PZF delivers better cost efficiency and puts a true works-spec machine within reach. Now enhanced with modern refinements for even greater performance!

Features:

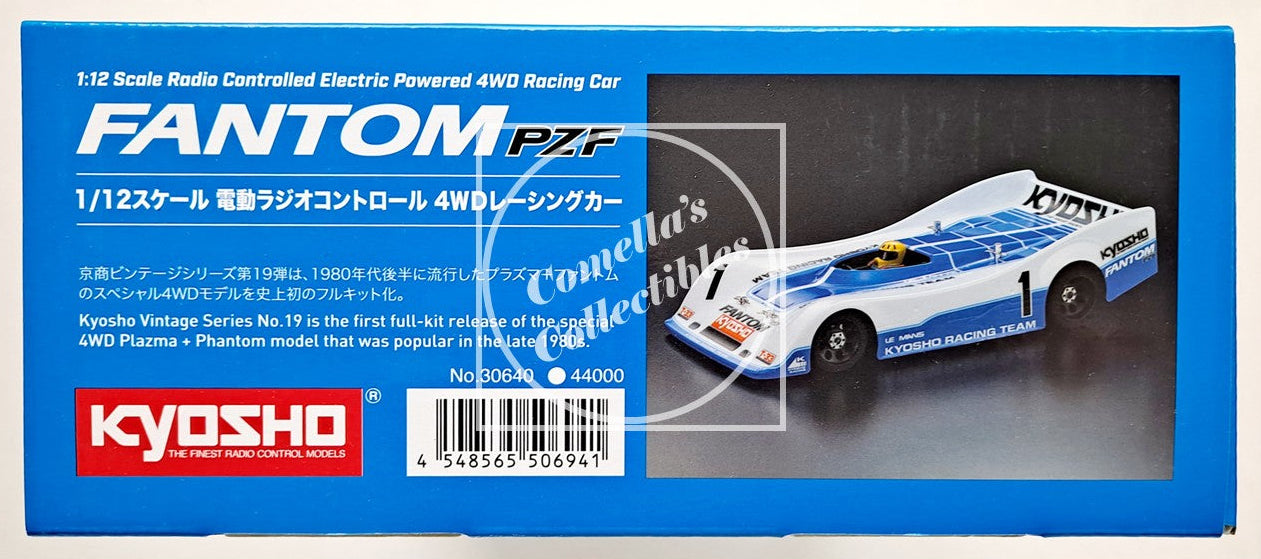

• Kyosho Vintage Series No.19 is the first full-kit release of the special 4WD Plazma + Phantom model that was popular in the late 1980s.

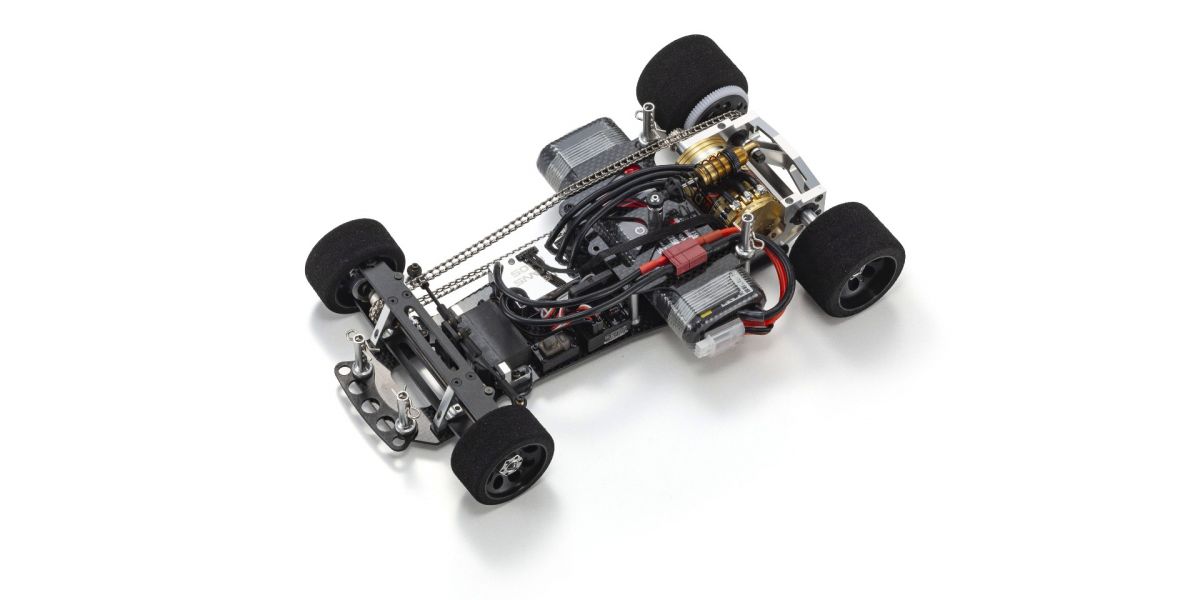

• Ladder-chain 4WD delivers high-level traction even on low-grip surfaces.

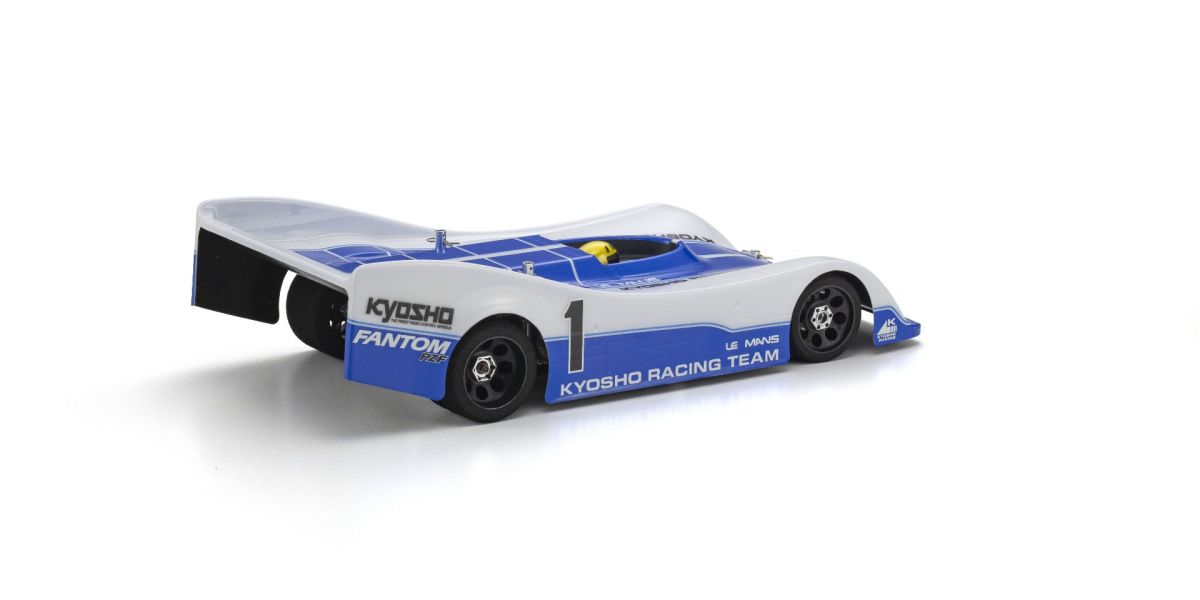

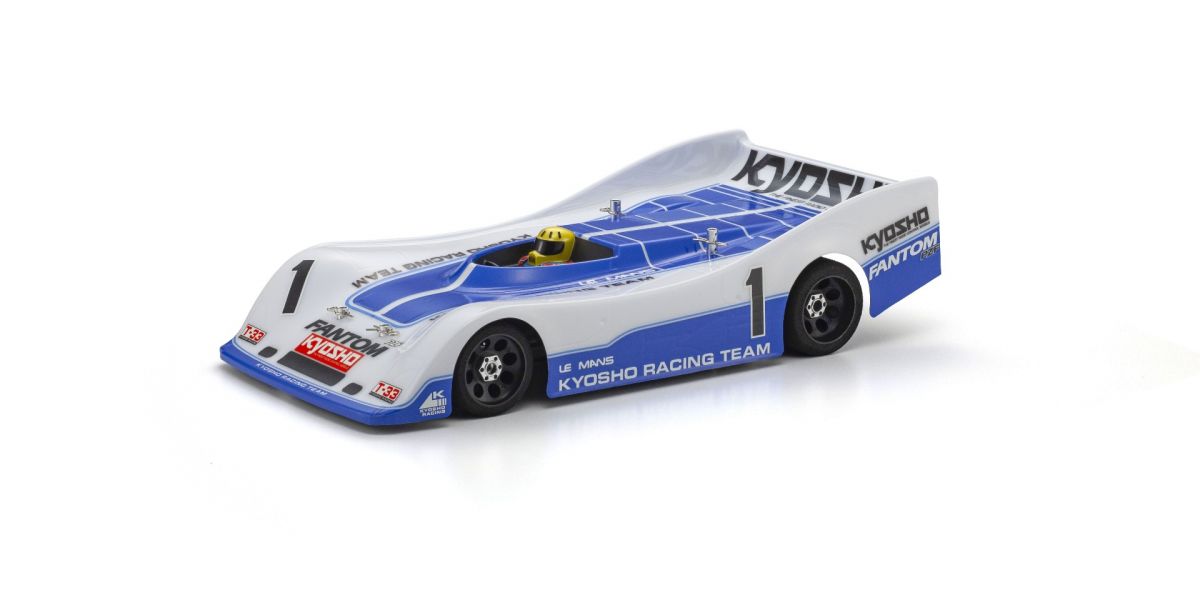

• Includes reproduction of the T33 body, renowned for its sharp handling. Body is also compatible with existing Phantom & Plazma series.

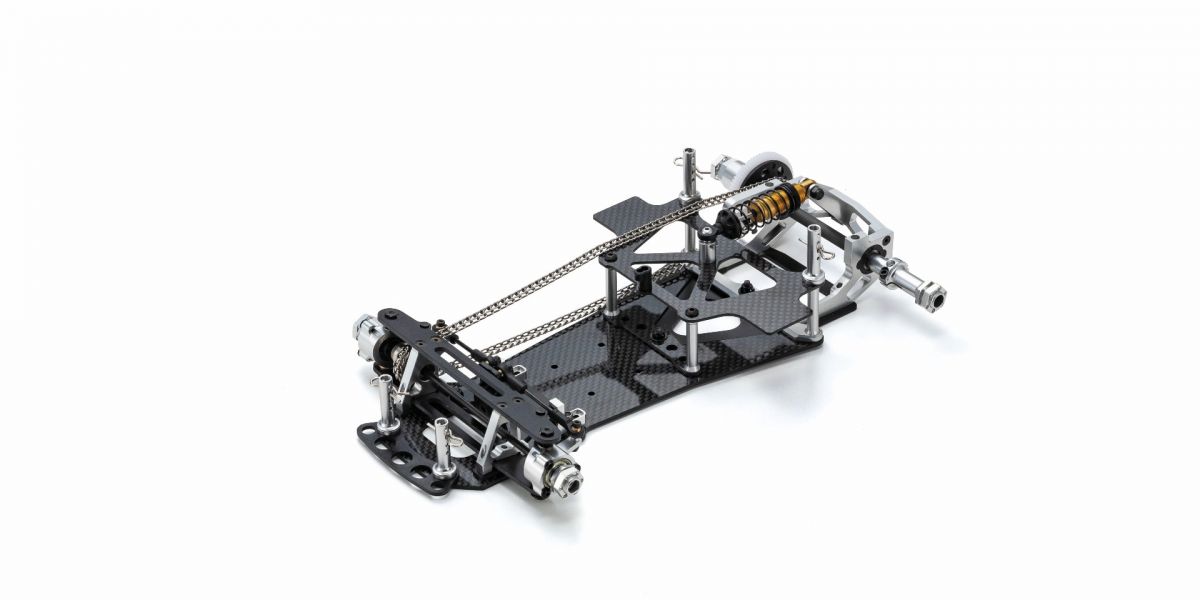

• High-rigidity carbon main chassis and upper plate are paired with an FRP rear A-bar with optimal flex for enhanced tire grip.

• Newly developed rear A-bar joints with ball-connect design.

• 1.5 mm thick spacers for the front axle mount allow adjustable ride height.

• Kingpin coil-type front suspension absorbs vibrations from surface gaps for optimal front tire traction.

• Tires come pre-mounted and trued on black wheels, eliminating the need for tire-setting.

• Dial-adjustable oil shock allow easy spring tension adjustments.

• Unassembled kit includes pre-mounted front and rear tires and an unpainted body.

Required for Operation (Not Included)

• 2ch ground RC system (Receiver Max Size: L37 x W27 x H16.5mm)

• Steering Servo (Servo Max Size: L37 x W16.5 x H30mm)

• 540 class motor (use a motor with a shaft length of 15mm or more)

• ESC (max size: 38 x 31 x 23mm)

• Battery for chassis (Battery Max Size: 138 x 48 x 24.5mm)

• Charger for battery for chassis

• Batteries for transmitter

• Paint for polycarbonate body

• Tools (phillips head screw driver large, small. Needle Nose Pliers, Scissors, Sharp Hobby Knife)


Box Contents:

• Chassis kit

• Pre Mounted/Glued Wheels and Tires

• Unpainted body

• Decal Sheet

• Wheel wrench（12/4.0）

• 5.5/5.0 wrench

• Shock wrench

• Shock oil

Specifications:

• Length 353mm

• Width 172mm

• Height 86mm

• 3P suspension system with direct drive

• Wheelbase 201-202mm（Adjustable）

• Tread F:137mm/R:133mm

• Tire F:φ48×23mm/R:φ53×35mm

• Gear ratio 3.38：1

• Weight approx 900g(with GAB4202）

• Motor 540class（sold separately）

• Used transmitter 2ch1servo1ESC

• Maximum Speed approx.55km/h (with Le Mans480G) (Based on driving conditions)

• Driving Time approx.23minutes (with Le Mans480G) (Based on certain driving conditions)
