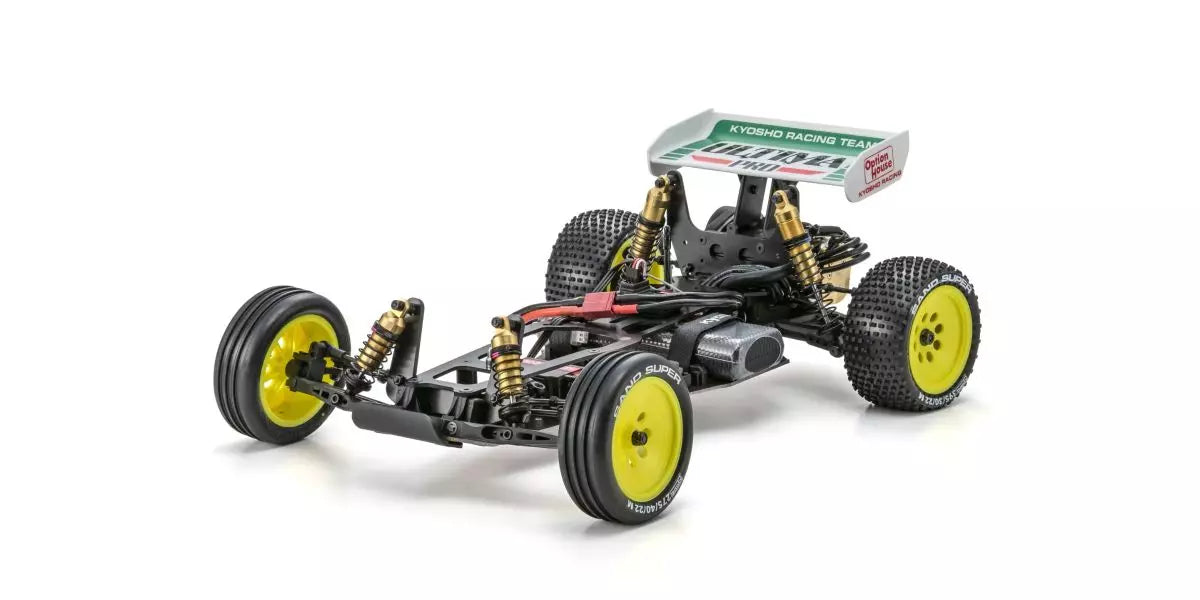

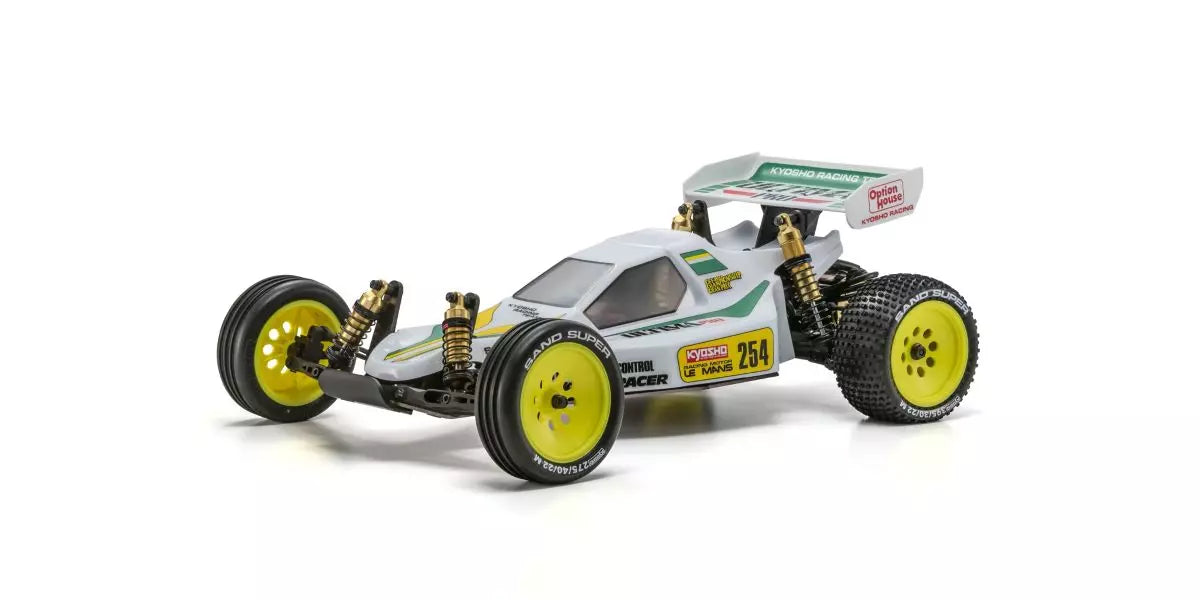

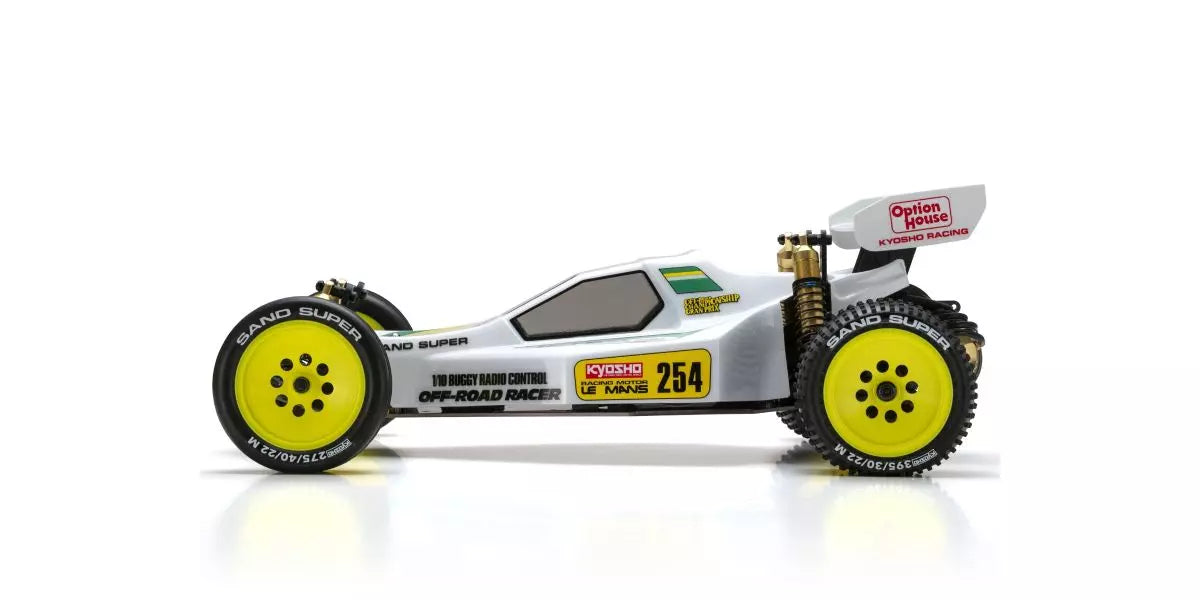

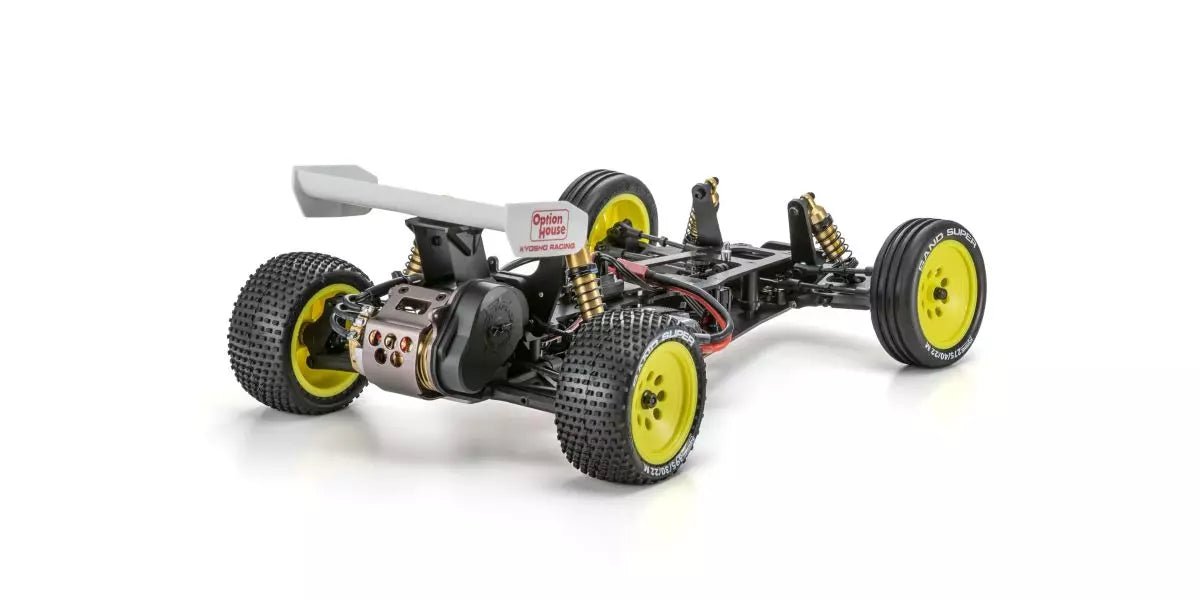

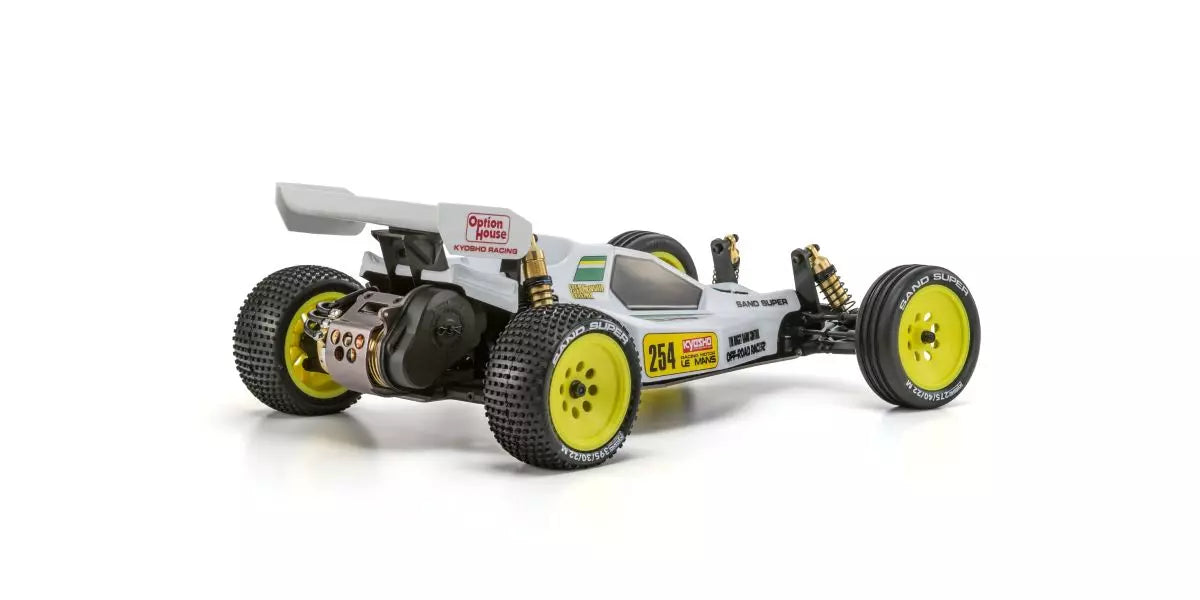

Kyosho 30626 Ultima Pro 1/10 Electric 2WD Buggy Kit

Kyosho Ultima Pro Edition 1/10 Electric 2WD Buggy Kit #30626 in factory sealed box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for broken factory seals.

Description:

The 1/10 scale EP 2WD off-road Ultima, which was first released in 1986, represented a milestone created by Kyosho for the increasingly competitive R/C buggy scene. Incorporating cutting-edge technology of the time, the Ultima demonstrated outstanding performance from its debut, achieving a remarkable 1-2-3 finish in the 2WD class at the 1987 World Championships in the UK. The Ultima Pro, released in 1988 as the natural evolution of the Ultima, now returns as the 21st model in the Kyosho Vintage Series.

While the original Ultima used a monocoque frame combining a U-shaped aluminum chassis with a resin upper deck, the Ultima Pro adopted a double-deck layout with a flat aluminum chassis and FRP upper deck. This provided an ideal balance of rigidity and controlled flex, while offering greater freedom for mounting the R/C electronics and battery. The re-release retains this proven structure while incorporating longer front lower suspension arms, as used on the later version of the original Ultima Pro introduced in 1989, to increase track width. The wheelbase is also extended by 10mm compared to the later version of the Ultima Pro, further improving driving stability. Front and rear oil shocks, a key feature of any off-road model, feature gold anodized bodies with dial-adjustable spring tension, providing a more race-oriented specification than the original Ultima Pro. The front and rear shock towers, which absorb the loads transmitted from the shocks, are made from FRP and are dedicated to the Ultima Pro.

Named for the Japanese word meaning “ultimate,” the Ultima Pro represents the culmination of the original Ultima series, which achieved great success in the world of racing. Its return adds another iconic chapter to the proud history of the Kyosho Vintage Series.

Features:

• As the 21st model in the Kyosho Vintage Series, the Ultima Pro represents the ultimate evolution of the legendary Ultima. Faithfully recreated from the original, it combines authentic styling with modern performance upgrades.

• Hybrid recreation combines the best features of the original 1988 model with the long-wheelbase configuration introduced in 1989.

• Body reproduced using the original molds from the Ultima Pro.

• Decals recreate the color scheme of the original early-model package.

• 6061 aluminum main chassis and FRP upper deck provide increased rigidity.

• Features dial-adjust oil shocks with a gold anodized finish, a signature feature of Kyosho's high-end buggies.

• Double-wishbone suspension delivers excellent surface tracing performance. The front suspension is widened by 10mm per side, for a total increase of 20mm in track width.

• Turnbuckle rods allow quick and precise camber and toe adjustment.

• 2.2-inch wheels expand tire options. The rear wheels are also compatible with Optima-series offsets.

• Full ball-bearing specification, including the servo saver.

• Assembly kit requires R/C electronics and power source.

• Flexible design accommodates shorty batteries and allows vertical battery mounting when using a low-profile servo.

Required for Operation (Not Included)

• 2 Channel surface Transmitter and Receiver

• Steering Servo (Max size: L42 x W21 x H38mm)

• 540 class motor

• ESC (Max size: L45 x W38 x H27mm)

• Battery for chassis (Max size: L140 x W47.5 x H25mm)

• Charger for drive battery

• Batteries for transmitter

• Paint for polycarbonate body

• Tools (phillips head screw driver large, small. Needle Nose Pliers, Scissors, Sharp Hobby Knife)

Box Contents:

• Chassis Kit

• Clear body

• Decals

• Hexagon, Cross and Shock wrenches

• Shock oil

• Ball Diff Grease

Specifications:

• Length: 379mm
• Width: 250mm

• Height: 140mm
• Wheelbase: 280mm

• Tread: (F/R): 226mm/210mm

• Tires: Front: φ82×27mm / Rear: φ86×42mm
• Gear ratio: 8.64:1
• Weight: approx: 1600g (with 7.2V4000 LiPo)

• Motor: 540 Size (Sold Separately)
