Kyosho 1:10 Fazer Mk2 4WD FZ02 Series Electric Chassis Kit #34461

Kyosho 1:10 Fazer Mk2 4WD FZ02 Series Electric Chassis Kit #34461

Regular price $139.99 USD
Regular price Sale price $139.99 USD
Sale Sold out
Shipping calculated at checkout.

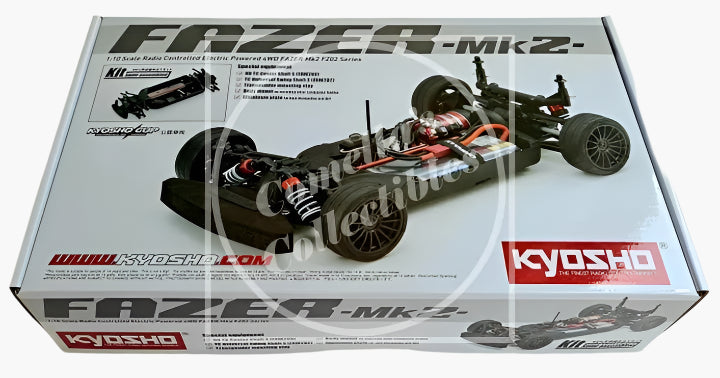

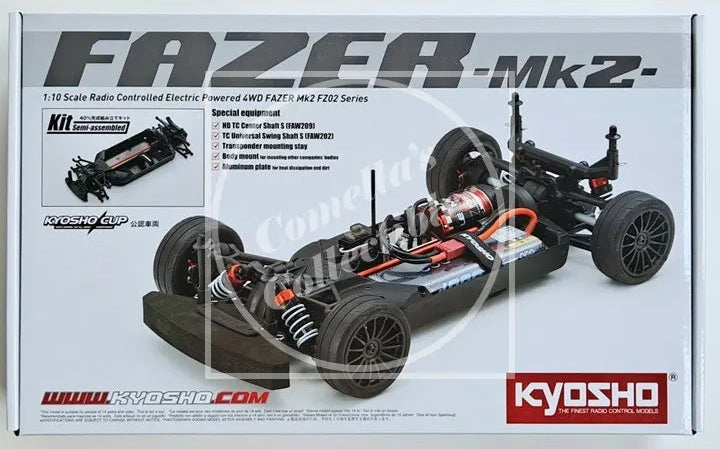

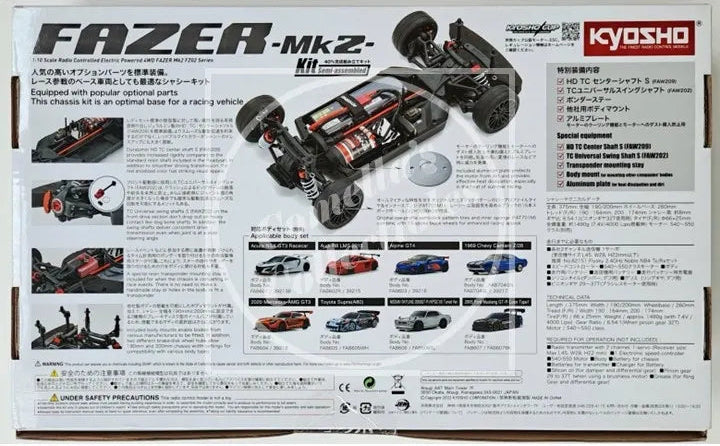

Kyosho 1:10 Fazer Mk2 4WD FZ02 Series Electric Chassis Kit #34461 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for broken retail seals.

Description:

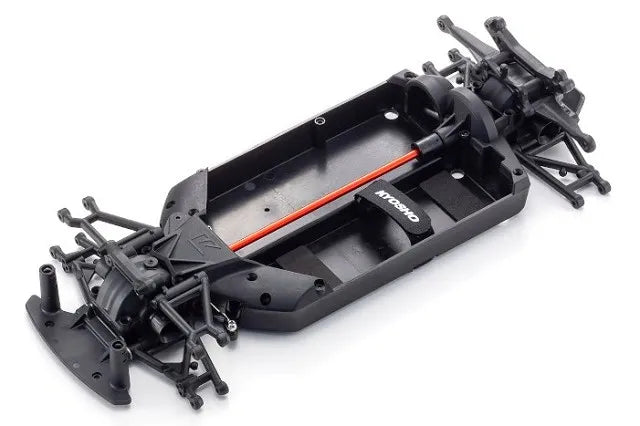

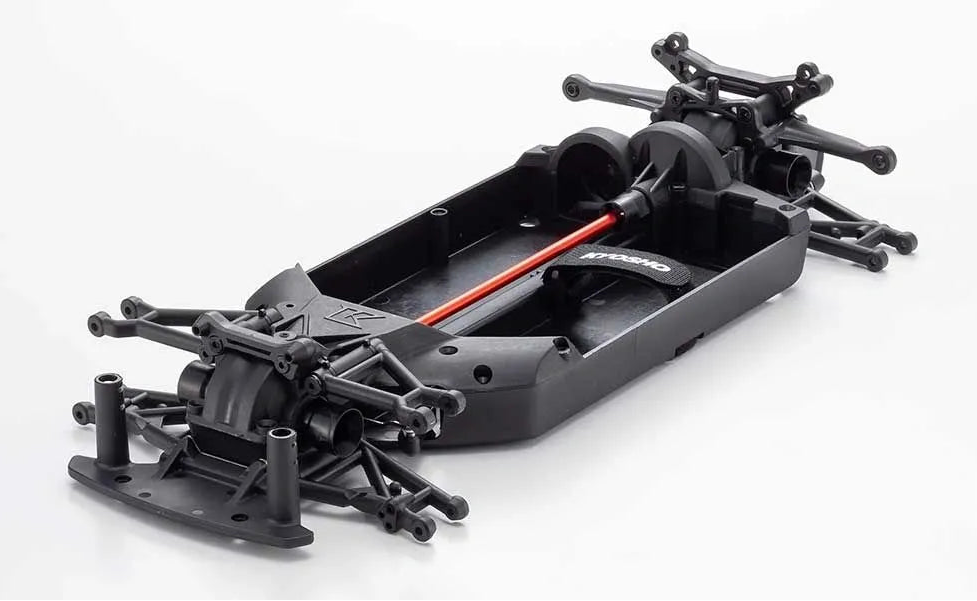

The FAZER Mk2 chassis kit allows owners the flexibility to add their own body and R/C system. Specifications have been elevated with optional parts such as HD TC center shaft S and TC universal swing shafts to enhance the unrivaled symmetrical design and front-rear suspension balance of the lightweight chassis for R/C racers to enjoy. While the deckless design looks simple, a reduced number of components improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon material further reduces weight and improves impact resistance. With its unique design, the FZ02 chassis embodies features and performance that will appeal to RC drivers of all levels.

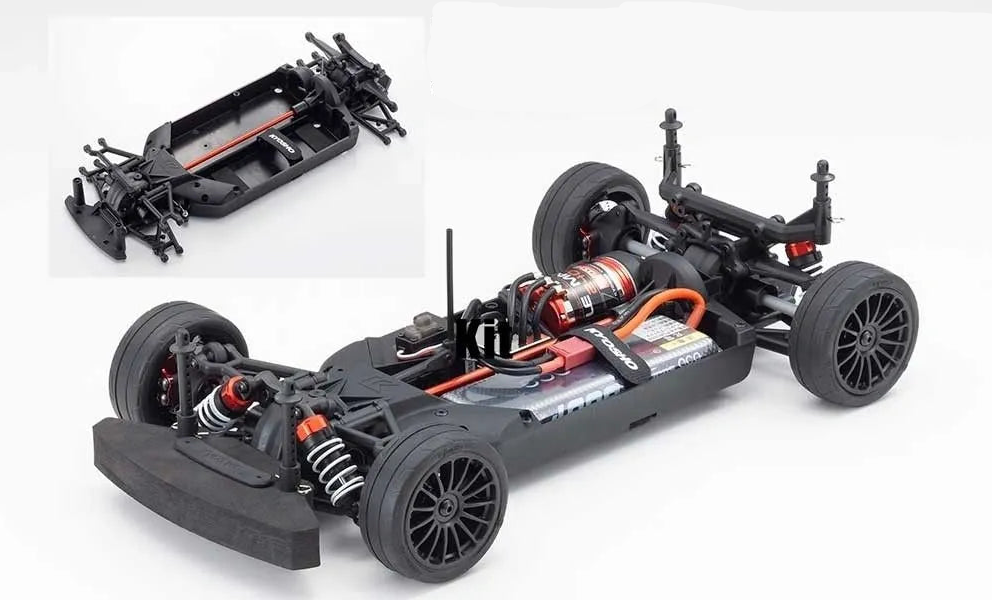

NOTE - This is a kit that requires assembly and additional items identified below. Some required items (not included) are shown in the photos for information purpose only.

Features:
* FZ02 Series Chassis. Shorter wheel-base compared to the FZ02L(Dodge Challenger) chassis.
* Simple and efficient shaft driven 4WD design with improved performance.
* Light weight and low CG bathtub style design made of durable glass reinforced 66 nylon material.
* Includes FAW203 universal swing shafts for front drive train
* 40% preassembled kit format
* Includes FAW209 aluminum center shaft for precise power transfer and increased durability
* Aluminum motor cooling plate between the motor and motor mount!!
* Transponder stay
* Body mount design to suit various types of body shells. With the included hubs, both 190mmm and 200mm bodies can be fitted.
* Includes FAT701M tires and VZH003B wheels
* Scale wheel design with brake rotor parts. Also includes 0mm offset rotor hubs(Allowing 190mm width).

Box Contents:
* 40% pre-assembled chassis
* FAW202 TC Universal Swing Shaft S
* FAW209 HD TC Center Shaft S
* Aluminum Motor Dust Plate
* Transponder mounting stay
* +0mm off-set wheel hub & M4 x 16 Wheel screw (for 190mm width body)
* +5mm off-set wheel hub & M4 x 22 Wheel screw (for 200mm width body)
* body mounts for various manufacturers bodies
* FAT701M TC Tires (M)
* Inner Sponge
* VZH003BK Wheel
* 1.5/2.0/2.5mm Hexagonal wrench
* 3/4/5/5.5/7/8mm Spanner

Required for Operation (Not Included)
* 2-channel ground RC system (transmitter and receiver) (Receiver size: L45 x W28 x H22 mm or less)
* Body
* Steering servo
* ESC Compatible with chosen motor (Size:L36 x W32 x H23 mm or less)
* 540-550 class motor
* Battery compatible with chosen ESC
* Charger for battery
* Batteries for Transmitter
* Body paint
* Damper Oil (Recommended SIL0400-8)
* Grease (for Ring Gear & Diff) (Recommended 96162)
* Silicone Oil (for Diff)(Recommended F: SIL50000 / R: SIL3000)
* Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
* Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor )
* Assembly Tools (1.5, 2, 2.5mm hex wrench driver, phillips head screw driver large & small, needle-nose pliers, scissors, sharp hobby knife)

Specifications:
* Length: 375mm
* Width: 200mm/190mm
* Ground clearance: 8mm (approx.)
* Wheelbase: 260mm
* Tread: (Body width: 190mm)F: 164mm / R: 164mm
* Tread: (Body width: 200mm)F: 174mm / R: 174mm
* Tires F: φ66mm x 25mm / R:φ66mm x 25mm
* Gear Ratio: 6.54:1
* Total storage weight: Approx. 1490g (with 7.4V / 4000 LiPo)
