Kyosho

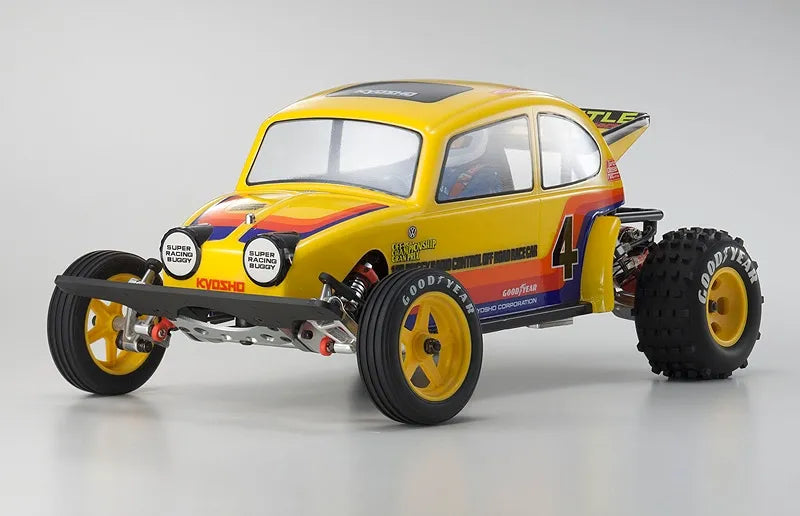

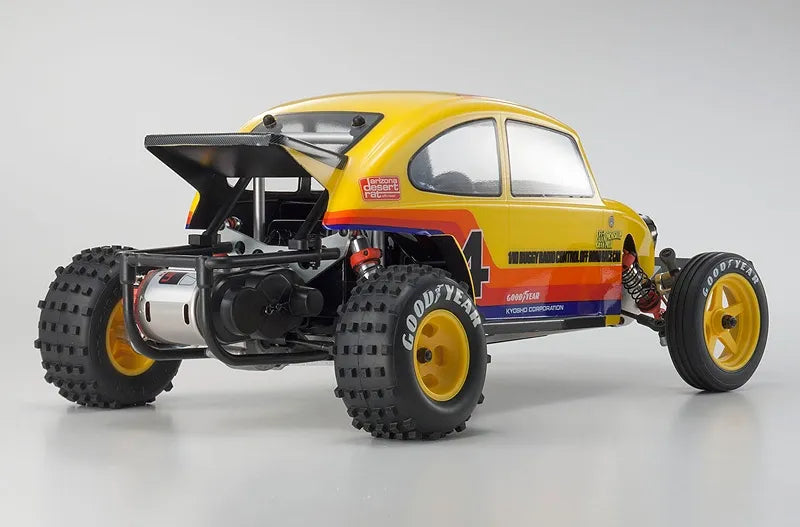

Kyosho VW Beetle 2014 1/10 EP 2WD Buggy Kit #30614B

Kyosho VW Beetle 2014 1/10 EP 2WD Buggy Kit #30614B

Regular price $309.99 USD
Regular price $409.99 USD Sale price $309.99 USD
Sale Sold out
Shipping calculated at checkout.
Kyosho VW Beetle 2014 1/10 EP 2WD Buggy Kit #30614B in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for broken retail seals.

Description:
The famous Kyosho Scorpion and Baja Beetle combined into one legendary off-road machine that became synonymous with electric buggy racing in the 1980’s, a name that is still known around the world today. Now, in honor of the original Scorpion and its many fans, the Beetle makes a triumphant return with the advanced Scorpion 2014 chassis featuring the same basic ladder frame 2WD structure as the original, but with the latest technology and components. from the kit, making assembly easier and the finished chassis lighter and more rigid. From experts familiar with the Scorpion’s standard of performance to present-day drivers unaware of the Scorpion legend, all will enjoy the Scorpion experience that inspired so many.

NOTE - This is a kit that requires assembly and additional items identified below.

Features:
* Revival of the off road BEETLE. 2014 version upgraded throughout.
* Kit includes pre-assembled gearbox and oil shocks (shock oil sold separately).
* 6061T6 forged aluminum suspension arms.
* Two-piece diecast aluminum gearbox with built-in diff gears.
* Slipper clutch protects gears and provides traction setting options.
* Oil shocks with aluminum cylinders and stainless shafts deliver smooth movement.
* Countersunk surface allows screws to be seated flat.
* Lightweight design from reduction in tapping screws and nuts.
* Near complete use of hex screws provides secure assembly.
* One-piece structure of rear wheels realizes lighter weight.
* Inner sponges included with rear tires.
* Includes newly developed block pattern high-grip compound tires.
* High efficiency full ball bearing specification. (14 included)
* Radio box is suitable for the various shapes and sizes of current batteries.
* Ball diff from Ultima RB can be installed as an optional upgrade.

Box Contents:

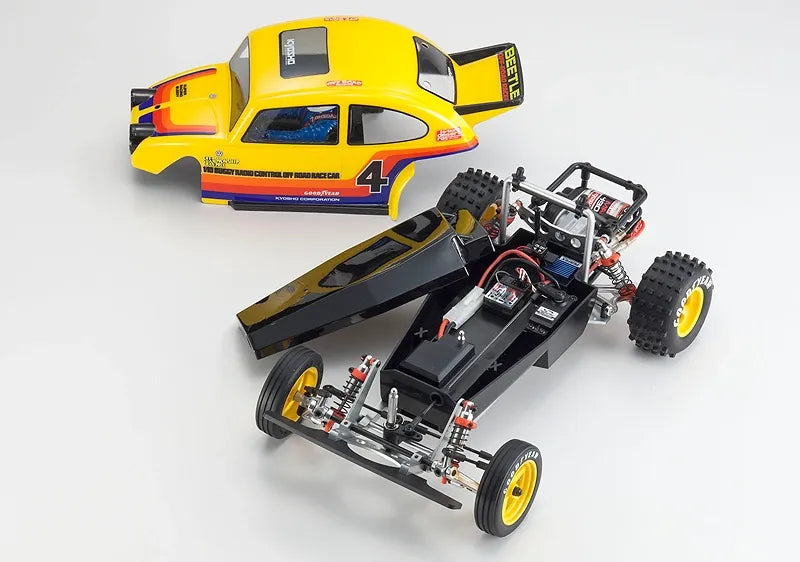

* Pre-assembled kit (gear box and oil shocks are pre-assembled)
* Pre-cut clear polycarbonate body
* Decals
* L-shape hex wrench
* Cross wrench
* Shock wrench
* Grease

Required for Operation (Not Included)
* 2-channel ground RC system (transmitter and receiver)
* Steering servo
* ESC Compatible with chosen motor
* 540 Size Motor (30-27 turns recommended)
* 7.2V NiMH battery or 7.4V Li-PO battery
* Charger for motor battery
* Body paint
* Batteries for transmitter
* Tools (1.5, 2, 2.5mm hex wrench driver, phillips head screw driver large & small, needle-nose pliers, scissors, sharp hobby knife)

Specifications:
* Length: 398mm
* Width: 236mm
* Height: 165mm
* Wheelbase: 263mm
* Tread (F/R): 198mm / 195mm
* Tire (F/R): 75×20mm / 85×41mm
* Gear Ratio: H setting 6.9:1 / L setting 8.3:1 (2 combinations included)
* Weight: 1,040g approx. (without electronics & battery)
* Motor: 540-class (sold separately)
