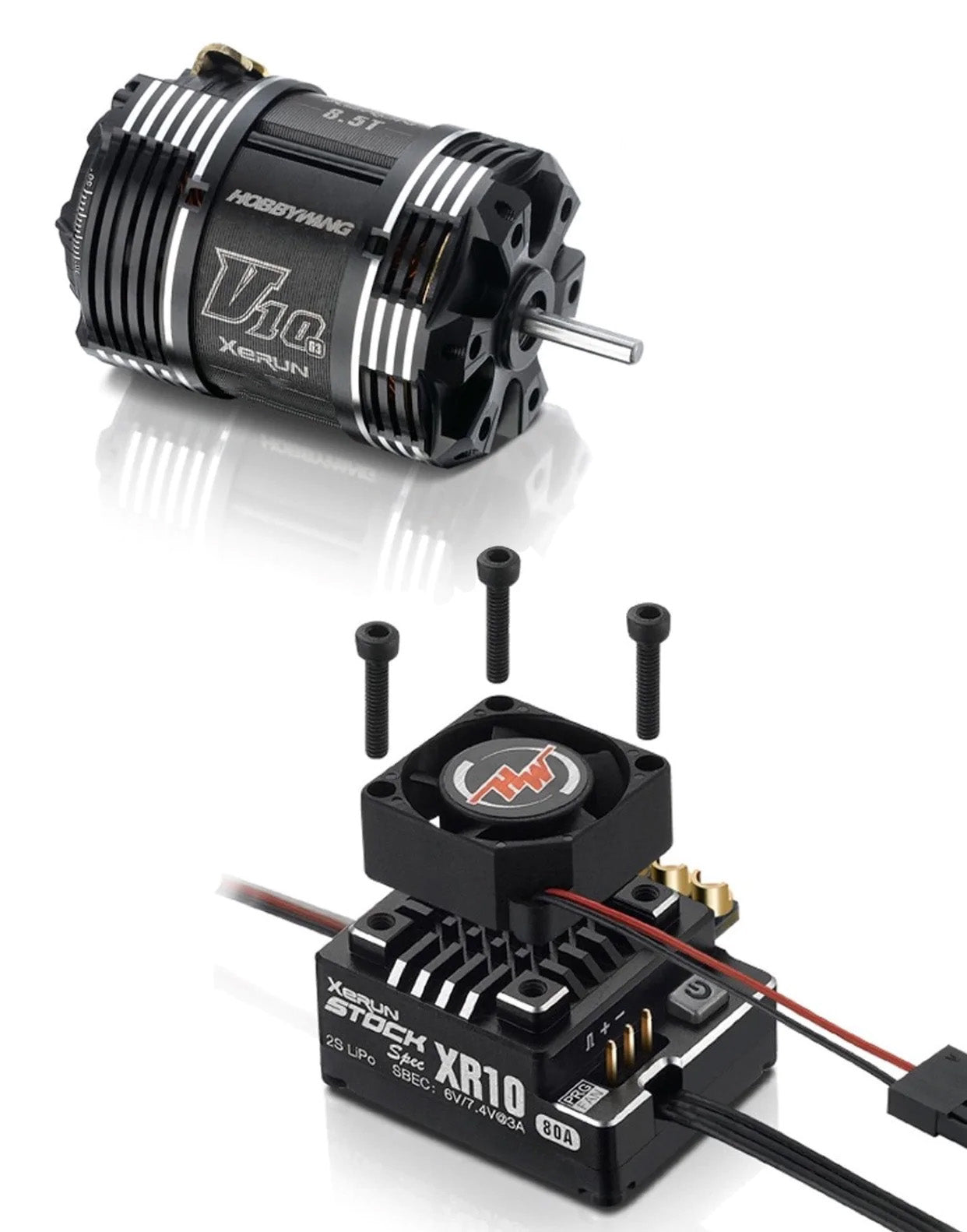

Hobbywing Brushless Combo XR10 Stock 2S ESC with V10 G4 13.5T Motor

Hobbywing Brushless Combo XR10 Stock 2S ESC with V10 G4 13.5T Motor

Regular price $229.99 USD
Regular price $325.00 USD Sale price $229.99 USD
Sale Sold out
Shipping calculated at checkout.

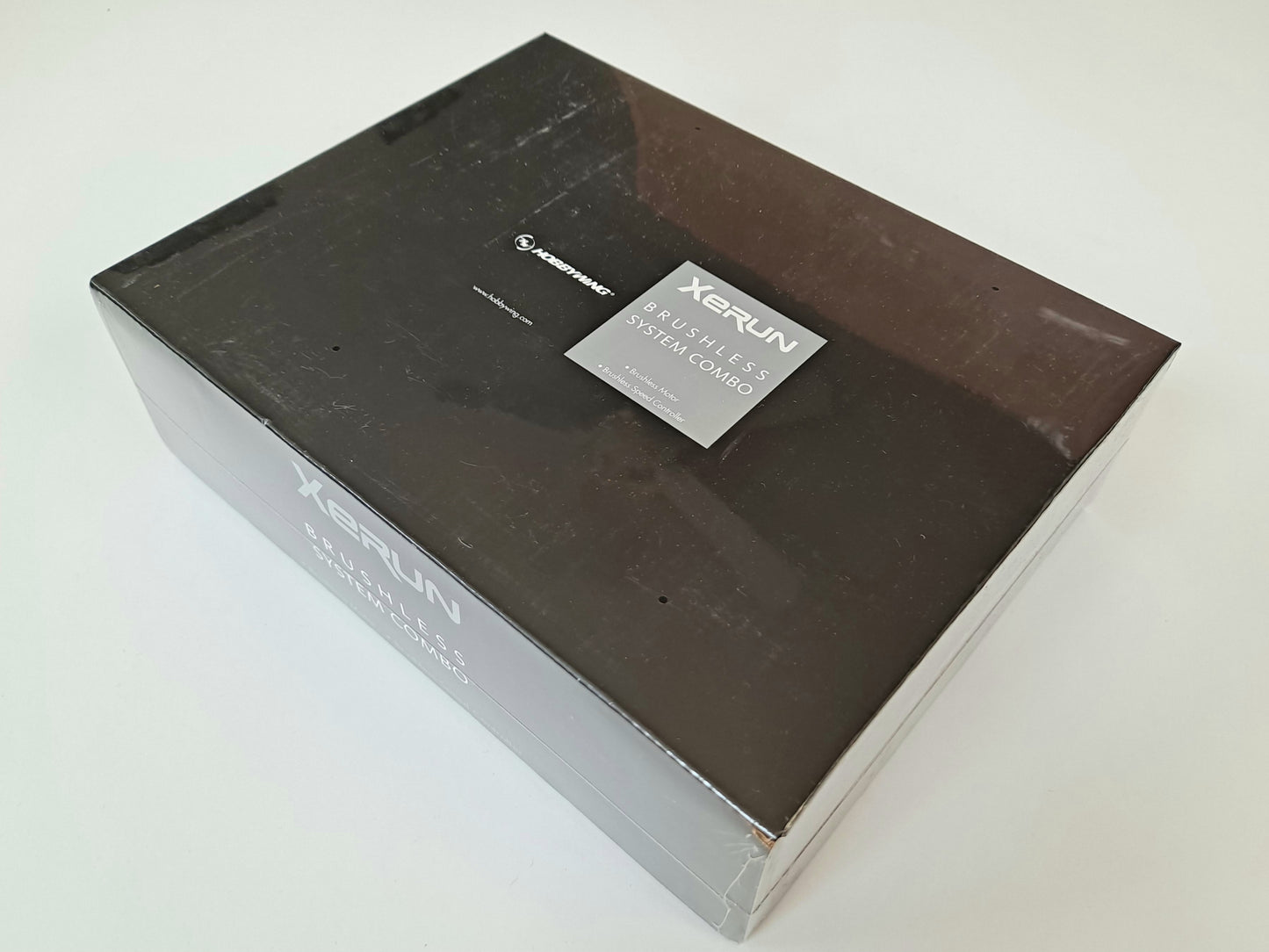

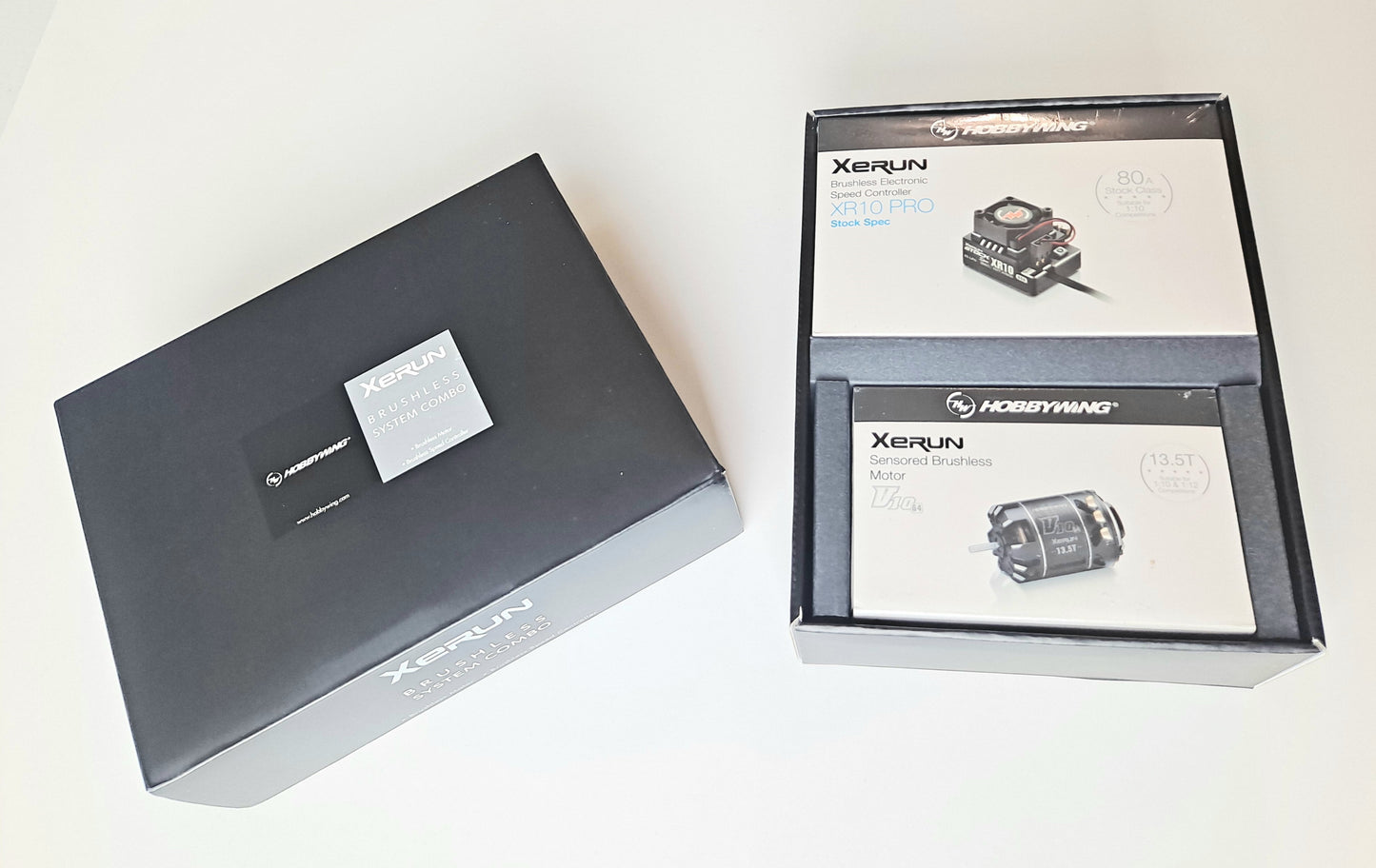

Hobbywing Brushless Combo XR10 Stock 2S ESC with V10 G4 13.5T Motor in factory sealed retail package.

Ships 1 business day after payment.

Free 30-day return with 20% restocking fee for opened retail package.


  • World's Smallest footprint & Lightweight ESC ever. "28g"
  • Innovative Double-switch Design: Built-in Electronic Switch, long life, and high reliability saves space on the chassis + Switch w/ extended wire (option)
  • Programming/Upgrading/Data Reading Wirelessly: Integrated Data logger can record the maximum temperature of ESC and motor as well as the maximum RPM. WiFi Express Module or LCD Programming box can be used to check data easily in the pits. External Programming Port (EPP) is easy to connect and functions as a power port for an additional fan.
  • Adjustable Throttle and Brake PWM Frequencies: Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
  • Super Internal BEC: The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allow the user to use various high voltage servos.
  • Multi Protection Functions makes running your ESC safe with ESC and Motor overheat protection, low voltage cutoff and throttle signal loss protection.
  • Easily programmed with the OTA programmer, Multifunction LCD Program Box, and USB Link Software.
  • ROAR approved for ROAR SPEC racing!

ESC Specifications:

  • Current Continuous: 80A
  • Burst: 380A
  • Battery: 5-7 cells NiMH/NiCd/2S LiPo
  • Built-in BEC: 6V@3A (switch mode)
  • Motor Supported: Sensored and sensorless brushless motors
  • Suitable Motor: 3650 Motors, 1/10 Touring Cars =10.5T, 1/10 Buggy=13.5T
  • Application: STOCK class of 1/10th Touring Car and Buggy Racing
  • Cooling Fan: 5V - 7.4V (20x20x8mm)
  • Wires: 14AWG-200mm
  • Size: 31.5x25.6x16.1mm
  • Weight: 28g (Weight is w/o wires, cooling fan)

Motor Specifications:

  • Turns: 13.5
  • Kv: 3950
  • LiPo S: 2-3
  • Resistance: 0.021O
  • No-load Current (A): 4.5A
  • Max. Output Power (W): 322
  • Current @Max. Output Power (A): 70
  • Stock Rotor : F7-12.5*25.2-HUS
  • Weight (g) : 149
