Hobbywing Brushless Combo Xerun XR14 ESC with 2848 SD 2800KV Motor
Hobbywing Brushless Combo Xerun XR14 ESC with 2848 SD 2800KV Motor
Regular price
$159.99 USD
Regular price
Sale price
$159.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Hobbywing Brushless Combo Xerun XR14 ESC with 2848 SD 2800KV Motor (38010608) in factory sealed retail package.
Ships 1 business day after payment.
Free 30-day return with 20% restocking fee for opened retail package.
Features:
- Two selectable profiles tailored for RC car racing.
- Adjustable PWM and brake frequencies allow precise regulation of motor driving and braking forces.
- Innovative softening function by HOBBYWING enables power delivery tuning for enhanced driving efficiency.
- Comprehensive protections include low-voltage cutoff, ESC and motor thermal protection, fail-safe (throttle signal loss), and reverse polarity protection.
- Data recording function supports OTA Bluetooth module to view power system running data via the HW LINK App, simplifying performance analysis.
- Firmware upgrades available through Hobbywing LCD Program Box Pro/G2 or OTA Programmer (sold separately).

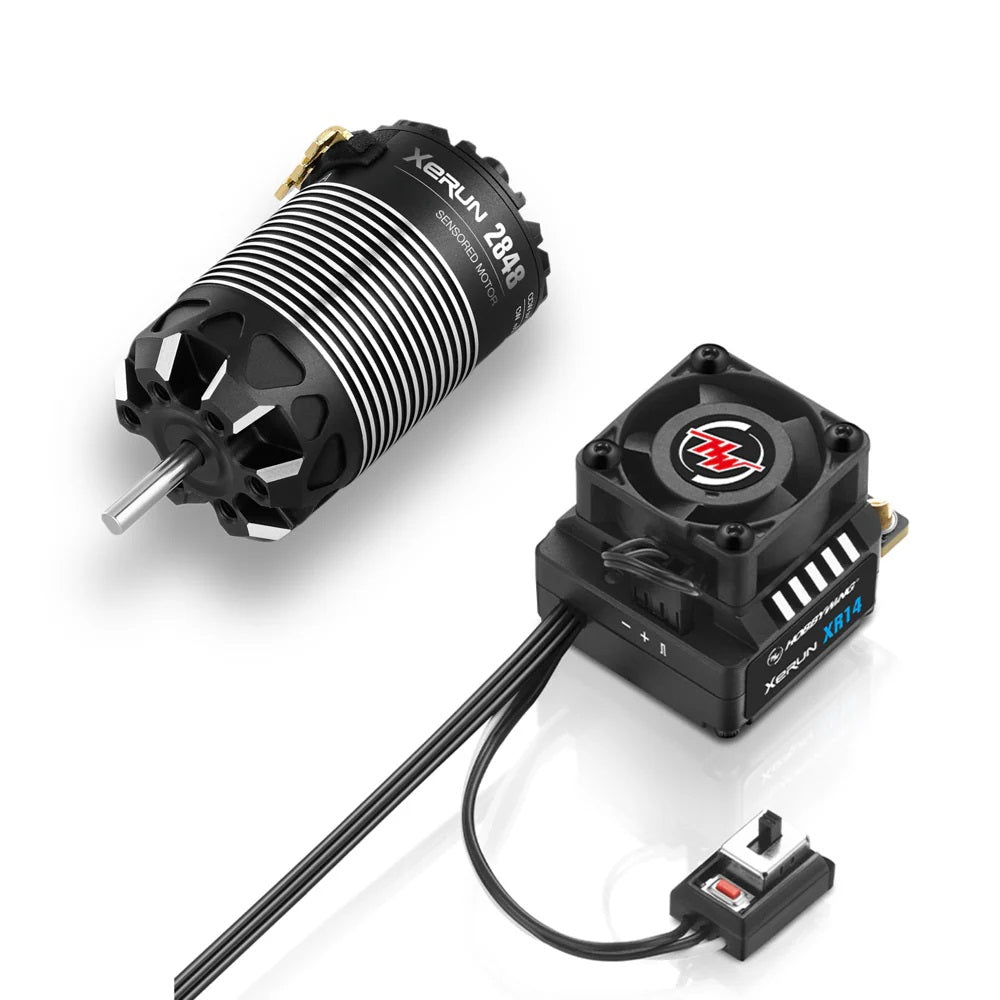

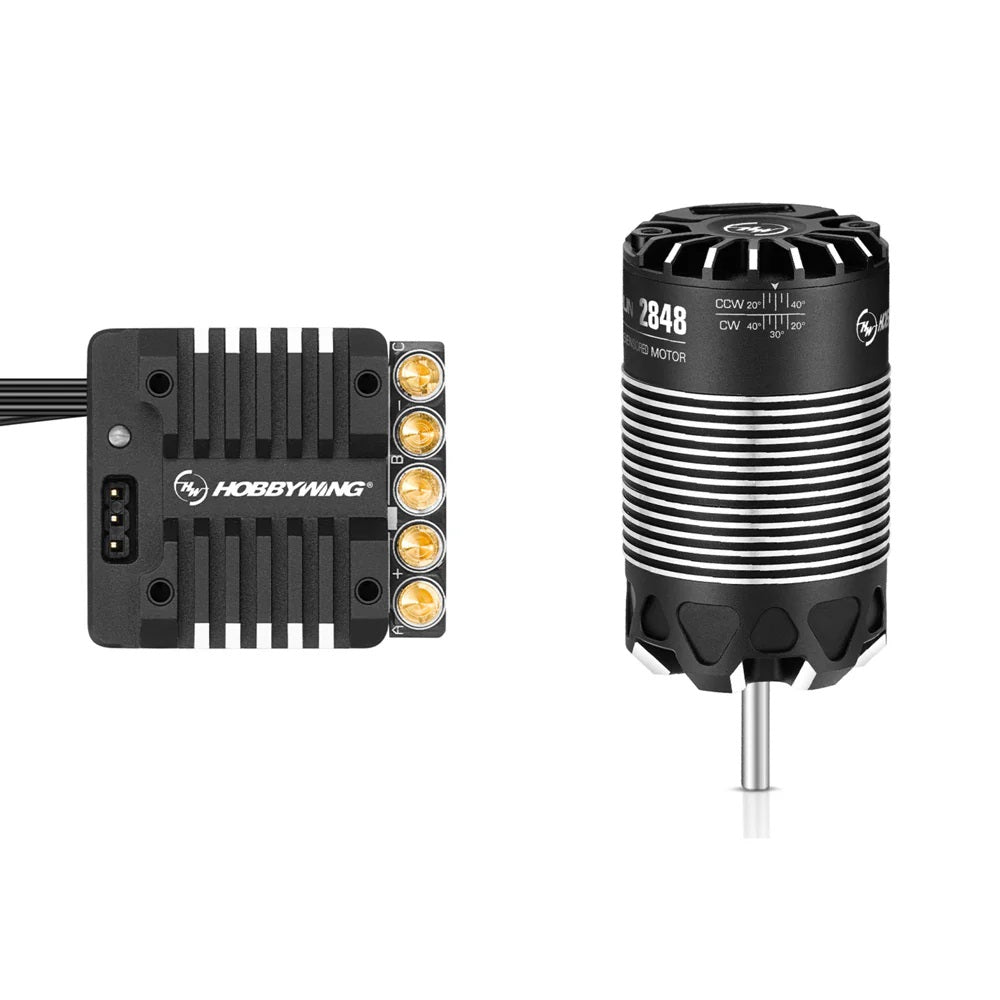

Package Includes:
- 1x - XeRun XR14 ESC
-
1x - XeRun 2848 motor

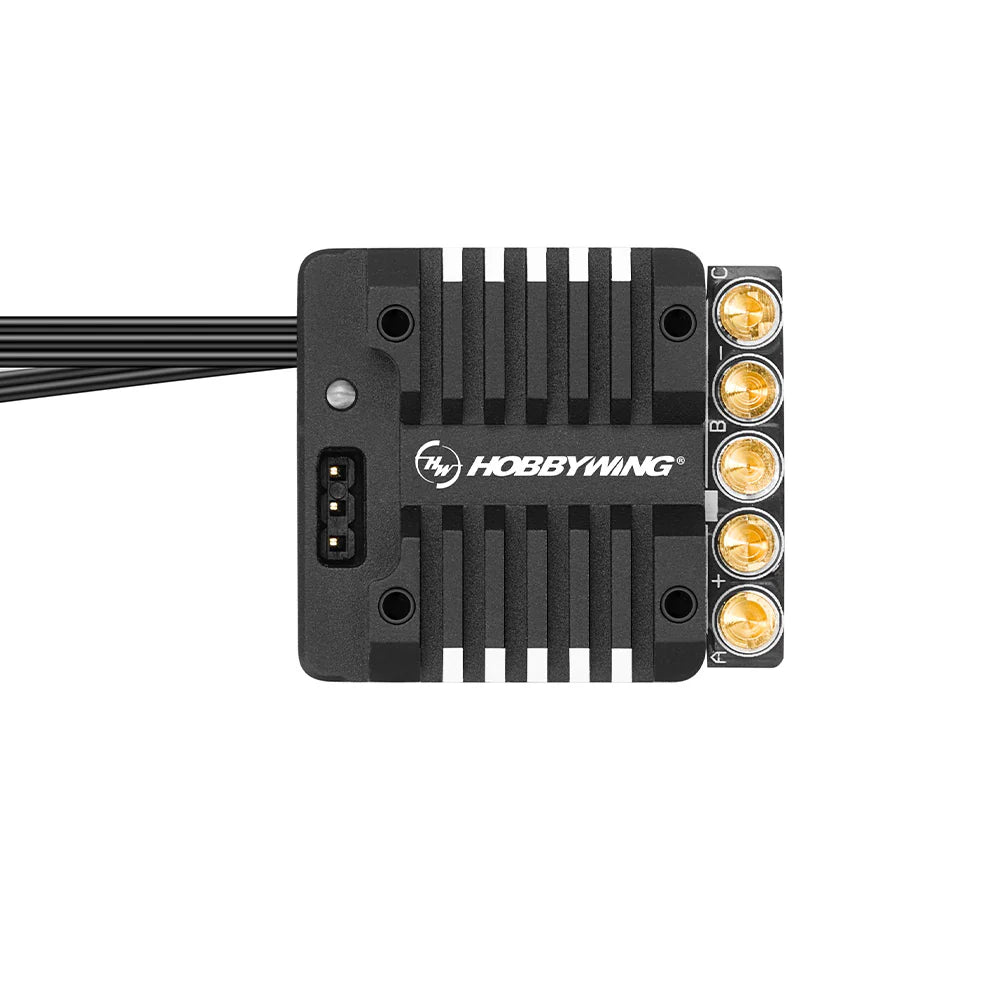

ESC (30112622) Specifications:
- Current Continuous: 70A
- Burst: 300A
- Battery: 2S LiPo
- Built-in BEC: 6V/7.4V @4A (switch mode)
- Motor Supported: Sensored and sensorless brushless motors
- Application: 1/14 Scale Racing; 1/10 & 1/12 Light Load Vehicles with zero-timing (blinky) mode
- Cooling Fan: Powered by BEC Voltage
- Size: 35.2L x 31.3W x 28.5H mm (with cooling fan)
- Weight: 66g (with wires and cooling fan)
- Programming Port: Shared with cooling fan

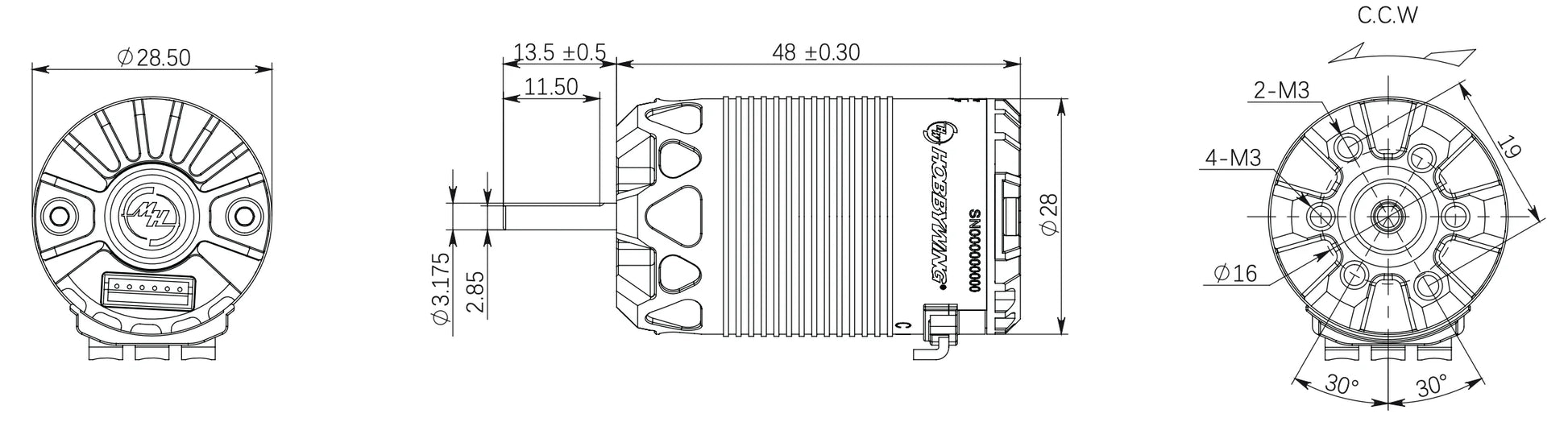

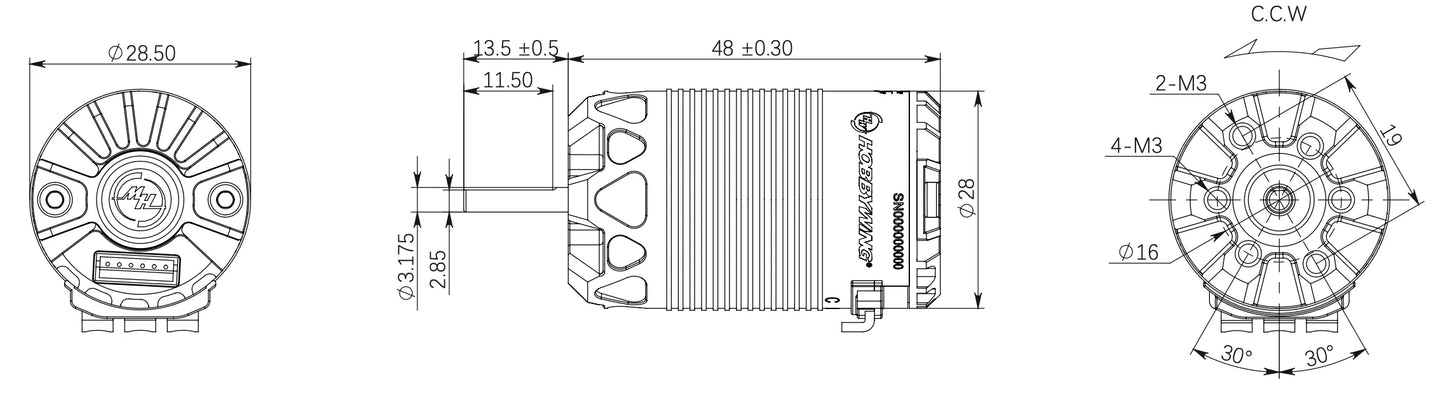

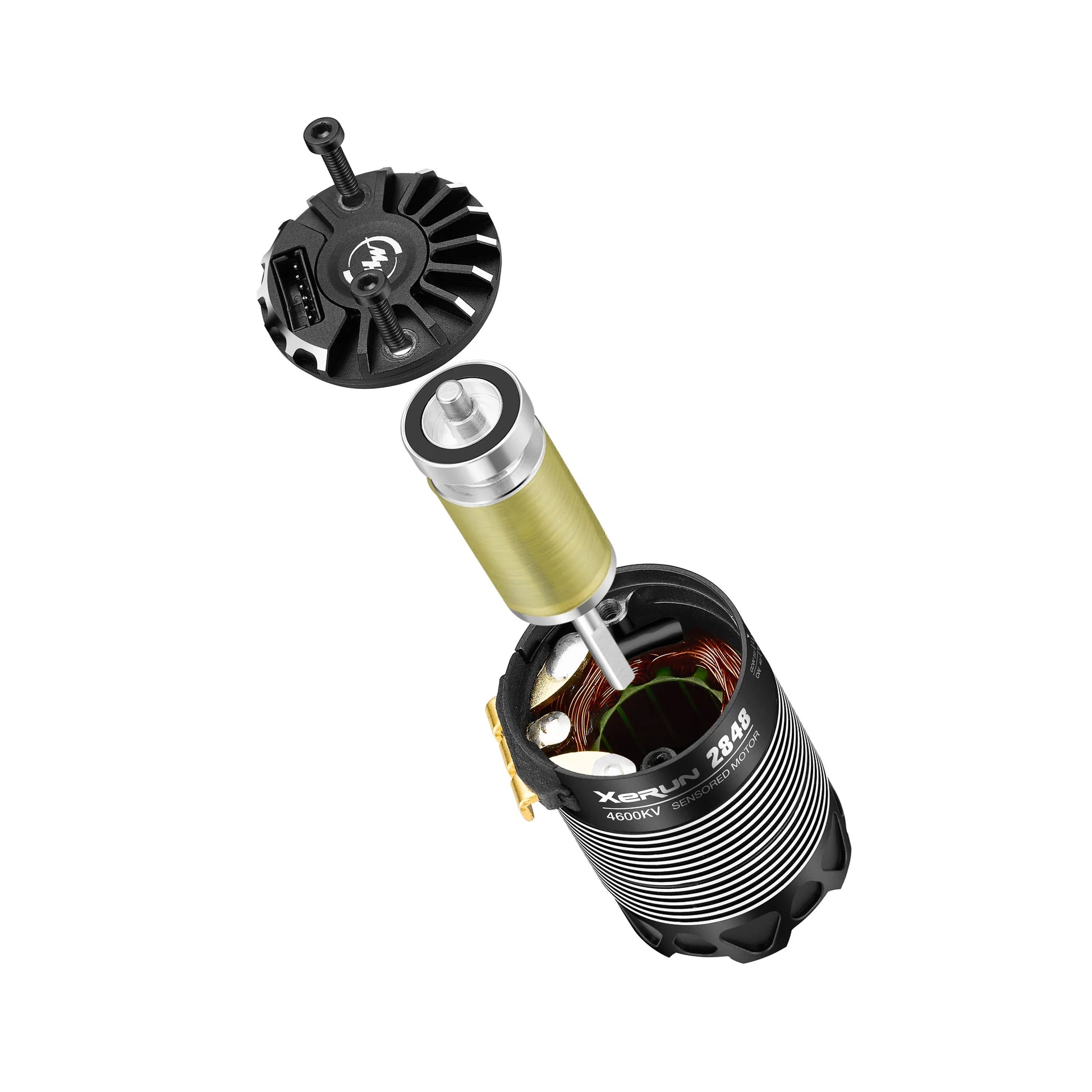

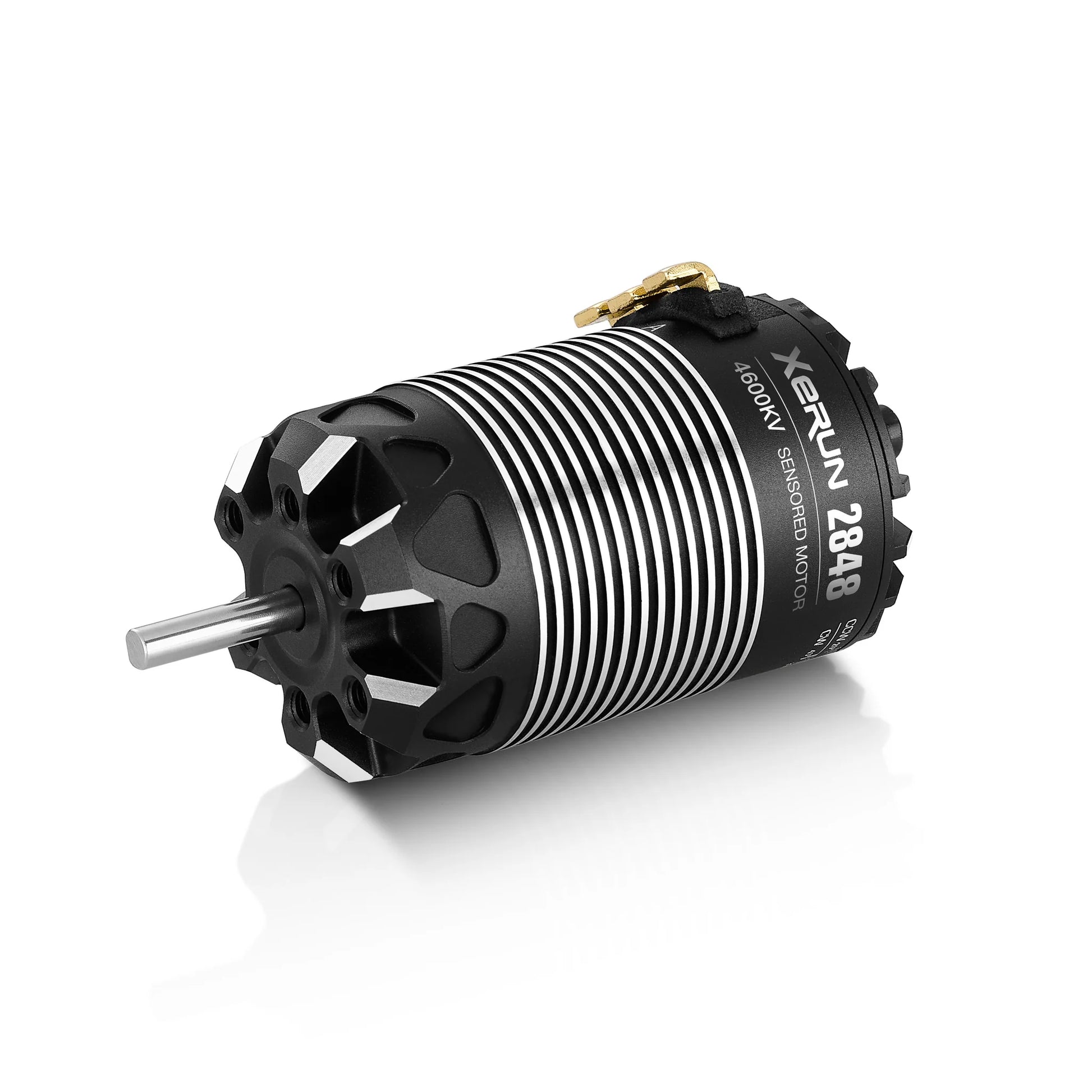

Motor (30401320) Specifications:
- Kv: 2800
- LiPo: 2-3S
- No-load Current (A): 1.5A
- Motor Dimensions: 28.5mm Dia. x 48mm Length
- Shaft Dimensions: 3.175mm Dia. x 13.5mm Length
- Weight (g) : 100
