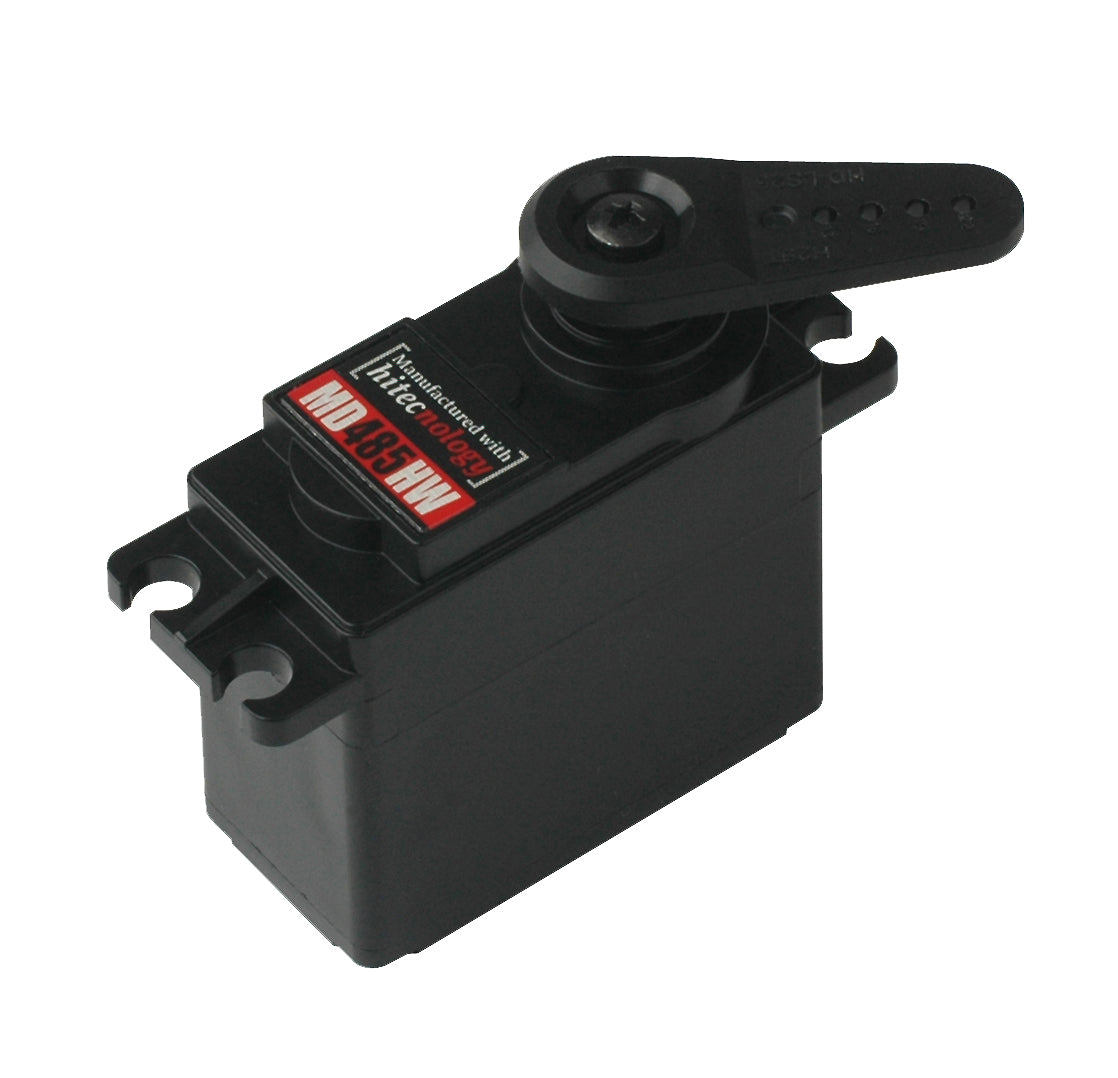

Hitec MD485HW Magnetic Encoder HD Resin Gear 25T Digital Drag Servo #40485S

Hitec MD485HW Magnetic Encoder HD Resin Gear 25T Digital Drag Servo #40485S in factory sealed retail package.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened retail package.

Details:
The most import thing of all for No Prep drag racing is going straight! If your car does not track straight then you are losing time to your competitor. The MD485HW with it's high resolution D-series circuit and tight deadband combined with the no lash Karbonite geartrain and ultra precise Magnetic Encoder positioning sensor makes this servo center perfectly every time! It is a perfect upgrade for any No Prep drag car. Go straighter... go faster!

Features:

• High Resolution 32-bit Programmable PWM Digital Circuit

• PWM or TTL Protocol Capability

• Magnetic Encoder Position Sensor

• Wide Operating Voltage (4.8 ~ 7.4V)

• Heavy-Duty, Long Life Motors

• 25 Tooth Output Shaft


Programmable Functions

• End Point Adjustments

• Direction

• Fail Safe

• Dead Band

• Speed (Slower)

• Soft Start Rate

• Overload Protection

• Data Save / Load

• Program Reset

Specifications:

• Operating Voltage: 4.8V ~ 7.4V
• Speed: 0.20 sec/60° at 4.8V ~ 0.15 at 7.4V
• Torque Range oz/in: 67 ~ 103
• Weight: 45g (1.59oz)

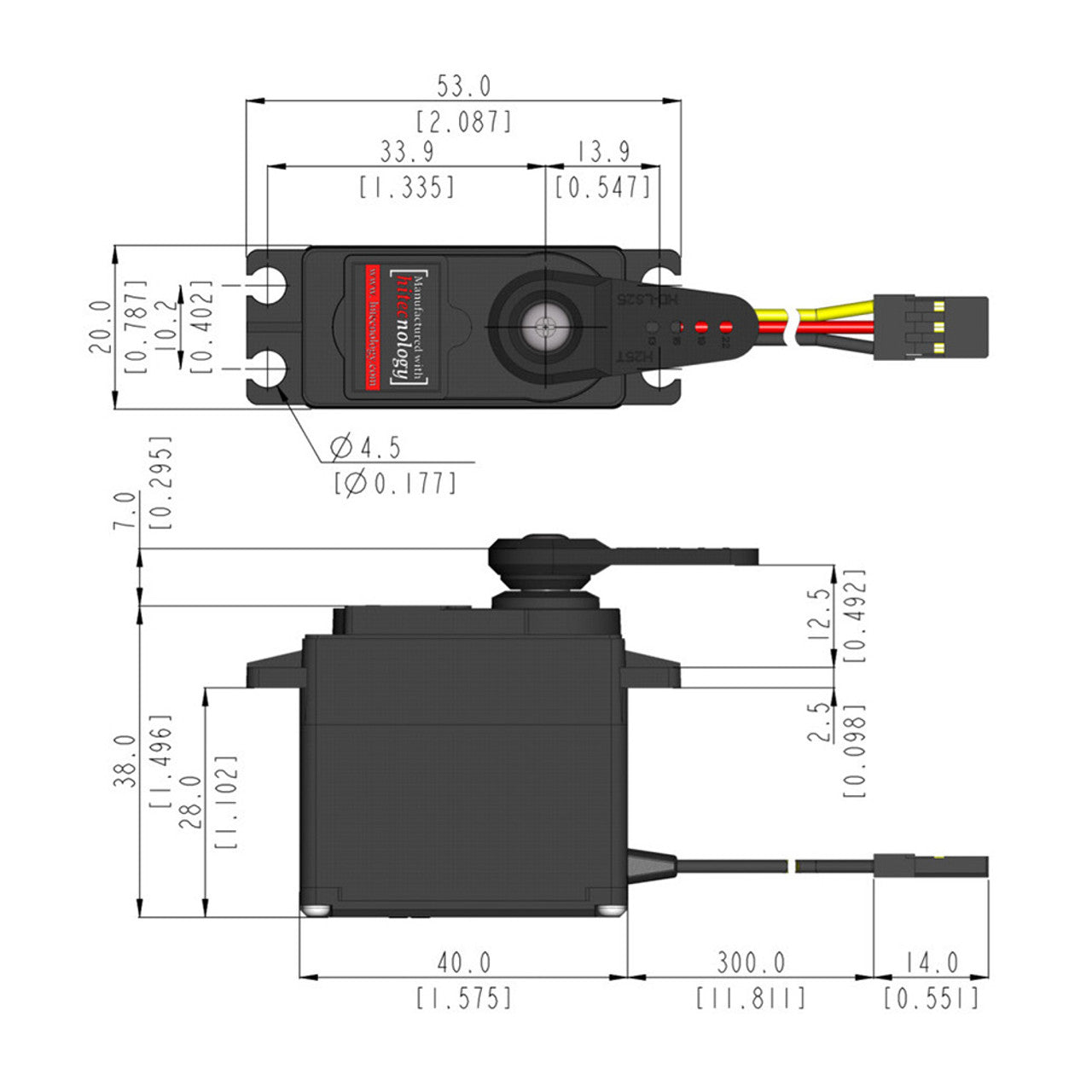

• Size: 39.8 x 19.8 x 38.0mm (1.57 x 0.78 x 1.50in)
