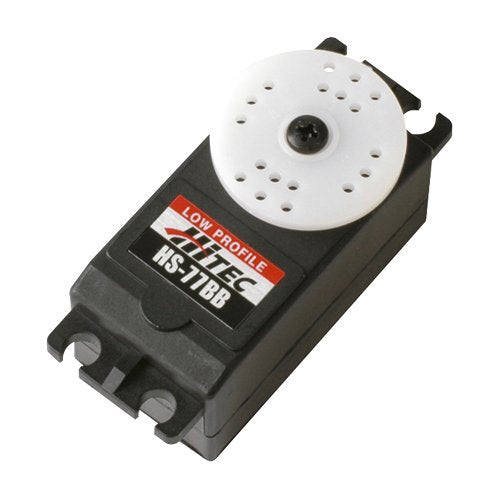

Hitec HS-77BB Low Profile Servo .34sec/114oz @ 6.0v #31077S

Hitec HS-77BB Low Profile Servo .34sec/114oz @ 6.0v #31077S in factory sealed retail package.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened retail package.

Details:
With its low profile design and strong standing torque, the HS-77BB is a great choice for wing or tail mounting in aircrafts up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servo’s strength and compact size.

Features:
- Low Profile Compact Design
- High Torque Three-Pole Ferrite Motor
- Durable Nylon Gears
- Top Ball Bearings

Specifications:

• Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
• Speed (Second @ 60°): 0.18 ~ 0.14
• Maximum Torque Range oz. / in.: 61 ~ 76
• Maximum Torque Range kg. / cm.: 4.4 ~ 5.5
• Current Draw at Idle: 8 mA
• No Load Operating Current Draw: 250 mA
• Stall Current Draw: 800 mA
• Dead Band Width: 8 µs

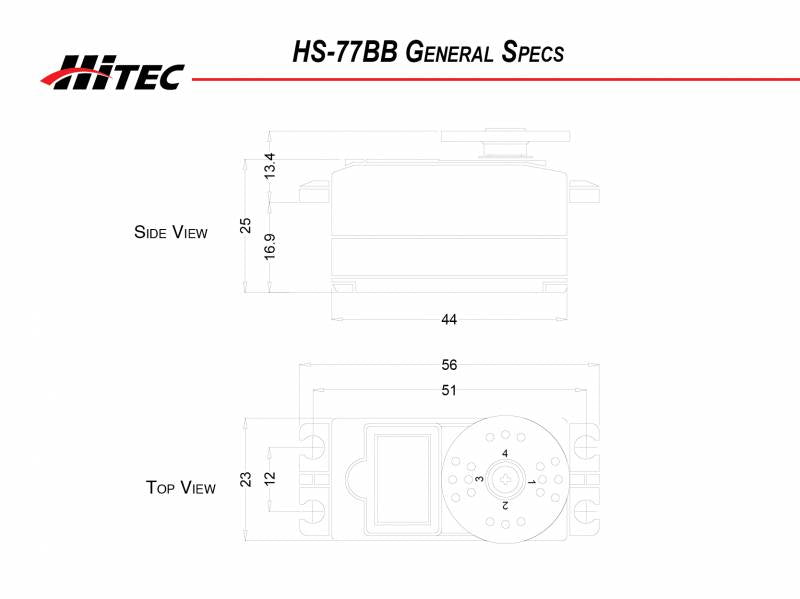

• Dimensions (Inches): 1.73 x 0.90 x 0.98; (Metric): 44.0 x 23.0 x 25.0
• Weight (Ounces): 1.23; (Gram): 35.0
• Circuit Type: HT7003 Analog SMT
• Motor Type: 3 Pole Metal Brush Ferrite
• Gear Material: Nylon
• Bearing Type: Top Ball Bearing
• Output Shaft (type / Ømm): Standard 24
• Case Material: Plastic
• Dust / Water Resistance: Splash Proof
• Connector Gauge (AWG)/Strand Count: 25 / 40

Applications:

• Sport Plane: 12 - 15 lbs.
• 3D Performance: 12 - 15 lbs.
• Scale: 12 - 15 lbs.
• Sail Boat: < 1 meter
