Hitec High Speed, Metal Gear Premium Sport Servo HS-625MG

Hitec High Speed, Metal Gear Premium Sport Servo HS-625MG in factory sealed retail package.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened retail packages.

Details:
The powerful high-speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.

Features:
- Affordable High Speed Metal Gear Servo
- Strong Three-Pole Ferrite Motor
- Heavy Duty Metal Gear Train
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Dual Ball Bearing-Supported Output Shaft

Specifications:
- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
- Speed (Second @ 60°): 0.18 ~ 0.15
- Maximum Torque Range oz. / in.: 76 ~ 94
- Maximum Torque Range kg. / cm.: 5.5 ~ 6.8
- Current Draw at Idle: 9.1 mA
- No Load Operating Current Draw: 500 mA
- Stall Current Draw: 2,500 mA
- Dead Band Width: 8 µs

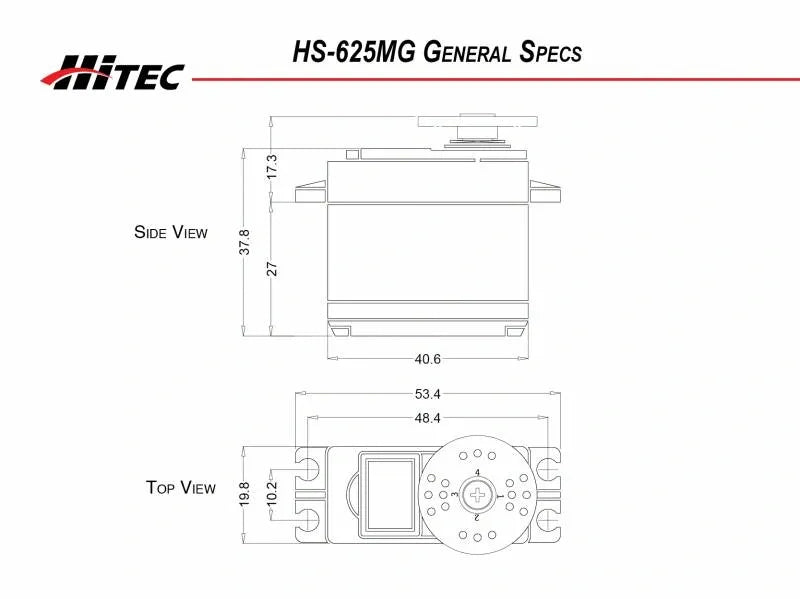

- Dimensions (Inches): 1.59 x 0.77 x 1.48
- Dimensions (Metric): 40.6 x 19.8 x 37.8
- Weight (Ounces): 1.94
- Weight (Gram): 55.2
- Circuit Type: HT7003 Analog SMT
- Motor Type: 3 Pole Metal Brush Ferrite
- Gear Material: Metal
- Bearing Type: Dual Ball Bearing
- Output Shaft (type / Ømm): Standard 24
- Case Material: Plastic
- Dust / Water Resistance: N / A
- Connector Gauge (AWG) / Strand Count: 22 / 60

Potential Applications:

• Parkflyer: N / A
• Sport Plane: 4-12 lbs.
• Sailplane: 2 meters and up
• 3D Performance: 4-12 lbs.
• Scale: 4-12 lbs.
• Electric Helicopter: 600mm
• Gas Helicopter: 50-59 Class
• On Road: 1/10th
• Monster Truck: 1/10th
• Buggies: 1/10th
• Truggies: 1/10th
• Short Course Truck: 1/10th
• Crawlers: 1/10th
• Sail Boat: =>1M+ & Scale
• Power Boat: 1/10th
