Futaba 6PV 6CH Surface Transmitter with R404SBS Receiver Radio Set 01004441-1

Futaba 6PV 6 Channel 2.4GHz Surface Radio Transmitter (Tx) and R404SBS Receiver (Rx) Radio Set 01004441-1 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for broken seals on retail box.

Description:
This advanced radio system is designed to deliver unmatched performance, precision, and control, making it the perfect choice for serious racers and hobbyists alike.

With its sleek, ergonomic design and intuitive user interface, the 6PV is easy to use and comfortable to hold, even during long racing sessions. This means you can tackle even the most challenging courses with confidence and precision, pushing your skills and your car's limits to the max.

Whether you're a seasoned racer or a hobbyist looking to take your driving skills to the next level, Futaba is the perfect choice for anyone who demands the ultimate in precision, control, and performance.

Features:

• Full color screen LCD: T6PV has a full-color, backlit LCD screen. The screen is transflective which enables both indoor and outdoor visibility.
• F-4G system & telemetry: Equipped with an F-4G system that enables telemetry with faster response than the T-FHSS SR system.
• 6 channels: Up to 6 channels can be operated by using the S.BUS2 system together.
• T-FHSS MINIZ system: By setting to the MINIZ system in the receiver setting menu, you can use Kyosho Mini – Z Evo dedicated receiver RA-42. Dedicated receiver RA-42 requires purchase separately.
• Update-able software: Software can be updated by microSD card. Model data can also be saved in a microSD card. In addition, telemetry log data can be saved.
• Model memory for 40 models: Model names can use up to 15 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.
• LiPo battery can be used: The optional LT2F2000B LiPo battery can be used as the transmitter power supply. The running time is extended.
• Brake mixing for large cars: Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.
• Steering mixing: Smooth cornering is possible by the independent left and right steering servo setting.
• 4WS mixing for crawlers and other 4WS type: This function can be used with crawlers and other 4-wheel steering type vehicles.
• Dual ESCs mixing for crawlers: ESC at the front and rear are controlled independently.
• Gyro mixing: The sensitivity of Futaba car rate gyros can be adjusted from the T6PV.
• Tank mixing: This function is intended for vehicles such as tanks.
• CPS mixing: LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.
• S.BUS servo: This is a special function that allows setting of the parameters of our S.BUS servo whose settings are changed by using PC Link software.
• MC-Link: This is a dedicated function which allows setting of the contents of the Link software which makes possible Futaba speed controller (ESC), MC960CR, MC950CR,MC850C, MC851C, MC602C, MC402CR, etc. variable frequency and other data changes by PC at the T6PV
• Throttle speed: Sudden trigger operation on a slippery road surface will only cause the tires to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumption.
• Steering speed: When you sense that the steering servo is too fast, etc., the servo operating speed (direction that suppresses the maximum speed) can be adjusted.
• Non-telemetry LED: When the telemetry function is OFF to confirm that the telemetry function is not operating.
• Dial select function: This function assigns functions to dials (digital trim, grip dial, knob). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.
• Switch select function: This function assigns functions to 10 switches. The operating direction can also be set.
• Adjustable Wheel & Trigger: The wheel position can be offset by using an accessory APA wheel position offset adapter. The wheel angle can also be adjusted. The position of the throttle trigger can be moved forward and backward.
• Rubber Grip: It is possible to convert to a narrow grip type by ex-changing the rubber grip.
• Trim/dial lock functions: Lock functions which prohibit setting and operation by transmitter trim, and dials are provided.

Box Contents:

• T6PV Transmitter

• R404SBS Receiver

• Dry Battery Holder

• Wheel offset adapter two size (APA)APA Mounting screws (Spare screws are also included)

• Wheel adapter 32 deg.

• Wheel Angle spacer 5 deg.
• Large diameter steering wheel
• Trigger guard (Lx1/Rx1)
• Grip rubber x1
• Blind paddle x2
• Hex wrench
• User manual

Transmitter Specs:

• Wheel System, 6 Channels (F-4G System), 4 Channels with TFHSS-SR, T-FHSS System
• TRANSMITTING FREQUENCIES: 2.4 GHz band/ -Transmitting RF power output: 100mW EIRP
• PROTOCOLS: T-FHSS-SR/T-FHSS/S-FHSS/F-4G
• POWER REQUIREMENT: LiPo – NLF2F2000B (7.4 V); LiFe – FT2F1700BV2 (6.6 V)
• CURRENT DRAIN: 350 mA or less (When the T-FHSS, Vibration off, back lighting on)
• TRANSMITTING ANTENNA: 1/2λ dipole

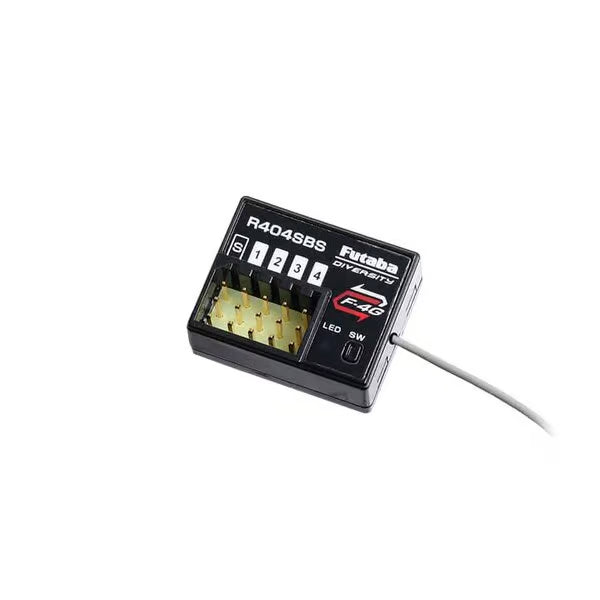

Receiver Specs:

• R404SBS
• F-4G
• SIZE: 1.00×0.81×0.42 inch (25.5×20.7×10.6 mm)
• WEIGHT: 0.2 oz. (5.7 g)
• OPERATING VOLTAGE: DC 3.7-8.4V
