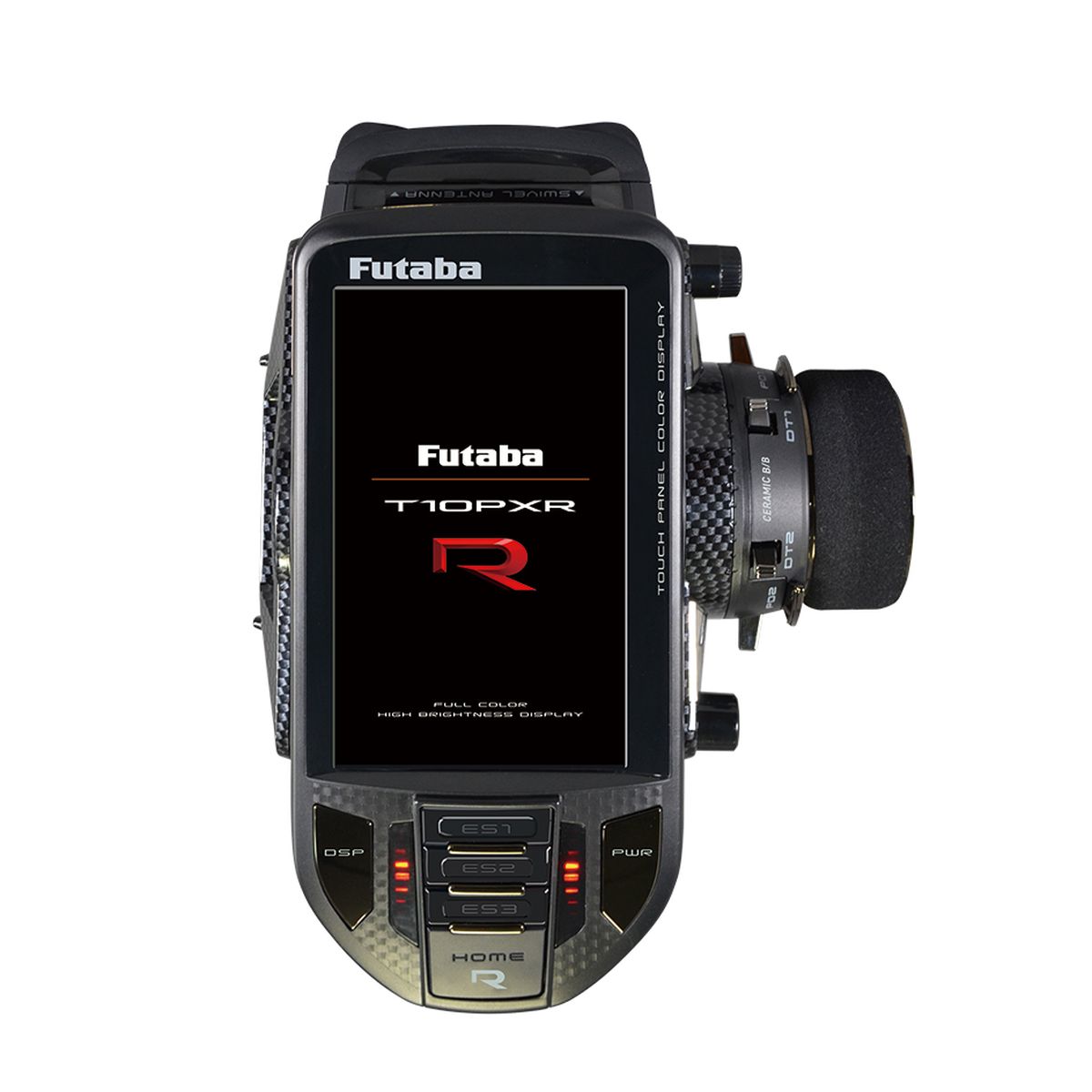

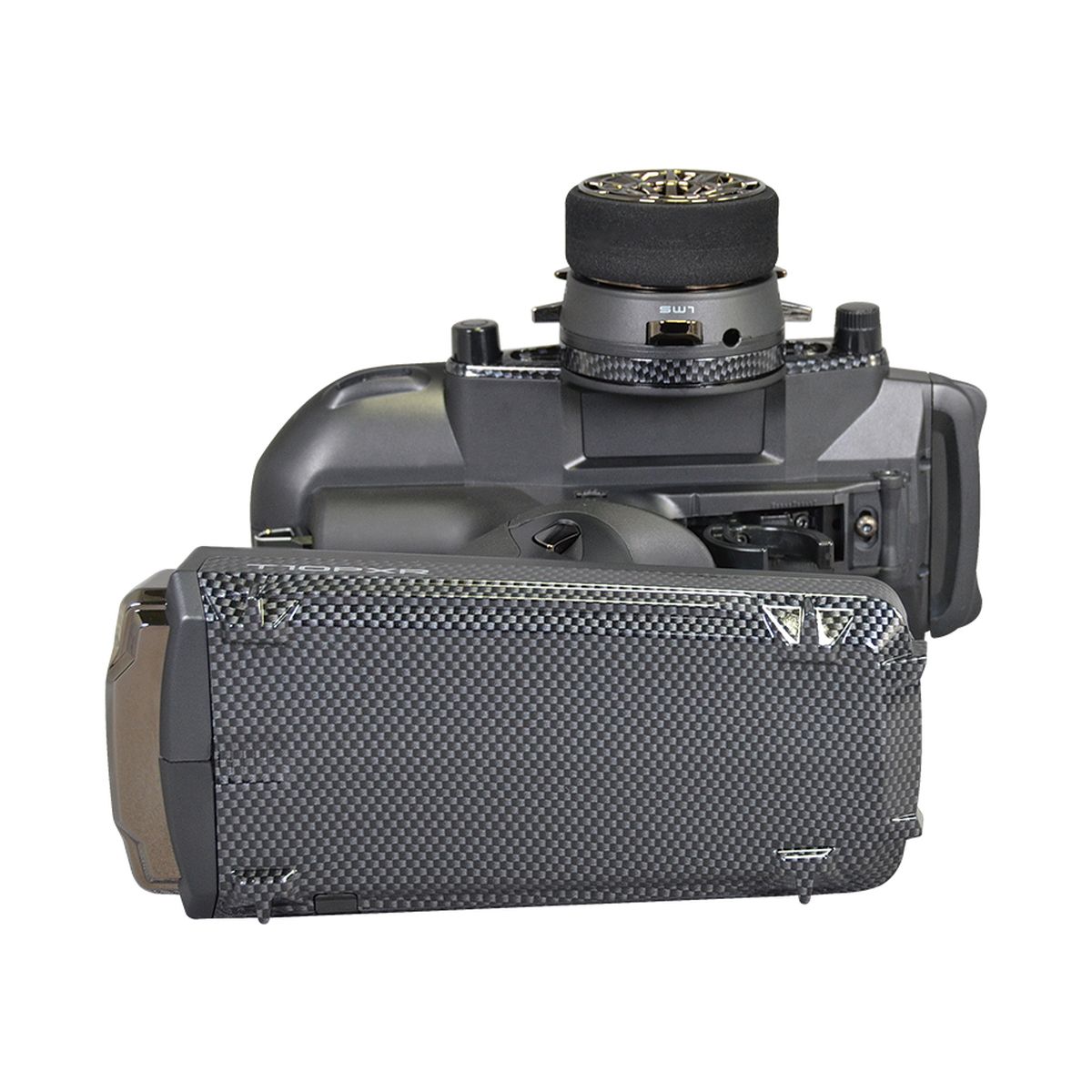

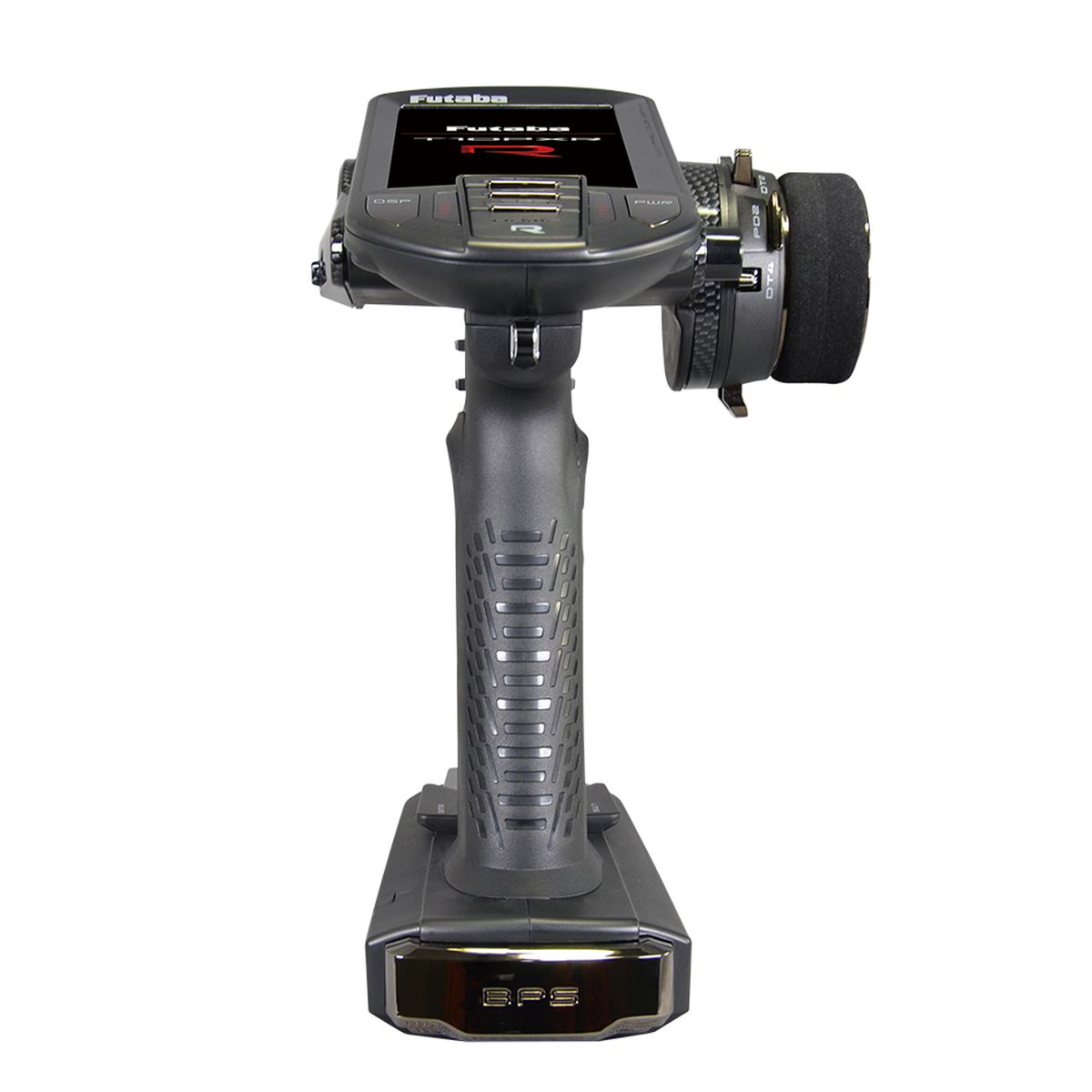

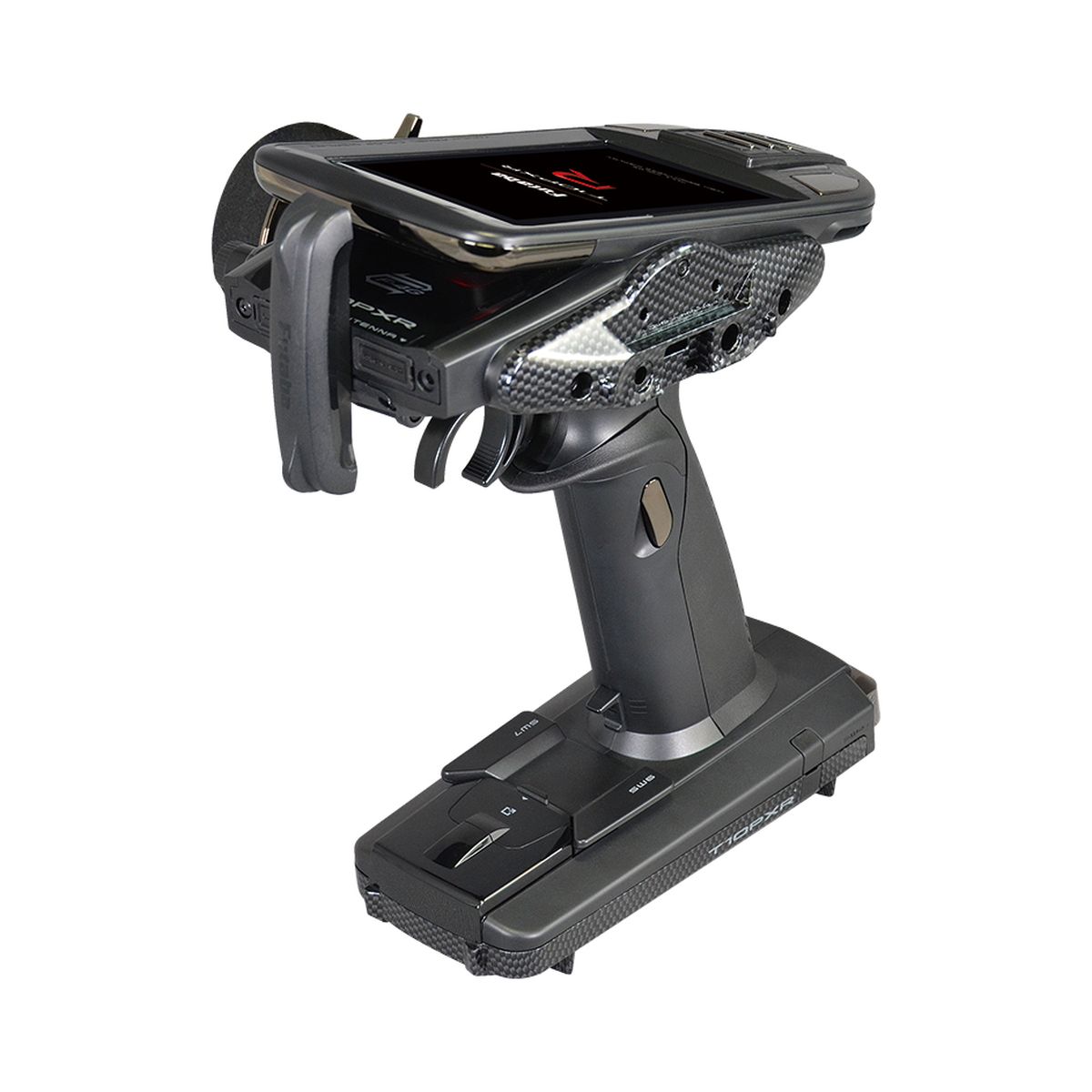

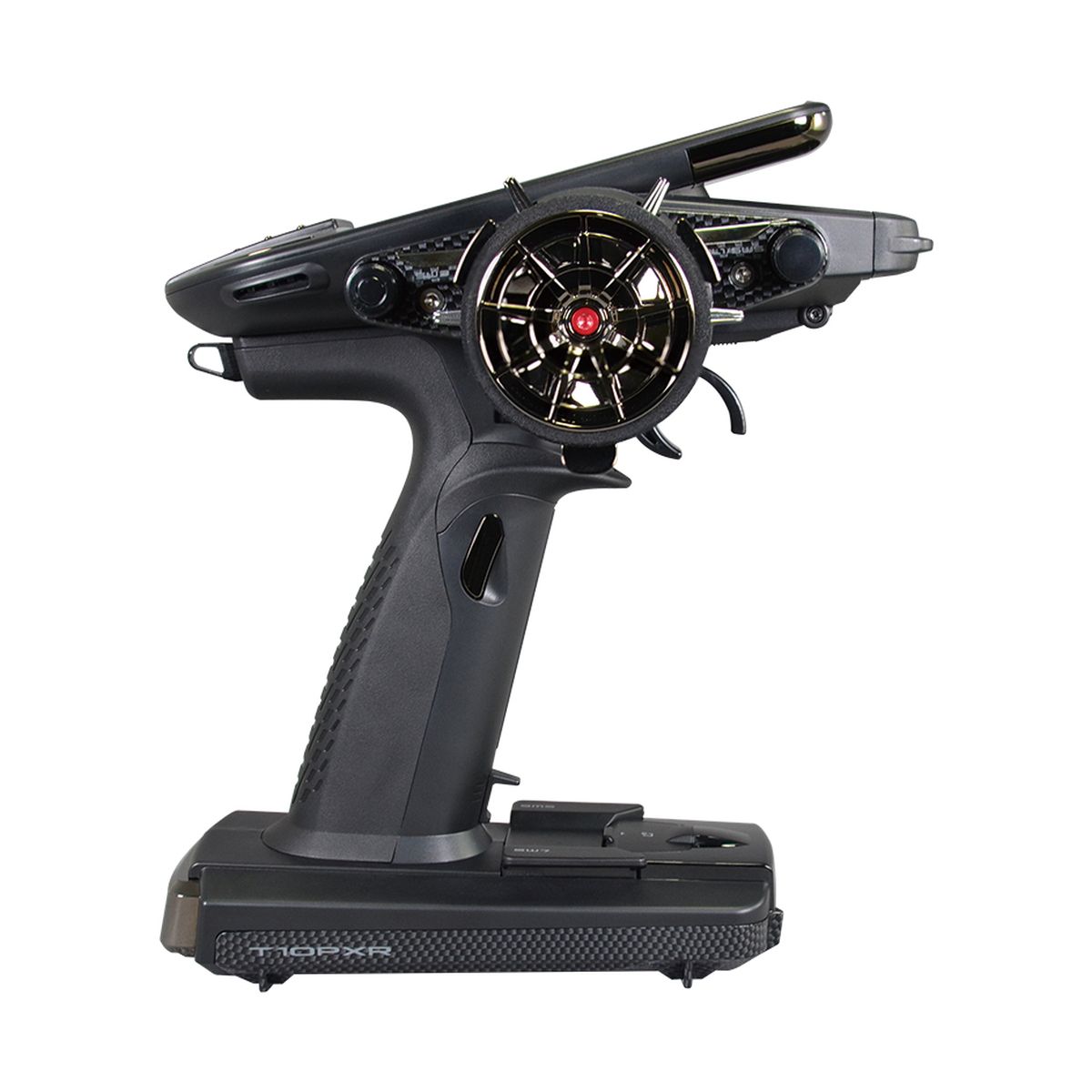

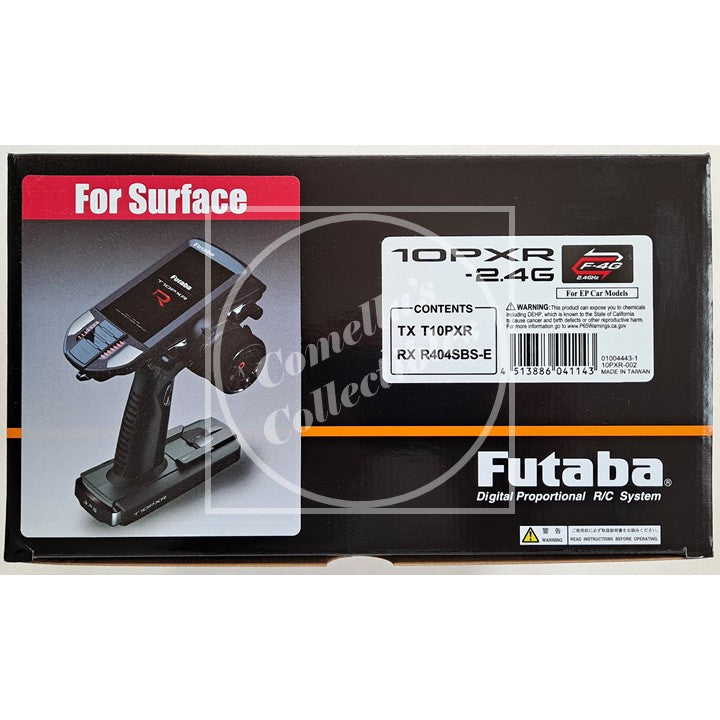

Futaba 10PXR 10CH Super Response Digi Surface Transmitter w/ R404SBS-E Receiver

Futaba 10PXR Super Response Digital Proportional RC System Transmitter; 10 Channel 2.4GHz T-FHSS Surface Tx with R404SBS-E Receiver in factory sealed retail package.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for opened retail package.

Description:
Super Response Digital Proportional RC System For Use with Surface Models

FEATURES:

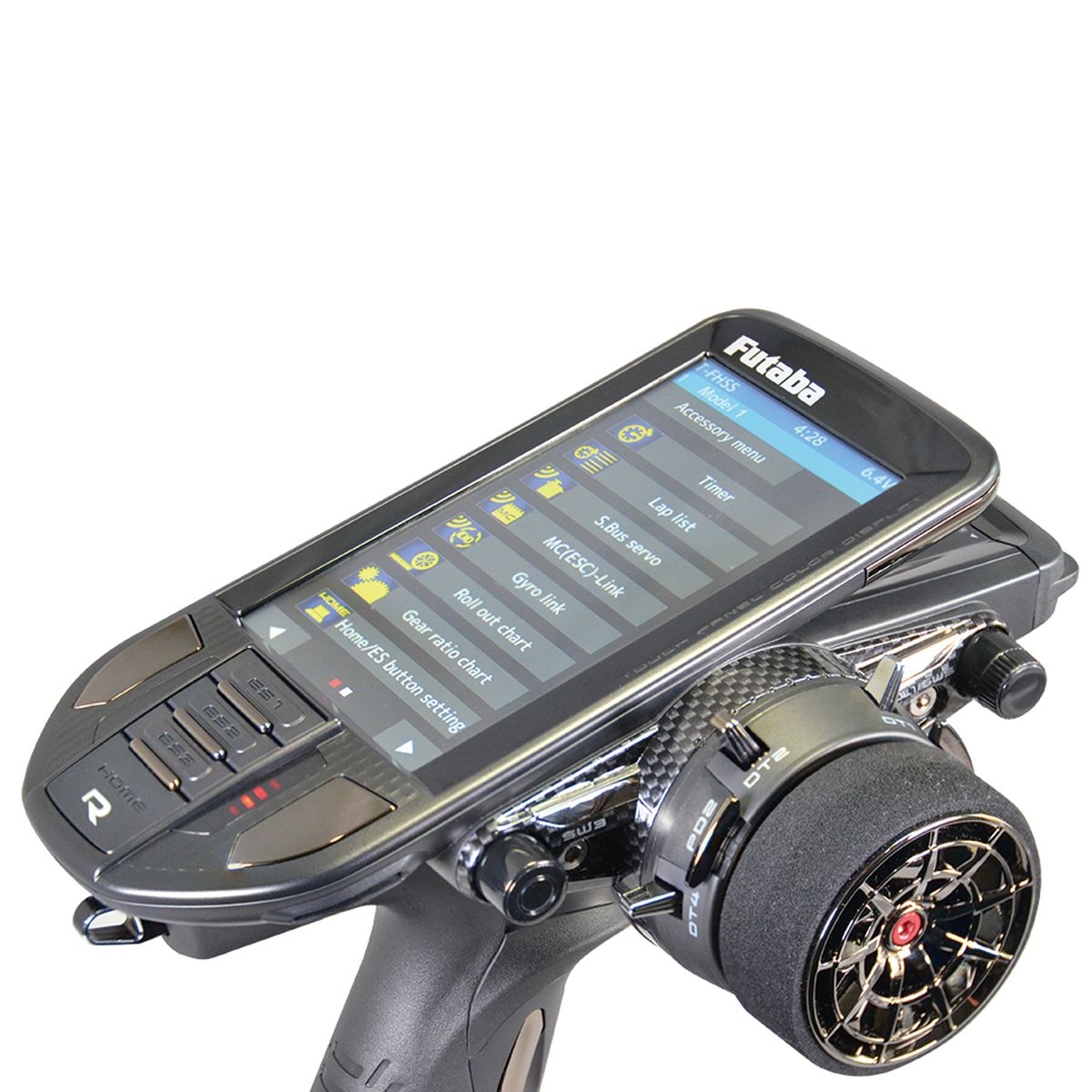

• Full color touch screen LCD
• F-4G system & telemetry
• 10 channels
• T-FHSS MINIZ system (Dedicated receiver RA-42 requires purchase separately).
• Update-able software

• Model memory for 40 models

• Paddle switch + bottom switch + 3 position switch.

• Lipo battery can be used.
• Tunable Throttle and Steering Spring Weight (spring kits sold separately)

• Brake mixing for large cars.

• Steering mixing.

• 4WS mixing for crawlers and other 4WS type.

• Dual ESCs mixing for crawlers

• Gyro mixing

• Tank mixing

• CPS mixing for LED lighting and flashing

• S.BUS servo
• MC-Link
• Throttle speed
• Steering speed
• Non-telemetry LED
• Dial select function
• Switch select function
• Wheel & Trigger position can be changed
• Rubber Grip
• Trim/dial lock functions
• The left and right installation direction of the wheel section can be reversed.
• Vibrator built into the grip

• USB Port

Package Contents:

• T10PXR Transmitter

• R404SBS-E Receiver

• Dry Battery Holder

• Wheel offset adapter two size (APA)APA Mounting screws *Spare screws are also included

• Wheel adapter 32 deg

• Wheel Angle spacer 5 deg

• Large diameter steering wheel

• Trigger guard (Lx1/Rx1)

• Grip rubber x1

• Blind paddle x2

• Hex wrench

• Short manual

TRANSMITTER SPECS

• Wheel System, 10 Channels (F-4G System), 4 Channels with TFHSS-SR, T-FHSS System

• TRANSMITTING FREQUENCIES: 2.4 GHz band/ -Transmitting RF power output: 100mW EIRP

• PROTOCOLS: T-FHSS-SR/T-FHSS/S-FHSS/F-4G

• POWER REQUIREMENT: LiPo – NLF2F2000B (7.4 V); LiFe – FT2F1700BV2 (6.6 V)

• CURRENT DRAIN: 350 mA or less (When the T-FHSS, Vibration off, back lighting on)

• TRANSMITTING ANTENNA: 1/2λ dipole

• 4.3 INCH BACKLIGHTED COLOR TFT LIQUID CRYSTAL TOUCH PANEL: When you turn on your 10PXR, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.

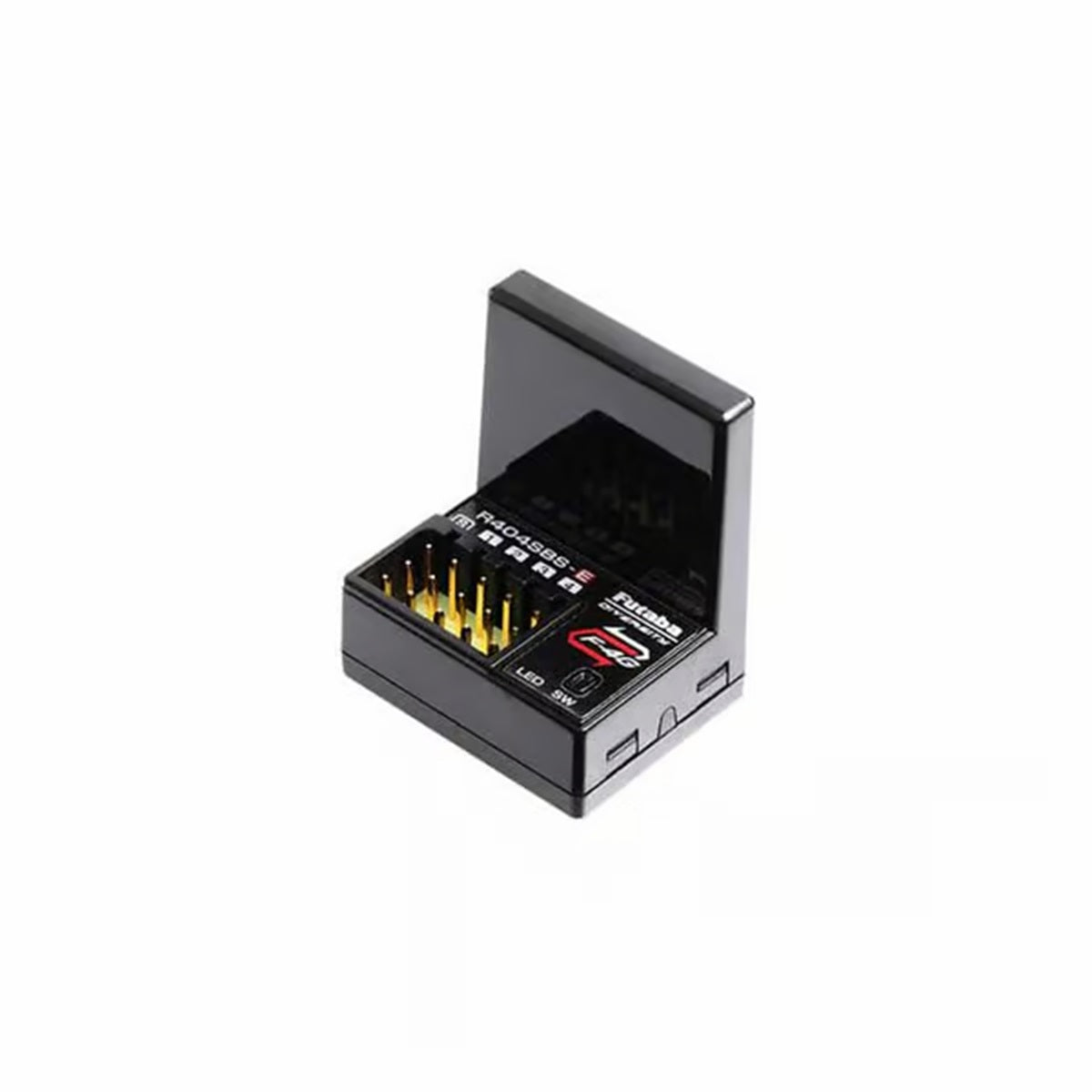

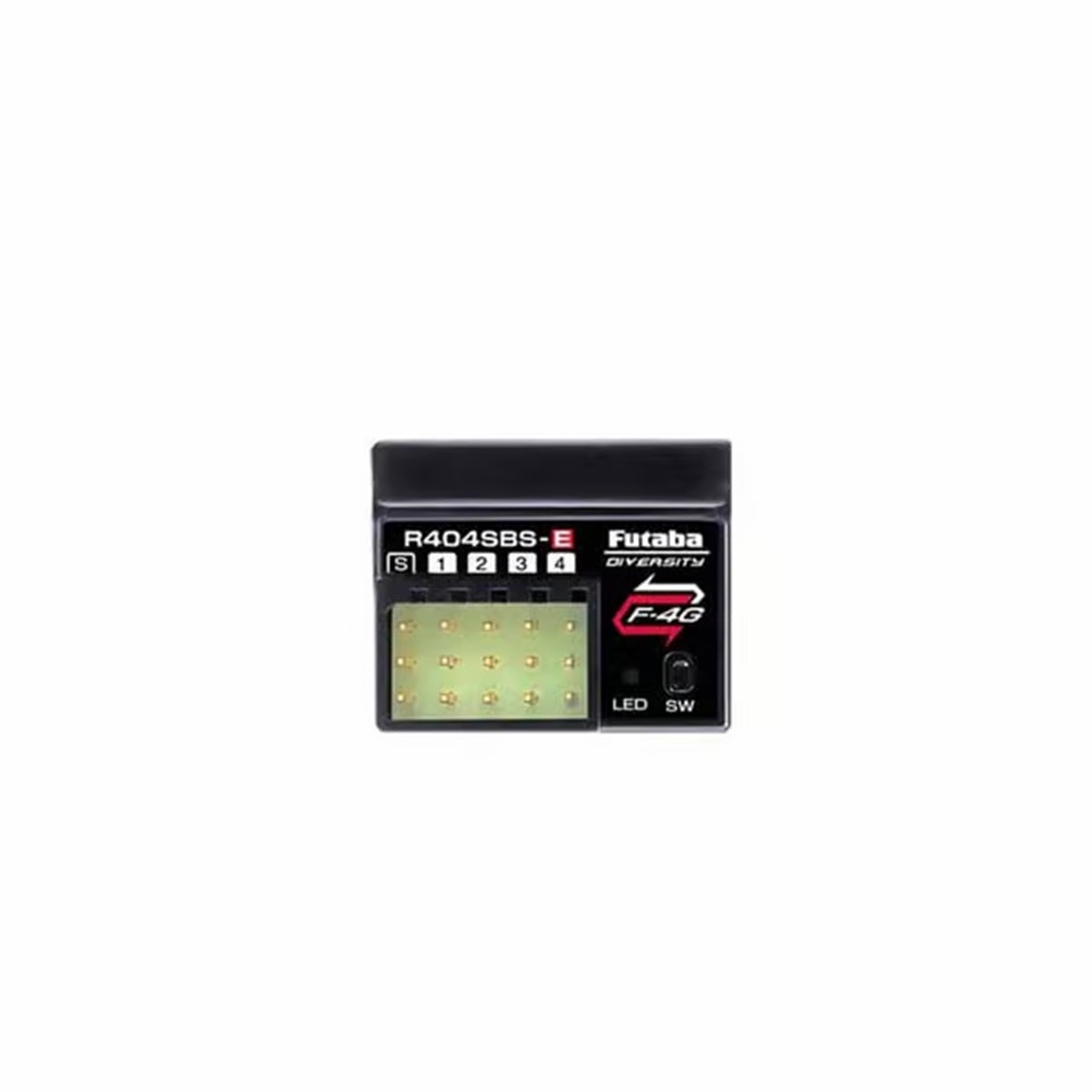

RECEIVER SPECS

• R404SBS-E

• F-4G

• SIZE: 1.00×0.81×0.42 inch; 25.5×20.7×10.6 mm

• WEIGHT: 5.7 g; 0.2 oz

• OPERATING VOLTAGE: DC 3.7-7.4V
