Futaba 10PX 10CH 2.4GHz T-FHSS Surface Radio System with R404SBS-E Receiver
Futaba 10PX 10CH 2.4GHz T-FHSS Surface Radio System with R404SBS-E Receiver
Regular price
$799.99 USD
Regular price
Sale price
$799.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Futaba 10PX 10 Channel 2.4GHz T-FHSS Surface Radio Transmitter System with R404SBS-E Receiver in factory sealed retail package.
Ships 1 business day after payment.
Free 30 day returns with 20% restocking fee for opened retail package.
Description:
Super Response Digital Proportional RC System For Use with Surface Models
FEATURES:
* T10PX has an HVGA 4.3 inch, full-color, backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
* Equipped with an F-4G system that enables telemetry with faster response than the T-FHSS SR system.
* Up to 10 channels can be operated by using the S.BUS2 system together.
* By setting to the MINIZ system in the receiver setting menu, you can use Kyosho Mini – Z Evo dedicated receiver RA-42. Dedicated receiver RA-42 requires purchase separately.
* Update-able software.
* Model memory for 40 models
* Paddle switch + bottom switch + 3 position switch.
* Lipo battery can be used.
* Brake mixing for large cars.
* Steering mixing.
* 4WS mixing for crawlers and other 4WS type.
* Dual ESCs mixing for crawlers
* Gyro mixing
* Tank mixing
* CPS mixing for LED lighting and flashing
* Vibrator built into the grip
* The left and right installation direction of the wheel section can be reversed.
Package Contents:
* T10PX Transmitter
* R404SBS OR R404SBS-E Receiver
* Dry Battery Holder
* Wheel offset adapter two size (APA)APA Mounting screws *Spare screws are also included
* Wheel adapter 32 deg
* Wheel Angle spacer 5 deg
* Large diameter steering wheel
* Trigger guard (Lx1/Rx1)
* Grip rubber x1
* Blind paddle x2
* Hex wrench
* Short manual

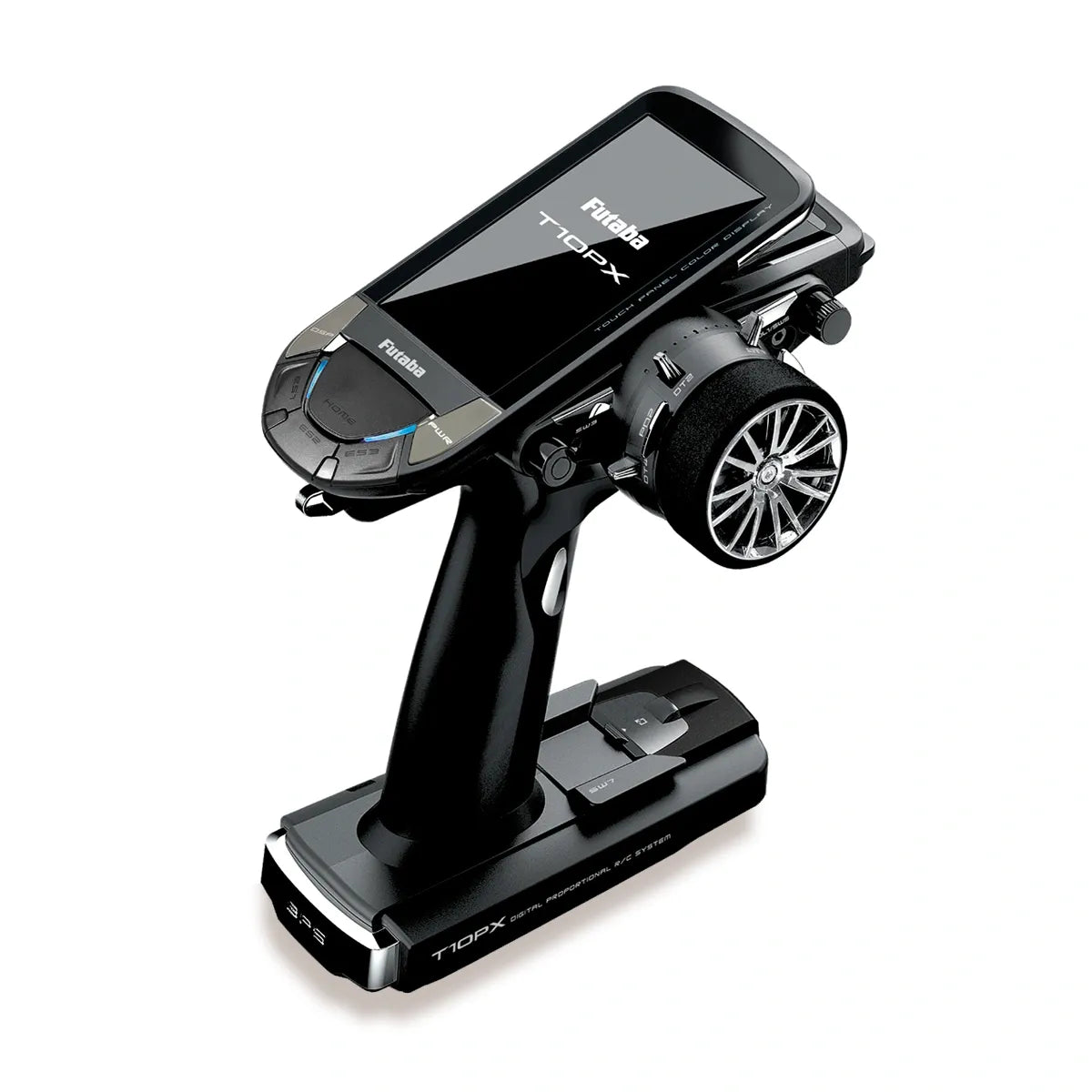

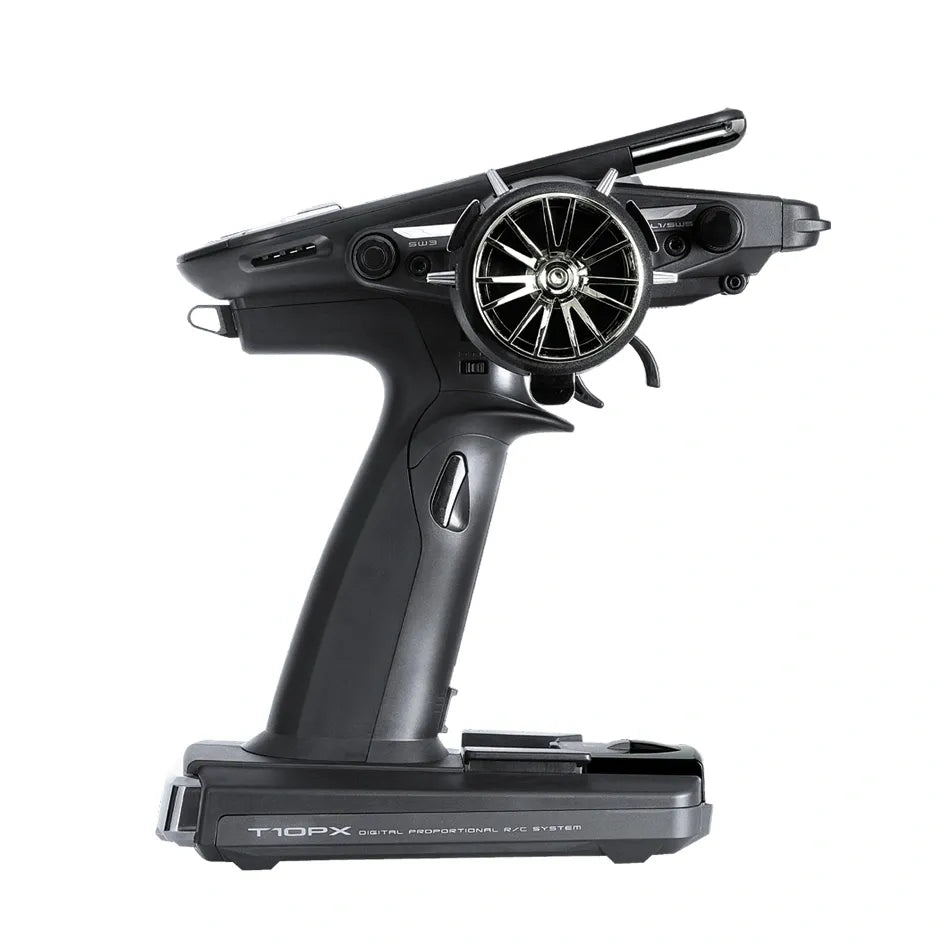

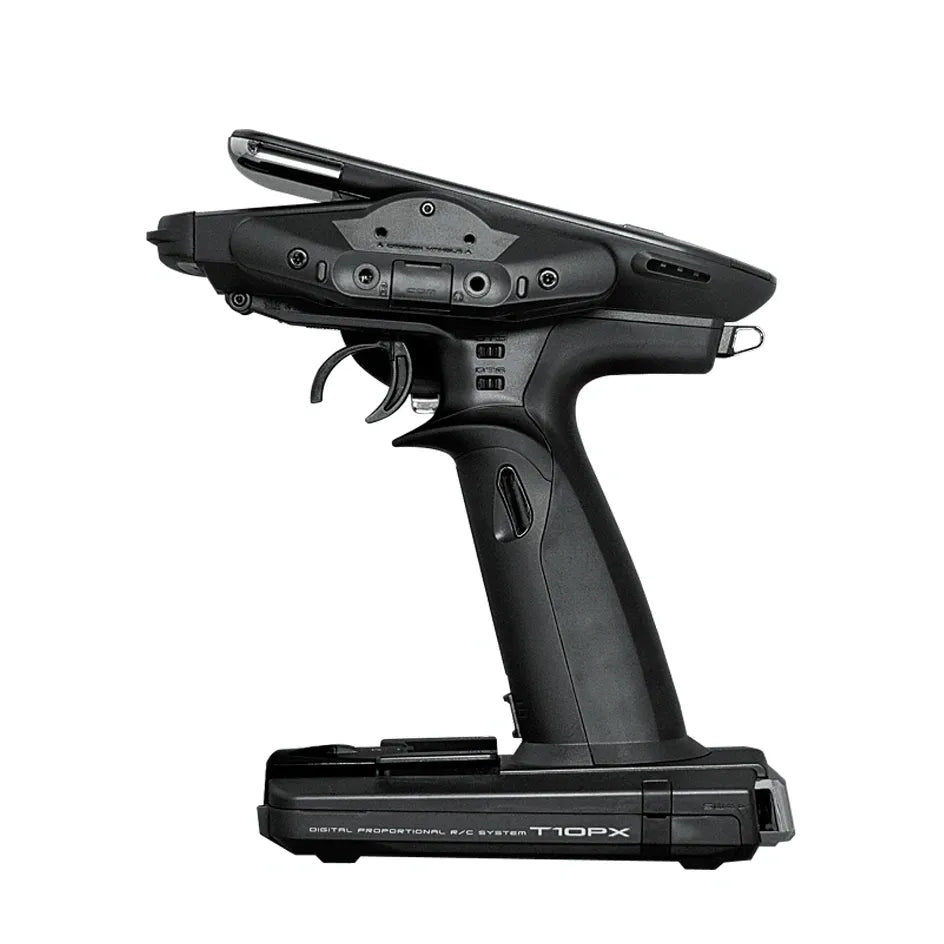

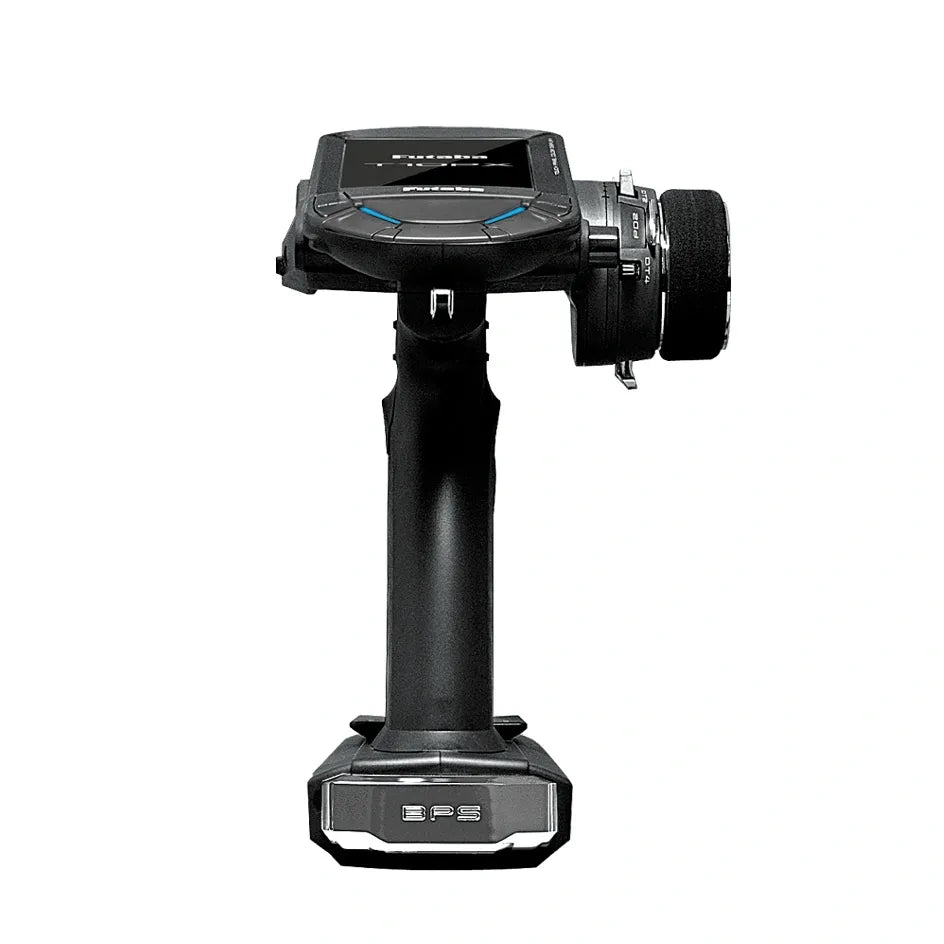

TRANSMITTER SPECS
* WHEEL SYSTEM, 10 CHANNELS (F-4G SYSTEM), 4 CHANNELS WITH TFHSS-SR, T-FHSS SYSTEM
* TRANSMITTING FREQUENCIES: 2.4 GHz band/ -Transmitting RF power output: 100 mW EIRP
* PROTOCOLS: T-FHSS-SR/T-FHSS/S-FHSS/F-4G
* POWER REQUIREMENT: LiPo – NLF2F2000B (7.4 V); LiFe – FT2F1700BV2 (6.6 V)
* CURRENT DRAIN: 350 mA or less (When the T-FHSS, Vibration off, back lighting on)
* TRANSMITTING ANTENNA: 1/2λ dipole
* 4.3 INCH BACKLIGHTED COLOR TFT LIQUID CRYSTAL TOUCH PANEL* *When you turn on your 7PXR, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.

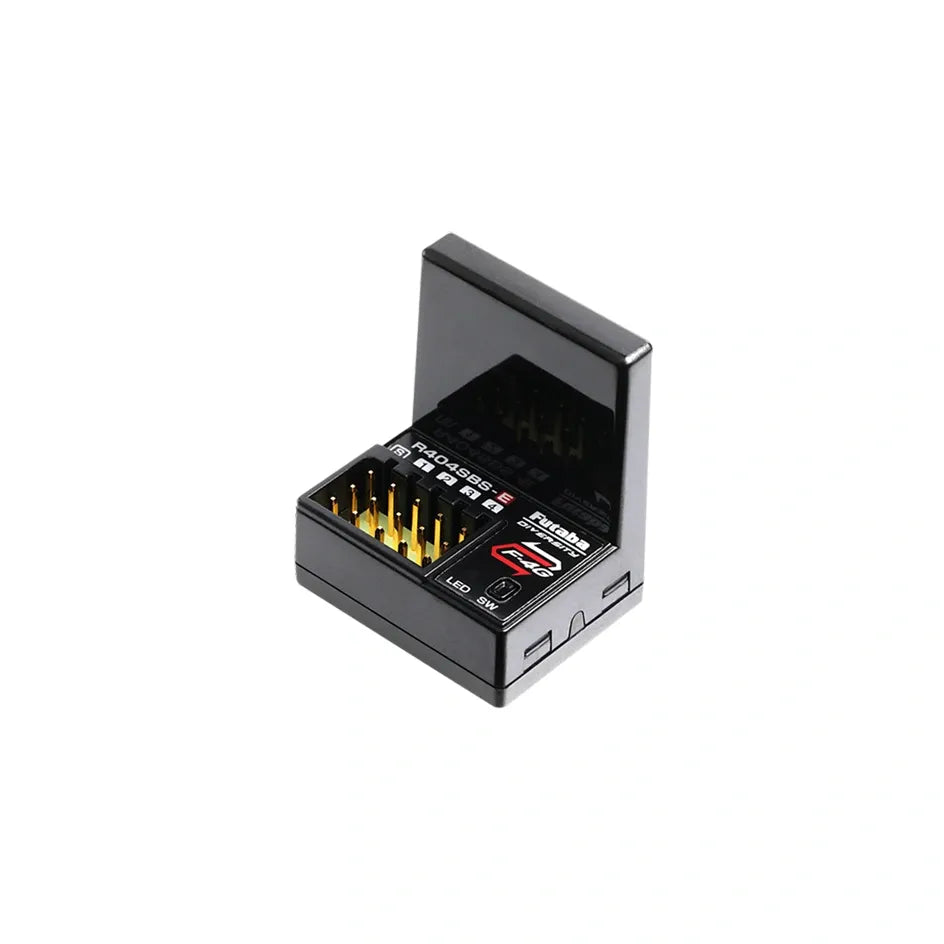

RECEIVER SPECS
* R404SBS-E
* F-4G
* SIZE: 1.00×0.81×0.42 inch; 25.5×20.7×10.6 mm
* WEIGHT: 5.7 g; 0.2 oz
* OPERATING VOLTAGE: DC 3.7-7.4V
