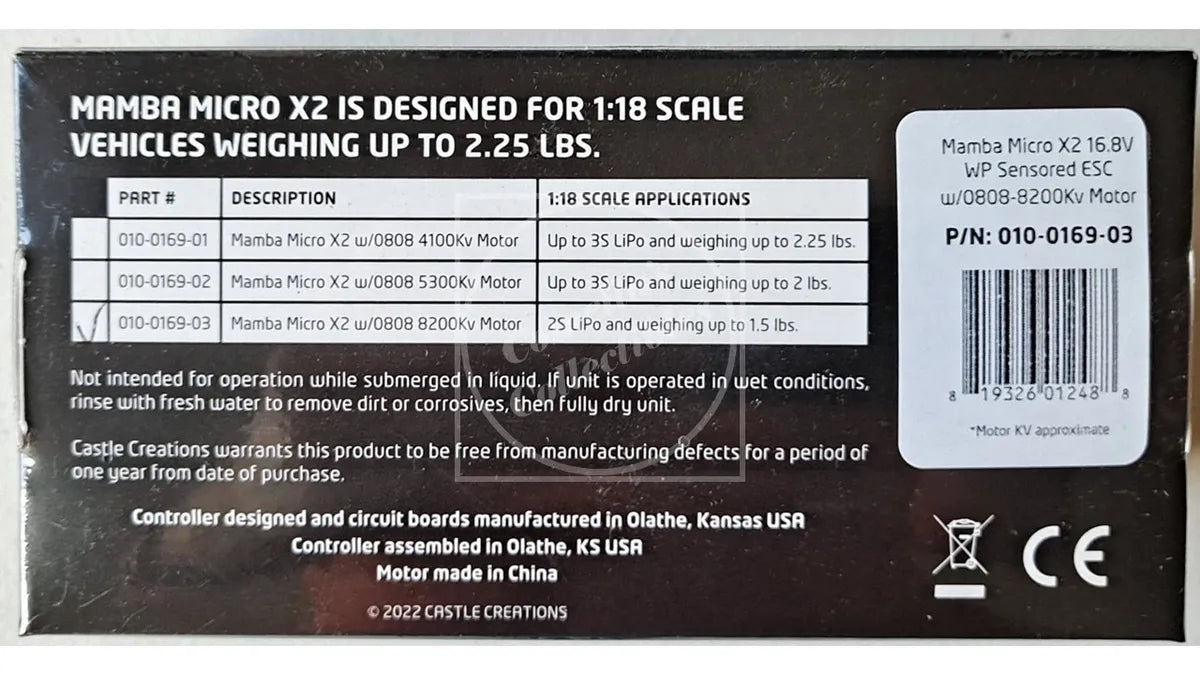

Castle Mamba Micro X2, 16.8V, WP Sensored ESC with 0808-8200KV Motor Combo
Castle Mamba Micro X2, 16.8V, WP Sensored ESC with 0808-8200KV Motor Combo
Regular price
$124.95 USD
Regular price
Sale price
$124.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Castle Mamba Micro X2, 16.8V, WP Sensored ESC with 0808-8200KV Motor Combo in factory sealed retail package.
Ships 1 business day after payment.
Free 30-day returns with 20% restocking fee for opened retail package.
Description:
The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT (included 0808 motor is sensorless).
This is the perfect upgrade for 1:18 scale RC vehicles, up to 2S LiPo and weighing in at up to 1.5lbs.
Features:
* Input Voltage range 2S-3S (with included 0808-4100Kv motor)
* Waterproof design, Included CC BEC is not waterproof (Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.)
* Convenient transmitter programming for six common adjustable settings.
* Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
* Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
* Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
* Audible Alerts that will notify you of possible issues with calibrations and error conditions.
* Backed by Castle's 1-year warranty.
Mamba Micro X2 w/0808-5300Kv Motor Purchase Includes:
* Mamba Micro X2 ESC
* External 10-amp CC BEC
* 0808-5300Kv Brushless Sensorless Motor
* Coupon for free Castle Link USB adapter
* Quick Start Guide
* Castle Decals
Specs:
Electronic Speed Controller:
* Input Voltage Range: 2S-4S LiPo (16.8V Max) (2s LiPo max with included 0808-8200KV motor)
* BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.
* Operating Environment: Waterproof* design allows for use in nearly any environment.
* Brake: Proportional
* Reversible: Yes, but may be disabled.
* On/Off Switch: Yes (waterproof)
* Cooling Fan: Not included
* Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
* Weight (with wires): 1.66 oz / 47 grams
* Connectors: 3.5 mm bullets
* Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
* Application Guidelines: 1:18 scale RC hobby vehicles weighing up to 1.5lbs with included 0808-8200KV motor.
* Max. Recommended Vehicle Weight: 1.5 lbs, with batteries, ready-to-run
* Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
* Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
ESC Notes:
*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Motor:
* Input Voltage Range: 2S LiPo, 4-7 cell NiMH
* Kv: 8200
* Max. RPM: N/A
* Size: Length: 1.5" (38mm) x Diameter: 0.79" (20mm)
* Weight (w/wires): 1.8 oz. (50g)
* Shaft Size: Length: N/A x Diameter: 0.08" (2mm)
* Mounting Hole Specifications: 2.5mm @ 1/2", 14mm, 5/8"
* Cooling Fan: No
* Connectors: 3.5mm gold connectors (female connectors included)
* Items Needed for Operation: You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
* Product Use Statements: Max. operating temperature = 180°F (82°C)
* Application Guidelines: Up to 2S LiPo and weighing in at up to 1.5lbs. (Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo))
* Max. Recommended Vehicle Weight: 1.5lbs
Ships 1 business day after payment.
Free 30-day returns with 20% restocking fee for opened retail package.
Description:
The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT (included 0808 motor is sensorless).
This is the perfect upgrade for 1:18 scale RC vehicles, up to 2S LiPo and weighing in at up to 1.5lbs.
Features:
* Input Voltage range 2S-3S (with included 0808-4100Kv motor)
* Waterproof design, Included CC BEC is not waterproof (Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.)
* Convenient transmitter programming for six common adjustable settings.
* Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
* Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
* Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
* Audible Alerts that will notify you of possible issues with calibrations and error conditions.
* Backed by Castle's 1-year warranty.
Mamba Micro X2 w/0808-5300Kv Motor Purchase Includes:
* Mamba Micro X2 ESC
* External 10-amp CC BEC
* 0808-5300Kv Brushless Sensorless Motor
* Coupon for free Castle Link USB adapter
* Quick Start Guide
* Castle Decals
Specs:
Electronic Speed Controller:
* Input Voltage Range: 2S-4S LiPo (16.8V Max) (2s LiPo max with included 0808-8200KV motor)
* BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.
* Operating Environment: Waterproof* design allows for use in nearly any environment.
* Brake: Proportional
* Reversible: Yes, but may be disabled.
* On/Off Switch: Yes (waterproof)
* Cooling Fan: Not included
* Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
* Weight (with wires): 1.66 oz / 47 grams
* Connectors: 3.5 mm bullets
* Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
* Application Guidelines: 1:18 scale RC hobby vehicles weighing up to 1.5lbs with included 0808-8200KV motor.
* Max. Recommended Vehicle Weight: 1.5 lbs, with batteries, ready-to-run
* Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
* Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
ESC Notes:
*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Motor:
* Input Voltage Range: 2S LiPo, 4-7 cell NiMH
* Kv: 8200
* Max. RPM: N/A
* Size: Length: 1.5" (38mm) x Diameter: 0.79" (20mm)
* Weight (w/wires): 1.8 oz. (50g)
* Shaft Size: Length: N/A x Diameter: 0.08" (2mm)
* Mounting Hole Specifications: 2.5mm @ 1/2", 14mm, 5/8"
* Cooling Fan: No
* Connectors: 3.5mm gold connectors (female connectors included)
* Items Needed for Operation: You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
* Product Use Statements: Max. operating temperature = 180°F (82°C)
* Application Guidelines: Up to 2S LiPo and weighing in at up to 1.5lbs. (Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo))
* Max. Recommended Vehicle Weight: 1.5lbs
