Team Associated

Team Associated RC10 SC6.4 Comp Short Course Truck Kit 2WD 1:10 Electric #70009

Team Associated RC10 SC6.4 Comp Short Course Truck Kit 2WD 1:10 Electric #70009

Regular price $399.99 USD
Regular price Sale price $399.99 USD
Sale Sold out
Shipping calculated at checkout.

Team Associated RC10 SC6.4 Competition Short Course Truck Kit 2WD 1:10 Electric #70009 in factory sealed retail box.

Ships 1 business day after payment.

Free 30 day returns with 20% restocking fee for broken factory seals.

Details:
The RC10SC6.4 shares key components with the RC10T6.4, RC10B6.4, and RC10B74.2 Team Kits, making it easier than ever to run multiple classes at the same time. Suspension and jumping goes through the large-volume 13mm big bore shocks with new truck springs. The new chassis design is a short course truck version of the RC10B6.4 buggy design and gets a new ballstud mount and top plate system with an angled steering for improved consistency. On top of that, racers can tune the steering height, axle trail, and caster inserts for tuning the front end feel. The rear end grip is improved with the optional C and D mounts and 93.5mm CVA bones included in the kit. Suspension linkage rides on the new 3.5mm diameter rod ends and turnbuckles.

The RC10SC6.4 is updated to the latest racing specs to give racers an edge over the competition.

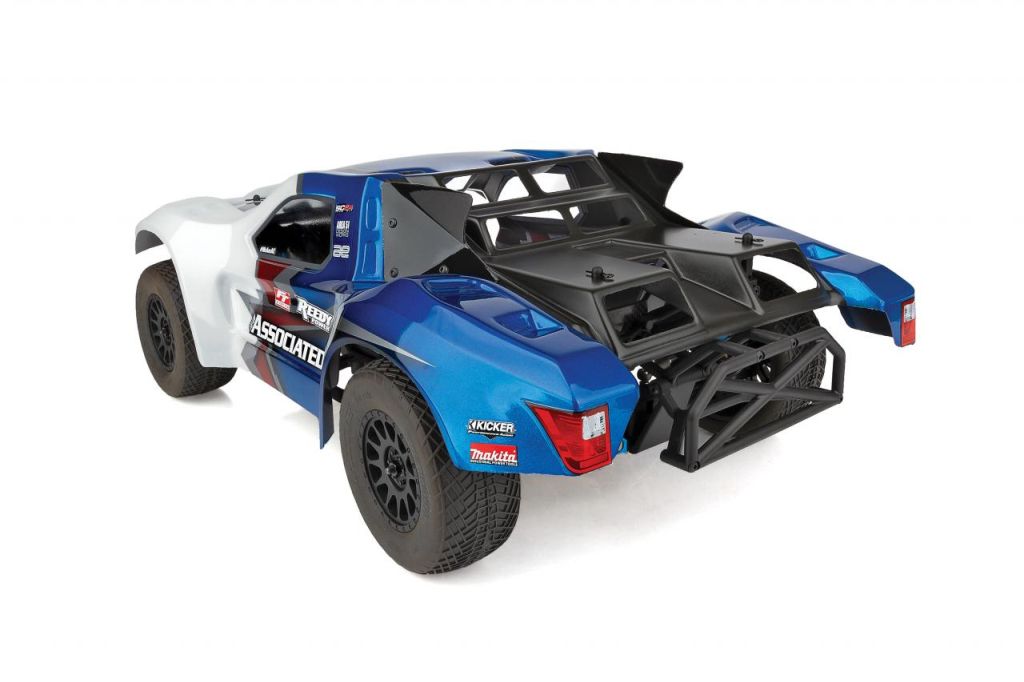

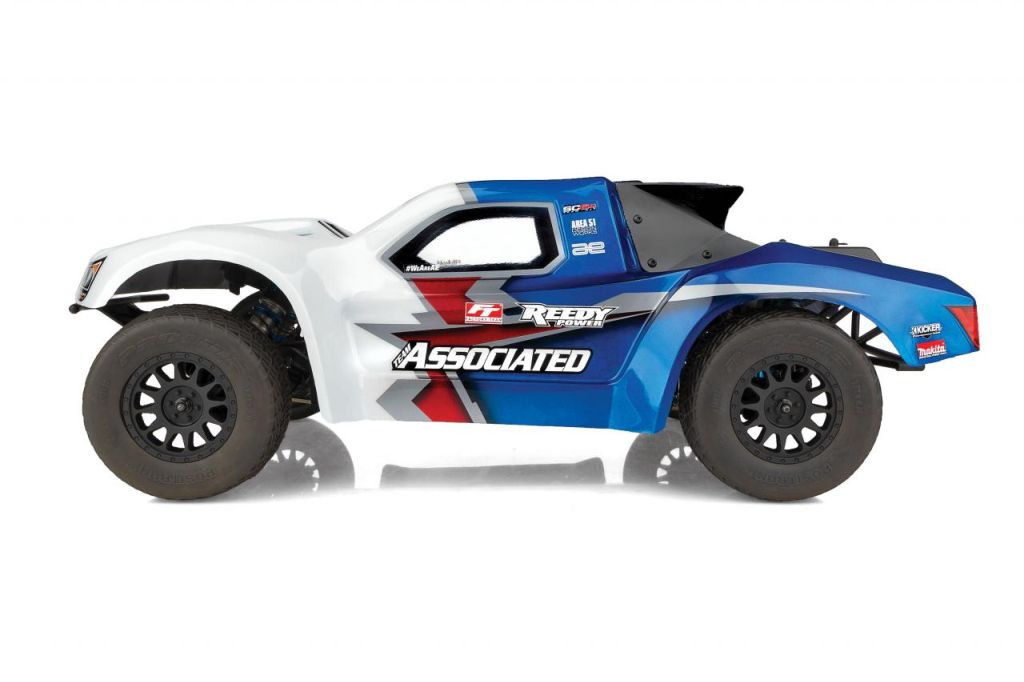

NOTE - This is a kit and requires assembly, paint, and extra equipment. Shown assembled and painted, with components sold separately, for display purposes only.

Updated Features:
- New 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling
- 13mm machined shock pistons, 2x1.6mm front and 2x1.8mm rear
- New front ballstud mount and top plate with angled steering system for improved steering consistency
- New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability
- Updated rear suspension with wider C and D mounts from the RC10B6.4 series
- New longer 92.5mm CVA driveshafts for more rear grip
- 7.0mm blue aluminum rear clamping hexes with laser etching
- New chassis side rails with the RC10B6.4 fan mount system
- New short course truck length aluminum chassis with 22.5 deg. kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface
- 20 deg., 22.5 deg., and 25 deg. molded bulkheads included for a complete range of caster and kickup options
- B6.4 adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles
- B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw
- Aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a weight bias moved further forward
- Factory Team RC10B6.4 11g aluminum ESC tray

Specs:
- Power Source: Electric
- Terrain: Off-Road
- Body Style: Truck
- Scale Size: 1:10 Scale
- Assembly Level: Kit
- Length: varies
- Width: varies
- Wheelbase: 325mm (12.8in)
- Weight: varies
- Drive: 2WD

Required to Complete kit: (some required items are shown in the photos but are not included in this listing)
- Assembly
- 1:10 scale 540-size electric motor (Reedy Sonic line)
- 1:10 scale electronic speed control (27016, 27017, 27033)
- 2-cell LiPo shorty battery packs and Battery charger (#27203)
- 2-channel surface transmitter, and its batteries
- 2-channel receiver - Steering servo
- Pinion gear (48 pitch)
- Polycarbonate RC short course body (#9876)
- Spray paint for polycarbonate body
- 1:10 scale 12mm hex short course wheels (#71040)
- 1:10 scale short course tires and foam inserts
- CA glue for tires and wheels (#1597)
- Thread-locking compound (#1596)

Other helpful items:
Silicone Shock Fluid, Body Scissors, Reamer / Hole Punch, Shock Pliers, Hex Wrenches, Nut Drivers , Hobby Knife, Needle Nose Pliers, Wire Cutters, Calipers or a Precision Ruler
